ASUS PRIME B850M-A WIFI-CSM micro-ATX Motherboard AMD B850 AM5 Chipset DDR5 PCIe 5.0 Wi-Fi 6E – PRIME B850M-A WIFI-CSM
₱12,500.00Original price was: ₱12,500.00.₱10,950.00Current price is: ₱10,950.00.
AMD B850 chipset with AM5 socket for Ryzen 9000, 8000, 7000 Series CPUs
4 x DDR5 DIMM slots, up to 256GB, 8000+ MT/s (OC) with EXPO, AEMP
PCIe 5.0 x16 slot and PCIe 5.0 M.2 slot for next-gen performance
Wi-Fi 6E, Bluetooth 5.3, and Realtek 2.5Gb Ethernet with LANGuard
Three M.2 slots, four SATA 6Gb/s ports with RAID 0/1/5/10 support
Dual DisplayPort (8K@30Hz) and HDMI (4K@60Hz) for high-resolution displays
8+2+1 phase power design with DIGI+ VRM for stable performance
Comprehensive cooling with VRM and M.2 heatsinks, Fan Xpert 2+
ASUS 5X Protection III, Aura Sync RGB, and BIOS FlashBack for reliability
SKU: PRIME B850M-A WIFI-CSM
In stock
ℹ️
For walk-in customers: please always INQUIRE FIRST before visiting as not all items are displayed in our physical store. As an online-first store, most of our inventory is held in our online warehouse and is transferred to the store upon request.
ASUS PRIME B850M-A WIFI-CSM micro-ATX Motherboard AMD B850 AM5 Chipset DDR5 PCIe 5.0 Wi-Fi 6E - PRIME B850M-A WIFI-CSM
Price Drop Alerts & Price History
⚠️ That's a steep drop! You might be waiting a while.
We'll notify you the moment the price hits your target.
ASUS PRIME B850M-A WIFI-CSM Motherboard Product Description
Unlock the full potential of AMD Ryzen 9000, 8000, and 7000 Series processors with the ASUS PRIME B850M-A WIFI-CSM, a feature-rich micro-ATX motherboard designed for advanced AI PC applications and robust performance. Built on the AMD B850 chipset, it supports DDR5 memory up to 256GB and 8000+ MT/s (OC) with EXPO and AEMP for enhanced memory tuning, delivering exceptional speed for demanding workloads. The motherboard features one PCIe 5.0 x16 slot for next-gen graphics and three M.2 slots, including one with PCIe 5.0 x4 for ultra-fast NVMe storage, alongside four SATA 6Gb/s ports with RAID 0/1/5/10 support. Connectivity excels with Wi-Fi 6E, Bluetooth 5.3, and Realtek 2.5Gb Ethernet with LANGuard for stable, high-speed networking. Display outputs include dual DisplayPort (8K@30Hz) and HDMI (4K@60Hz), catering to high-resolution setups. The 8+2+1 phase power design with DIGI+ VRM ensures stable power delivery, while comprehensive cooling with VRM and M.2 heatsinks keeps temperatures in check. ASUS 5X Protection III, including SafeSlot and overvoltage protection, enhances durability, and Aura Sync RGB with three addressable Gen 2 headers offers vibrant customization. With ASUS Control Center Express, BIOS FlashBack, and a 3-year warranty, this motherboard is ideal for business users, DIY builders, and AI-driven computing.
Specification
ASUS PRIME B850M-A WIFI-CSM
Model
PRIME B850M-A WIFI-CSM
CPU Support
AMD Socket AM5 for Ryzen™ 9000, 8000, 7000 Series Desktop Processors
Chipset
AMD B850
Form Factor
mATX (24.4 cm x 24.4 cm)
Memory
4 x DDR5 DIMM, Max. 256GB, Up to 8000+ MT/s (OC), ECC/Non-ECC, Dual Channel, EXPO, AEMP
Graphics Outputs
2 x DisplayPort (8K@30Hz), 1 x HDMI (4K@60Hz)
Expansion Slots
1 x PCIe 5.0 x16 (x16 mode, Ryzen 9000/7000), 1 x PCIe 4.0 x16 (x8/x4 mode, Ryzen 8000), 1 x PCIe 4.0 x16 (x1 mode, B850)
Storage
3 x M.2 (1 x PCIe 5.0 x4, 2 x PCIe 4.0 x4), 4 x SATA 6Gb/s, RAID 0/1/5/10 (Ryzen 9000), RAID 0/1 (Ryzen 8000), RAID 0/1/10 (Ryzen 7000)
Ethernet
1 x Realtek 2.5Gb Ethernet, ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 6E (2x2, 802.11ax, 2.4/5/6GHz), Bluetooth v5.3
USB Ports
Rear: 2 x USB 10Gbps Type-A, 2 x USB 5Gbps Type-A, 4 x USB 2.0 Type-A; Front: 1 x USB 5Gbps Type-C, 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports)

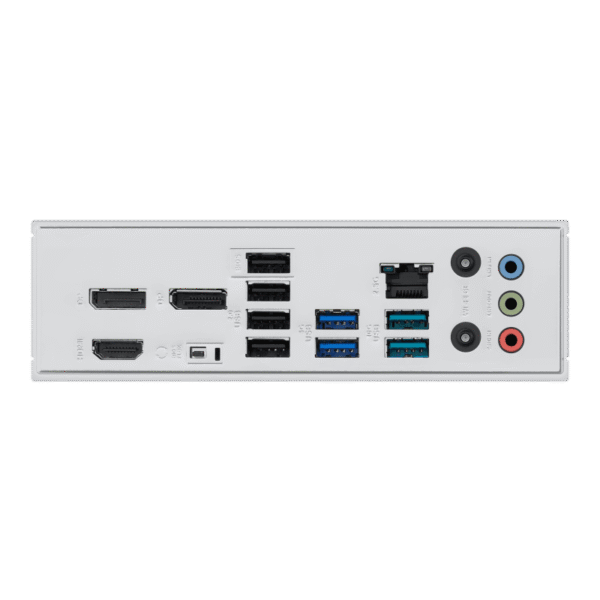

2 x USB 10Gbps Type-A, 2 x USB 5Gbps Type-A, 4 x USB 2.0 Type-A, 2 x DisplayPort, 1 x HDMI, 1 x Wi-Fi Module, 1 x 2.5Gb Ethernet, 3 x Audio Jacks, 1 x BIOS FlashBack Button
Internal I/O
1 x 24-pin Power, 1 x 8-pin +12V, 1 x 4-pin +12V, 1 x CPU Fan, 1 x CPU OPT Fan, 1 x AIO Pump, 3 x Chassis Fan, 3 x M.2, 4 x SATA 6Gb/s, 1 x USB 5Gbps Type-C, 1 x USB 5Gbps Header, 2 x USB 2.0 Headers, 3 x Addressable RGB Gen 2, 1 x Clear CMOS, 1 x Chassis Intrusion, 1 x COM Port, 1 x Front Audio, 1 x S/PDIF Out, 1 x SPI TPM, 1 x System Panel
Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 2+), ASUS AI Advisor, ASUS Driver Hub, ASUS GlideX, TurboV Core, ASUS CPU-Z, Norton 360 Deluxe (60 Days), WinRAR (40 Days)
BIOS
256 Mb Flash ROM, UEFI AMI BIOS, ASUS CrashFree BIOS 3, EZ Flash 3, EZ Mode, MyHotkey
Manageability
WOL by PME, PXE
Accessories
2 x SATA 6Gb/s Cables, 1 x ASUS WiFi Q-Antenna, 1 x M.2 Rubber Package, 2 x M.2 SSD Screw Packages, 1 x Quick Start Guide, 1 x ACC Express Activation Key Card
Operating System
Windows 11, Windows 10 64-bit
Warranty
3 Years
Packaging Weight
1.7 kg
Packaging Dimensions (L×W×H)
31 × 29 × 8 cm
Brand
Asus
