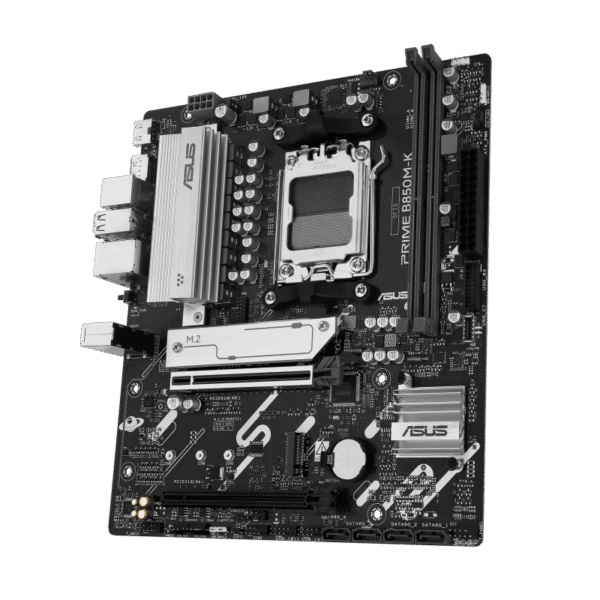

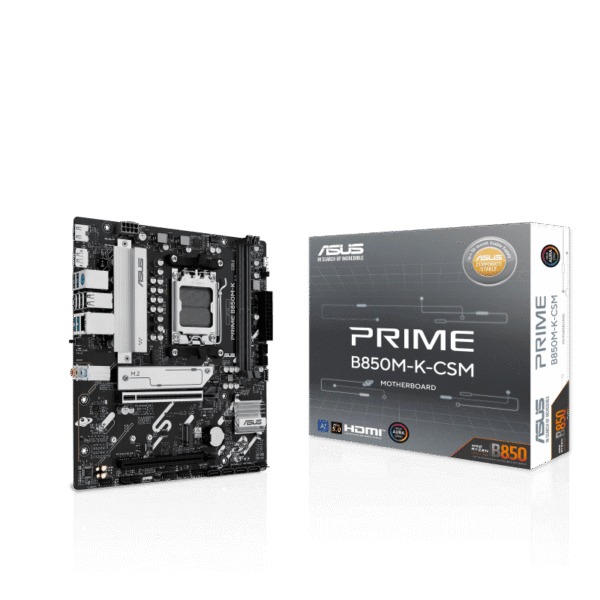

ASUS PRIME B850M-K-CSM micro-ATX Motherboard AMD B850 Chipset DDR5 PCIe 5.0 – PRIME B850M-K-CSM
₱9,400.00Original price was: ₱9,400.00.₱8,195.00Current price is: ₱8,195.00.
AMD B850 chipset with AM5 socket for Ryzen 9000, 8000, 7000 Series CPUs
2 x DDR5 DIMM slots, up to 128GB, 8200+ MT/s (OC, Ryzen 9000), 8400+ MT/s (OC, Ryzen 8000), 8000+ MT/s (OC, Ryzen 7000)
PCIe 5.0 x16 slot and PCIe 5.0 M.2 slot for high-speed performance
Realtek 2.5Gb Ethernet with LANGuard, USB 10Gbps Type-A, USB 5Gbps Type-C
Two M.2 slots, four SATA 6Gb/s ports with RAID 0/1/5/10 support
DisplayPort (8K@30Hz), HDMI (4K@60Hz) for high-resolution displays
8+2+1 phase power design with DIGI+ VRM for stable operation
VRM and M.2 heatsinks with Fan Xpert 2+ for efficient cooling
ASUS 5X Protection III, Aura Sync RGB, BIOS FlashBack, 36-month CSM support
SKU: PRIME B850M-K-CSM
In stock
ℹ️
For walk-in customers: please always INQUIRE FIRST before visiting as not all items are displayed in our physical store. As an online-first store, most of our inventory is held in our online warehouse and is transferred to the store upon request.
ASUS PRIME B850M-K-CSM micro-ATX Motherboard AMD B850 Chipset DDR5 PCIe 5.0 - PRIME B850M-K-CSM
Price Drop Alerts & Price History
⚠️ That's a steep drop! You might be waiting a while.
We'll notify you the moment the price hits your target.
ASUS PRIME B850M-K-CSM Motherboard Product Description
Engineered for peak performance, the ASUS PRIME B850M-K-CSM micro-ATX motherboard maximizes the capabilities of AMD Ryzen 9000, 8000, and 7000 Series processors on the AMD B850 chipset. Designed for Advanced AI PC applications, it supports up to 128GB DDR5 memory with speeds up to 8200+ MT/s (OC) for Ryzen 9000, 8400+ MT/s for Ryzen 8000, and 8000+ MT/s for Ryzen 7000, leveraging EXPO and AEMP for superior memory tuning. The board features a PCIe 5.0 x16 slot for next-gen graphics and two M.2 slots, including one with PCIe 5.0 x4 for ultra-fast NVMe storage, alongside four SATA 6Gb/s ports with RAID 0/1/5/10 support. Its 8+2+1 phase power design with DIGI+ VRM ensures stable power delivery, while VRM and M.2 heatsinks, paired with Fan Xpert 2+, provide robust cooling for demanding workloads. Connectivity includes Realtek 2.5Gb Ethernet with LANGuard, USB 10Gbps Type-A, and USB 5Gbps Type-C for rapid data transfers. Display outputs support 8K@30Hz via DisplayPort and 4K@60Hz via HDMI. ASUS 5X Protection III, featuring SafeSlot and overvoltage protection, enhances durability, while Aura Sync RGB and BIOS FlashBack simplify customization and updates. With ASUS Corporate Stable Model (CSM) offering up to 36-month lifecycle support and ASUS Control Center Express for IT management, this motherboard is perfect for business users and DIY builders seeking reliability and performance.
AMD Socket AM5 for Ryzen 9000, 8000, 7000 Series Desktop Processors
Chipset
AMD B850
Form Factor
micro-ATX (24.4 cm x 22.1 cm)
Memory
2 x DDR5 DIMM, Max. 128GB, Up to 8200+ MT/s (OC, Ryzen 9000), 8400+ MT/s (OC, Ryzen 8000), 8000+ MT/s (OC, Ryzen 7000), ECC/Non-ECC, Dual Channel, EXPO, AEMP
Graphics Outputs
1 x DisplayPort (8K@30Hz), 1 x HDMI (4K@60Hz)
Expansion Slots
1 x PCIe 5.0 x16 (x16 mode, Ryzen 9000/7000), 1 x PCIe 4.0 x16 (x8/x4 mode, Ryzen 8000), 1 x PCIe 4.0 x16 (x4 mode, B850)
Storage
2 x M.2 (1 x PCIe 5.0 x4, 1 x PCIe 4.0 x4), 4 x SATA 6Gb/s, RAID 0/1/5/10 (Ryzen 9000), RAID 0/1 (Ryzen 8000), RAID 0/1/10 (Ryzen 7000)
Ethernet
1 x Realtek 2.5Gb Ethernet, ASUS LANGuard
USB Ports
Rear: 2 x USB 10Gbps Type-A, 2 x USB 5Gbps Type-A, 4 x USB 2.0 Type-A; Front: 1 x USB 5Gbps Type-C, 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports)
2 x USB 10Gbps Type-A, 2 x USB 5Gbps Type-A, 4 x USB 2.0 Type-A, 1 x DisplayPort, 1 x HDMI, 1 x Realtek 2.5Gb Ethernet, 3 x Audio Jacks, 1 x BIOS FlashBack Button, 1 x PS/2 Keyboard/Mouse Combo
Internal I/O
1 x 24-pin Power, 1 x 8-pin +12V, 1 x CPU Fan, 3 x Chassis Fan, 2 x M.2, 4 x SATA 6Gb/s, 1 x USB 5Gbps Type-C, 1 x USB 5Gbps Header, 2 x USB 2.0 Headers, 3 x Addressable RGB Gen 2, 1 x Clear CMOS, 1 x COM Port, 1 x Front Audio, 1 x S/PDIF Out, 1 x SPI TPM, 1 x System Panel
