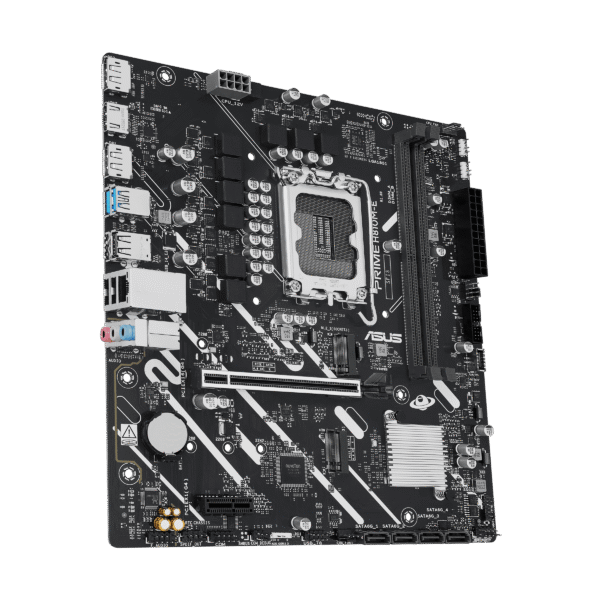

ASUS PRIME H810M-E-CSM Micro ATX Motherboard Intel H810 DDR5 PCIe 4.0 - PRIME H810M-E-CSM

ASUS PRIME H810M-E-CSM Micro ATX Motherboard Intel H810 DDR5 PCIe 4.0 – PRIME H810M-E-CSM

Original price was: ₱8,730.00.Current price is: ₱7,595.00.

Supports Intel Core Ultra Processors (Series 2) with LGA1851 socket
Dual-channel DDR5 up to 6400 MT/s with DIMM Fit and AEMP II
Two M.2 slots with PCIe 4.0 for fast storage performance
PCIe 4.0 x16 slot with SafeSlot Core+ for robust graphics support
USB 10Gbps Type-A and USB 5Gbps Type-C for rapid connectivity
Comprehensive cooling with VRM heatsinks and Fan Xpert 2+
ASUS Corporate Stable Model with up to 36-month lifecycle support
SKU: PRIME H810M-E-CSM

In stock

Price Drop Alerts & Price History

We'll notify you the moment the price hits your target.

💡 Suggested alert: ₱7,200 [ Use this ]

Want to track and manage your alerts? Sign in or create an account.

SKU: PRIME H810M-E-CSM Categories: Intel LGA 1851 Motherboards, Motherboards Tag: Asus

The ASUS PRIME H810M-E-CSM motherboard delivers reliable performance for Intel Core Ultra Processors (Series 2), making it an ideal choice for compact, AI-ready workstations and productivity builds. Its micro-ATX design supports dual-channel DDR5 memory with DIMM Fit and DIMM Fit Pro for optimized performance up to 6400 MT/s. Two M.2 slots with PCIe 4.0 support ensure fast storage speeds, while a PCIe 4.0 x16 slot with SafeSlot Core+ provides robust graphics card support. The 6+1+1+1 phase digital power design and Digi+ VRM control deliver stable power for demanding tasks. Comprehensive cooling with VRM heatsinks and Fan Xpert 2+ ensures efficient thermal management. Connectivity includes USB 10Gbps Type-A and USB 5Gbps Type-C ports for rapid data transfer, complemented by a 1Gb Ethernet port with LANGuard for reliable networking. Realtek 7.1 Surround Sound with premium audio capacitors offers immersive audio. Aura Sync RGB lighting enables vibrant customization, and the ASUS Corporate Stable Model program provides up to 36-month lifecycle support with ASUS Control Center Express for IT management. This motherboard combines advanced connectivity, durability, and user-friendly features for efficient, high-performance builds.

Specification	ASUS PRIME H810M-E-CSM
CPU	Intel® Core™ Ultra Processors (Series 2), LGA1851
Chipset	Intel® H810 Chipset
Memory	2 x DIMM, max. 128GB, DDR5 up to 6400MT/s, Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM), Dual Channel, Supports Intel® XMP, ASUS Enhanced Memory Profile II (AEMP II), DIMM Fit
Graphics	1 x DisplayPort (4K@60Hz), 1 x HDMI™ (4K@60Hz)
Expansion Slots	1 x PCIe 4.0 x16 (CPU), 1 x PCIe 4.0 x1 (Chipset)
Storage	2 x M.2 slots (M.2_1: 2280, PCIe 4.0 x4; M.2_2: 2242/2260/2280, PCIe 4.0 x2), 4 x SATA 6Gb/s ports
Ethernet	1 x Intel® 1Gb Ethernet, ASUS LANGuard
Wireless & Bluetooth	V-M.2 slot (Key E, CNVi & PCIe, Wi-Fi module sold separately)
USB	Rear: 2 x USB 10Gbps (Type-A), 4 x USB 2.0 (Type-A); Front: 1 x USB 5Gbps (Type-C, max. 5V/3A), 1 x USB 5Gbps header (2 ports), 1 x USB 2.0 header (2 ports)
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC, Supports 24-Bit/192 kHz playback, Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers

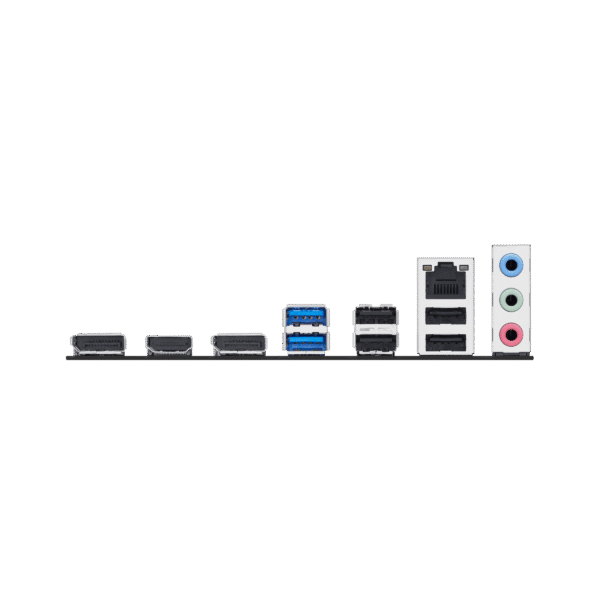

Back Panel I/O Ports	2 x USB 10Gbps (Type-A), 4 x USB 2.0 (Type-A), 1 x DisplayPort, 1 x HDMI™, 1 x V-M.2 slot (Key E), 1 x Intel® 1Gb Ethernet, 3 x Audio jacks, 1 x PS/2 keyboard/mouse combo
Internal I/O Connectors	1 x 24-pin Main Power, 1 x 8-pin +12V CPU Power, 2 x M.2 slots, 4 x SATA 6Gb/s, 1 x 4-pin CPU Fan, 2 x 4-pin Chassis Fan, 1 x USB 5Gbps (Type-C), 1 x USB 5Gbps header (2 ports), 1 x USB 2.0 header (2 ports), 3 x Addressable Gen2 headers, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header, 1 x S/PDIF Out header, 1 x SPI TPM header, 1 x 10-1 pin Front Panel System header
Special Features	ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage protection, SafeSlot Core+, Stainless-steel back I/O), ASUS Q-Design (Q-DIMM, Q-Dashboard, Q-LED Core, Q-Slot), ASUS Thermal Solution (VRM heatsink), Aura Sync
Software Features	Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 2+, Power Saving), ASUS DriverHub, ASUS CPU-Z, Norton 360 Deluxe (60 Days Free Trial), WinRAR (40 Days Free Trial), ASUS Control Center Express
BIOS	256 (128+128) Mb Flash ROM, UEFI AMI BIOS, ASUS EZ DIY (CrashFree BIOS 3, EZ Flash, UEFI BIOS EZ Mode, MyHotkey)
Manageability	WOL by PME, PXE
Accessories	2 x SATA 6Gb/s cables, 1 x I/O shield, 1 x Screw package for M.2 SSD, 1 x ACC Express activation key card, 1 x Quick start guide
Operating System	Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)
Form Factor	micro-ATX (9.6 inch x 8.75 inch)
