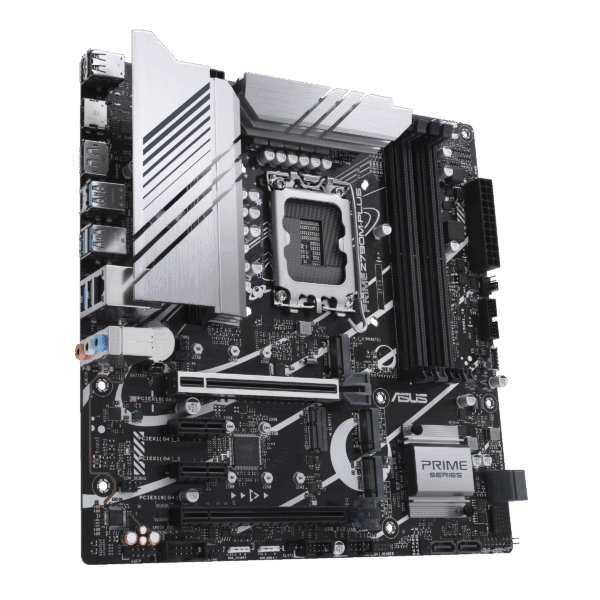

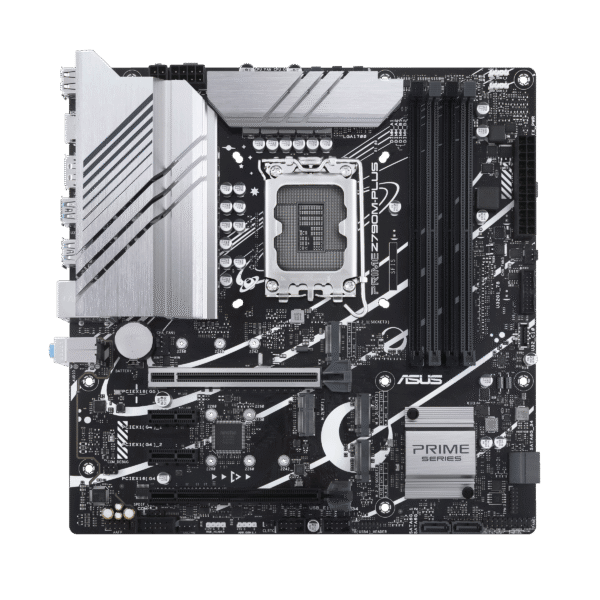

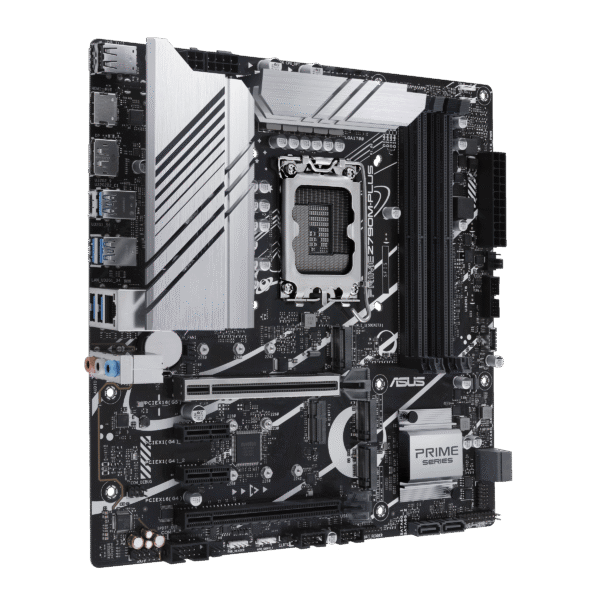

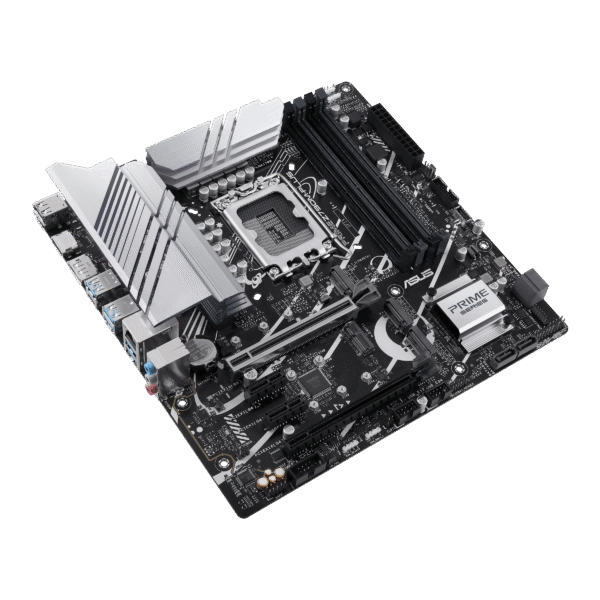

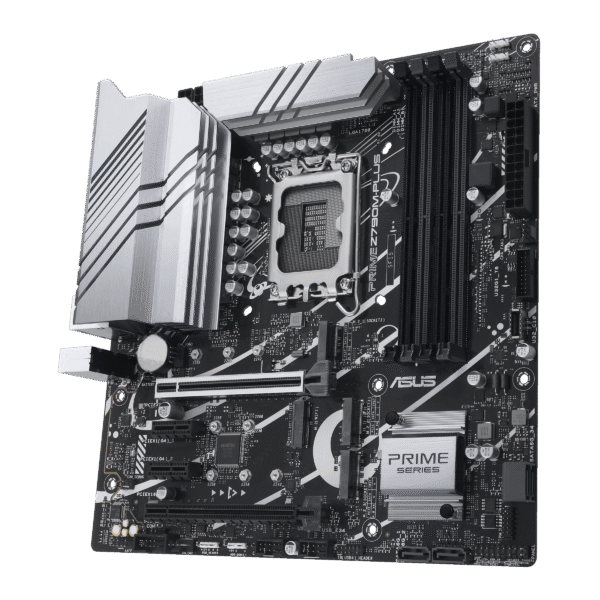

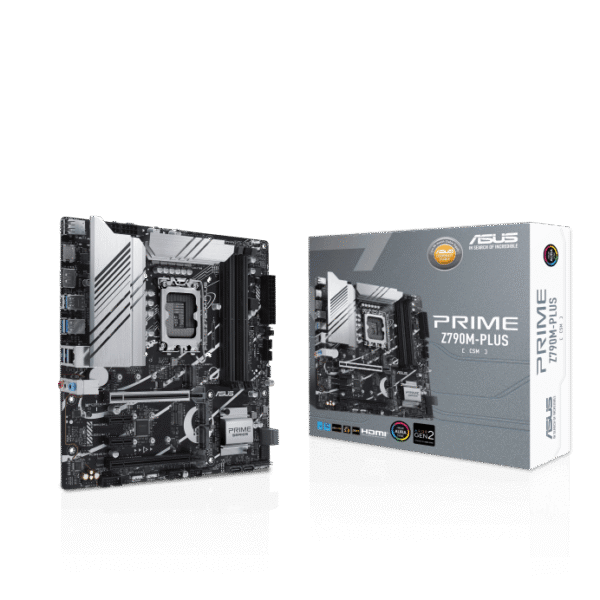

ASUS PRIME Z790M-PLUS-CSM mATX Intel Z790 LGA1700 DDR5 PCIe 5.0 Motherboard – PRIME Z790M-PLUS-CSM
₱17,200.00Original price was: ₱17,200.00.₱14,995.00Current price is: ₱14,995.00.
ASUS PRIME Z790M-PLUS-CSM mATX motherboard for Intel® 14th/13th/12th Gen
Supports DDR5 7200+(OC), up to 192GB, Intel® Z790 chipset
1 x PCIe 5.0 x16, 3 x M.2 PCIe 4.0, 4 x SATA 6Gb/s
USB 3.2 Gen 2×2 Type-C, Intel® 1Gb Ethernet, ASUS LANGuard
Realtek 7.1 audio, Aura Sync RGB with addressable headers
ASUS 5X PROTECTION III, Fan Xpert 4, AI Cooling II, 192Mb BIOS
Out of stock
ℹ️
For walk-in customers: please always INQUIRE FIRST before visiting as not all items are displayed in our physical store. As an online-first store, most of our inventory is held in our online warehouse and is transferred to the store upon request.
ASUS PRIME Z790M-PLUS-CSM mATX Intel Z790 LGA1700 DDR5 PCIe 5.0 Motherboard - PRIME Z790M-PLUS-CSM
Restock & Price Alerts
⚠️ That's a steep drop! You might be waiting a while.
We'll email you the moment this is back in stock. If you enter a target price, we'll also send you a separate alert if the price drops to your goal later!
Build a powerful and compact PC with the ASUS PRIME Z790M-PLUS-CSM, a micro-ATX motherboard engineered for Intel® 14th, 13th, and 12th Gen Core™ processors. Featuring the Intel® Z790 chipset, this motherboard supports up to 192GB of DDR5 memory at speeds up to 7200+(OC), delivering blazing-fast performance for gaming, content creation, and multitasking. The PCIe 5.0 x16 slot ensures compatibility with next-generation GPUs, while three M.2 slots with PCIe 4.0 x4 support provide rapid storage for SSDs. With a robust 10+1 DrMOS VRM design and VRM heatsinks, it offers stable power delivery and efficient cooling for overclocking. Connectivity is exceptional, with a USB 3.2 Gen 2×2 Type-C port at 20Gbps, multiple USB 3.2 Gen 1 ports, and Intel® 1Gb Ethernet with ASUS LANGuard for reliable networking. The Realtek 7.1 Surround Sound audio with premium capacitors ensures immersive sound quality. Aura Sync RGB lighting with addressable Gen 2 headers and an RGB header adds vibrant customization to your build. ASUS 5X PROTECTION III, including DIGI+ VRM, SafeSlot Core+, and stainless-steel I/O, ensures durability and reliability. Software like Armoury Crate with Fan Xpert 4 and AI Cooling II optimizes performance, while ASUS EZ DIY features like Q-DIMM and Q-Slot simplify assembly. Backed by a 192Mb UEFI BIOS with CrashFree BIOS 3 and a comprehensive accessory kit, the ASUS PRIME Z790M-PLUS-CSM is the ideal foundation for compact, high-performance PC builds.
Specification
Details
Model
PRIME Z790M-PLUS-CSM
CPU
Intel® Socket LGA1700 for 14th, 13th, 12th Gen Core™, Pentium® Gold, Celeron® Processors; Supports Intel® Turbo Boost 2.0, Turbo Boost Max 3.0
Chipset
Intel® Z790 Chipset
Memory
4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered, Dual Channel, Intel® XMP, OptiMem II
Graphics
1 x DisplayPort (4K@60Hz, DP 1.4), 1 x HDMI (4K@60Hz, HDMI 2.1)
Expansion Slots
1 x PCIe 5.0 x16 (CPU), 1 x PCIe 4.0 x16 (x4 mode, Chipset), 2 x PCIe 4.0 x1 (Chipset)
1 x M.2 slot (Key E, CNVi & PCIe, Wi-Fi module sold separately)
USB

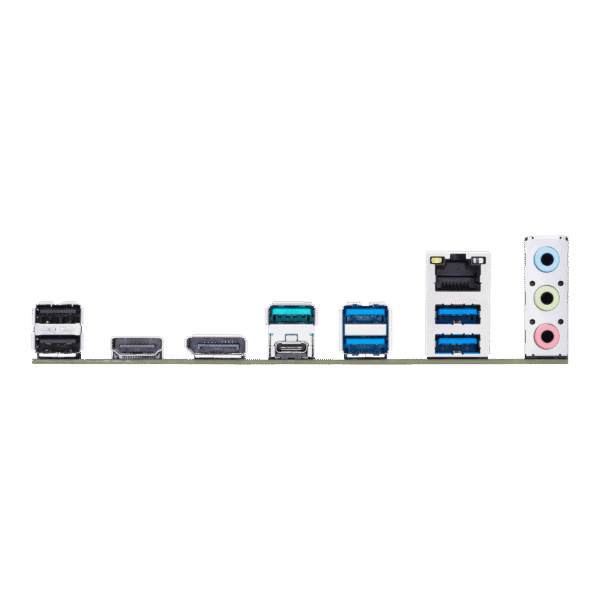

Rear: 1 x USB 3.2 Gen 2x2 (Type-C), 1 x USB 3.2 Gen 2 (Type-A), 4 x USB 3.2 Gen 1 (Type-A), 2 x USB 2.0 (Type-A); Front: 1 x USB 3.2 Gen 1 (Type-C), 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (4 ports)
1 x USB 3.2 Gen 2x2 (Type-C), 1 x USB 3.2 Gen 2 (Type-A), 4 x USB 3.2 Gen 1 (Type-A), 2 x USB 2.0 (Type-A), 1 x DisplayPort, 1 x HDMI, 1 x Intel® 1Gb Ethernet, 3 x Audio jacks
Internal I/O Connectors
1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 1 x 4-pin AIO Pump, 3 x 4-pin Chassis Fan, 1 x 24-pin Main Power, 1 x 8-pin +12V Power, 1 x 4-pin +12V Power, 3 x M.2, 4 x SATA 6Gb/s, 1 x USB 3.2 Gen 1 (Type-C), 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers, 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x Clear CMOS, 1 x COM Port, 1 x Front Panel Audio, 1 x M.2 (Key E), 1 x S/PDIF Out, 1 x SPI TPM, 1 x System Panel, 1 x Thunderbolt™ (USB4®) header
Special Features
ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O), ASUS Q-Design (Q-DIMM, Q-LED Core, Q-Slot), ASUS Thermal Solution (VRM heatsink), ASUS EZ DIY (ProCool), Aura Sync (RGB header, Addressable Gen 2 headers)
Software Features
Armoury Crate (Aura Sync, Fan Xpert 4 with AI Cooling II, Power Saving), AI Suite 3 (TurboV EVO, DIGI+ VRM, PC Cleaner), ASUS CPU-Z, Norton 360 Deluxe (60 Days Free Trial), WinRAR
BIOS
192 (128+64) Mb Flash ROM, UEFI AMI BIOS, ASUS CrashFree BIOS 3, EZ Flash 3, EZ Mode
Manageability
WOL by PME, PXE
Accessories
2 x SATA 6Gb/s cables, 1 x I/O Shield, 2 x M.2 SSD screw packages, 1 x ACC Express Activation Key Card, 1 x User guide
Operating System
Windows® 11, Windows® 10 64-bit
Form Factor
mATX, 9.6 x 9.6 inch (24.4 x 24.4 cm)
Notes
Wi-Fi module sold separately; check CPU/Memory support at www.asus.com; PCIe bifurcation details at https://www.asus.com/support/FAQ/1037507/
Weight
1.7 kg
Dimensions
31 × 29 × 8 cm
Brand
Asus
Desktop RAM
DDR5
Socket
LGA 1700 CPU
