GIGABYTE Z790M A ELITE AX ICE Micro-ATX Intel Z790 LGA1700 DDR5 PCIe 5.0 Motherboard – GA-Z790M-A-ELITE-AX-ICE
Original price was: ₱15,700.00.₱13,695.00Current price is: ₱13,695.00.
- GIGABYTE GA-Z790M-A-ELITE-AX-ICE Micro-ATX for Intel® 14th/13th/12th Gen
- DDR5 7600MT/s (OC), up to 256GB, Intel Z790 chipset
- PCIe 5.0 x16, 3 x M.2 (PCIe 4.0), 6 x SATA 6Gb/s
- Wi-Fi 6E, 2.5Gb LAN, USB 3.2 Gen 2×2 Type-C, ALC1220 audio
- 12+1+1 VRM, EZ-Latch Plus, RGB Fusion 2.0, Micro-ATX design
In stock
Price Drop Alerts & Price History
We'll notify you the moment the price hits your target.
💡 Suggested alert: ₱13,000 [ Use this ]
Want to track and manage your alerts? Sign in or create an account.
-
Authorized
Dealer -
Nationwide
Shipping -
Store &
RMA HUB -
Expert
Support -
7-Day DOA
Protection -
Community
Trusted -
Turnstile
Protected -
reCAPTCHA
Secured -
Tested &
Verified
Upgrade your gaming PC with the GIGABYTE GA-Z790M-A-ELITE-AX-ICE, a Micro-ATX motherboard optimized for Intel® 14th, 13th, and 12th Gen Core™ processors. Featuring the Intel Z790 chipset, it supports up to 256GB of DDR5 memory at speeds up to 7600MT/s (OC), delivering top-tier performance. The PCIe 5.0 x16 slot supports high-end GPUs, while three M.2 slots (PCIe 4.0) offer fast storage up to 64Gbps. A 12+1+1 phase VRM ensures stable power for CPUs like the Intel Core i7-14700K. Advanced cooling with M.2 Thermal Guard and VRM heatsinks keeps your system cool. Wi-Fi 6E and USB 3.2 Gen 2×2 Type-C provide fast connectivity. EZ-Latch Plus simplifies M.2 and PCIe installation, and RGB Fusion 2.0 adds a stylish white aesthetic. Perfect for compact, high-performance Intel builds.
| Specification | Details |
|---|---|
| Model | GIGABYTE GA-Z790M-A-ELITE-AX-ICE |
| CPU | LGA1700: Intel® 14th/13th/12th Gen Core™, Pentium® Gold, Celeron® Processors |
| Chipset | Intel® Z790 Express Chipset |
| Memory | 4 x DDR5 DIMM, up to 256GB, 7600(O.C.)/7400(O.C.)/7200(O.C.)/7000(O.C.)/6800(O.C.)/6600(O.C.)/6400(O.C.)/6200(O.C.)/6000(O.C.)/5800(O.C.)/5600(O.C.)/5400(O.C.)/5200(O.C.)/4800/4000 MT/s, ECC/Non-ECC Un-buffered, Dual Channel, XMP |
| Onboard Graphics | 1 x HDMI (4096x2160@60Hz, HDMI 2.1, HDCP 2.3), 1 x DisplayPort (4096x2304@60Hz, DP 1.2, HDCP 2.3) |
| Expansion Slots | CPU: 1 x PCIe 5.0 x16 (PCIEX16); Chipset: 1 x PCIe 4.0 x16 (x4 mode, PCIEX4) |
| Storage | CPU: 1 x M.2 (2280, PCIe 4.0 x4/x2, M2A_CPU); Chipset: 1 x M.2 (2280, PCIe 4.0 x4/x2, M2Q_SB), 1 x M.2 (22110/2280, PCIe 4.0 x4/x2, M2P_SB); 6 x SATA 6Gb/s; RAID 0/1/5/10 (NVMe/SATA) |
| Audio | Realtek ALC1220 7.1-channel, DSD Support, S/PDIF Out |
| LAN | Realtek 2.5GbE (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless | Wi-Fi 6E (Intel AX211 or Realtek RTL8852CE, 2.4/5/6GHz, 11ax 160MHz), Bluetooth 5.3 |
| USB | Rear: 1 x USB 3.2 Gen 2x2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, 4 x USB 2.0; Front: 1 x USB 3.2 Gen 2 Type-C, 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (4 ports) |
| Internal I/O Connectors | 1 x 24-pin ATX, 1 x 8-pin 12V, 1 x 4-pin 12V, 1 x CPU Fan, 1 x CPU Fan/Water Cooling, 3 x System Fan, 1 x System Fan/Pump, 2 x ARGB, 2 x RGB, 3 x M.2, 6 x SATA 6Gb/s, 1 x Front Panel, 1 x Front Panel Audio, 1 x USB 3.2 Gen 2 Type-C, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers, 2 x Thunderbolt Add-in, 1 x TPM, 1 x Serial Port, 1 x Reset Button, 1 x Q-Flash Plus Button, 1 x Clear CMOS Button, 1 x Reset Jumper |

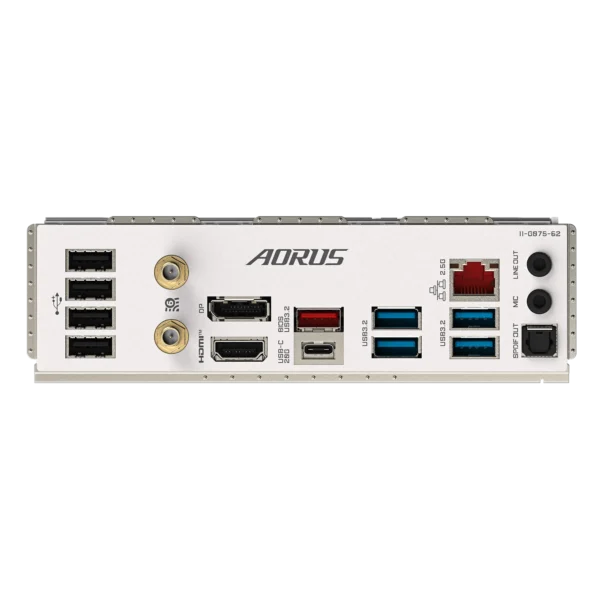

| Back Panel Connectors | 1 x USB 3.2 Gen 2x2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, 4 x USB 2.0, 2 x SMA Antenna, 1 x HDMI 2.0, 1 x DisplayPort, 1 x RJ-45, 1 x S/PDIF Out, 2 x Audio Jacks |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage, Temperature, Fan Speed, Water Cooling Flow Rate, Fan Fail Warning, Fan Speed Control |
| BIOS | 256 Mbit AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center, Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton Internet Security (OEM), LAN Bandwidth Management |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | Micro-ATX, 24.4 x 24.4 cm |
| Notes | Wi-Fi 6E requires Windows 11 for 6GHz; Check CPU/Memory support at www.gigabyte.com |
| Weight | 1.7 kg |
|---|---|
| Dimensions | 31 × 29 × 8 cm |
| Brand | Gigabyte |
| Desktop RAM | DDR5 |
| Socket | LGA 1700 CPU |
