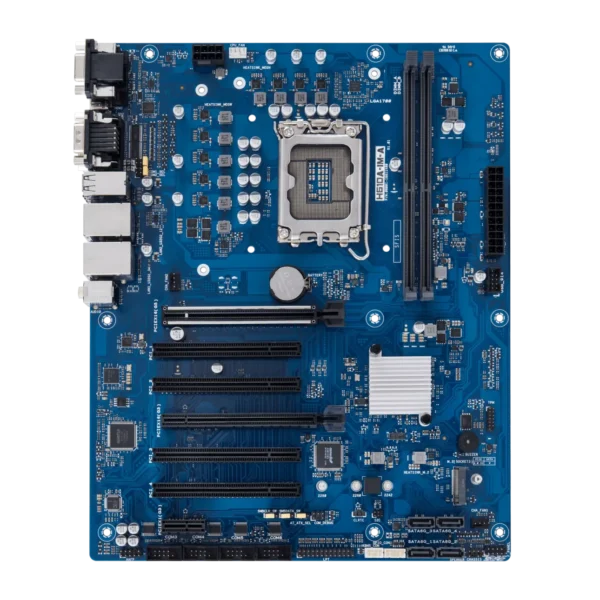

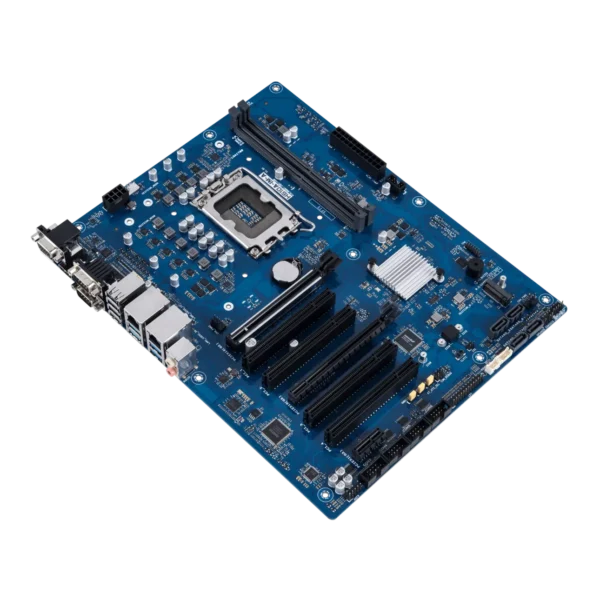

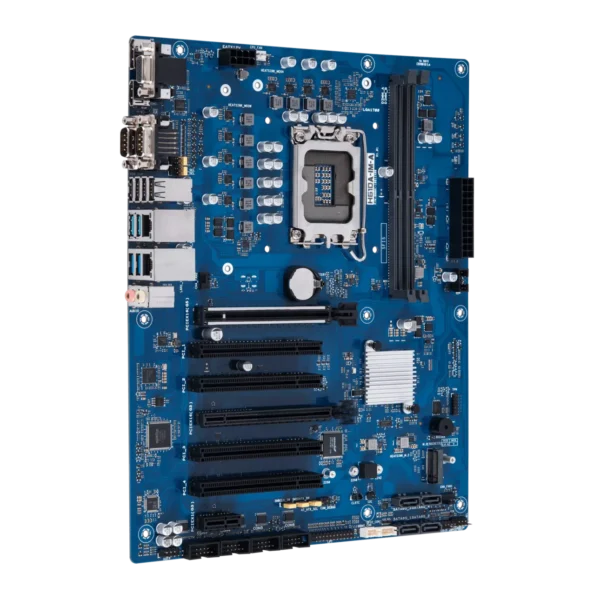

ASUS Industrial ATX Motherboard Intel H610 LGA1700 DDR5 Dual Intel LAN VGA HDMI DP PCIe 5.0 – H610A-IM-A D5
₱14,280.00Original price was: ₱14,280.00.₱12,420.00Current price is: ₱12,420.00.
Display Outputs: Supports triple independent display setup via HDMI, DisplayPort, and VGA interfaces.
Storage & Networking: M.2 M Key socket, 4 x SATA 6Gb/s ports, and Dual Intel Gigabit LAN controllers.
Industrial Endurance: 7-year longevity lifecycle support and wide operating temperature range of 0–60°C.
Only 1 left in stock
ℹ️
For walk-in customers: please always INQUIRE FIRST before visiting as not all items are displayed in our physical store. As an online-first store, most of our inventory is held in our online warehouse and is transferred to the store upon request.
ASUS Industrial ATX Motherboard Intel H610 LGA1700 DDR5 Dual Intel LAN VGA HDMI DP PCIe 5.0 - H610A-IM-A D5
Price Drop Alerts & Price History
⚠️ CRITICAL STOCK: Only 1 units remaining!
⚠️ That's a steep drop! You might be waiting a while.
We'll notify you the moment the price hits your target.
Engineered for Industrial Excellence with the ASUS H610A-IM-A D5 Motherboard
Discover unmatched durability, robust processing power, and exceptional connectivity with the ASUS H610A-IM-A D5 industrial ATX motherboard. Specifically designed to meet the rigorous demands of embedded applications, factory automation, smart retail systems, and digital signage, this motherboard delivers reliable 24/7 operation in challenging environments. Built upon over 30 years of ASUS engineering expertise, it provides system integrators and enterprise customers with a future-proof foundation optimized for demanding industrial workloads.
Advanced LGA1700 Architecture and High-Performance Intel Support
At the core of this industrial platform is the LGA1700 socket, fully optimized to support Intel 14th, 13th, and 12th Generation Core i9, i7, i5, i3, Pentium, and Celeron processors with a maximum thermal design power of up to 125W. Backed by the robust Intel H610 chipset and dual U-DIMM slots supporting high-speed DDR5 memory up to 128GB, the system ensures seamless multitasking, rapid data processing, and superior execution of mission-critical software solutions and automated tasks.
Flexible Triple-Display Configuration and Rich Expansion Capabilities
Equipped to handle complex multi-screen environments, the ASUS H610A-IM-A D5 supports a triple-display configuration simultaneously through versatile onboard interfaces including VGA, HDMI, and DisplayPort outputs. System expandability is exceptionally comprehensive, featuring a cutting-edge PCIe 5.0 x16 slot for next-generation graphics or accelerator cards, an additional PCIe 3.0 x16 slot operating in x4 mode, a PCIe x1 slot, and four legacy PCI slots for specialized industrial expansion cards. Furthermore, storage flexibility is guaranteed via an M.2 M Key socket and four SATA 6Gb/s ports.
Industrial-Grade Reliability, Longevity, and Dual Intel LAN
Designed for mission-critical deployments where downtime is not an option, this motherboard features industrial-grade components engineered to endure wide operating temperature ranges from 0 to 60°C. ASUS guarantees a remarkable 7-year longevity commitment with extended product life cycles, ensuring long-term project stability and reduced maintenance costs. Network connectivity is fortified by dual Intel LAN controllers delivering stable, high-speed wired networking, complemented by advanced onboard I/O features, USB 3.2 Gen 2 connectivity, and comprehensive Windows 11 IoT support.
ASUS H610A-IM-A D5 Technical Specifications
General & Identity Information
Brand
ASUS (ASUS IoT)
Product Name & Model
ASUS H610A-IM-A D5 // LGA1700, H610, DP, HDMI, VGA, MB
SKU / Model Name
H610A-IM-A D5
Form Factor
ATX (305 x 244 mm)
Product Status
M/P (Mass Production) / Industrial Grade
Longevity & Lifecycle
7 years of longevity with extended product life cycles
2 x U-DIMM slots, DDR5 4400 MHz (base support up to 3200 MHz)
Maximum Memory Capacity
Supports up to 128 GB system memory
Storage Interfaces (SATA)
4 x SATA Gen 3.0 ports (up to 6Gb/s)
M.2 Storage Slot
1 x M.2 Socket 3 with M Key, supporting type 2242/2260/2280 (SATA / PCIe x1 mode)
Expansion Slots & Graphics
PCIe Slots
1 x PCIe 5.0 x16 slot
1 x PCIe 3.0/2.0 x16 slot (x4 mode)
1 x PCIe 3.0/2.0 x1 slot
Legacy PCI Slots
4 x PCI slots for industrial card compatibility
Display Outputs

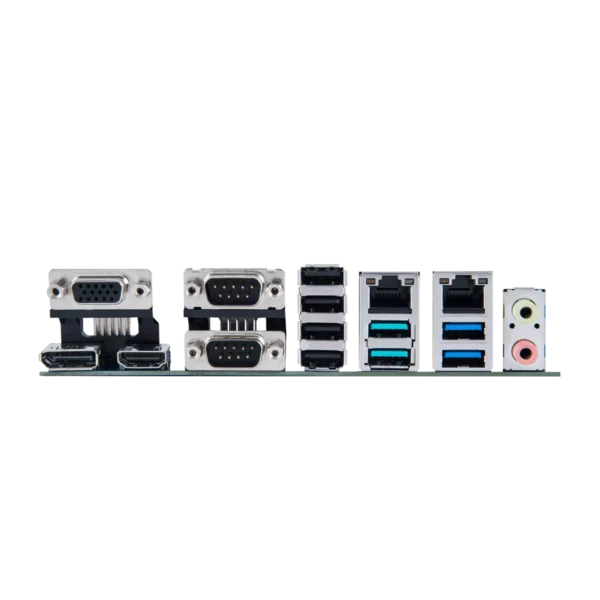

Supports 3 independent displays configuration via multiple interfaces: VGA, HDMI, and DisplayPort (DP)
Display Resolution Specs
HDMI (up to 4096 x 2160 @ 60 Hz)
DisplayPort (up to 4096 x 2160 @ 60 Hz)
VGA (up to 1920 x 1200 @ 60 Hz)
Connectivity, Audio & Compliance
Ethernet / LAN
Dual Intel® LAN (1 x Intel® I219V, 1 x Intel® I210AT), 100/1000 Mbps with 2 x RJ-45 ports
Audio System
High-Definition Audio (Line-Out, Mic-In)
USB & Advanced I/O
Advanced I/O features including USB 3.2 Gen 2 ports and rich expansion headers
Certifications
CE, FCC, Windows 11 IoT certified / compatible
Packaging Weight
1.1 kg
Packaging Dimensions (L×W×H)
36 × 29 × 9 cm
Brand
Asus
Socket
LGA 1700 CPU
Desktop RAM
DDR5
