MSI MPG B760I EDGE WIFIMSI MPG B760I EDGE WIFI Motherboard Intel B760 LGA 1700 DDR5 7200MHz Wi-Fi 6E – MPG B760I EDGE WIFI
Original price was: ₱14,710.00.₱12,795.00Current price is: ₱12,795.00.
- Supports Intel® Core™ 14th/13th/12th Gen Processors (LGA 1700)
- DDR5 memory support up to 7200+ MHz (OC), max 128GB
- Direct 8+1+1 power phase design with Core Boost and 90A SPS
- Extended heatsink, 7W/mK thermal pads, and M.2 Shield Frozr for cooling
- Wi-Fi 6E, Bluetooth 5.3, and 2.5G LAN for fast connectivity
- Lightning Gen 5 PCIe and 2x M.2 slots for high-speed storage
- Mystic Light RGB and Audio Boost for enhanced aesthetics and sound
- SKU: MPG B760I EDGE WIFI
In stock
Price Drop Alerts & Price History
-
Authorized
Dealer -
Nationwide
Shipping -
Store &
RMA HUB -
Expert
Support -
7-Day DOA
Protection -
Community
Trusted -
Turnstile
Protected -
reCAPTCHA
Secured -
Tested &
Verified

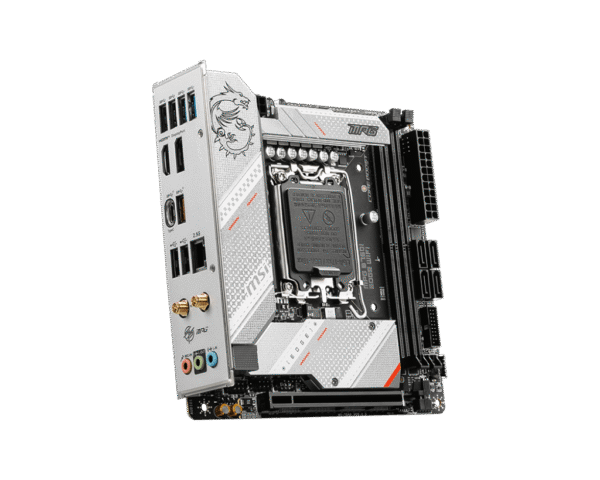

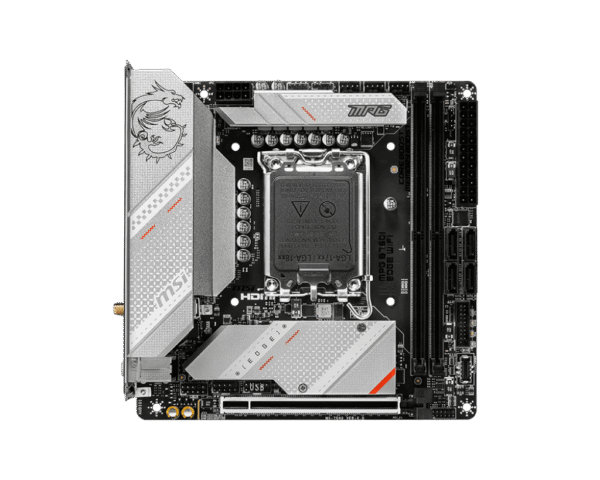

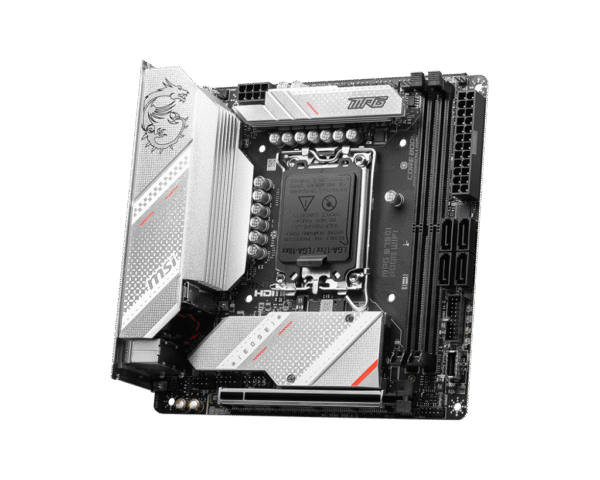

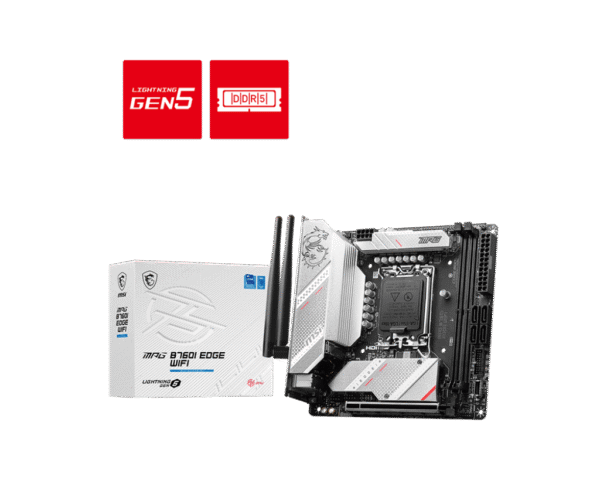

MSI MPG B760I EDGE WIFI Motherboard
The MSI MPG B760I EDGE WIFI motherboard combines stylish silver-white aesthetics with powerful performance for gamers and professionals. Designed for Intel Core 14th, 13th, and 12th Gen processors, it features a direct 8+1+1 power phase design with Core Boost and 90A Smart Power Stage for reliable power delivery. Its 8-layer server-grade PCB with 2oz thickened copper ensures long-lasting stability and high bandwidth. The advanced thermal solution, including an extended heatsink, 7W/mK MOSFET thermal pads, and M.2 Shield Frozr, keeps components cool under heavy loads. Supporting DDR5 memory up to 7200+ MHz (OC) with SMT welding for enhanced signal purity, this motherboard delivers world-class memory performance. Lightning Gen 5 PCIe and dual M.2 slots provide ultra-fast storage and expansion. With Wi-Fi 6E, Bluetooth 5.3, and 2.5G LAN, it offers high-speed, low-latency connectivity. Mystic Light RGB adds vibrant customization, while Audio Boost ensures immersive sound, making this Mini-ITX board ideal for compact, high-performance builds.
| Specification | Details |
|---|---|
| Chipset | Intel® B760 |
| CPU Support | Intel® Core™ 14th/13th/12th Gen Processors, Intel® Pentium® Gold, Celeron® Processors (LGA 1700) |
| Memory | 2x DDR5, Max 128GB, Supports 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHz, Dual-Channel, Non-ECC, Un-buffered, Intel® XMP |
| Max Overclocking Frequency | 1DPC 1R: Up to 7200+ MHz, 1DPC 2R: Up to 6600+ MHz |
| Onboard Graphics | 1x HDMI™ 2.1 (4K 60Hz), 1x DisplayPort 1.4 (8K 60Hz) *Available only on processors with integrated graphics |
| Expansion Slots | 1x PCIe x16 (PCIe 5.0 x16 from CPU) |
| Audio | Realtek® ALC897 Codec, 7.1-Channel High Definition Audio |
| Storage | 2x M.2 (1x PCIe 4.0 x4, 1x PCIe 4.0 x4/SATA, supports 2280 devices), 4x SATA 6Gbps |
| RAID | Supports RAID 0, 1, 5, 10 for SATA storage devices |
| USB | 2x USB 2.0 (Rear), 2x USB 2.0 (Front), 4x USB 5Gbps Type-A (Rear), 2x USB 5Gbps Type-A (Front), 1x USB 10Gbps Type-A (Rear), 1x USB 10Gbps Type-C (Rear), 1x USB 10Gbps Type-C (Front) |
| LAN | Realtek® RTL8125BG 2.5Gbps LAN |
| Wireless & Bluetooth | Intel® Wi-Fi 6E (2.4GHz/5GHz/6GHz up to 2.4Gbps, 802.11 a/b/g/n/ac/ax), Bluetooth® 5.3 |
| Internal I/O | 1x ATX_PWR, 1x CPU_PWR, 1x CPU Fan, 1x Pump Fan, 1x System Fan, 2x Front Panel, 1x Chassis Intrusion, 1x Front Audio, 1x Addressable V2 RGB LED, 1x RGB LED, 1x TPM, 2x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C |
| LED Features | 4x EZ Debug LED |

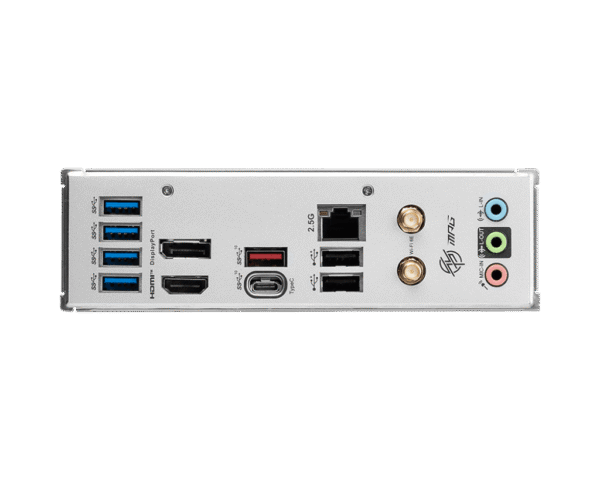

| Back Panel Ports | DisplayPort, HDMI™, 2x USB 2.0, 4x USB 5Gbps Type-A, 1x USB 10Gbps Type-A, 1x USB 10Gbps Type-C, 2.5G LAN, Wi-Fi/Bluetooth, Audio Connectors |
| Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
| Form Factor | Mini-ITX (170mm x 170mm) |
| Packaging Weight | 0.99 kg |
|---|---|
| Packaging Dimensions (L×W×H) | 25 × 22 × 9 cm |
| Brand | MSI |
| Desktop RAM | DDR5 |
| Socket | LGA 1700 CPU |
