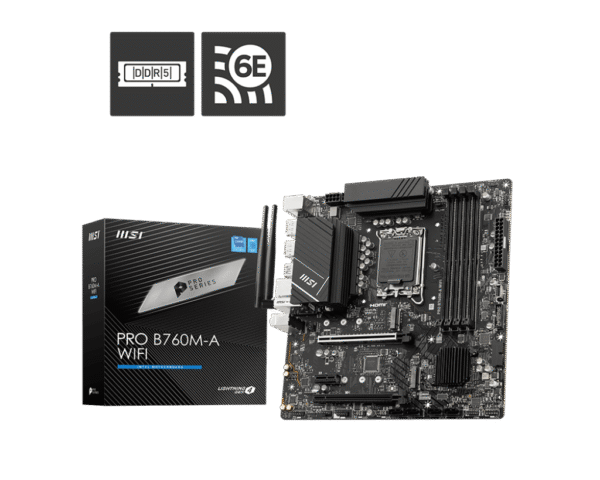

MSI PRO B760M-A WIFI Motherboard Intel B760 LGA 1700 DDR5 256GB PCIe 4.0 Wi-Fi 6E HDMI DisplayPort mATX – PRO B760M-A WIFI
₱10,600.00Original price was: ₱10,600.00.₱9,300.00Current price is: ₱9,300.00.
Supports 12th/13th/14th Gen Intel Core, Pentium Gold, Celeron (LGA 1700)
4x DDR5 up to 256GB, 6800+ MHz (OC), Dual-Channel, Intel XMP 3.0
12+1+1 Duet Rail Power System, Core Boost, Memory Boost
Extended heatsink, 7W/mK thermal pads for cooling
2x M.2 (PCIe 4.0 x4), 4x SATA 6Gb/s, RAID 0/1/5/10
Wi-Fi 6E, Bluetooth 5.3, 2.5G LAN, USB 3.2 Gen 2
Audio Boost with Realtek ALC897 Codec, 7.1-channel
Dual HDMI 2.1, DisplayPort, RGB LED support
mATX form factor, SKU: PRO B760M-A WIFI
In stock
ℹ️
For walk-in customers: please always INQUIRE FIRST before visiting as not all items are displayed in our physical store. As an online-first store, most of our inventory is held in our online warehouse and is transferred to the store upon request.
MSI PRO B760M-A WIFI Motherboard Intel B760 LGA 1700 DDR5 256GB PCIe 4.0 Wi-Fi 6E HDMI DisplayPort mATX - PRO B760M-A WIFI
Price Drop Alerts & Price History
⚠️ That's a steep drop! You might be waiting a while.
We'll notify you the moment the price hits your target.
The MSI PRO B760M-A WIFI motherboard is crafted for professional efficiency and high performance, supporting 12th, 13th, and 14th Gen Intel Core, Pentium Gold, and Celeron processors on the LGA 1700 socket. Its mATX design supports up to 256GB of DDR5 memory at 6800+ MHz with overclocking, enhanced by Memory Boost and Intel XMP 3.0 for exceptional speed and stability. The 12+1+1 Duet Rail Power System with P-PAK and dual CPU power connectors ensures robust power delivery for multi-core CPUs. A premium thermal solution with extended heatsink, 7W/mK MOSFET thermal pads, and chipset heatsink maintains optimal performance under heavy loads. Two M.2 slots with PCIe 4.0 x4 and four SATA 6Gb/s ports with RAID support provide fast, versatile storage. Connectivity is top-tier with Intel Wi-Fi 6E, Bluetooth 5.3, 2.5G LAN, and Intel Turbo USB 3.2 Gen 2 for rapid data transfer. Audio Boost with Realtek ALC897 Codec delivers immersive 7.1-channel sound, while dual HDMI 2.1 and DisplayPort outputs support 4K 60Hz displays. The 6-layer PCB with 2oz thickened copper, user-friendly BIOS, and RGB lighting support ensure durability and customization for professional and gaming applications.
Realtek ALC897 Codec, 7.1-Channel High Definition Audio
Storage
2x M.2 (1x PCIe 4.0 x4 from CPU, 1x PCIe 4.0 x4/SATA from Chipset, 2280/2260/2242), 4x SATA 6Gb/s, RAID 0/1/5/10
USB
1x USB 5Gbps Type C (Front), 4x USB 5Gbps Type A (Front), 2x USB 3.2 Gen 2 Type A (Rear), 2x USB 5Gbps Type A (Rear), 4x USB 2.0 (Front), 2x USB 2.0 (Rear)
LAN
Realtek RTL8125BG 2.5G LAN
WiFi & Bluetooth
Intel Wi-Fi 6E, Bluetooth 5.3
Internal I/O
1x ATX_PWR, 2x CPU_PWR, 1x CPU Fan, 1x Pump Fan, 2x System Fan, 2x JFP, 1x JCI, 1x JAUD, 1x JCOM, 2x JARGB_V2, 1x JRGB, 1x TPM 2.0, 4x USB 2.0, 4x USB 5Gbps Type A, 1x USB 5Gbps Type C
LED Features
4x EZ Debug LED, 2x Addressable V2 RGB LED connectors, 1x RGB LED connector
Back Panel Ports
2x HDMI, 2x DisplayPort, Keyboard/Mouse, 2x USB 3.2 Gen 2 Type A, 2x USB 5Gbps Type A, 2x USB 2.0, 2.5G LAN, Wi-Fi/Bluetooth, Audio Connectors
Operating System
Windows 11 64-bit, Windows 10 64-bit
Form Factor
mATX, 243.84mm x 243.84mm
Weight
1.2 kg
Dimensions
27 × 30 × 6 cm
Brand
MSI
Desktop RAM
DDR5
Socket
LGA 1700 CPU
