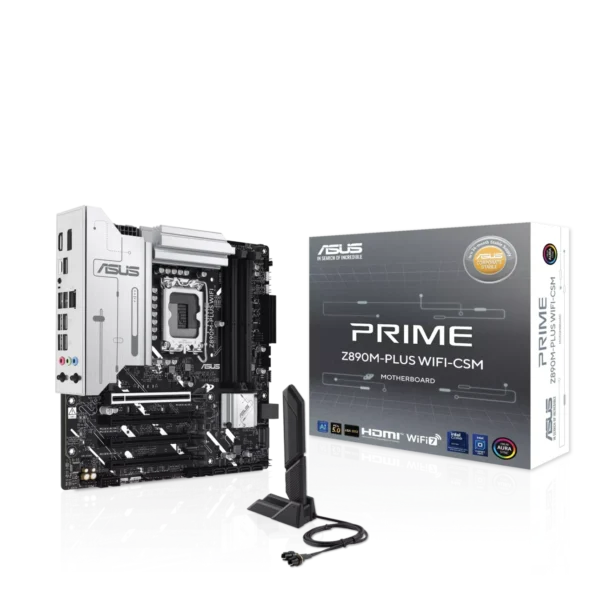

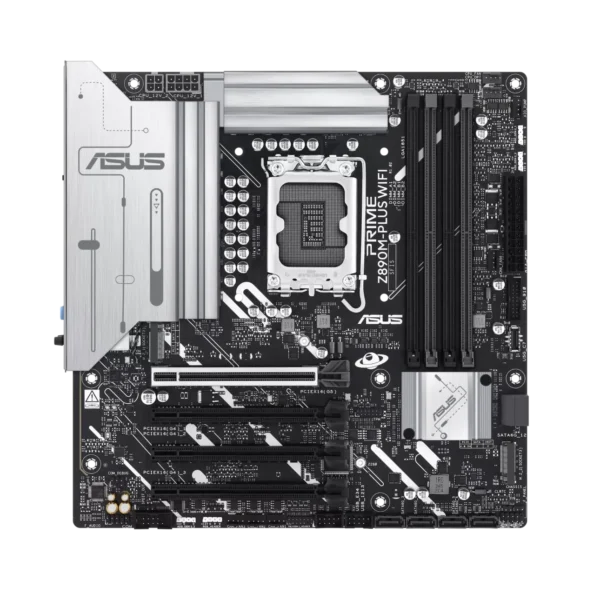

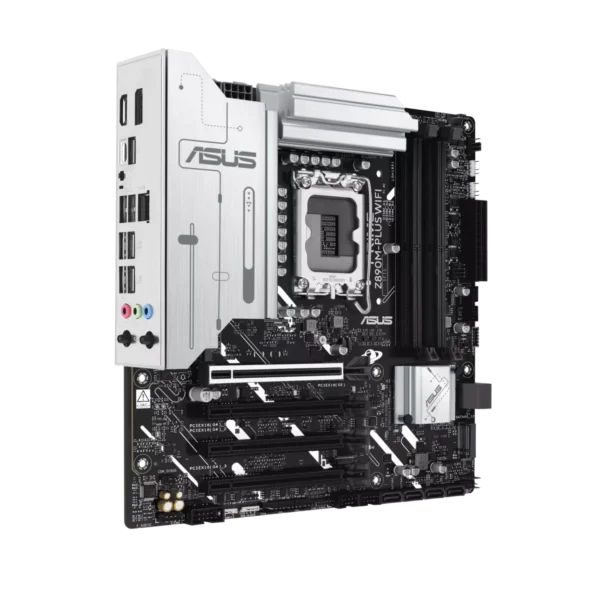

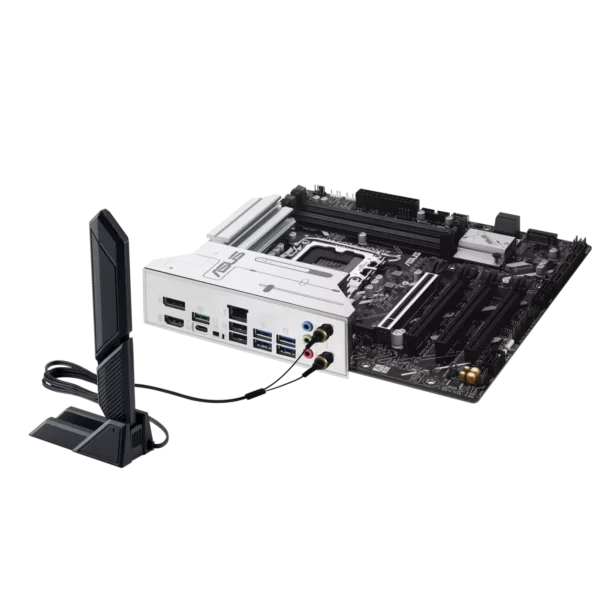

ASUS Prime Z890M-Plus WiFi-CSM Micro-ATX Motherboard – Z890 Chipset LGA1851 DDR5 – PRIME Z890M-PLUS-CSM
₱18,760.00Original price was: ₱18,760.00.₱16,320.00Current price is: ₱16,320.00.
Intel Core Ultra Ready: LGA 1851 socket optimized for the latest Intel Core Ultra Processors (Series 2) on the Z890 chipset.
Extreme DDR5 Performance: Four DIMM slots supporting up to 256GB of Dual-Channel DDR5 memory with overclocking capabilities up to 8666+ MT/s (AEMP III & XMP supported).
Next-Gen PCIe 5.0 Expansion: Features a reinforced PCIe 5.0 x16 slot for elite graphics cards, alongside a blazing-fast PCIe 5.0 M.2 slot for extreme-speed NVMe SSDs.
Comprehensive Storage Solutions: Equipped with a total of 3x M.2 slots and 6x SATA 6Gb/s ports featuring Intel RST RAID (0/1/5/10) support.
Ultrafast Networking: Integrated cutting-edge Wi-Fi 7 (802.11be), Bluetooth v5.4, and Realtek 2.5Gb Ethernet protected by ASUS LANGuard.
Advanced Connectivity: Rear panel includes a 20Gbps USB-C port, DisplayPort (4K@120Hz), HDMI, plus internal headers for Thunderbolt (USB4) and front-panel USB-C.
Smart System Tuning: Includes exclusive ASUS AI Advisor, BIOS FlashBack™, Fan Xpert 4, and Aura Sync RGB ecosystem.
Premium Audio Quality: Realtek 7.1 Surround HD Audio CODEC equipped with audio shielding and premium capacitors for pristine sound.
SKU(s): PRIME Z890M-PLUS-CSM, 0197105755444
In stock
ℹ️
For walk-in customers: please always INQUIRE FIRST before visiting as not all items are displayed in our physical store. As an online-first store, most of our inventory is held in our online warehouse and is transferred to the store upon request.
ASUS Prime Z890M-Plus WiFi-CSM Micro-ATX Motherboard - Z890 Chipset LGA1851 DDR5 - PRIME Z890M-PLUS-CSM
Price Drop Alerts & Price History
⚠️ That's a steep drop! You might be waiting a while.
We'll notify you the moment the price hits your target.
Unleash the Power of Intel Core Ultra Series 2 Processors
Designed for absolute precision, the ASUS Prime Z890M-Plus WiFi-CSM motherboard acts as the perfect foundation for builders wanting to maximize the immense capabilities of Intel Core Ultra Processors (Series 2). Featuring the advanced LGA 1851 socket and Intel Z890 chipset, this micro-ATX powerhouse seamlessly leverages Intel Turbo Boost Technology 2.0 and Max Technology 3.0 to deliver robust performance across both demanding professional workloads and high-end gaming scenarios. It pairs a premium multi-layered printed circuit board design with comprehensive cooling strategies to effectively dissipate heat around vital voltage regulators, providing exceptional system stability and extensive overclocking headroom.
Next-Generation Memory & Ultrafast Storage
Push your system’s data transfer speeds past previous limitations with full DDR5 memory support. The board accommodates up to an astonishing 256GB across four DIMM slots, enabling speeds up to 8666+ MT/s (OC). Enhanced by Intel XMP and the exclusive ASUS Enhanced Memory Profile III (AEMP III), memory tuning becomes effortless and reliable. In terms of storage, the Prime Z890M-Plus WiFi doesn’t hold back. It features three onboard M.2 slots, including a blazing-fast PCIe 5.0 connection, alongside dual PCIe 4.0 M.2 slots and six SATA 6Gb/s ports. This architecture natively supports Intel Rapid Storage Technology (RST) for complex RAID setups, ensuring your operating system, applications, and massive asset libraries load instantly.
Elite Connectivity and Future-Proof Networking
Stay ahead of the curve with networking solutions built for the modern era. The onboard Wi-Fi 7 (802.11be) module provides unprecedented wireless throughput, ensuring minimized latency and ultra-stable connections during intensive multiplayer gaming or large cloud transfers. Complementing this is the robust Realtek 2.5Gb Ethernet port safeguarded by ASUS LANGuard for wired perfection. Expandability is fully addressed with a dedicated PCIe 5.0 x16 slot ready for the most powerful modern graphics cards, alongside comprehensive I/O that includes a 20Gbps USB Type-C port on the rear, multi-display support outputting up to 4K@120Hz via DisplayPort, and a Thunderbolt header for next-level peripheral integration.
Smart DIY Design & AI Integration
Constructing and managing your build is easier than ever thanks to the renowned ASUS EZ DIY ethos and robust 5X Protection III hardware safeguards. The motherboard seamlessly incorporates advanced Q-Design elements like BIOS FlashBack for safe, processor-free firmware updates. Furthermore, the innovative ASUS AI Advisor empowers users to explore and optimize the board’s complex features through an incredibly straightforward interface. Integrated software such as Fan Xpert 4 dynamically adjusts system acoustics based on real-time CPU thermals, ensuring a whisper-quiet environment without sacrificing cooling performance. Paired with complete Aura Sync RGB lighting control and elite Realtek 7.1 Surround HD Audio shielded by premium capacitors, this board delivers an unmatched, immersive computing experience.
ASUS PRIME Z890M-PLUS WIFI-CSM DDR5 MOTHERBOARD SPECIFICATIONS
General Information
Brand
ASUS
Product Name
ASUS Prime Z890M-Plus Wifi-CSM DDR5 Intel Motherboard
Manufacturer SKU / P/N
PRIME Z890M-PLUS-CSM
UPC / EAN SKU
0197105755444
Form Factor
Micro-ATX (mATX)
Dimensions: 9.6 x 9.6 inches (24.4 x 24.4 cm)
Processor & Chipset
CPU Socket
LGA 1851
Supported Processors
Supports Intel® Core™ Ultra Processors (Series 2)
Turbo Boost Technologies
Supports Intel® Turbo Boost Technology 2.0 and Max Technology 3.0
Motherboard Chipset
Intel® Z890 Chipset
Memory Specifications
Memory Type
DDR5 (Dual Channel, Non-ECC, Un-buffered DIMMs)
Number of Memory Slots
4 x DIMM slots
Maximum Memory Supported
Up to 256GB
Supported Speeds
Up to 8666+ MT/s (OC)
Memory Profiles
Intel® Extreme Memory Profile (XMP) Support
ASUS Enhanced Memory Profile III (AEMP III)
Expansion & Storage
Expansion Slots
1 x PCIe 5.0 x16 slot
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 4.0 x16 slots (supports x1 mode)
M.2 Storage Ports
Total 3x M.2 Slots:
1 x M.2 slot (PCIe 5.0)
2 x M.2 slots (PCIe 4.0)
Armoury Crate, Fan Xpert 4, ASUS CPU-Z, TurboV Core, Norton 360 (60 Days Trial), WinRAR
Supported OS
Windows 11 (22H2 and later)
Included Accessories
2x SATA 6Gb/s cables, ASUS WiFi Q-Antenna, M.2 screw packages, Quick Start Guide (QSG), ACC Express key card
Packaging Weight
2.4 kg
Packaging Dimensions (L×W×H)
39 × 31 × 11 cm
Brand
Asus
Desktop RAM
DDR5
