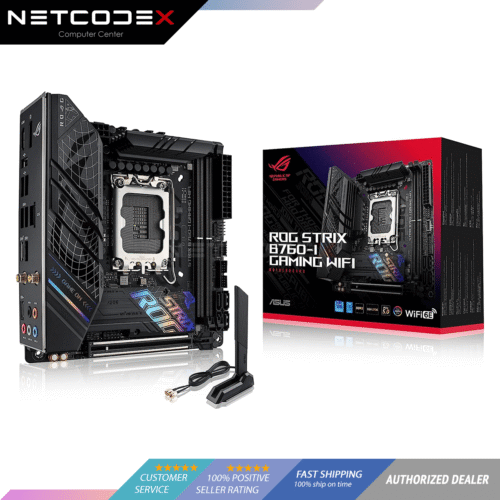

ASUS ROG Strix B760-I Gaming WiFi 6E Intel® B760 (14th and 13th Gen) LGA 1700 mini ITX Motherboard 8 + 1 power stages, DDR5, PCIe 5.0

SKU: ROG STRIX B760-I GAMING WIFI
Out of stock
13,000.00
Out of stock
Add to Wishlist
Add to Wishlist
SKU: ROG STRIX B760-I GAMING WIFI Categories: , Tag:
  • Compatible with Intel® 14th, 13th, and 12th Gen Core™ processors.
  • Supports up to 96GB DDR5 memory at 7600(OC) MHz.
  • High-speed connectivity with PCIe 5.0 x16, dual M.2, and SATA 6Gb/s ports.
  • Extensive USB options including Type-C® for the front and rear panels.
  • Intel® 2.5Gb Ethernet and Wi-Fi 6E for networking excellence.
  • ROG SupremeFX 7.1 audio for an immersive sound experience.
  • Features ASUS exclusive Aura Sync, Q-Design, and comprehensive cooling controls.
  • Mini-ITX form factor for compact, yet powerful builds.

Description

ASUS ROG Strix B760-I Gaming WiFi

ASUS ROG Strix B760-I Gaming WiFi

ASUS ROG Strix B760-I Gaming WiFi

ASUS ROG Strix B760-I Gaming WiFi

ASUS ROG Strix B760-I Gaming WiFi

ASUS ROG Strix B760-I Gaming WiFi

ASUS ROG Strix B760-I Gaming WiFi

ASUS ROG Strix B760-I Gaming WiFi

ASUS ROG Strix B760-I Gaming WiFi

ASUS ROG Strix B760-I Gaming WiFi

ASUS ROG Strix B760-I Gaming WiFi 6E Intel® B760 (14th and 13th Gen) LGA 1700 mini ITX Motherboard 8 + 1 power stages, DDR5, PCIe 5.0

Unleash the full potential of your gaming rig with the ASUS ROG STRIX B760-I GAMING WIFI motherboard. Engineered for the latest Intel® LGA1700 socket, it supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors. The board is primed for memory overclocking with support for up to 96GB of DDR5 memory at speeds of 7600(OC) MHz. With a focus on expansion, it features a PCIe 5.0 x16 slot, dual M.2 slots, and multiple SATA ports. Connectivity is a breeze with rear and front USB ports, including Type-C®, and networking is supercharged with Intel® 2.5Gb Ethernet and Wi-Fi 6E. The ROG SupremeFX 7.1-Channel High Definition Audio provides an immersive audio experience, and the board is packed with ASUS’s exclusive features like Aura Sync, Q-Design, and comprehensive cooling controls. The Mini-ITX form factor allows for a compact build without compromising on power or features. This motherboard is the ideal foundation for a versatile, high-performance gaming system.

CPU
SupportIntel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, 12th Gen, Pentium® Gold and Celeron® Processors
TechnologySupports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Chipset
TypeIntel® B760
Memory
Capacity2 x DIMM, Max. 96GB, DDR5 7600(OC)/.../4800 Non-ECC, Un-buffered Memory*
FeaturesDual Channel Architecture, Supports Intel® XMP, OptiMem II
Graphics
Ports1 x DisplayPort 1.4, 1 x HDMI® 2.1
Expansion Slots
PCIe1 x PCIe 5.0 x16 slot (Intel® 13th & 12th Gen Processors)
Storage
M.22 x M.2 slots (Key M), support PCIe 4.0 x4 mode
SATA4 x SATA 6Gb/s ports
Ethernet
Type1 x Intel® 2.5Gb Ethernet, ASUS LANGuard
Wireless & Bluetooth
Wi-FiWi-Fi 6E, 2x2 (802.11 a/b/g/n/ac/ax), supports 2.4/5/6GHz
BluetoothBluetooth® v5.3
USB
Rear USB1 x USB 3.2 Gen 2x2 Type-C®, 4 x USB 3.2 Gen 1, 3 x USB 2.0 Type-A
Front USB1 x USB 3.2 Gen 2 connector, 1 x USB 3.2 Gen 1 header, 1 x USB 2.0 header
Audio
CodecROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
Back Panel I/O Ports
VariousUSB ports, Display outputs, Ethernet, Audio jacks, Wi-Fi Module
Internal I/O Connectors
Fan and CoolingCPU Fan, Chassis Fan, AIO Pump headers
PowerMain Power, +12V Power connectors
StorageM.2 slots, SATA 6Gb/s ports
USBUSB 3.2 Gen 2 connector, USB 3.2 Gen 1 header, USB 2.0 header
MiscellaneousAddressable Gen 2 header, RGB header, CMOS, Audio, S/PDIF Out, Speaker, System Panel, Thermal Sensor headers
Special Features
VariousExtreme Engine Digi+, ASUS Q-Design, Thermal Solution, EZ DIY, AURA Sync
Software Features
ROG Exclusive SoftwareGameFirst VI, CPU-Z, Sonic Studio, Radar, DTS® Sound Unbound
ASUS Exclusive SoftwareArmoury Crate, AURA, Fan Xpert 4, AI Suite 3, MyAsus, more
BIOS
Type128 Mb Flash ROM, UEFI AMI BIOS
Accessories
CablesSATA 6Gb/s cables, USB splitter cable, Panel cable
Cooling KitThermal pad for M.2
MiscellaneousWi-Fi antenna, Cable ties, M.2 Rubber Package, M.2 bracket, Key chain, Stickers, Thank you card
DocumentationUser manual
Operating System
Supported OSWindows® 11 64-bit, Windows® 10 64-bit
Form Factor
SizeMini-ITX, 6.7 inch x 6.7 inch ( 17 cm x 17 cm )

Additional information

Weight1.2 kg
Dimensions26 × 19 × 10 cm
Chipset

B760

Socket

LGA 1700 CPU

Desktop RAM

DDR5
