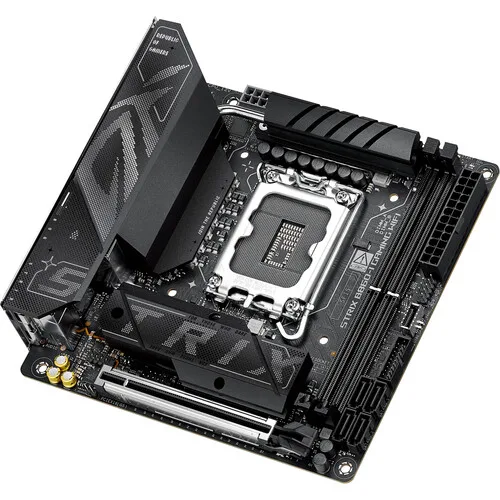

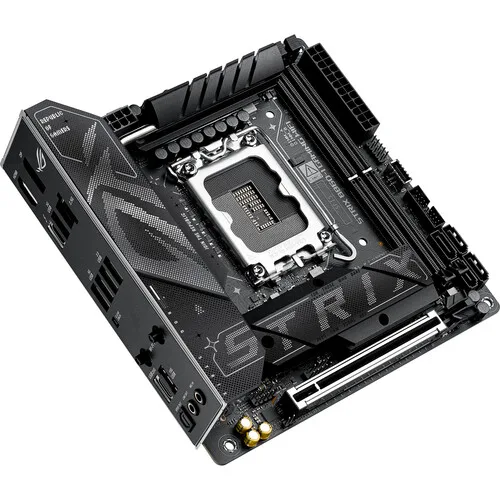

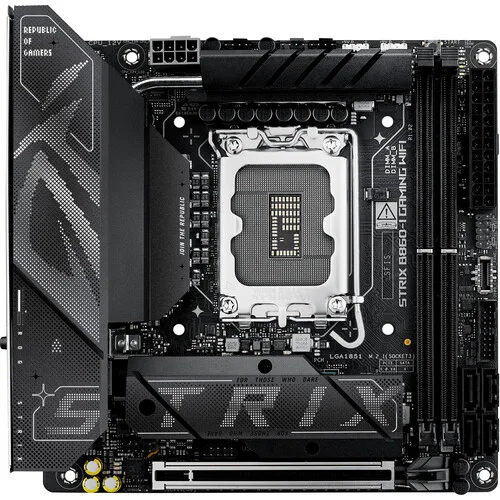

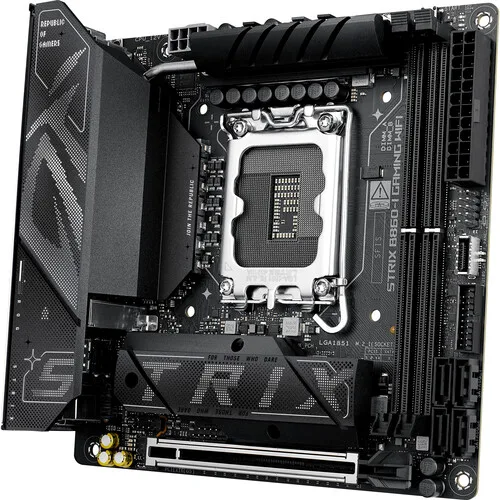

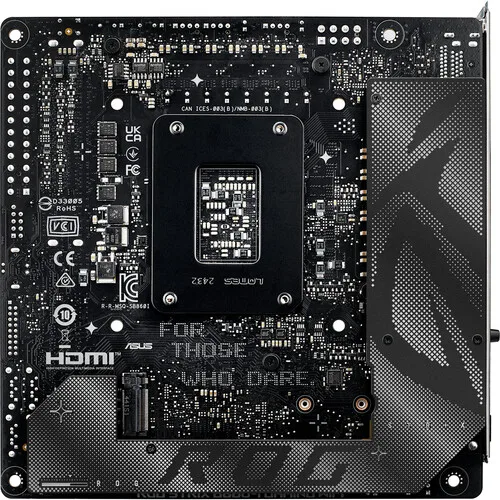

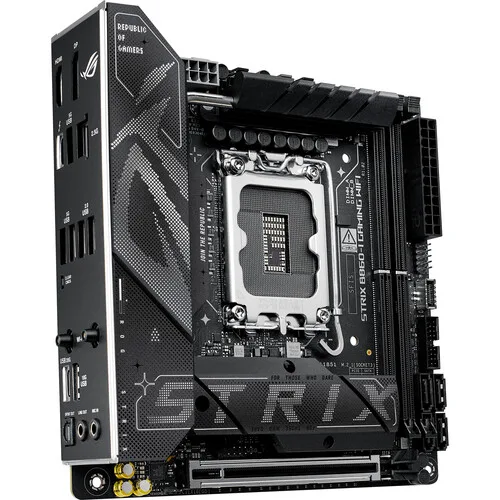

ASUS ROG STRIX B860-I GAMING WIFI Motherboard, Intel Core Ultra Series Support, DDR5, Wi-Fi 7, PCIe 5.0, Mini-ITX

SKU: ROG STRIX B860-I GAMING WIFI
In Stock
18,744.00 Original price was: ₱18,744.00.14,995.00Current price is: ₱14,995.00.
In Stock
Add to Wishlist
Add to Wishlist
Add to Wishlist
Add to Wishlist
Complete Your Build
This item: ASUS ROG STRIX B860-I GAMING WIFI Motherboard, Intel Core Ultra Series Support, DDR5, Wi-Fi 7, PCIe 5.0, Mini-ITX
In Stock
Original price was: ₱18,744.00.Current price is: ₱14,995.00.
Original price was: ₱18,744.00.Current price is: ₱14,995.00.
Original price was: ₱23,119.00.Current price is: ₱18,495.00.
Original price was: ₱30,244.00.Current price is: ₱24,195.00.
Original price was: ₱32,494.00.Current price is: ₱25,995.00.
Original price was: ₱24,369.00.Current price is: ₱19,495.00.
SKU: ROG STRIX B860-I GAMING WIFI Categories: , Tag:
  • Intel® Core™ Ultra Processor Support: Turbo Boost Technology for enhanced CPU performance.
  • Advanced Connectivity: Wi-Fi 7 and Intel® 2.5Gb Ethernet for ultra-fast internet speeds.
  • Compact & Powerful: Mini-ITX form factor with PCIe 5.0 x16 slot for high-end graphics cards.
  • Enhanced Audio: Realtek ALC1220P with SupremeFX technology for superior sound quality.

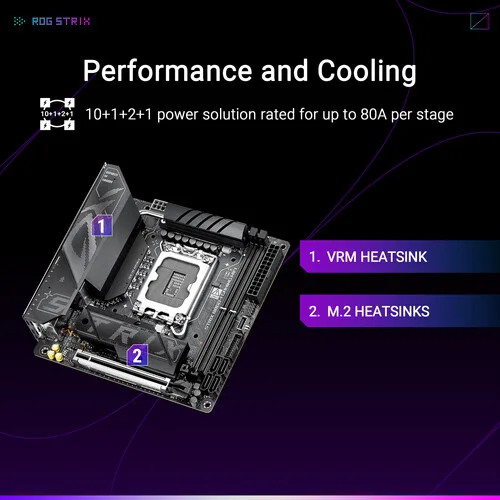

  • Heat Management: M.2 heatsinks, VRM heatsink design, and effective thermal solutions.

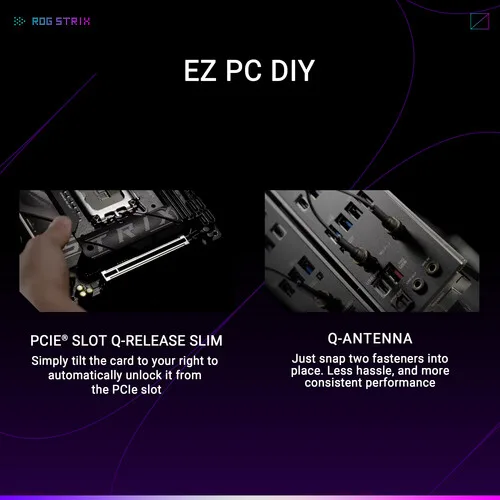

  • Easy Assembly: ASUS Q-Design features, including PCIe Slot Q-Release and M.2 Q-Latch.
  • Future-Proof: Supports high-resolution displays with Thunderbolt™ 4, DisplayPort, and HDMI™.

Description

The ROG STRIX B860-I GAMING WIFI motherboard is the perfect choice for gamers and PC enthusiasts looking for an ultra-compact and high-performance system. Designed with Intel® Core™ Ultra processors in mind, it provides support for Intel® Turbo Boost Technology 2.0 and Turbo Boost Max Technology 3.0. With 2 x DIMM slots supporting up to 128GB of DDR5 memory, you’ll experience ultra-fast memory speeds and exceptional multitasking performance.

This motherboard also features Intel® B860 Chipset and a PCIe 5.0 x16 slot for maximum bandwidth, ensuring that your graphics card runs smoothly and supports the latest technologies. The 1 x DisplayPort and 1 x HDMI™ port provide versatile video output options, supporting up to 4K resolution at 60Hz, while the Intel® Thunderbolt™ 4 offers maximum total bandwidth up to 23.8Gbps, making it future-proof for high-resolution displays.

Connectivity is taken to the next level with built-in Wi-Fi 7 support, providing 2×2 802.11be technology that supports the 2.4/5/6GHz frequency bands and offers a 2.9Gbps transfer rate. Bluetooth® v5.4 further enhances the wireless capabilities. You’ll also enjoy improved networking with Intel® 2.5Gb Ethernet and ASUS LANGuard for added reliability.

The ROG STRIX B860-I GAMING WIFI motherboard is packed with advanced features like PCIe Slot Q-Release, M.2 Q-Latch, and enhanced thermal solutions, ensuring optimal cooling performance. It also integrates ASUS’ EZ DIY features like Clear CMOS, SafeSlot, and ProCool, making assembly easier and more secure.

Perfect for compact builds, this Mini-ITX motherboard offers everything you need for a high-performance gaming PC, all packed into a small form factor. Whether you’re a competitive gamer or a content creator, the ROG STRIX B860-I is built to handle the demands of modern computing.

SpecificationDetails
CPUSupports Intel® Core™ Ultra Processors (Series 2), Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0. Turbo Boost Max Technology 3.0 depends on the CPU types.
ChipsetIntel® B860 Chipset
Memory2 x DIMM slots, max. 128GB, DDR5, Supports up to 9066+MT/s (OC), Non-ECC Un-buffered, Dual-channel memory architecture. Supports Intel® Extreme Memory Profile (XMP) and ASUS Enhanced Memory Profile III (AEMP III).
Graphics1 x DisplayPort, 1 x HDMI™ port, 1 x Intel® Thunderbolt™ 4 supports DisplayPort and Thunderbolt™ video outputs. Max. 4K@60Hz via DisplayPort, 4K@60Hz via HDMI.
Expansion Slots1 x PCIe 5.0 x16 slot (Intel® Core™ Ultra Processors, Series 2)
Storage2 x M.2 slots (PCIe 5.0 x4, PCIe 4.0 x4) and 4 x SATA 6Gb/s ports. Supports Intel® Rapid Storage Technology for RAID 0/1/5/10.
Ethernet1 x Intel® 2.5Gb Ethernet, ASUS LANGuard
Wireless & BluetoothWi-Fi 7 (2x2, 802.11be), Supports 2.4/5/6GHz frequency band, up to 2.9Gbps transfer rate. Bluetooth® v5.4
USB Ports8 Rear USB ports (Thunderbolt™ 4, USB 20Gbps, USB 10Gbps, USB 5Gbps, USB 2.0). 5 Front USB ports (USB 10Gbps, 5Gbps, 2.0).
AudioRealtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC, SupremeFX Shielding Technology, Savitech SV3H712 AMP, 120 dB SNR stereo playback output, 113 dB SNR recording input.

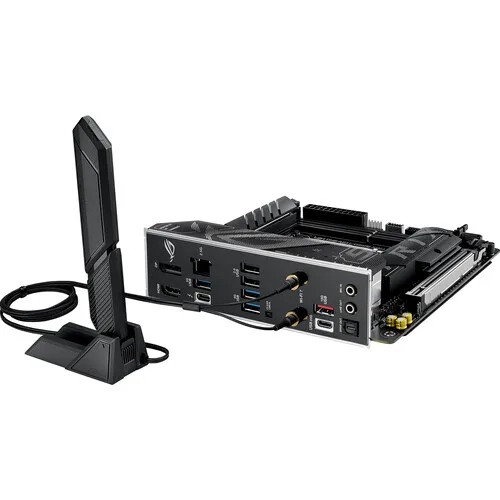

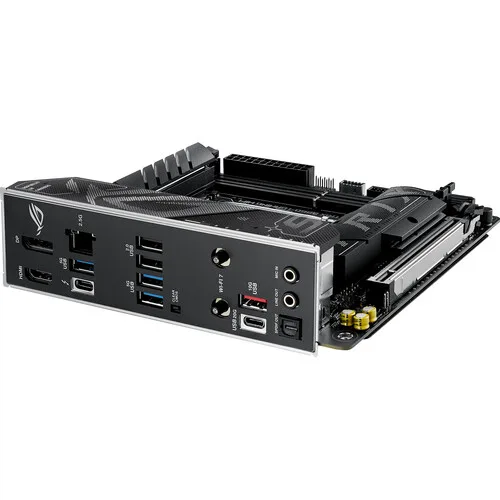

Back Panel I/O1 x Thunderbolt™ 4 port, 1 x USB 20Gbps port, 1 x USB 10Gbps port, 3 x USB 5Gbps ports, 2 x USB 2.0 ports, 1 x DisplayPort, 1 x HDMI™ port, 1 x Intel® 2.5Gb Ethernet port, 2 x Audio jacks, 1 x Optical S/PDIF out port, 1 x Clear CMOS button
Internal I/O1 x 4-pin CPU Fan header, 1 x 4-pin AIO Pump header, 1 x 4-pin Chassis Fan header, 2 x M.2 slots, 4 x SATA 6Gb/s ports, 2 x Addressable Gen2 headers, 1 x Front Panel Audio header, etc.
Special FeaturesExtreme Engine Digi+, PCIe Slot Q-Release, M.2 Q-Latch, Q-Antenna, Aura Sync, ASUS Thermal Solution (M.2 heatsink, VRM heatsink), ASUS EZ DIY (Clear CMOS, ProCool, SafeSlot), Aura Sync.
Operating SystemWindows 11 (22H2 & later)
Form FactorMini-ITX Form Factor (6.7 inch x 6.7 inch / 17 cm x 17 cm)

Additional information

Weight2.2 kg
Dimensions36 × 28 × 8 cm
Brand

Asus

Socket

LGA 1851 CPU

Desktop RAM

DDR5
