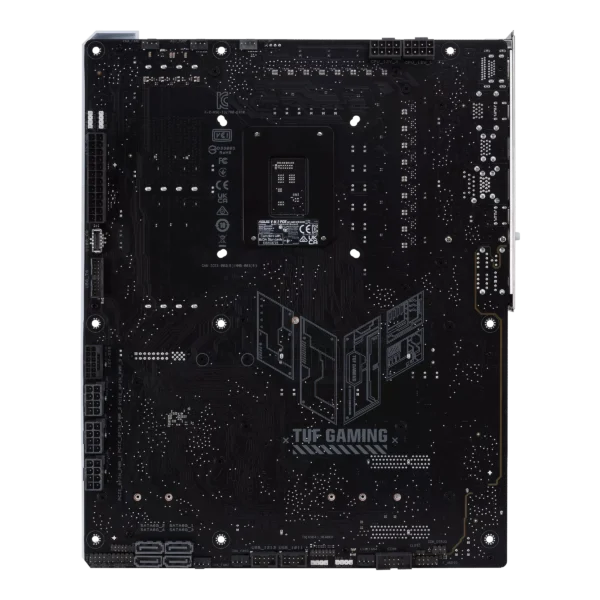

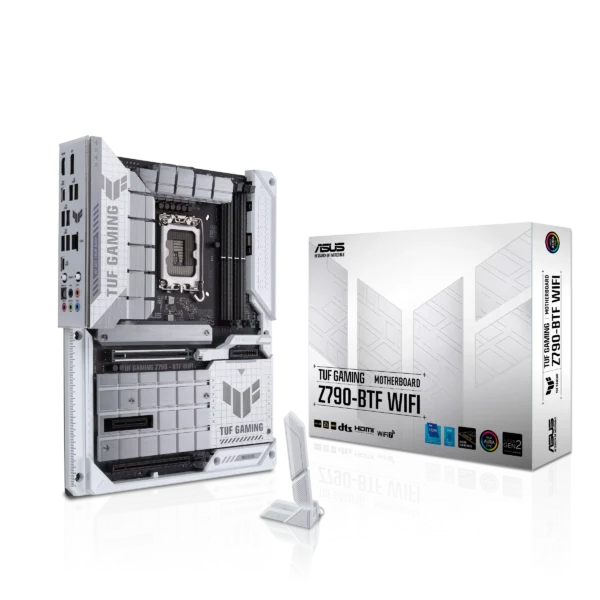

Elevate your build with the ASUS TUF GAMING Z790-BTF WIFI, an ATX motherboard featuring a Back-To-The-Future (BTF) design for clean cable management, supporting Intel® Core™ 14th, 13th, and 12th Gen processors. Powered by the Intel® Z790 chipset, it supports up to 192GB of DDR5 memory at 7200MT/s (OC) for high-performance gaming. The 16+1 DrMOS VRM ensures stable power for CPUs like the i7-14700K. With a PCIe 5.0 x16 slot and four PCIe 4.0 M.2 slots, it’s ready for next-gen GPUs and SSDs. Wi-Fi 7 and 2.5Gb Ethernet deliver ultra-fast connectivity, while TUF Protection and AURA Sync enhance durability and aesthetics. Perfect for gamers seeking a sleek, reliable setup.
4 x DDR5 DIMM, up to 192GB, 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 MT/s, Non-ECC, Dual Channel, XMP, AEMP II
Graphics
1 x DisplayPort 1.4 (4K@60Hz), 1 x HDMI 2.1 (4K@60Hz)
Expansion Slots
CPU: 1 x PCIe 5.0 x16; Chipset: 1 x PCIe 4.0 x16 (x4), 1 x PCIe 4.0 x4
Storage
CPU: 1 x M.2 (PCIe 4.0 x4); Chipset: 2 x M.2 (PCIe 4.0 x4), 1 x M.2 (PCIe 4.0 x4/SATA); 4 x SATA 6Gb/s; RAID 0/1/5/10
Ethernet
1 x Intel® 2.5Gb Ethernet, TUF LANGuard
Wireless
Wi-Fi 7 (802.11be, 2.4/5/6GHz, 160MHz), Bluetooth 5.4
USB
Rear: 1 x USB 20Gbps Type-C, 3 x USB 10Gbps (2 x Type-A, 1 x Type-C), 4 x USB 5Gbps Type-A; Front: 1 x USB 10Gbps Type-C, 2 x USB 5Gbps, 4 x USB 2.0

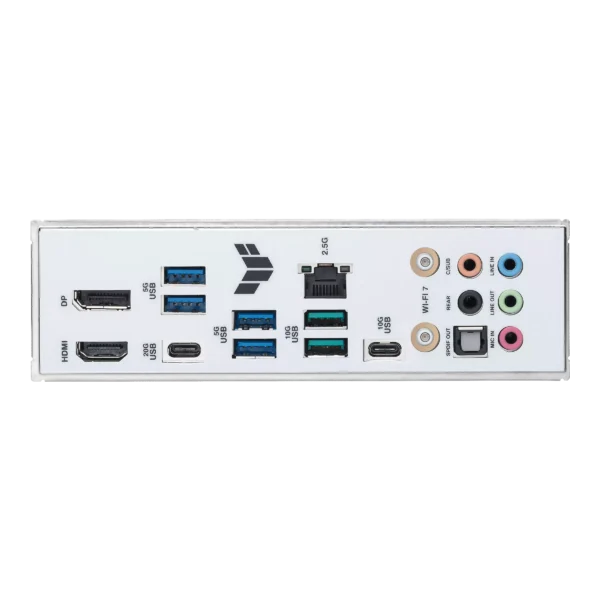

1 x USB 20Gbps Type-C, 3 x USB 10Gbps (2 x Type-A, 1 x Type-C), 4 x USB 5Gbps Type-A, 1 x DisplayPort, 1 x HDMI, 1 x Wi-Fi Module, 1 x Intel 2.5Gb Ethernet, 5 x Audio Jacks, 1 x S/PDIF Out
Internal I/O Connectors
1 x 24-pin Power, 2 x 8-pin +12V, 1 x Graphics Card High-Power, 1 x 12V-2x6, 3 x 8-pin PCIe, 1 x CPU Fan, 1 x CPU OPT Fan, 1 x AIO Pump, 4 x Chassis Fan, 4 x M.2, 4 x SATA 6Gb/s, 1 x USB 10Gbps Type-C, 1 x USB 5Gbps, 2 x USB 2.0, 3 x Addressable Gen 2, 1 x Aura RGB, 1 x Clear CMOS, 1 x COM, 1 x Front Audio, 1 x System Panel, 1 x Thunderbolt
Special Features
ASUS TUF Protection (DIGI+ VRM, ESD Guards, SafeSlot), ASUS Q-Design (M.2 Q-Latch, PCIe Slot Q-Release), ASUS Thermal Solution, AURA Sync, BTF Design
Software
Armoury Crate, AI Suite 3, TUF GAMING CPU-Z, DTS Audio Processing, Norton 360, WinRAR
BIOS
192Mb (128+64Mb) UEFI AMI BIOS, ASUS EZ Flash 3
Accessories
2 x SATA 6Gb/s Cables, ASUS WiFi Q-Antenna, TUF Sticker, M.2 Screw Package, TUF Certification Card, Quick Start Guide
Operating System
Windows 11, Windows 10 64-bit
Form Factor
ATX, 30.5 x 24.4 cm
Notes
Check CPU/Memory support at www.asus.com
Weight
2.6 kg
Dimensions
37 × 28 × 8 cm
Brand
Asus
Desktop RAM
DDR5
Socket
LGA 1700 CPU
