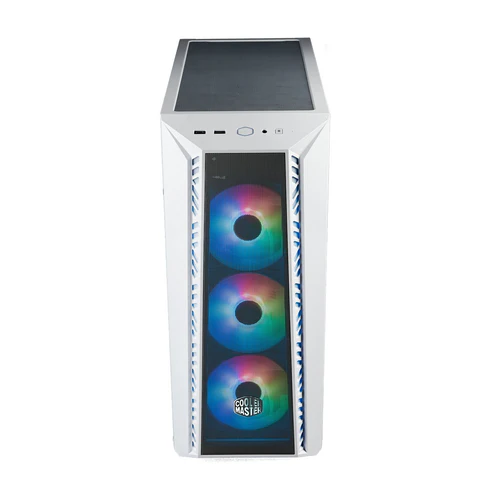

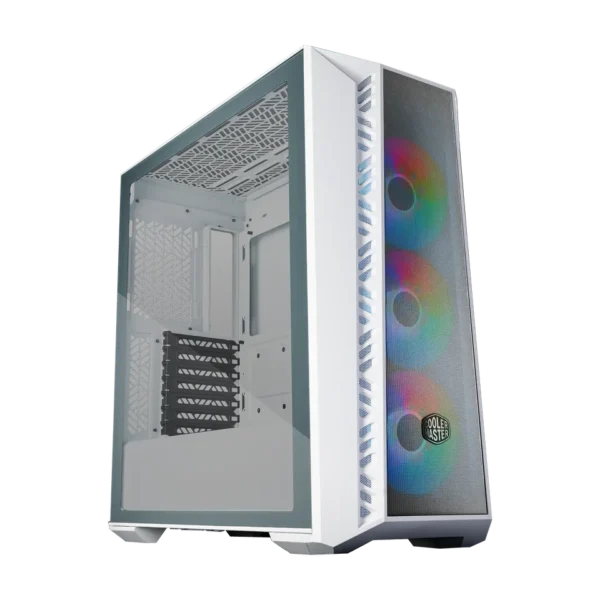

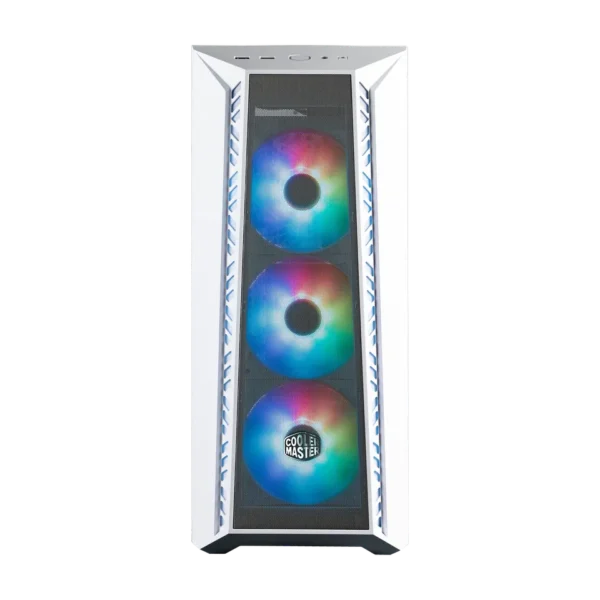

Cooler Master MasterBox MB520 Mesh White ATX Mid Tower Case 3x120mm ARGB Fans Mesh Front Tempered Glass – CM-MB520 MESH/WHT (MB520-WGNN-S00)
Original price was: ₱4,800.00.₱4,485.00Current price is: ₱4,485.00.
- Spacious mid-tower case with a sleek white exterior and mesh front panel for enhanced airflow.
- Supports Mini-ITX, Micro-ATX, ATX, and E-ATX motherboards (up to 12″ x 10.7″).
- Pre-installed with 3x CF120 ARGB fans for excellent cooling and customization options.
- Supports up to 7 fans and multiple radiator sizes (up to 360mm on top and front).
- Includes an ARGB hub and USB Type-C I/O port for convenience and high-speed data transfer.
- Clearance for large components: 200mm PSU, 165mm CPU cooler, and 410mm graphics cards.
- Comprehensive dust filter system for maintaining clean and efficient airflow.
- Backed by a 2-year warranty for peace of mind.
In stock
Price Drop Alerts & Price History
-
Authorized
Dealer -
Nationwide
Shipping -
Store &
RMA HUB -
Expert
Support -
7-Day DOA
Protection -
Community
Trusted -
Turnstile
Protected -
reCAPTCHA
Secured -
Tested &
Verified
The Cooler Master MasterBox M520 Mesh White (MB520-WGNN-S00) is a sleek and versatile mid-tower case designed for users who seek superior airflow, customizable cooling options, and modern aesthetics. With a choice of black or white exterior, the case features a front mesh panel combined with tempered glass for a dynamic, eye-catching look. Its spacious design supports Mini-ITX, Micro-ATX, ATX, SSI-CEB, and E-ATX motherboards (up to 12″ x 10.7″), providing ample room for expansion and cable management. Despite its compact size, the MasterBox M520 Mesh White ensures compatibility with high-performance components, including graphics cards up to 410mm in length.
One of the standout features of the MasterBox M520 Mesh White is its extensive cooling options. Equipped with pre-installed 3x CF120 ARGB fans at the front, this case offers superior airflow, and it supports up to 7 fans in total. Whether you prefer air or liquid cooling, the case supports multiple radiator sizes (up to 360mm on top and front), making it perfect for those who plan to push their system to the limits.
Designed for the user who prioritizes clean cable management and ease of build, the case includes an ARGB hub and convenient I/O ports, including USB Type-C for quick data transfers. It also features a dust filter system on the front, top, and bottom, ensuring that your components stay clean and efficient. With clearance for up to a 200mm PSU and a 165mm CPU cooler, the MasterBox M520 Mesh White strikes a balance between compactness and performance.
Backed by a 2-year warranty, the Cooler Master MasterBox M520 Mesh White is not just another case—it’s a fully-featured, highly customizable solution for anyone looking to build a powerful and visually stunning system.
<td style="border: 1px solid #ddd; padding
| Specification | Details |
|---|---|
| Model Number | MasterBox 520 Mesh: MB520-KGNN-S00, MasterBox 520 Mesh White: MB520-WGNN-S00 |
| Exterior Color | Black, White |
| Materials - Exterior | Mesh, Steel, ABS Plastic, Tempered Glass |
| Materials - Left Side Panel | Tempered Glass |
| Dimensions (L x W x H) | 499 x 210 x 498mm (Incl. Protrusions), 430 x 210 x 479mm (Body size) |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX, SSI-CEB, E-ATX* (*up to 12" x 10.7" motherboards, may impact cable management feature) |
| Expansion Slots | 7 |
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 3 |
| I/O Panel - USB Ports | 1x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2 Type C |
| I/O Panel - Audio In / Out | 1x 3.5mm Headset Jack (Audio+Mic) |
| I/O Panel - Other | 1x Reset/ARGB button |
| Included Accessories | ARGB Fans Hub |
| Pre-installed Fans - Top | N/A |
| Pre-installed Fans - Front | 3x CF120 ARGB |
| Pre-installed Fans - Rear | N/A |
| Fan Support - Top | 3x 120mm, 2x 140mm |
| Fan Support - Front | 3x 120mm, 2x 140mm |
| Fan Support - Rear | 1x 120mm |
| Radiator Support - Top | 120 / 140 / 240 / 280 / 360mm (recommended maximum thickness - 55mm) |
| Radiator Support - Front | 120 / 140 / 240 / 280 / 360mm |
| Radiator Support - Rear | 120mm |
| Clearance - CPU Cooler | 165mm |
| Clearance - PSU | 200mm (Recommended up to 170mm) |
| Clearance - GFX | 410mm |
| Dust Filters | Front, Top, Bottom |
| Power Supply Support | ATX |
| Warranty | 2 years |
| Size | Mid Tower |
| Series | MasterBox Series |
| Back Connector Motherboard Support |
| Packaging Weight | 7.5 kg |
|---|---|
| Packaging Dimensions (L×W×H) | 51 × 28 × 50 cm |
| Brand | Cooler Master |
