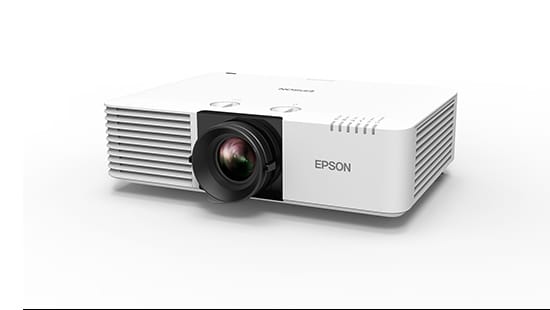

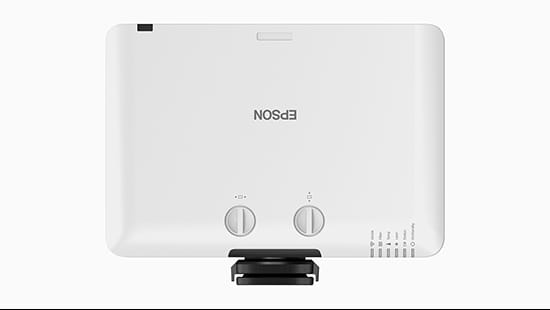

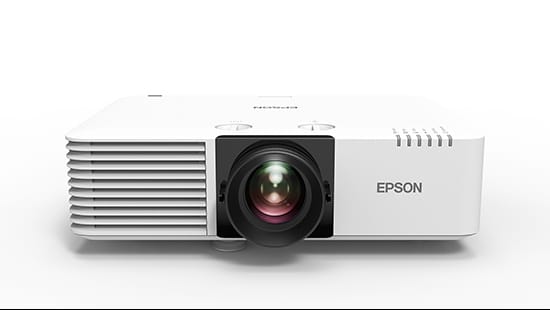

Epson EB-L630SU WUXGA 3LCD Short Throw Laser Projector 6000 Lumens – V11HA29040

Original price was: ₱311,240.00.Current price is: ₱270,644.00.

6,000 lumens white and colour brightness
WUXGA resolution up to 200 inches
20,000-hour laser light source
Short-throw with 0.80–1.07 throw ratio
Wide lens shift (V: ±50%, H: ±20%)
Edge blending for multi-projection
Built-in wireless and HDBaseT connectivity
360° projection flexibility
SKU: V11HA29040

In stock

Price Drop Alerts & Price History

We'll notify you the moment the price hits your target.

💡 Suggested alert: ₱257,100 [ Use this ]

Want to track and manage your alerts? Sign in or create an account.

SKU: V11HA29040 Category: Projector Tag: Epson

Epson EB-L630SU WUXGA 3LCD Short Throw Laser Projector

The Epson EB-L630SU delivers exceptional performance for education, business, and signage applications with a WUXGA short-throw projection, producing vivid images up to 200 inches. Powered by 3LCD technology, it offers 6,000 lumens of equal white and colour brightness for sharp visuals in bright environments. Its short-throw design with a 0.80–1.07 throw ratio and wide lens shift provides flexible installation in constrained spaces. The 20,000-hour laser light source eliminates lamp replacements, ensuring low maintenance and cost efficiency. Built-in wireless connectivity and compatibility with the Epson Wireless Presentation System enable seamless content sharing, while edge blending and geometric correction support multi-projection setups for large, distortion-free displays, making it ideal for dynamic presentations and immersive signage.

Specification	Epson EB-L630SU
SKU	V11HA29040
Projection Technology	RGB liquid crystal shutter projection system (3LCD)
LCD	Size: 0.67” (C2 Fine) Resolution: WUXGA Aspect Ratio: 16:10
Brightness	White Light Output: 6,000 lm (Normal), 4,200 lm (Extended) Colour Light Output: 6,000 lm Light Output (Center): 6,300 lm
Contrast Ratio	Over 5,000,000:1
Light Source	Type: Laser Diode Life: 20,000 hours (Normal), 30,000 hours (Extended)
Projection Lens	Type: No Optical Zoom / Focus (Manual) F-Number: 1.70 Focal Length: 11.76 mm Zoom Ratio: 1.0 – 1.35 (Digital Zoom) Throw Ratio: 0.80 – 1.07 (Wide – Tele)
Screen Size (Projected Distance)	Zoom Wide: 50”–200” [0.85–3.49 m]
Geometric Correction	Vertical/Horizontal Keystone: ±30° / ±30°
Projection Orientation	360° Free

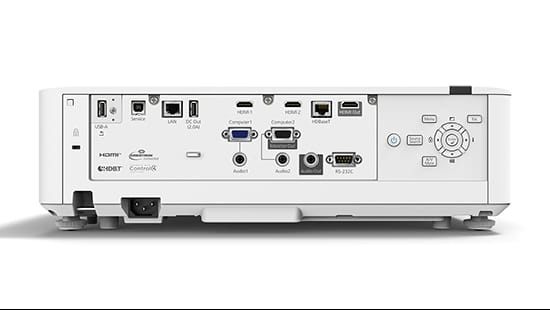

Connectivity	Network: Wired LAN (RJ45 x 1, 100Mbps), Wireless (Built-in and Optional ELPAP11) Analog RGB Input: D-Sub 15Pin (2) Digital Input: HDMI (2, HDCP 2.3), HDBaseT (1, HDCP 2.3) Analog Video Output: D-Sub 15Pin (1) Digital Video Output: HDMI (1, HDCP 2.3) Audio Input: Stereo Mini Jack (2) Audio Output: Stereo Mini Jack (1) Control I/O: RS-232C (D-Sub 9pin x 1) USB Input: USB Type A (2, Port 1 for PC Free, Firmware Update, Copy OSD Settings; Port 2 for 5V/2A Power Supply), USB Type B (1, for Mouse, Keyboard, Control, Firmware Update)
Wireless Specifications	Built-in and Optional Wireless LAN (ELPAP11) Infrastructure: IEEE 802.11b (2.4GHz, 11 Mbps), IEEE 802.11g (2.4GHz, 54 Mbps), IEEE 802.11n (2.4GHz, 72.2 Mbps), IEEE 802.11a (5GHz, 54 Mbps), IEEE 802.11n (5GHz, 150 Mbps), IEEE 802.11ac (5GHz, 325 Mbps) Access Point (Wi-Fi Direct): IEEE 802.11g (2.4GHz, 54 Mbps), IEEE 802.11n (2.4GHz, 72.2 Mbps), IEEE 802.11a (5GHz, 54 Mbps), IEEE 802.11n (5GHz, 150 Mbps), IEEE 802.11ac (5GHz, 325 Mbps) Security: Infrastructure: OPEN, WPA2/WPA3-PSK, WPA2/WPA3-EAP (PEAP, PEAP-TLS, EAP-TLS, EAP-Fast), Access Point: WPA2-PSK (AES)
Operating Temperature	Single Use: 0–45 °C [32–113 °F] (0–2,286 m), 0–40 °C [32–104 °F] (over 2,286 m) Multi-projection Use: 0–40 °C [32–104 °F] (0–2,286 m), 0–35 °C [32–95 °F] (over 2,286 m) 20%–80% Humidity, No Condensation
Operating Altitude	0–3,048 m (High Altitude Mode over 1,500 m)
Start-Up Period	8 seconds (Epson Logo), Warm-up Period: 30 seconds, Quick Start-Up: Less than 5 seconds (Display)
Cool Down Period	Instant Off
Direct Power On/Off	Yes
Power Supply Voltage	100–240 V AC ±10%, 50/60 Hz
Power Consumption (220-240V)	Laser Diode: 345 W (Normal), 258 W (Extended) Standby: 2.0 W (Normal), 0.3 W (Eco)
Dimensions Excluding Feet (D x W x H)	304 x 440 x 122 mm
Weight	Approx. 8.4 kg
Fan Noise	Normal: 38 dB, Eco: 27 dB
Air Filter	Type: Electrostatic Filter Maintenance Cycle: 20,000 hours (Normal), 30,000 hours (Extended)
Internal Speaker	Sound Output: 10W Monaural
