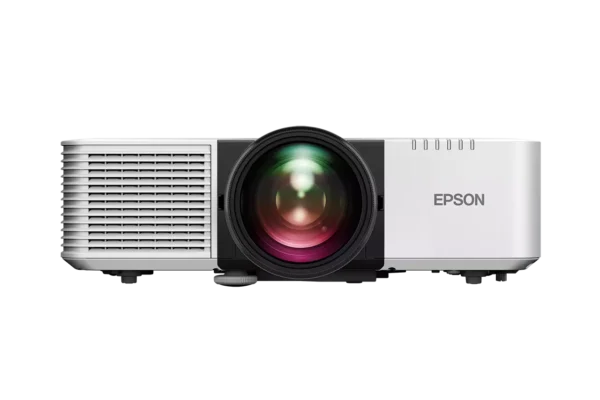

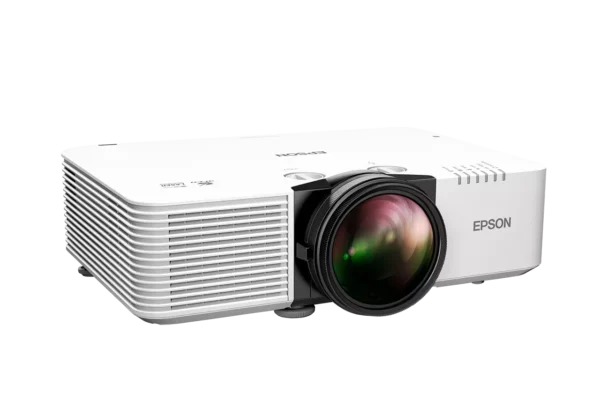

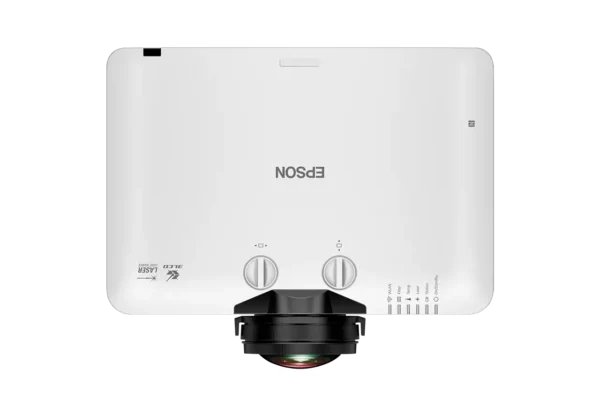

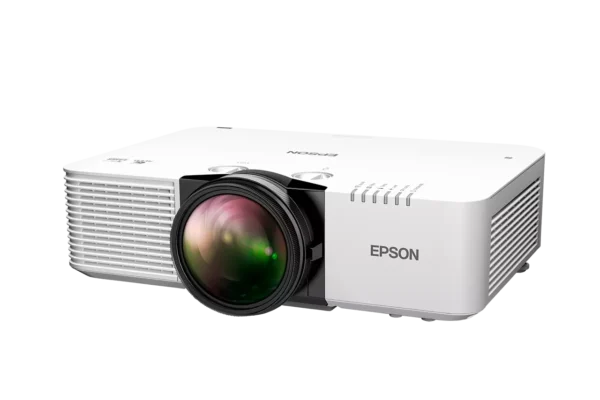

Epson EB-L690SE WUXGA 3LCD Short Throw Laser Projector 6000 Lumens – V11HB36080

Original price was: ₱357,860.00.Current price is: ₱311,190.00.

6,000 lumens white and colour brightness
WUXGA with 4K enhancement up to 500 inches
30,000-hour laser light source
Short-throw with 0.5–0.7 throw ratio
1.4x optical zoom and lens shift
Supports 16:10, 16:6, and 21:9 aspect ratios
Wireless, NFC, and iProjection app connectivity
Edge blending and geometric correction
SKU: V11HB36080

In stock

Price Drop Alerts & Price History

We'll notify you the moment the price hits your target.

💡 Suggested alert: ₱295,600 [ Use this ]

Want to track and manage your alerts? Sign in or create an account.

SKU: V11HB36080 Category: Projector Tag: Epson

Epson EB-L690SE WUXGA 3LCD Short Throw Laser Projector

The Epson EB-L690SE delivers vibrant, high-resolution visuals with WUXGA and 4K enhancement technology, projecting images up to 500 inches for professional environments like boardrooms, classrooms, and exhibitions. Powered by 3LCD technology, it produces 6,000 lumens of equal white and colour brightness, ensuring sharp, glare-free displays in high-ambient light settings. Its compact short-throw design with a 0.5–0.7 throw ratio and 1.4x optical zoom, combined with manual lens shift, offers flexible installation in constrained spaces. The 30,000-hour laser light source minimizes maintenance, while advanced features like edge blending, point correction, and compatibility with the optional ELPEC01 camera enhance multi-projection setups. With built-in wireless, NFC, and the iProjection app, it ensures seamless content sharing and remote management for dynamic presentations.

Specification	Epson EB-L690SE
SKU	V11HB36080
Projection Technology	RGB liquid crystal shutter projection system (3LCD)
LCD Panel	Size: 0.67 inch with C2 Fine Resolution: WUXGA Aspect Ratio: 16:10
Brightness	White Light Output: 6,000 lm (Normal), 4,200 lm (Eco) Colour Light Output: 6,000 lm
Resolution Enhancement	4K enhancement
Contrast Ratio	Over 5,000,000:1
Light Source	Type: Laser Life: 20,000 hours (High), 30,000 hours (Eco)
Projection Lens	Type: Optical Zoom / Focus (Manual) F-Number: 1.8 – 2 Focal Length: 7.54 mm – 10.55 mm Zoom Ratio: 1 – 1.4 Throw Ratio: 0.50 – 0.70:1
Screen Size (Projected Distance)	Standard: 100” diagonal [1.09 m – 1.54 m] Zoom Wide: 100”–500” [1.1 m – 5.6 m] Zoom Tele: 100”–500” [1.5 m – 7.8 m] Supports 16:10, 16:6, 21:9
Geometric Correction	Manual Vertical/Horizontal Keystone: ±30° / ±30° Quick Corner: Yes Point Correction: Yes
Projection Orientation	360° Free

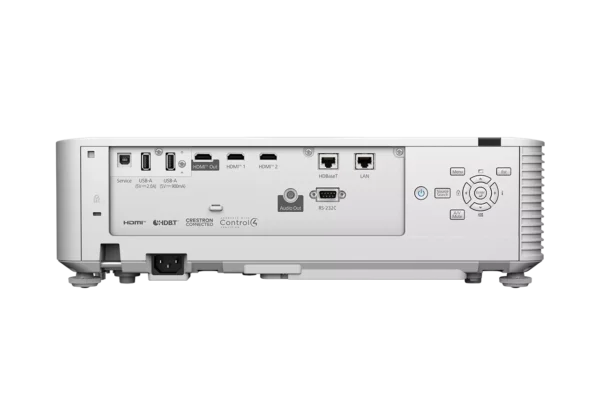

Connectivity	Interfaces: USB 2.0-A (2, for PC Free, Document Camera, Firmware Update, Copy OSD Settings, Content Playback, ELPEC01, Wireless LAN or 5V/2A and 5V/0.9A Power Supply), USB 2.0 Type B (Service Only, for Firmware Update, Copy OSD Settings), RS-232C (D-Sub 9pin x 1), Ethernet (100 Base-TX / 10 Base-T, RJ45 x 1), Wireless LAN (Optional, IEEE 802.11a/b/g/n), HDMI (2, HDCP 2.3), HDBaseT (1, HDCP 2.3), HDMI Out (1, HDCP 2.3), Jack Plug Out (Stereo Mini x 1) Near Field Communication (NFC): Yes
Wireless Specifications	Supported Modes: Infrastructure, Simple AP (Wi-Fi Direct) Supported Speeds: IEEE 802.11a (5GHz, 54 Mbps), IEEE 802.11b (2.4GHz, 11 Mbps), IEEE 802.11g (2.4GHz, 54 Mbps), IEEE 802.11n (2.4GHz/5GHz, 72.2/150 Mbps), IEEE 802.11ac (5GHz, 325 Mbps) Security: Infrastructure: OPEN, WPA2/WPA3-PSK, WPA2/WPA3-EAP (PEAP, PEAP-TLS, EAP-TLS, EAP-Fast), Simple AP (Wi-Fi Direct): WPA2-PSK (AES)
Operating Temperature	Storage: -10 °C – 60 °C Operation: 20%–80% Humidity, No Condensation
Operating Humidity	Operation: 20%–80%, Storage: 10%–90%
Start-Up Period	12 seconds (Epson Logo), Warm-up Period: 30 seconds
Cool Down Period	Instant Off
Direct Power On/Off	Yes
Power Supply Voltage	AC 100 V – 240 V, 50 Hz – 60 Hz
Power Consumption	Normal On-Mode: 362 W, Eco On-Mode: 250 W, Normal Peak-Mode: 415 W, Eco Peak-Mode: 303 W, Energy Saving Standby: 0.4 W
Dimensions Excluding Feet (W x D x H)	440 x 368 x 151 mm
Weight	9.3 kg
Fan Noise	Normal: 36 dB, Eco: 26 dB
Air Filter	Type: Electrostatic Filter Maintenance Cycle: 20,000 hours (Normal), 30,000 hours (Extended)
Colour Modes	Cinema, Dynamic, Natural, Presentation, DICOM SIM, Multi Projection, BT709
Other Features	21:9 aspect ratio support, 4K enhancement, A/V mute, Auto Power On, Customizable user logo, Direct Power On/Off, Document Camera Compatible, Edge Blending, Home Screen, JPEG Viewer, Network projection, OSD copy function, PC Free, Point correction, Quick Corner, Schedule Function, Split-Screen-Function, Ultra-wide display (16:6), Web Control, Web Remote, iProjection App
