Fractal Design Meshify 3 XL Full-Tower PC Case Industrial Steel | Tempered Glass | Ambience Pro RGB or non-RGB | Black | White | 420mm Radiator Support

Fractal Design Meshify 3 XL Full-Tower PC Case Industrial Steel | Tempered Glass | Ambience Pro RGB or non-RGB | Black | White | 420mm Radiator Support

Price range: ₱11,395.00 through ₱15,795.00

Spacious full tower with E-ATX (330 mm) and GPU (512 mm) support (SKUs: FD-C-MES3X-01, FD-C-MES3X-02, FD-C-MES3X-03, FD-C-MES3X-04, FD-C-MES3X-05, FD-C-MES3X-06)

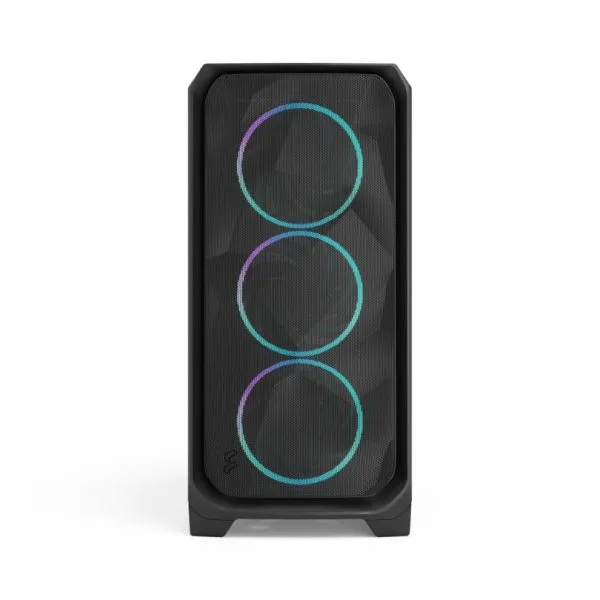

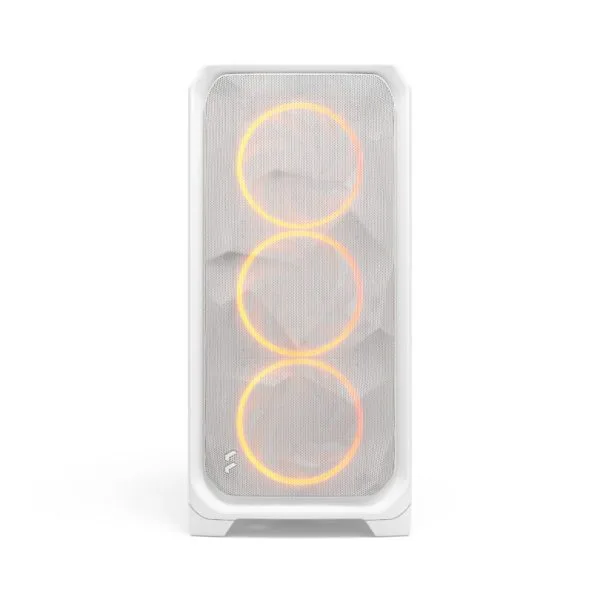

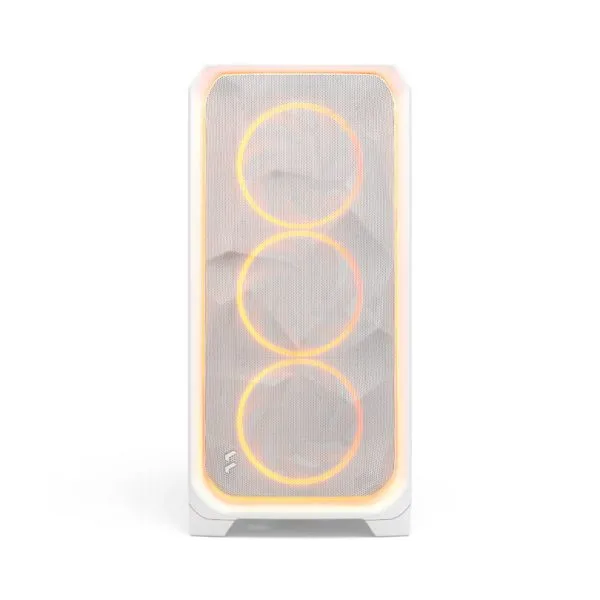

Advanced airflow with mesh front panel and air guide for GPU cooling
Three Momentum 14 fans with LCP blades and FDB bearings for quiet, efficient cooling

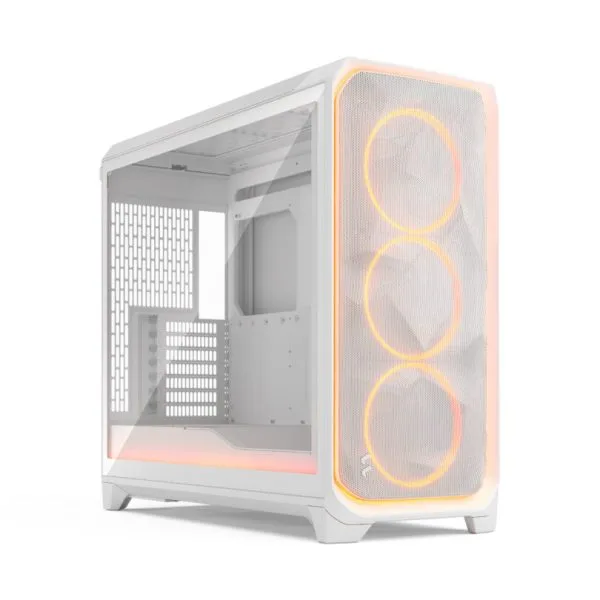

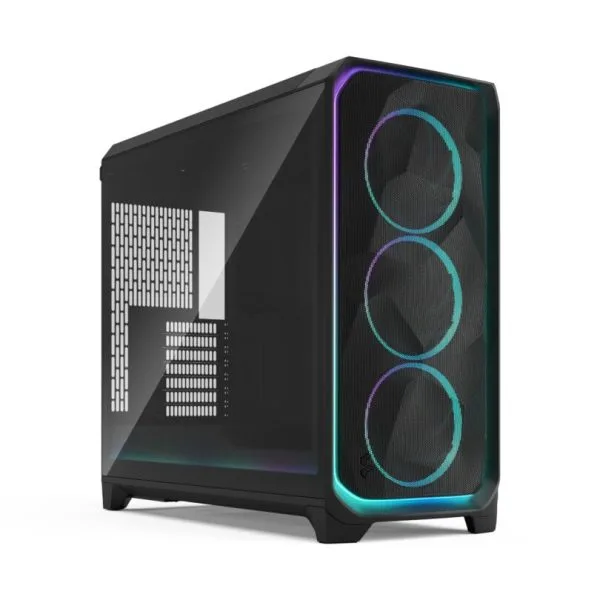

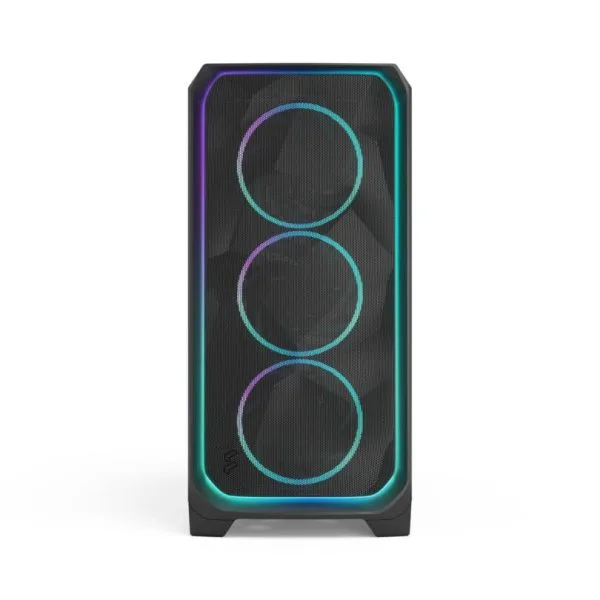

Ambience Pro RGB versions with ARGB Gen 2 lighting and Adjust Pro Hub
Supports 420 mm top, 360 mm front/side radiators, and up to ten 140 mm fans

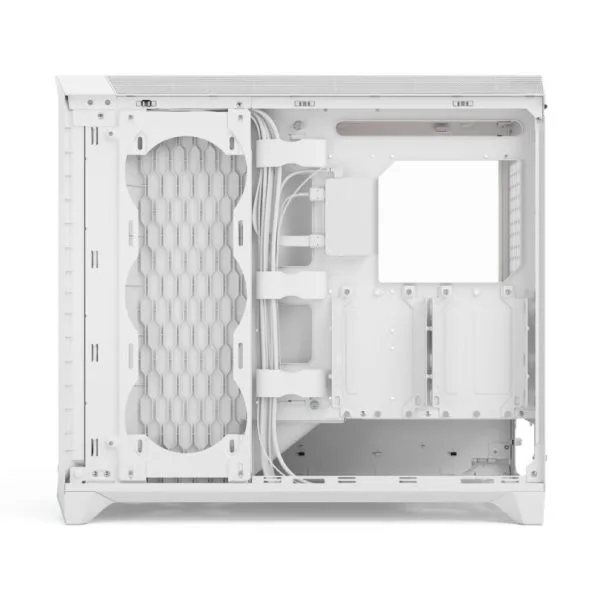

Tool-less panels and cable management with aligners and cover
Front I/O with 20 Gbps USB-C, two USB-A, and audio combo jack

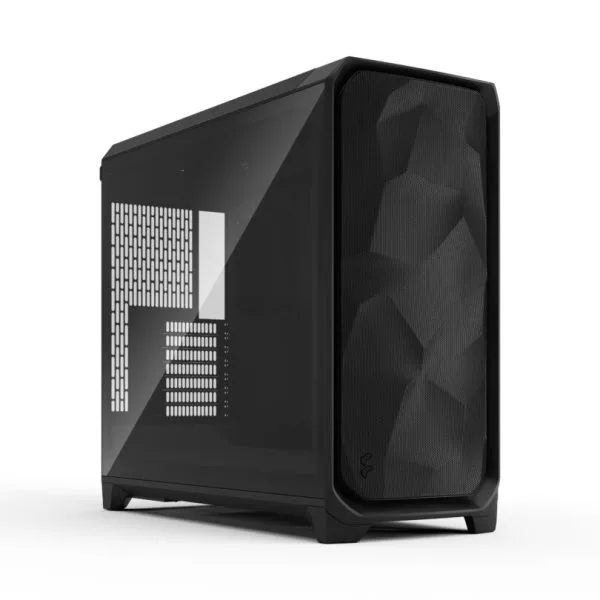

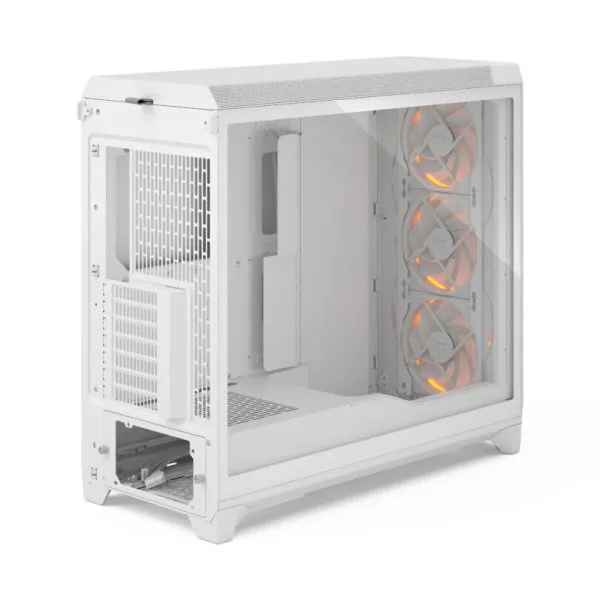

Available in black or white, with solid or tempered glass side panels

Variant

Clear

Price Drop Alerts & Price History

We'll notify you the moment the price hits your target.

💡 Suggested alert: ₱10,800 [ Use this ]

Want to track and manage your alerts? Sign in or create an account.

SKU: N/A Categories: PC Cases, E-ATX Tag: Fractal Design

Fractal Design Meshify 3 XL Full Tower PC Case

The Fractal Design Meshify 3 XL full tower case redefines high-performance PC building with its spacious interior and advanced airflow design. Featuring a rockface-inspired mesh front panel and three pre-installed Momentum 14 fans with liquid crystal polymer blades and fluid dynamic bearings, it delivers exceptional cooling with minimal noise. An innovative air guide enhances GPU thermals, ensuring optimal performance for high-end components. Supporting E-ATX motherboards up to 330 mm and GPUs up to 512 mm, this case accommodates powerful gaming systems. The Ambience Pro RGB versions elevate aesthetics with advanced ARGB Gen 2 lighting, including an animated startup effect, customizable via the download-free Adjust Pro Hub web tool. With support for up to 420 mm top radiators, 360 mm front and side radiators, and ten fan mounts, it’s ideal for custom liquid cooling loops. The clean interior, complete with cable aligners and a cover, simplifies cable management, while tool-less panels and a 20 Gbps USB-C port enhance build convenience. Available in black or white with solid or tempered glass options, the Meshify 3 XL combines versatility, cooling efficiency, and a striking design for enthusiasts.

Specification	Black Solid	Black TG Light Tint	Ambience Pro RGB Black TG Light Tint	Black RGB TG Light Tint	Ambience Pro RGB White TG Clear Tint	White RGB TG Clear Tint
SKU	FD-C-MES3X-01	FD-C-MES3X-02	FD-C-MES3X-03	FD-C-MES3X-04	FD-C-MES3X-05	FD-C-MES3X-06
UPC	843276107215	843276107222	843276107239	843276109523	843276107246	843276109530
EAN	7340172707219	7340172707226	7340172707233	7340172709527	7340172707240	7340172709534
3.5"/2.5" Drive Mounts	2/4
Dedicated 2.5" Drive Mounts	1
5.25” Drive Mounts	-
Expansion Slots	7
Adjust Pro Hub	-	-	Included	-	Included	-
Ambience Case Lighting	-	-	Included	Included	Included	Included
Front Interface	1x USB Type-C 20 Gbps, 2x USB Type-A 5 Gbps, 1x Audio Combo Jack, Power button
Total Fan Mounts	10 (140 mm) / 7 (120 mm)
Front Fan	3x 120/140 mm, 2x 180 mm (3x 140 mm Momentum Included)
Top Fan	3x 120/140 mm
Rear Fan	1x 120/140 mm
Bottom Fan	-
Side Fan	3x 140 mm (no 120 support without radiator)
Dust Filters	PSU (Bottom)
Cable Routing Space	37.5 mm
Cable Cover	Yes
Cable Organizers	3 Hook-and-loop straps + 3 Cable Aligners

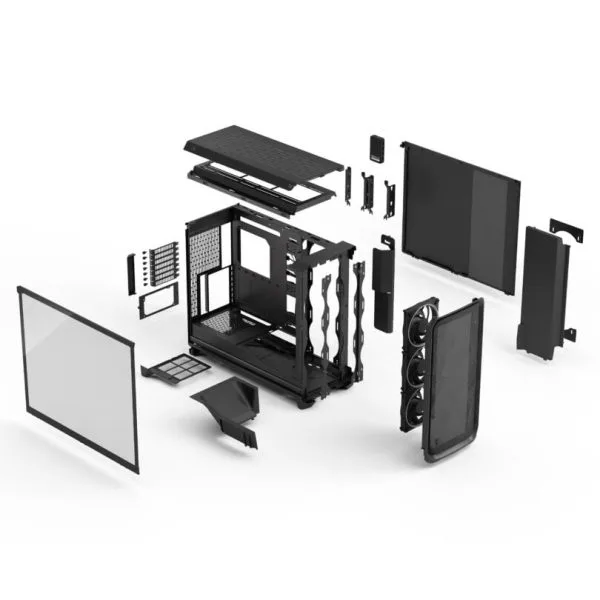

Tool-less Push-to-Lock	Both Side Panels, Bottom Filter, Front Panel, Top Panel
Captive Thumbscrews	Top Radiator Bracket, Air Guide, PSU Bracket

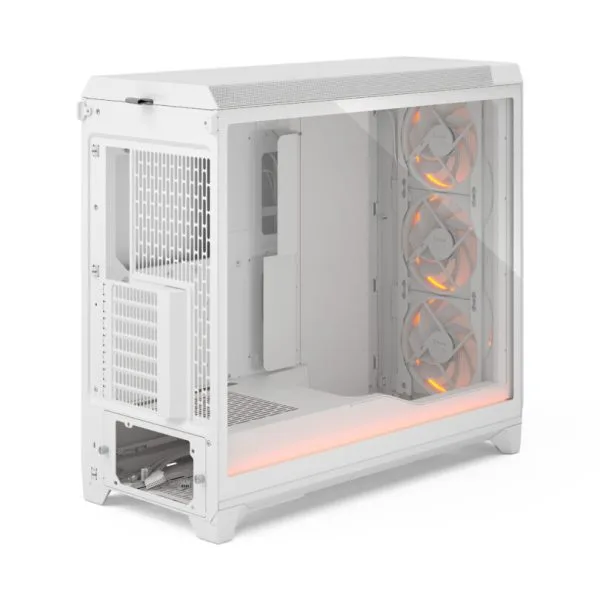

Left Side Panel	Industrial Steel	Tempered Glass	Tempered Glass	Tempered Glass	Tempered Glass	Tempered Glass

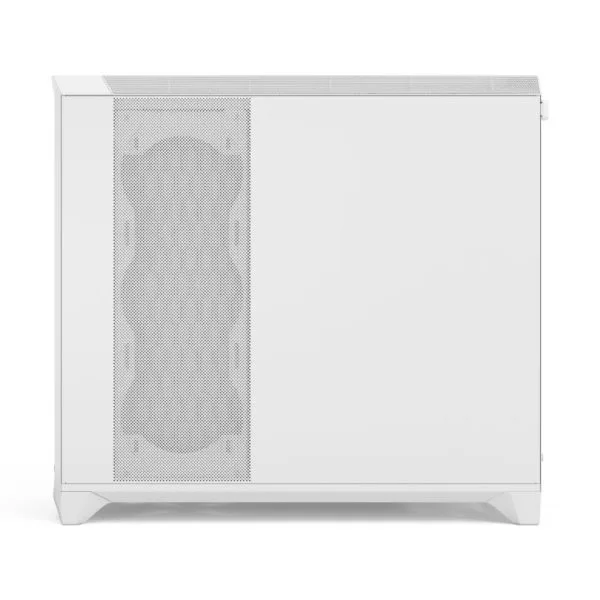

Right Side Panel	Industrial Steel
Power Supply Type	ATX
Motherboard Compatibility	E-ATX (330 mm) / ATX / mATX / ITX / EE-ATX / SSI-EEB / SSI-CEB
PSU Max Length	230 mm
GPU Max Length	512 mm
GPU Max Height	189 mm (7 slot) including cables
CPU Cooler Max Height	182 mm
Front Radiator	280/360 mm
Top Radiator	360/420 (up to 475) mm
Rear Radiator	Up to 120/140 mm
Side Radiator	360 mm (with brackets)
Case Dimensions (LxWxH)	575 x 245 x 515 mm
Case Dimensions w/o Feet/Protrusions/Screws	565 x 245 x 515 mm
Package Dimensions	596 x 350 x 550 mm
Net Weight	10.5 kg	10.9 kg	11.4 kg	10.9 kg	11.4 kg	10.9 kg
Gross Weight	12.4 kg	13 kg	13.3 kg	13 kg	13.3 kg	13 kg
Package Contents	Case, Accessory Box, Manual, Red Note
Accessory Box Content	PSU Screws x4, MB Screws x12, SSD screws M3 x20, Zip tie x5, HDD rubber x8, MB standoff x4, HDD screws x8		PSU Screws x4, MB Screws x12, SSD screws M3 x20, Zip tie x5, HDD rubber x8, MB standoff x4, HDD screws x8, 500 mm Fractal Connect Cable x1, Legacy Splitter Cable		PSU Screws x4, MB Screws x12, SSD screws M3 x20, Zip tie x5, HDD rubber x8, MB standoff x4, HDD screws x8, 500 mm Fractal Connect Cable x1, Legacy Splitter Cable	PSU Screws x4, MB Screws x12, SSD screws M3 x20, Zip tie x5, HDD rubber x8, MB standoff x4, HDD screws x8
Warranty	2 Years

Weight	13 kg
Dimensions	69 × 35 × 60 cm
Brand	Fractal Design
Variant	Black Solid: FD-C-MES3X-01, Black TG Light Tint: FD-C-MES3X-02, Ambience Pro RGB Black TG Light Tint: FD-C-MES3X-03, Black RGB TG Light Tint: FD-C-MES3X-04, Ambience Pro RGB White TG Clear Tint: FD-C-MES3X-05, White RGB TG Clear Tint: FD-C-MES3X-06
