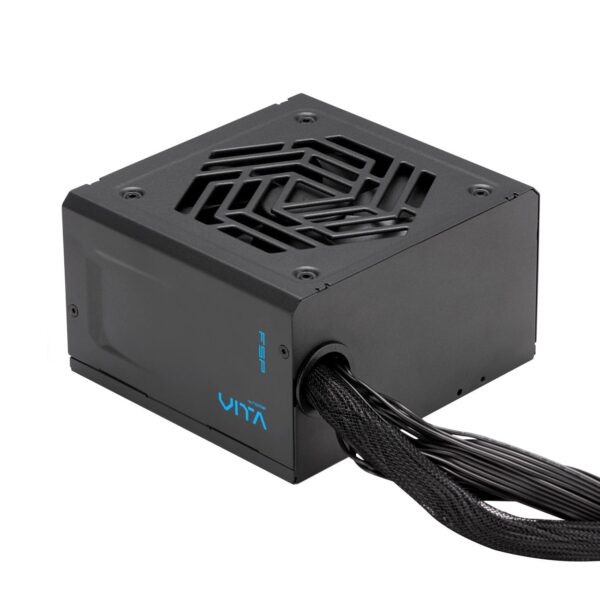

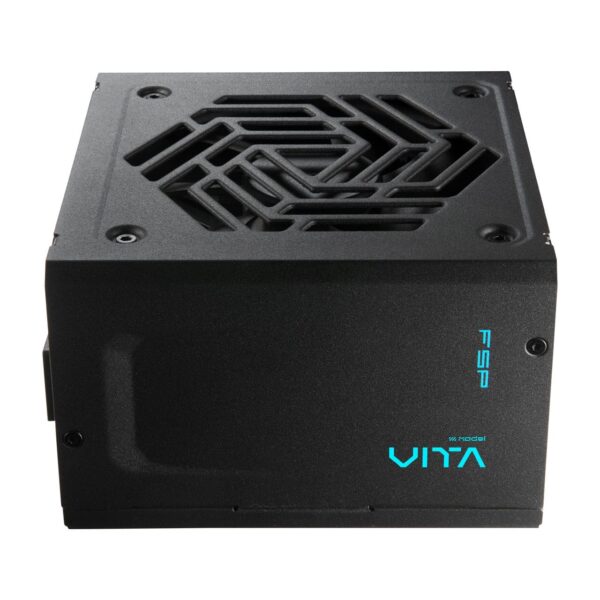

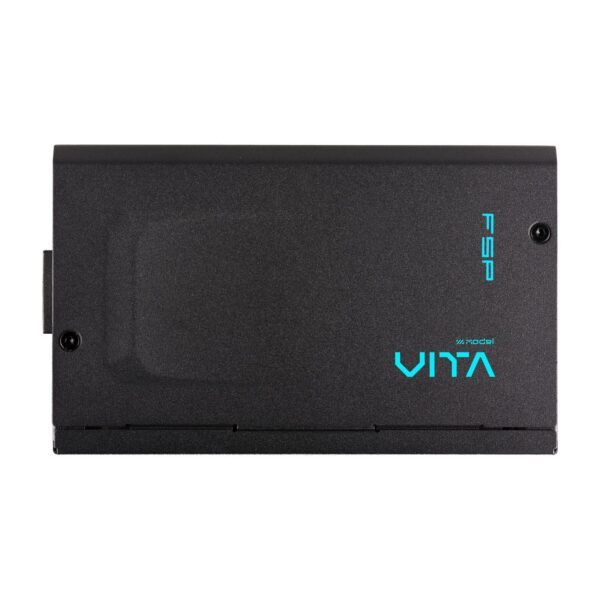

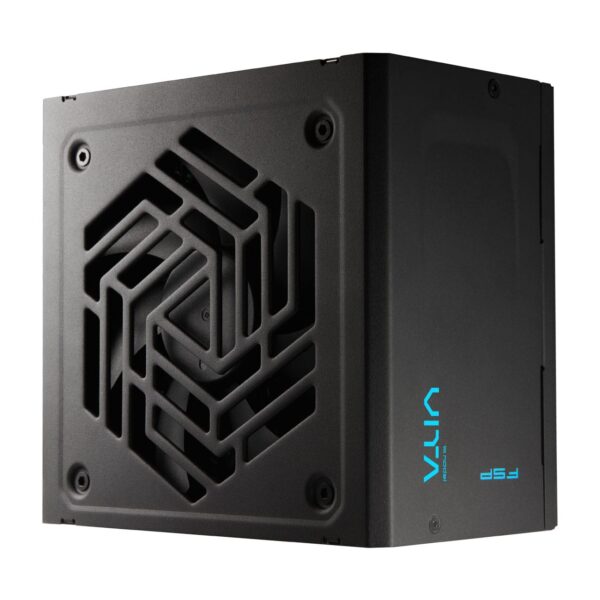

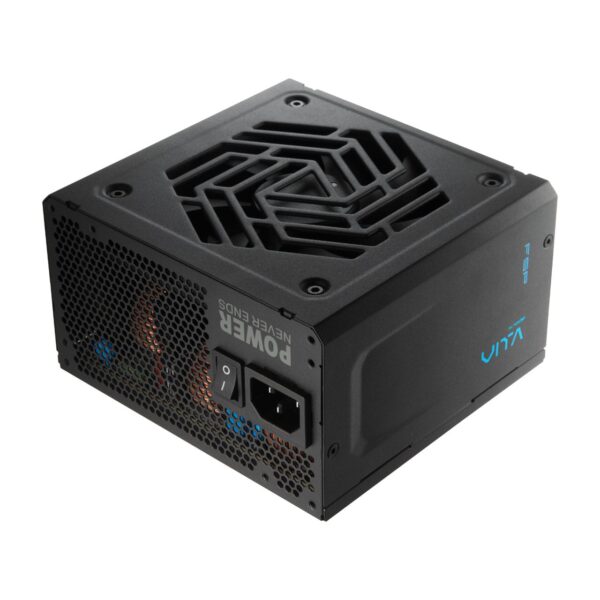

FSP VITA BD 750W | 850W 80 PLUS 230V EU Bronze ATX 3.1 PCIe 5.1 Non-Modular Power Supply – VITA-750BD | VITA-850BD
Price range: ₱3,400.00 through ₱3,740.00
- 750W/850W with 80 PLUS 230V EU Bronze, ≥88% efficiency
- ATX 3.1 and PCIe 5.1-ready with native 12V-2×6 connector
- Single +12V rail for stable GPU and CPU power delivery
- 120mm sleeve bearing fan for quiet, efficient cooling
- Premium black flat cables for easy routing and improved airflow
- 12ms hold-up time at 100% load for system stability
- Comprehensive OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO protections
- Connectors: 24-pin ATX, 4+4-pin EPS, PCIe 6+2-pin, PCIe 12V-2×6, SATA, Molex
- Compact 140x150x86mm design with 5-year warranty
Price Drop Alerts & Price History
-
Authorized
Dealer -
Nationwide
Shipping -
Store &
RMA HUB -
Expert
Support -
7-Day DOA
Protection -
Community
Trusted -
Turnstile
Protected -
reCAPTCHA
Secured -
Tested &
Verified
FSP VITA BD 750W and 850W 80 PLUS 230V EU Bronze ATX 3.1 PCIe 5.1 Power Supply Product Description
The FSP VITA BD series, featuring 750W and 850W models, delivers reliable and efficient power for modern gaming and workstation PCs, meeting ATX 3.1 and PCIe 5.1 standards. Certified 80 PLUS 230V EU Bronze with up to 88% efficiency, these PSUs minimize energy waste and heat, ensuring cost-effective operation. Equipped with a native PCIe 12V-2×6 connector, they support high-performance GPUs like NVIDIA RTX 40/50 Series, handling up to 200% power excursions for peak performance. The single +12V rail design provides stable power delivery, while premium black flat cables enhance cable management and airflow in compact 140x150x86mm ATX cases. A 120mm sleeve bearing fan ensures quiet cooling, and robust protections, including OVP, OCP, OPP, OTP, SCP, UVP, SIP, and NLO, safeguard components in harsh environments. With a 12ms hold-up time at full load and a 5-year warranty, the VITA BD series offers dependable performance for mid-to-high-end builds.
| Specification | FSP VITA-750BD | FSP VITA-850BD |
|---|---|---|
| Model | VITA-750BD | VITA-850BD |
| Rated Output Power | 750W | 850W |
| Form Factor | ATX12V V3.1 | |
| 80 PLUS Certification | 230V EU Bronze (≥88% at typical load) | |
| Input Voltage | 200-240V | |
| Input Current | 6A | |
| Input Frequency | 50-60Hz | |
| PFC | Active (≥0.9) | |
| Efficiency | ≥88% at typical load | |
| Fan Type | Sleeve Bearing, 120mm | |
| Dimensions (L x W x H) | 140 x 150 x 86 mm (5.51 x 5.91 x 3.39 inches) | |
| Operation Temperature | 0-40°C | |
| Protection | OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO | |
| Hold Up Time | ≥12ms at 100% load | |
| DC Output | +3.3V: 20A, +5V: 20A, +12V: 62.5A, -12V: 0.3A, +5Vsb: 2.5A | +3.3V: 20A, +5V: 20A, +12V: 70.83A, -12V: 0.3A, +5Vsb: 2.5A |
| Max Combined Power | 100W (+3.3V/+5V), 750W (+12V), 3.6W (-12V), 12.5W (+5Vsb) | 100W (+3.3V/+5V), 850W (+12V), 3.6W (-12V), 12.5W (+5Vsb) |
| Total Power | 750W | 850W |
| Connectors | 1x ATX (24-pin, 550mm), 1x EPS (4+4-pin, 755mm), 2x PCIe (6+2-pin, 655mm, 2 connectors), 1x PCIe 12V-2x6 (650mm), 1x SATA (4 connectors, 965mm), 1x Molex/SATA (2 Molex, 2 SATA, 965mm) | 1x ATX (24-pin, 550mm), 1x EPS (4+4-pin, 755mm), 2x PCIe (6+2-pin, 655mm, 4 connectors), 1x PCIe 12V-2x6 (650mm), 1x SATA (4 connectors, 965mm), 1x Molex/SATA (2 Molex, 2 SATA, 965mm) |
| Warranty | 5 Years | |
| Packaging Weight | 1.5 kg |
|---|---|
| Packaging Dimensions (L×W×H) | 30 × 20 × 15 cm |
| Brand | FSP |
| Wattage | 750W, 850W |
