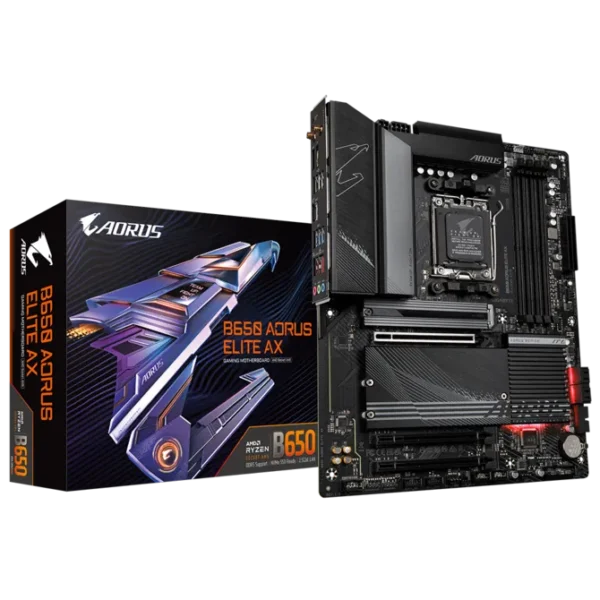

Step into a new era of gaming performance with the GIGABYTE B650 AORUS ELITE AX. Designed for the latest AMD Ryzen 7000, 8000, and 9000 series processors on the AM5 socket, this motherboard is built to unleash unparalleled power. It features a robust Twin 14+2+1 Digital VRM design with 70A Smart Power Stages and an 8-layer 2X copper PCB, ensuring rock-solid stability even under heavy overclocking loads. The advanced thermal design, including fully covered MOSFET heatsinks, a 6mm mega-heatpipe, and M.2 Thermal Guards, keeps your system cool while maintaining peak performance during intense gaming sessions.
The B650 AORUS ELITE AX is ready for the future of storage and connectivity. It supports next-generation PCIe 5.0 M.2 SSDs for blazing-fast data transfer speeds and features dual-channel DDR5 memory support with EXPO and XMP compatibility for easy overclocking up to 8000MT/s. Networking is handled by ultra-fast 2.5GbE LAN and Wi-Fi 6E for low-latency online gaming. DIY builders will appreciate the user-friendly EZ-Latch designs for the PCIe slot and M.2 connectors, allowing for screwless and quick installation of components, along with Q-Flash Plus for updating the BIOS without installing a CPU or memory.
Platform & Power
Model Name
GIGABYTE B650 AORUS ELITE AX
Chipset
AMD B650
Processor Support
AMD Socket AM5 for Ryzen™ 7000 / 8000 / 9000 Series
VRM Design
Twin 14+2+1 Digital VRM Design (70A Smart Power Stage)
Form Factor
ATX (30.5cm x 24.4cm)
Memory & Storage
Memory Support
4 x DDR5 DIMM, up to 256GB, Dual Channel
Memory Speed
Up to 8000(OC) MT/s, Supports AMD EXPO™ & Intel® XMP
M.2 Connectors
1 x PCIe 5.0 x4 (M.2 25110/2280), 2 x PCIe 4.0 x4 (M.2 22110/2280)
SATA Ports
4 x SATA 6Gb/s (RAID 0, 1, 10 support)
Connectivity & Expansion
PCIe Slots
1 x PCIe 4.0 x16, 2 x PCIe 3.0 x16 (running at x1)
Networking
Realtek® 2.5GbE LAN, Wi-Fi 6E (802.11ax), Bluetooth 5.2/5.3

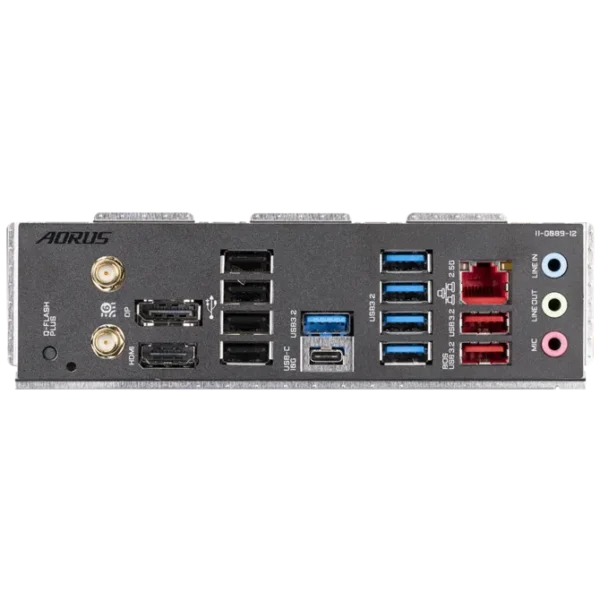

Rear USB Ports
1 x USB 3.2 Gen 2 Type-C, 2 x USB 3.2 Gen 2 Type-A, 5 x USB 3.2 Gen 1, 4 x USB 2.0
Front USB Headers
1 x USB 3.2 Gen 2x2 Type-C, 1 x USB 3.2 Gen 1, 2 x USB 2.0
Audio
Realtek® Audio CODEC, High Definition Audio (2/4/5.1/7.1-channel)
