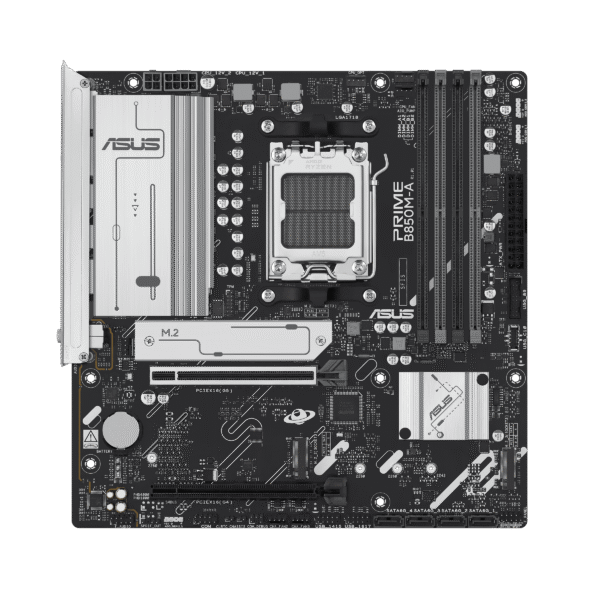

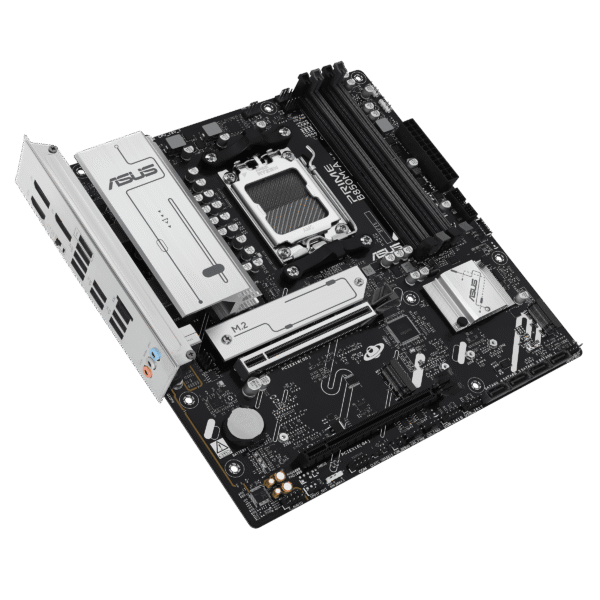

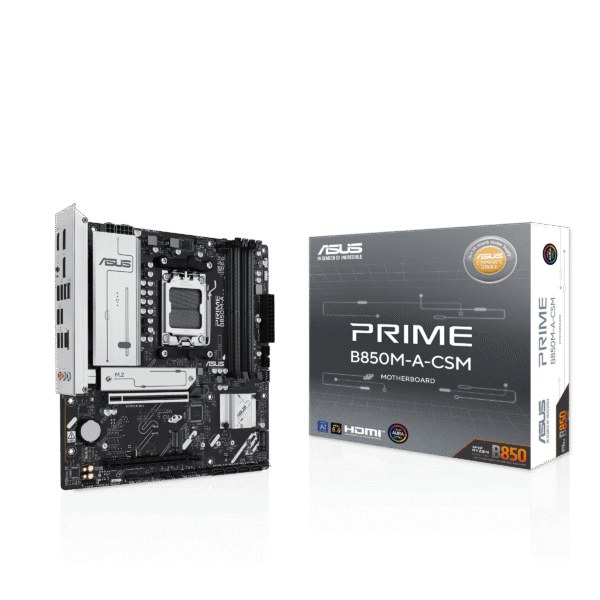

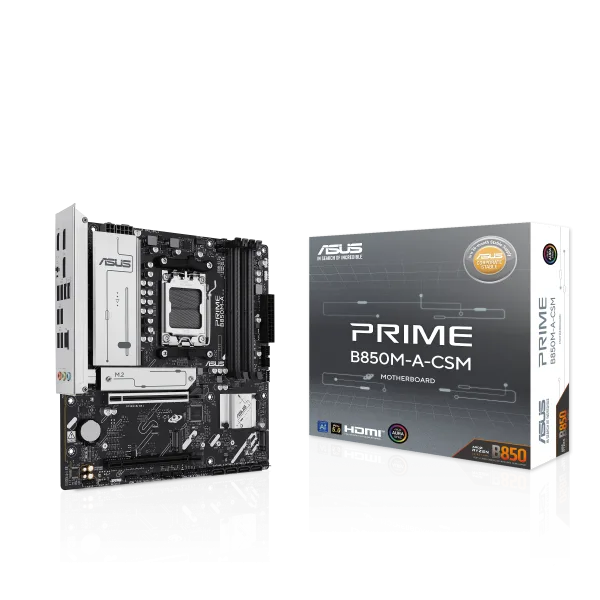

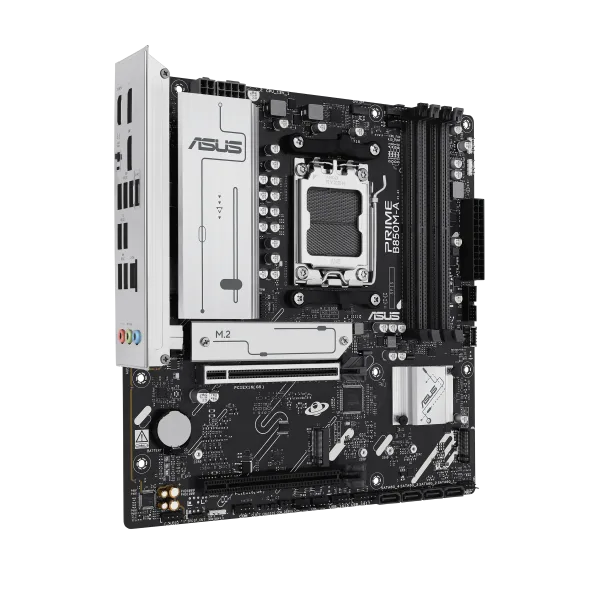

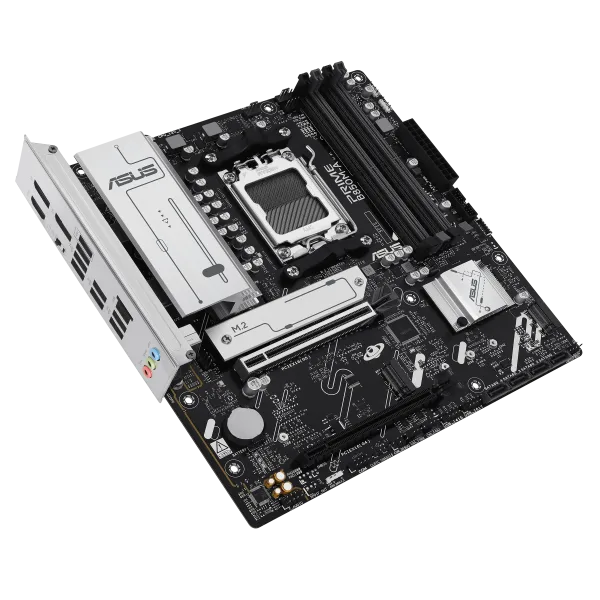

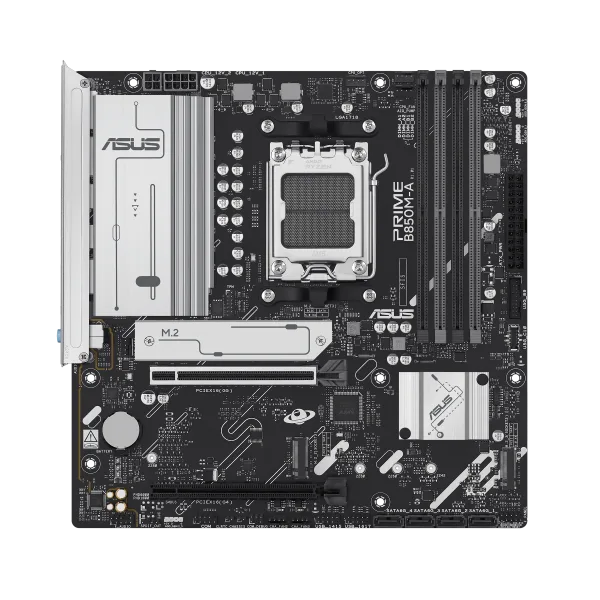

ASUS PRIME B850M-A-CSM micro-ATX Motherboard AMD B850 Chipset DDR5 PCIe 5.0 – PRIME B850M-A-CSM
₱12,000.00Original price was: ₱12,000.00.₱10,195.00Current price is: ₱10,195.00.
AMD B850 chipset with AM5 socket for Ryzen 9000, 8000, 7000 Series CPUs
4 x DDR5 DIMM slots, up to 256GB, 8000+ MT/s (OC) with EXPO, AEMP
PCIe 5.0 x16 slot and PCIe 5.0 M.2 slot for high-speed performance
Realtek 2.5Gb Ethernet with LANGuard, USB 5Gbps Type-C support
Three M.2 slots, four SATA 6Gb/s ports with RAID 0/1/5/10
Dual DisplayPort (8K@30Hz), HDMI (4K@60Hz) for versatile displays
8+2+1 phase power design with DIGI+ VRM for stable operation
VRM and M.2 heatsinks with Fan Xpert 2+ for optimal cooling
ASUS 5X Protection III, Aura Sync RGB, BIOS FlashBack, 36-month CSM support
SKU: PRIME B850M-A-CSM
In stock
ℹ️
For walk-in customers: please always INQUIRE FIRST before visiting as not all items are displayed in our physical store. As an online-first store, most of our inventory is held in our online warehouse and is transferred to the store upon request.
ASUS PRIME B850M-A-CSM micro-ATX Motherboard AMD B850 Chipset DDR5 PCIe 5.0 - PRIME B850M-A-CSM
Price Drop Alerts & Price History
⚠️ That's a steep drop! You might be waiting a while.
We'll notify you the moment the price hits your target.
ASUS PRIME B850M-A-CSM Motherboard Product Description
The ASUS PRIME B850M-A-CSM micro-ATX motherboard is tailored for AMD Ryzen 9000, 8000, and 7000 Series processors, delivering robust performance for Advanced AI PC applications and enterprise-grade reliability. Powered by the AMD B850 chipset, it supports up to 256GB DDR5 memory at speeds exceeding 8000 MT/s (OC) with EXPO and AEMP for optimized memory performance. Featuring one PCIe 5.0 x16 slot and three M.2 slots, including a PCIe 5.0 x4 slot for blazing-fast NVMe storage, it ensures rapid data transfers alongside four SATA 6Gb/s ports with RAID 0/1/5/10 support. The 8+2+1 phase power design with DIGI+ VRM delivers stable power for demanding workloads, while comprehensive cooling, including VRM and M.2 heatsinks with Fan Xpert 2+, maintains optimal temperatures. Connectivity shines with Realtek 2.5Gb Ethernet, USB 5Gbps Type-C, dual DisplayPort (8K@30Hz), and HDMI (4K@60Hz). ASUS 5X Protection III, with SafeSlot and overvoltage protection, ensures durability, while Aura Sync RGB and BIOS FlashBack enhance customization and ease of use. Designed for corporate stability with up to 36-month lifecycle support and ASUS Control Center Express, this motherboard is ideal for IT management and DIY builders, backed by a 3-year warranty.
Specification
ASUS PRIME B850M-A-CSM
Model
PRIME B850M-A-CSM
CPU Support
AMD Socket AM5 for Ryzen 9000, 8000, 7000 Series Desktop Processors
Chipset
AMD B850
Form Factor
mATX (24.4 cm x 24.4 cm)
Memory
4 x DDR5 DIMM, Max. 256GB, Up to 8000+ MT/s (OC), ECC/Non-ECC, Dual Channel, EXPO, AEMP
Graphics Outputs
2 x DisplayPort (8K@30Hz), 1 x HDMI (4K@60Hz)
Expansion Slots
1 x PCIe 5.0 x16 (x16 mode, Ryzen 9000/7000), 1 x PCIe 4.0 x16 (x8/x4 mode, Ryzen 8000), 1 x PCIe 4.0 x16 (x1 mode, B850)
Storage
3 x M.2 (1 x PCIe 5.0 x4, 2 x PCIe 4.0 x4), 4 x SATA 6Gb/s, RAID 0/1/5/10 (Ryzen 9000), RAID 0/1 (Ryzen 8000), RAID 0/1/10 (Ryzen 7000)
Ethernet
1 x Realtek 2.5Gb Ethernet, ASUS LANGuard
USB Ports
Rear: 2 x USB 10Gbps Type-A, 2 x USB 5Gbps Type-A, 4 x USB 2.0 Type-A; Front: 1 x USB 5Gbps Type-C, 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports)
2 x USB 10Gbps Type-A, 2 x USB 5Gbps Type-A, 4 x USB 2.0 Type-A, 2 x DisplayPort, 1 x HDMI, 1 x Realtek 2.5Gb Ethernet, 3 x Audio Jacks, 1 x BIOS FlashBack Button
Internal I/O
1 x 24-pin Power, 1 x 8-pin +12V, 1 x 4-pin +12V, 1 x CPU Fan, 1 x CPU OPT Fan, 1 x AIO Pump, 3 x Chassis Fan, 3 x M.2, 4 x SATA 6Gb/s, 1 x USB 5Gbps Type-C, 1 x USB 5Gbps Header, 2 x USB 2.0 Headers, 3 x Addressable RGB Gen 2, 1 x Clear CMOS, 1 x Chassis Intrusion, 1 x COM Port, 1 x Front Audio, 1 x S/PDIF Out, 1 x SPI TPM, 1 x System Panel
