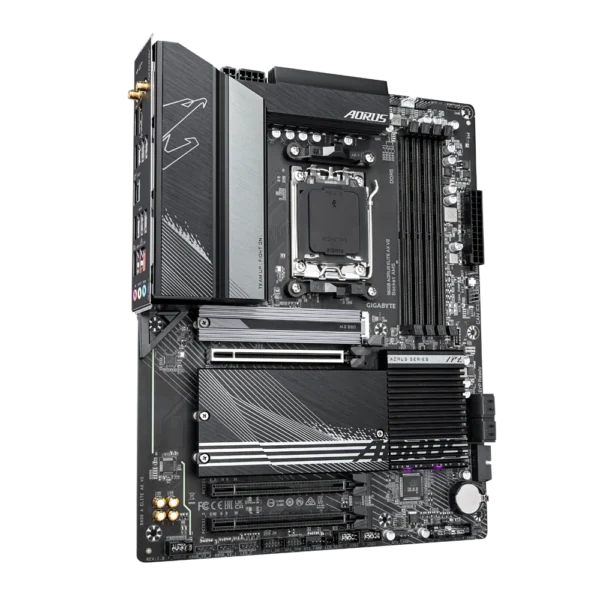

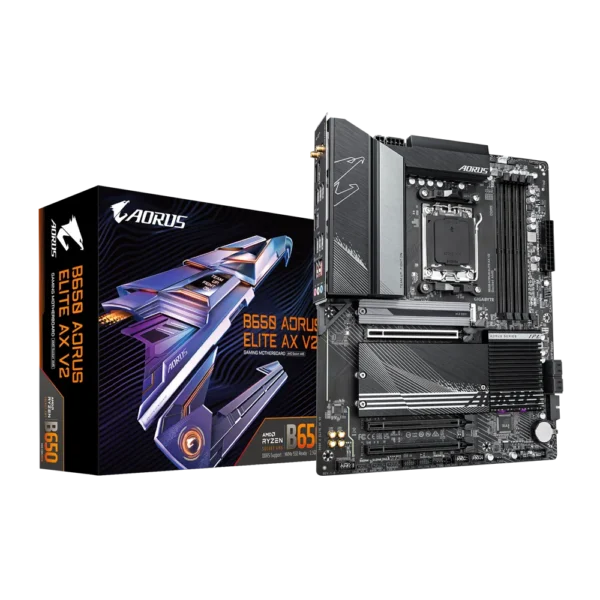

GIGABYTE B650 AORUS ELITE AX V2 ATX AM5 Motherboard with DDR5 8000MHz, PCIe 5.0 M.2, and Wi-Fi 6E - GA-B650-A-ELITE-AX-V2

GIGABYTE B650 AORUS ELITE AX V2 ATX AM5 Motherboard with DDR5 8000MHz, PCIe 5.0 M.2, and Wi-Fi 6E – GA-B650-A-ELITE-AX-V2

Original price was: ₱13,200.00.Current price is: ₱11,395.00.

AMD AM5 socket supports Ryzen 7000/8000/9000 series processors
DDR5 memory up to 8000MHz (OC) with 256GB capacity
PCIe 5.0 x4 M.2 slot and triple M.2 for high-speed storage
X3D Turbo Mode enhances gaming FPS by up to 18%
Wi-Fi 6E, Bluetooth 5.3, and 2.5GbE LAN for fast connectivity
USB 3.2 Gen 2×2 Type-C and dual-display support (HDMI 2.1, DP 1.4)
EZ-Latch, RGB Fusion, and 5-year warranty for reliability

Out of stock

Restock & Price Alerts

We'll email you the moment this is back in stock. If you enter a target price, we'll also send you a separate alert if the price drops to your goal later!

🔓 Sign in to unlock full price history charts and manage your alerts.

SKU: GA-B650-A-ELITE-AX-V2 Categories: AMD AM5 Motherboards, Motherboards Tag: Gigabyte

Unlock elite gaming performance with the GIGABYTE B650 AORUS ELITE AX V2 ATX Motherboard, engineered for AMD Ryzen 7000, 8000, and 9000 series processors on the AM5 socket. Built on the AMD B650 chipset, this motherboard supports DDR5 memory up to 8000MHz (OC) across four DIMM slots, delivering up to 256GB capacity for seamless multitasking and high-frame-rate gaming. The PCIe 5.0 x4 M.2 slot ensures lightning-fast NVMe SSD performance, complemented by two additional M.2 slots and four SATA 6Gb/s ports with RAID support for versatile storage configurations. X3D Turbo Mode boosts gaming FPS by up to 18% with a single click, optimizing Ryzen processors for ultra-smooth gameplay. Connectivity excels with Wi-Fi 6E (Realtek RTL8852CE or Intel AX210 depending on PCB revision), Bluetooth 5.3, and 2.5GbE LAN for lag-free online experiences. Integrated Radeon graphics drive dual displays via HDMI 2.1 and DisplayPort 1.4, while USB 3.2 Gen 2×2 Type-C and multiple USB ports enhance peripheral compatibility. The twin 12+2+2 phases digital VRM and advanced thermal design with M.2 Thermal Guard ensure stability under heavy loads. EZ-Latch for PCIe and M.2 slots simplifies upgrades, and RGB Fusion with addressable LED headers adds customizable flair. Backed by a 5-year warranty, GIGABYTE Control Center, and Q-Flash Plus for effortless BIOS updates, this motherboard is a future-proof cornerstone for high-end gaming rigs.

Specification	Details
Model	GA-B650-A-ELITE-AX-V2
CPU	AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors (Refer to GIGABYTE's CPU Support List for more information)
Chipset	AMD B650
Memory	Support for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules; 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXPO™ and XMP memory modules (CPU and memory configuration may affect supported memory types, data rate, and number of DRAM modules, refer to GIGABYTE's Memory Support List)
Onboard Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support: 1 x DisplayPort, supporting 3840x2160@144 Hz (DisplayPort 1.4, HDR); 1 x HDMI port, supporting 4096x2160@60 Hz (HDMI 2.1, HDCP 2.3, native HDMI 2.1 TMDS compatible) (Graphics specifications may vary depending on CPU support)
Audio	Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel (Change functionality using audio software, configure 7.1-channel audio via audio settings)
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication Module	Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0): WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands, BLUETOOTH 5.3, Support for 11ax 160MHz wireless; Intel® Wi-Fi 6E AX210 (PCB rev. 1.1): WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands, BLUETOOTH 5.3, Support for 11ax 160MHz wireless (Actual data rate may vary depending on environment and equipment)
Expansion Slots	CPU: 1 x PCI Express x16 slot (PCIEX16), AMD Ryzen™ 7000/9000 Series support PCIe 4.0 x16 mode, AMD Ryzen™ 8000 Series-Phoenix 1 support PCIe 4.0 x8 mode, AMD Ryzen™ 8000 Series-Phoenix 2 support PCIe 4.0 x4 mode (PCIEX16 slot supports graphics card or NVMe SSD, install graphics card in PCIEX16 slot if only one is used); Chipset: 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
Storage Interface	CPU: 1 x M.2 connector (M2A_CPU), Socket 3, M key, type 25110/22110/2580/2280 SSDs (AMD Ryzen™ 7000/9000 Series support PCIe 5.0 x4/x2 SSDs, AMD Ryzen™ 8000 Series-Phoenix 1 support PCIe 4.0 x4/x2 SSDs, AMD Ryzen™ 8000 Series-Phoenix 2 support PCIe 4.0 x4/x2 SSDs); 1 x M.2 connector (M2B_CPU), Socket 3, M key, type 25110/22110/2580/2280 SSDs (AMD Ryzen™ 7000/9000 Series support PCIe 4.0 x4/x2 SSDs, AMD Ryzen™ 8000 Series-Phoenix 1 support PCIe 4.0 x4/x2 SSDs, AMD Ryzen™ 8000 Series-Phoenix 2 support PCIe 4.0 x2 SSDs); Chipset: 1 x M.2 connector (M2C_SB), Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs; 4 x SATA 6Gb/s connectors; RAID 0, RAID 1, and RAID 10 support for NVMe SSD and SATA storage devices
USB	CPU: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support; 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel; CPU + USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel; Chipset: 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header; 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header); 4 x USB 2.0/1.1 ports available through the internal USB headers; Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel
Internal I/O Connectors	1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x 4-pin ATX 12V power connector; 1 x CPU fan header; 1 x CPU fan/water cooling pump header; 3 x system fan headers; 1 x system fan/water cooling pump header; 3 x addressable RGB Gen2 LED strip headers; 1 x RGB LED strip header; 3 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module header (For GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only); 1 x reset button; 1 x reset jumper; 1 x Clear CMOS jumper
Back Panel Connectors	1 x Q-Flash Plus button; 2 x antenna connectors (2T2R); 1 x DisplayPort; 1 x HDMI port; 1 x USB Type-C® port, with USB 3.2 Gen 2 support; 2 x USB 3.2 Gen 2 Type-A ports (red); 5 x USB 3.2 Gen 1 ports; 4 x USB 2.0/1.1 ports; 1 x RJ-45 port; 3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection; Temperature detection; Fan speed detection; Water cooling flow rate detection; Fan fail warning; Fan speed control (Whether fan/pump speed control is supported depends on the fan/pump installed)
BIOS	1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) (Available applications may vary by motherboard model); Support for Q-Flash; Support for Q-Flash Plus
Bundled Software	Norton® Internet Security (OEM version); LAN bandwidth management software
Operating System	Support for Windows 11 64-bit; Support for Windows 10 64-bit
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
