🔥 Eligible for the Gigabyte Sizzle and Steam Promo! Click to see how to claim your rewards.
₱16,500.00Original price was: ₱16,500.00.₱14,395.00Current price is: ₱14,395.00.
Supports AMD Ryzen 9000/8000/7000 Series with AM5 socket
DDR5 memory support up to 8200 MHz (OC) with AMD EXPO/XMP
Dual USB4 Type-C ports with 40 Gbps and DisplayPort 3840×2160@240 Hz
PCIe 5.0 x16 slot and three M.2 slots with PCIe 5.0 x4 support
Wi-Fi 7, Bluetooth 5.4, and 2.5GbE LAN for ultra-fast connectivity
Realtek ALC1220 audio with DSD and customizable RGB lighting
In stock
ℹ️
For walk-in customers: please always INQUIRE FIRST before visiting as not all items are displayed in our physical store. As an online-first store, most of our inventory is held in our online warehouse and is transferred to the store upon request.

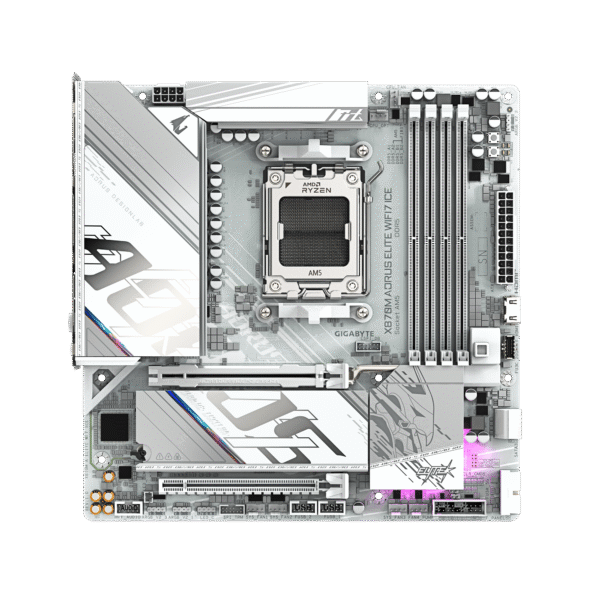

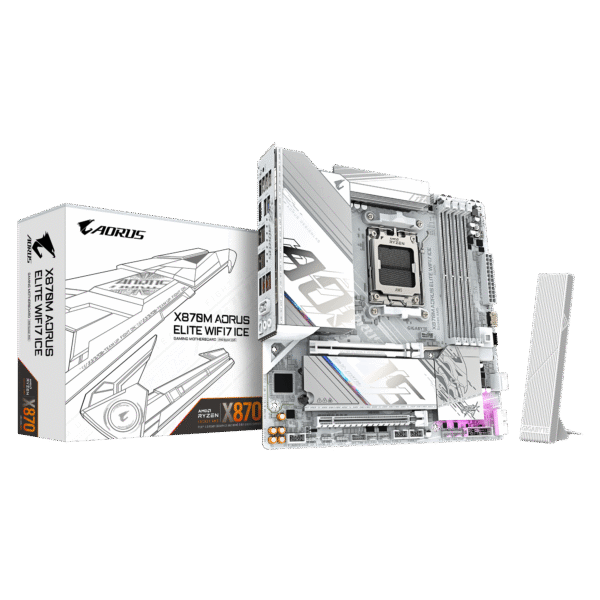

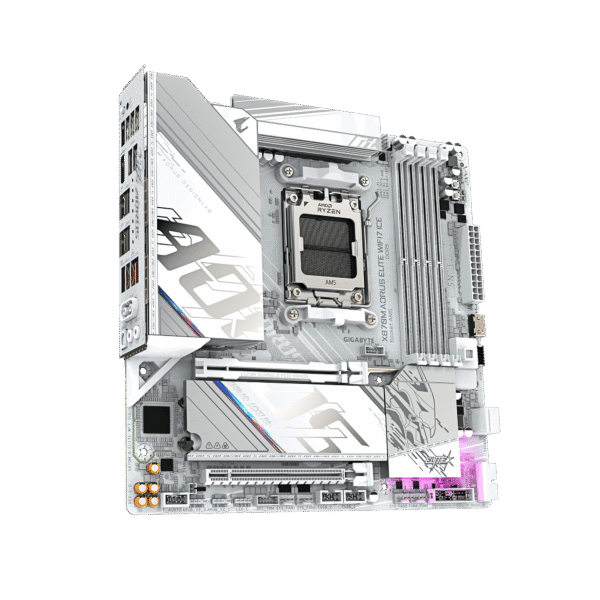

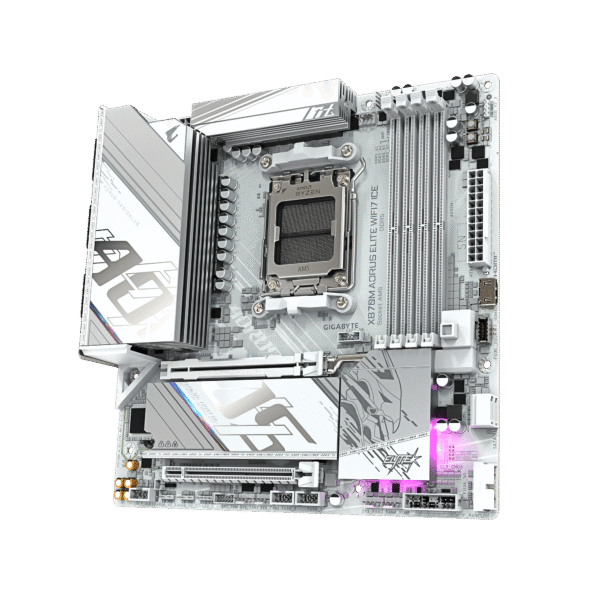

The Gigabyte X870M AORUS ELITE WIFI7 ICE motherboard is engineered for AMD Ryzen 9000, 8000, and 7000 series processors, delivering cutting-edge performance in a sleek Micro ATX form factor. Powered by the AMD X870 chipset, it supports DDR5 memory up to 8200 MHz with AMD EXPO and XMP profiles, enabling seamless overclocking for gaming and productivity. Its robust 16+2+2 phase digital VRM ensures stable power delivery for high-performance CPUs. Featuring dual USB4 Type-C ports with 40 Gbps transfer speeds and DisplayPort support at 3840×2160@240 Hz, alongside an HDMI 2.1 port at 4096×2160@60 Hz, it offers versatile connectivity for ultra-HD displays. The PCIe 5.0 x16 slot and three M.2 slots, including PCIe 5.0 x4 support, provide blazing-fast storage and graphics capabilities. Wi-Fi 7 with 160 MHz channels and Bluetooth 5.4 ensure ultra-fast, low-latency networking, ideal for VR and cloud computing. Enhanced by Realtek ALC1220 audio with DSD support and customizable RGB lighting via GIGABYTE Control Center, this motherboard combines durability, aesthetics, and performance. EZ-Latch Plus and Click designs simplify installation, while advanced cooling with VRM Thermal Armor and M.2 Thermal Guard keeps components cool under load. Perfect for gamers and creators, this motherboard supports RAID configurations and future-proof technologies for next-level builds. Note that M.2 slots M2B_CPU and M2C_CPU share bandwidth with the PCIe x16 slot, potentially reducing it to x8 mode.
AMD Socket AM5, support for: AMD Ryzen 9000/8000/7000 Series Processors
Chipset
AMD X870
Memory
Support for DDR5 8200(OC)/8000(OC)/7950(OC)/7900(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5200/4800/4400 MT/s memory modules, 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity), Dual channel memory architecture, Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16, Support for AMD EXPO and XMP memory modules
Onboard Graphics
Integrated Graphics Processor with AMD Radeon Graphics + ASMedia USB4 Controller: 2 x USB4 USB Type-C ports (DisplayPort, max resolution 3840x2160@240 Hz, DisplayPort 1.4, HDR); Integrated Graphics Processor: 1 x HDMI port (max resolution 4096x2160@60 Hz, HDMI 2.1, HDCP 2.3, HDR), 1 x front HDMI port (max resolution 1920x1080@30 Hz, HDMI 1.4)
Audio
Realtek ALC1220 CODEC, High Definition Audio, 2/4/5.1/7.1-channel, Support for S/PDIF Out
LAN
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication Module
Realtek Wi-Fi 7 RTL8922AE, 802.11a/b/g/n/ac/ax/be (2.4/5/6 GHz bands), BLUETOOTH 5.4, Support for 11be 160MHz wireless standard
Expansion Slots
CPU: 1 x PCI Express x16 slot (PCIEX16), AMD Ryzen 9000/7000 Series support PCIe 5.0 x16 mode, AMD Ryzen 8000 Series-Phoenix 1 support PCIe 4.0 x8 mode, AMD Ryzen 8000 Series-Phoenix 2 support PCIe 4.0 x4 mode; Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 x4 (PCIEX4)
Storage Interface
CPU: 1 x M.2 connector (M2A_CPU, Socket 3, M key, type 25110/22110/2580/2280, PCIe 5.0 x4/x2 for Ryzen 9000/7000, PCIe 4.0 x4/x2 for Ryzen 8000); Chipset: 1 x M.2 connector (M2C_SB, Socket 3, M key, type 22110/2280, PCIe 4.0 x2); 2 x SATA 6Gb/s connectors; RAID 0/1/5/10 for NVMe SSDs (RAID 5 only on Ryzen 9000), RAID 0/1 for SATA
USB
CPU+ASMedia USB4 Controller: 2 x USB4 USB Type-C ports (back panel); CPU: 1 x USB 3.2 Gen 2 Type-A (back panel); CPU+USB 2.0 Hub: 4 x USB 2.0/1.1 (back panel); Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 (back panel); Chipset: 1 x USB Type-C (USB 3.2 Gen 2x2, internal header), 1 x USB 3.2 Gen 2 Typeზ
Type-A (back panel), 2 x USB 3.2 Gen 1 (internal header), 4 x USB 2.0/1.1 (internal headers)
Internal I/O Connectors
1 x 24-pin ATX main power, 1 x 8-pin ATX 12V power, 1 x CPU fan, 1 x CPU fan/water cooling pump, 3 x system fan, 1 x system fan/water cooling pump, 3 x addressable RGB Gen2 LED strip, 1 x RGB LED strip, 2 x M.2 Socket 3, 2 x SATA 6Gb/s, 1 x front panel, 1 x front panel audio, 1 x USB Type-C (USB 3.2 Gen 2x2), 1 x USB 3.2 Gen 1, 2 x USB 2.0/1.1, 1 x TPM, 1 x front HDMI, 1 x power button, 1 x reset button, 1 x reset jumper, 1 x Clear CMOS jumper
Back Panel Connectors

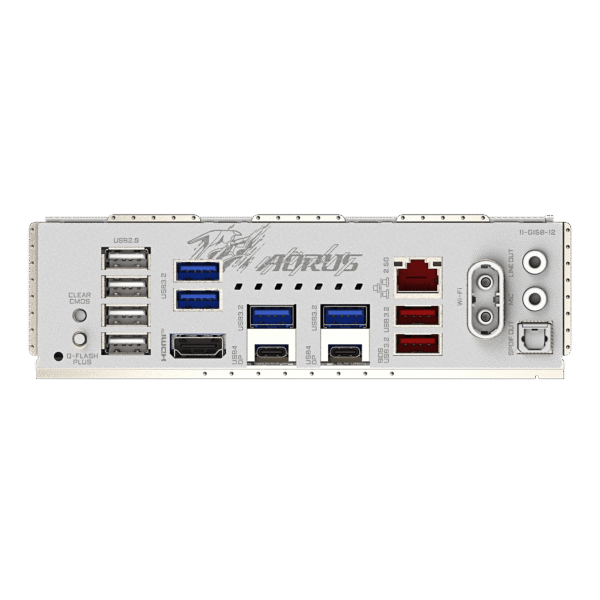

1 x Clear CMOS button, 1 x Q-Flash Plus button, 1 x HDMI port, 4 x USB 2.0/1.1 ports, 4 x USB 3.2 Gen 1 ports, 2 x USB 3.2 Gen 2 Type-A ports, 2 x USB4 USB Type-C ports (DisplayPort), 1 x RJ-45 port, 2 x antenna connectors (2T2R), 2 x audio jacks, 1 x optical S/PDIF Out connector
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control
BIOS
1 x 256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup
Bundled Software
Norton Internet Security (OEM version)
Operating System
Windows 11 64-bit
Form Factor
Micro ATX; 24.4cm x 24.4cm
Packaging Weight
1.7 kg
Packaging Dimensions (L×W×H)
31 × 29 × 8 cm
Brand
Gigabyte
Desktop RAM
DDR5
Socket
AM5 CPU
