₱16,400.00Original price was: ₱16,400.00.₱14,295.00Current price is: ₱14,295.00.
Supports AMD Ryzen 9000/8000/7000 Series on AM5 socket
DDR5 memory up to 8200 MHz (OC) with AMD EXPO/XMP support
Dual USB4 Type-C ports with 40 Gbps and 3840×2160@240 Hz DisplayPort
PCIe 5.0 x16 slot and three M.2 slots with PCIe 5.0 x4 support
Wi-Fi 7 with 160 MHz, Bluetooth 5.4, and 2.5GbE LAN connectivity
Realtek ALC1220 audio with DSD and customizable RGB lighting
In stock
ℹ️
For walk-in customers: please always INQUIRE FIRST before visiting as not all items are displayed in our physical store. As an online-first store, most of our inventory is held in our online warehouse and is transferred to the store upon request.

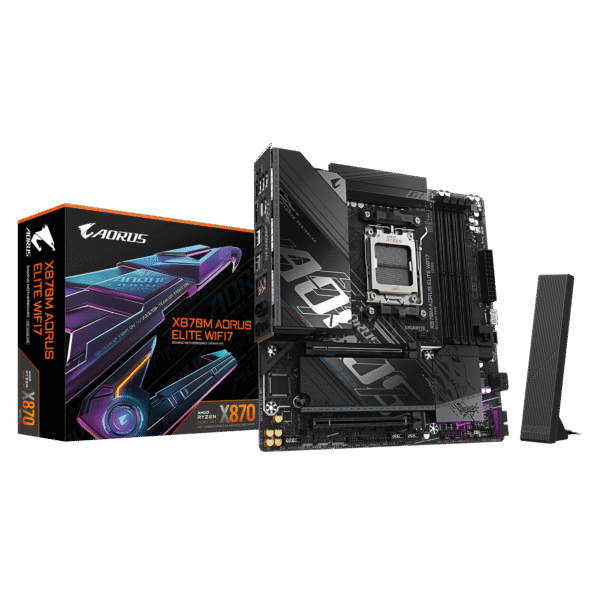

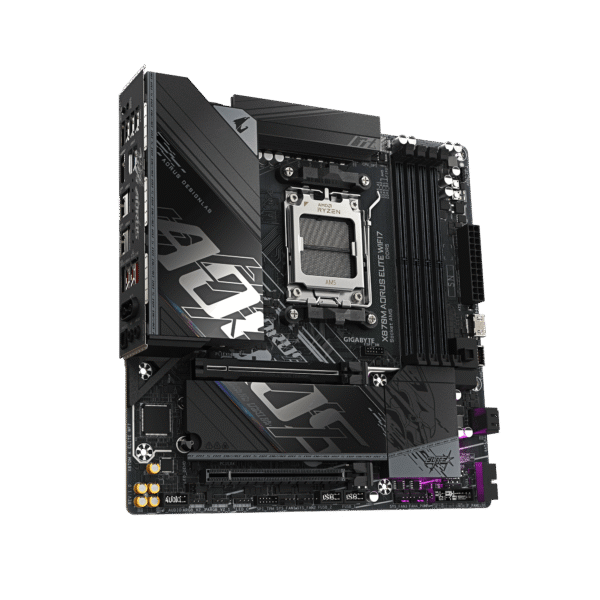

The Gigabyte X870M AORUS ELITE WIFI7 motherboard sets a new standard for high-performance PC builds, supporting AMD Ryzen 9000, 8000, and 7000 series processors on the AM5 socket. Built with the AMD X870 chipset, it supports DDR5 memory up to 8200 MHz through AMD EXPO and XMP profiles, offering robust overclocking potential for gaming and professional workloads. Its 16+2+2 phase digital VRM ensures reliable power delivery for demanding CPUs. With dual USB4 Type-C ports delivering 40 Gbps speeds and DisplayPort output at 3840×2160@240 Hz, plus an HDMI 2.1 port at 4096×2160@60 Hz, this board excels in high-resolution display connectivity. The PCIe 5.0 x16 slot and three M.2 slots, including PCIe 5.0 x4 for Ryzen 9000/7000, provide lightning-fast storage and graphics performance. Realtek Wi-Fi 7 with 160 MHz channels and Bluetooth 5.4 offer cutting-edge wireless connectivity, ideal for VR and cloud-based applications. Enhanced by Realtek ALC1220 audio with DSD support and customizable RGB lighting via GIGABYTE Control Center, it delivers immersive sound and aesthetics. Features like EZ-Latch Plus, M.2 Thermal Guard, and Q-Flash Plus simplify installation and maintenance. While M.2 slots M2B_CPU and M2C_CPU may share bandwidth with the PCIe x16 slot, reducing it to x8 mode, this motherboard remains a top choice for enthusiasts seeking a future-proof, feature-rich platform.
Specification
Details
CPU
AMD Socket AM5, support for: AMD Ryzen 9000/8000/7000 Series Processors
Chipset
AMD X870
Memory
Support for DDR5 8200(OC)/8000(OC)/7950(OC)/7900(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5200/4800/4400 MT/s, 4 x DDR5 DIMM sockets, up to 256 GB (64 GB single DIMM), Dual channel architecture, Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16, AMD EXPO and XMP support
Onboard Graphics
Integrated Graphics Processor with AMD Radeon Graphics + ASMedia USB4 Controller: 2 x USB4 USB Type-C ports (DisplayPort, 3840x2160@240 Hz, DisplayPort 1.4, HDR); Integrated Graphics Processor: 1 x HDMI port (4096x2160@60 Hz, HDMI 2.1, HDCP 2.3, HDR), 1 x front HDMI port (1920x1080@30 Hz, HDMI 1.4)
Audio
Realtek ALC1220 CODEC, High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out support
LAN
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication Module
Realtek Wi-Fi 7 RTL8922AE, 802.11a/b/g/n/ac/ax/be (2.4/5/6 GHz), BLUETOOTH 5.4, 11be 160MHz wireless standard
CPU: 1 x M.2 (M2A_CPU, Socket 3, M key, type 25110/22110/2580/2280, PCIe 5.0 x4/x2 for Ryzen 9000/7000, PCIe 4.0 x4/x2 for Ryzen 8000); Chipset: 1 x M.2 (M2C_SB, Socket 3, M key, type 22110/2280, PCIe 4.0 x2); 2 x SATA 6Gb/s; RAID 0/1/5/10 for NVMe SSDs (RAID 5 on Ryzen 9000 only), RAID 0/1 for SATA
USB
CPU+ASMedia USB4 Controller: 2 x USB4 Type-C (back panel); CPU: 1 x USB 3.2 Gen 2 Type-A (back panel); CPU+USB 2.0 Hub: 4 x USB 2.0/1.1 (back panel); Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 (back panel); Chipset: 1 x USB Type-C (USB 3.2 Gen 2x2, internal header), 1 x USB 3.2 Gen 2 Type-A (back panel), 2 x USB 3.2 Gen 1 (internal header), 4 x USB 2.0/1.1 (internal headers)
Internal I/O Connectors
1 x 24-pin ATX main power, 1 x 8-pin ATX 12V power, 1 x CPU fan, 1 x CPU fan/water cooling pump, 3 x system fan, 1 x system fan/water cooling pump, 3 x addressable RGB Gen2 LED strip, 1 x RGB LED strip, 2 x M.2 Socket 3, 2 x SATA 6Gb/s, 1 x front panel, 1 x front panel audio, 1 x USB Type-C (USB 3.2 Gen 2x2), 1 x USB 3.2 Gen 1, 2 x USB 2.0/1.1, 1 x TPM, 1 x front HDMI, 1 x power button, 1 x reset button, 1 x reset jumper, 1 x Clear CMOS jumper
Back Panel Connectors
1 x Clear CMOS button, 1 x Q-Flash Plus button, 1 x HDMI port, 4 x USB 2.0/1.1 ports, 4 x USB 3.2 Gen 1 ports, 2 x USB 3.2 Gen 2 Type-A ports, 2 x USB4 Type-C ports (DisplayPort), 1 x RJ-45 port, 2 x antenna connectors (2T2R), 2 x audio jacks, 1 x optical S/PDIF Out
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control
BIOS
1 x 256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup
Bundled Software
Norton Internet Security (OEM version)
Operating System
Windows 11 64-bit
Form Factor
Micro ATX; 24.4cm x 24.4cm
Weight
1.7 kg
Dimensions
31 × 29 × 8 cm
Brand
Gigabyte
Desktop RAM
DDR5
Socket
AM5 CPU
