Sensor Panel Link: Internal HDMI port for seamless in-chassis display setup
Premium Audio: Realtek® ALC1220 Codec with Audiophile Grade Capacitors
In stock
ℹ️
For walk-in customers: please always INQUIRE FIRST before visiting as not all items are displayed in our physical store. As an online-first store, most of our inventory is held in our online warehouse and is transferred to the store upon request.

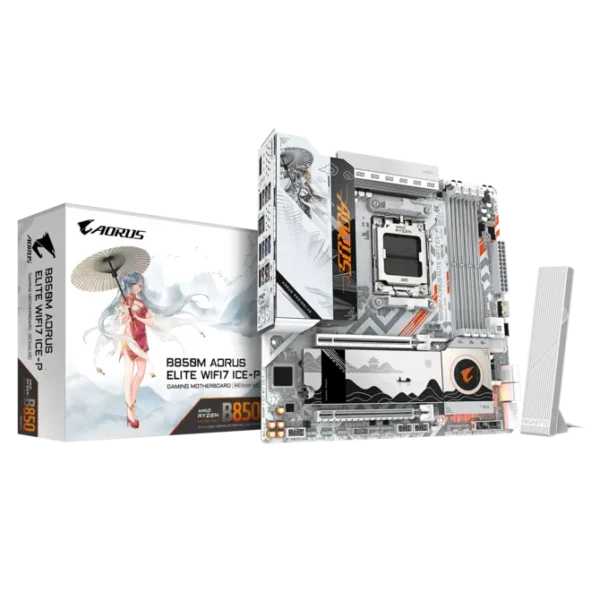

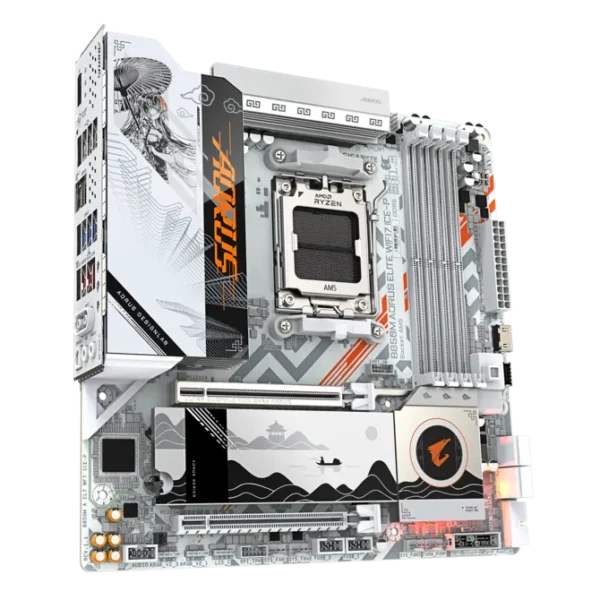

Where Tech Meets Anime: B850M AORUS ELITE WIFI7 ICE-P
Introducing the Gigabyte B850M AORUS ELITE WIFI7 ICE-P, a motherboard that defies convention by blending high-end gaming performance with a stunning “Waifu” inspired anime aesthetic. This “ICE” edition features a pristine all-white PCB and silver accents, making it the perfect centerpiece for users who want their PC to look as good as it performs. Built on the AMD B850 chipset, it supports the latest AMD Ryzen™ 9000, 8000, and 7000 Series processors on the AM5 socket. But it’s not just about looks; this board is a powerhouse, engineered with a 6-layer mid-loss PCB and 2X copper enhancement to ensure signal stability and efficient heat dissipation.
AI-Enhanced Performance and Overclocking
Unleash the full potential of your rig with X3D Turbo Mode. This cutting-edge BIOS feature uses AI optimization to boost gaming FPS by up to 18%, allowing non-X3D Ryzen 9000 processors to achieve X3D-level gaming performance. The motherboard also features D5 Bionic Corsa technology, enabling DDR5 memory overclocking speeds of up to 8200 MT/s through AI-driven signal enhancement. Power delivery is handled by a robust Digital Twin 12+2+2 VRM design with 60A DrMOS, ensuring your CPU receives clean, stable power even under heavy loads.
Next-Gen Connectivity and Speed
Stay ahead of the curve with ultra-fast connectivity options. The board is equipped with Wi-Fi 7 (802.11be), offering 160MHz bandwidth for lightning-fast wireless speeds and low latency, complemented by a directional ultra-high gain antenna with the easy-to-install WIFI EZ-Plug. For wired connections, the 2.5GbE LAN ensures smooth, lag-free online gaming. Storage is blazing fast too, with a primary PCIe 5.0 M.2 slot ready for the latest NVMe SSDs, kept cool by the efficient M.2 Thermal Guard Ext. heatsink.
Ultimate DIY Friendly Features
Building your dream PC has never been easier. The B850M AORUS ELITE WIFI7 ICE-P is packed with “DIY-Friendly” innovations like the M.2 EZ-Latch Click and EZ-Latch Plus, which allow for screwless installation of SSDs and heatsinks. The PCIe EZ-Latch Plus makes removing large graphics cards effortless. For customizers, the Sensor Panel Link offers an onboard internal HDMI port, simplifying the setup of in-case LCD displays to monitor your stats in style. All of this is backed by Ultra Durable™ technology, featuring a reinforced PCIe UD Slot that provides 10X stronger retention for heavy GPUs.
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM)
Speeds: DDR5 up to 8200(O.C) MT/s (Supports 8000/7950/7800...4800 MT/s)
Architecture: Dual Channel, Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
Profiles: AMD EXPO™ and Intel XMP Support
Power Design
Digital Twin 12+2+2 Phases VRM Solution (6+6 Parallel Design)
12 VCORE Phases (DrMOS 60A) + 2 SOC Phases (DrMOS 60A) + 2 MISC Phases
6-Layer Mid-Loss PCB, 2X Copper, Premium Chokes and Capacitors
UD Power Connectors (Solid Pins)
Thermal Solution
VRM Thermal Armor Advanced (4X surface area)
M.2 Thermal Guard Ext.
Superior Heatpipe (5 W/mK thermal pad)
Smart Fan 6 (Fan Speed Control, Noise Detection, Fan Stop)
Onboard Graphics
1 x DisplayPort 1.4 (Back Panel): Max 3840x2160@144 Hz (HDR Support)
1 x Front HDMI (Internal): Max 1920x1080@30 Hz (For Sensor Panel Link)
Audio
Realtek® ALC1220 CODEC (High Definition Audio)
2/4/5.1/7.1-channel Support, DSD Audio Support
Optical S/PDIF Out Connector
Realtek® Wi-Fi 7 RTL8922AE (802.11be, 160MHz)
Supports 2.4/5/6 GHz frequency bands
Bluetooth 5.4
WIFI EZ-Plug (Directional Ultra-high gain antenna)
Expansion Slots
CPU: 1 x PCI Express x16 slot (PCIe 5.0 x16 for Ryzen 9000/7000)
*Features PCIe UD Slot (Zinc Alloy, 1.7X stronger shearing) Chipset: 1 x PCI Express x16 slot (PCIe 3.0 running at x4)
Storage Interface
2 x M.2 Slots Total:
1 x M.2 (M2A_CPU): PCIe 5.0 x4/x2 (Ryzen 9000/7000)
1 x M.2 (M2B_CPU): PCIe 4.0 x4/x2 (Ryzen 9000/7000) SATA: 4 x SATA 6Gb/s connectors RAID: RAID 0, 1, 10 (SATA); RAID 0, 1, 5, 10 (NVMe)
USB Ports
Back Panel:
1 x USB 3.2 Gen 2 Type-C®
2 x USB 3.2 Gen 2 Type-A (Red)
5 x USB 3.2 Gen 1
4 x USB 2.0/1.1 Internal Headers:
1 x USB Type-C® (USB 3.2 Gen 2x2)
1 x USB 3.2 Gen 1 header (2 ports)
2 x USB 2.0/1.1 headers (4 ports)
1 x Q-Flash Plus Button
1 x DisplayPort, 1 x USB-C Gen 2, 7 x USB Type-A, 4 x USB 2.0
1 x RJ-45 (2.5GbE), 2 x Audio Jacks, 1 x Optical S/PDIF
2 x Antenna Connectors (WIFI EZ-Plug)
Special Features
Waifu Series Aesthetic: Unique White/Anime-inspired design X3D Turbo Mode: AI-enhanced gaming performance (up to 18% boost) DIY Friendly: EZ-Latch Click/Plus, WIFI EZ-Plug, Sensor Panel Link Durability: PCIe UD Slot (Stainless steel shielding), UD Power Connector
BIOS & Software
1 x 256 Mbit flash, AMI UEFI BIOS (UC BIOS, Multi-Theme)
GIGABYTE Control Center (GCC), RGB Fusion, Norton Internet Security (OEM)
Weight
2.2 kg
Dimensions
36 × 28 × 9 cm
Brand
Gigabyte
Desktop RAM
DDR5
Socket
AM5 CPU
