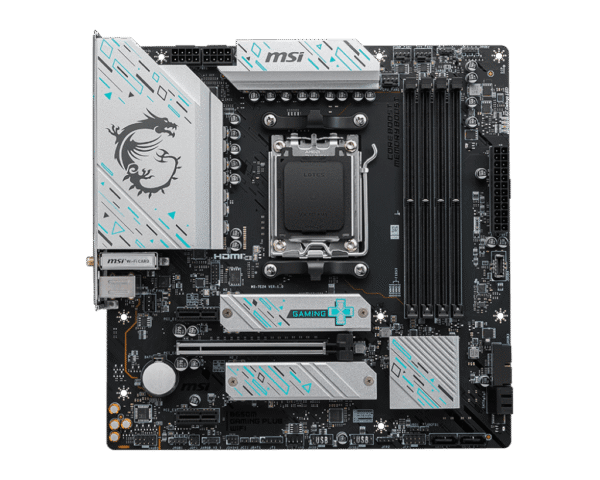

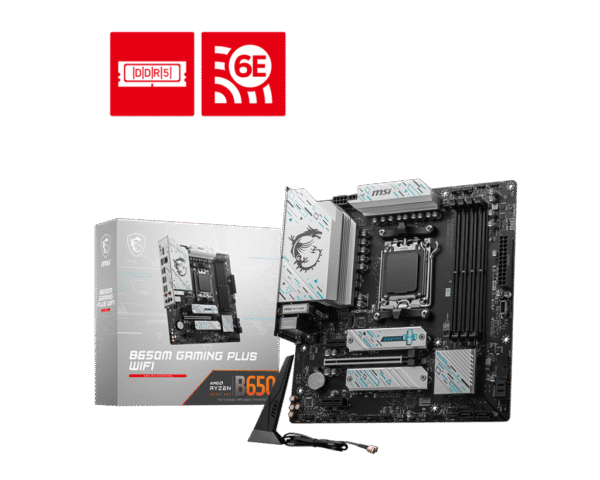

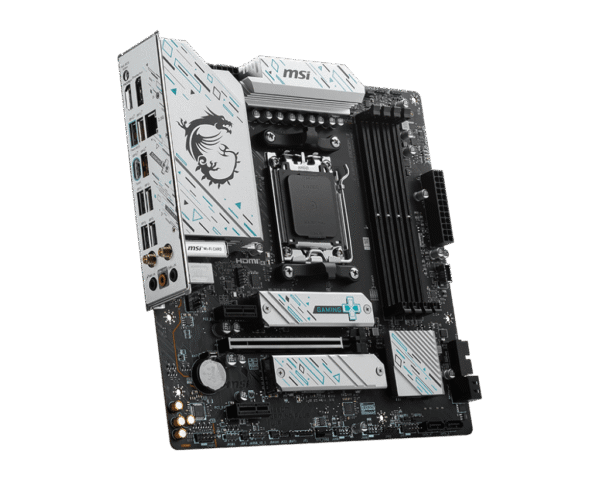

MSI B650M GAMING PLUS WIFI Micro ATX AM5 DDR5 PCIe 4.0 Wi-Fi 6E 2.5G LAN Motherboard
Original price was: ₱11,100.00.₱9,900.00Current price is: ₱9,900.00.
- SKU: MSI B650M GAMING PLUS WIFI
- Supports AMD Ryzen 9000 / 8000 / 7000 Series CPUs (AM5 Socket)
- 4× DDR5 DIMMs up to 256GB, 7200+ MHz (OC)
- Dual M.2 PCIe 4.0 x4 and 4× SATA 6Gb/s
- Realtek ALC897 7.1 HD Audio
- 2.5G LAN + Wi-Fi 6E + Bluetooth 5.3
- 1× PCIe 4.0 x16 and 2× PCIe 3.0 x1 Slots
- USB 10Gbps Type-C (Rear & Front) + Flash BIOS Button
- Micro ATX form factor with 4 EZ Debug LEDs
In stock
Price Drop Alerts & Price History
-
Authorized
Dealer -
Nationwide
Shipping -
Store &
RMA HUB -
Expert
Support -
7-Day DOA
Protection -
Community
Trusted -
Turnstile
Protected -
reCAPTCHA
Secured -
Tested &
Verified
The MSI B650M GAMING PLUS WIFI is a performance-oriented Micro ATX motherboard built for gamers and creators using AMD Ryzen 9000, 8000, and 7000 Series processors. It features the AMD B650 chipset with support for DDR5 memory up to 7200+ MHz (OC), providing exceptional bandwidth for gaming and multitasking. With dual M.2 slots (PCIe 4.0 x4) and four SATA ports, users can enjoy fast storage options with RAID support. The board offers comprehensive connectivity with USB 10Gbps Type-C, 2.5Gb LAN, and built-in Wi-Fi 6E with Bluetooth 5.3. Designed with premium black aesthetics and equipped with 4 EZ Debug LEDs, the B650M GAMING PLUS WIFI ensures both performance and convenience for modern builds. Its sturdy VRM design, full fan control, and Flash BIOS Button make it an excellent choice for reliable and high-performance PC builds.
| Specification | Details |
|---|---|
| Model | MSI B650M GAMING PLUS WIFI |
| Chipset | AMD B650 |
| CPU Support | Supports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors |
| Memory Support | 4 × DDR5 UDIMM, up to 256GB Dual Channel, non-ECC, unbuffered memory Supports AMD EXPO™ and DDR5 up to 7200+ MHz (OC) |
| Integrated Graphics | 1 × HDMI 2.1 (4K 60Hz) 1 × DisplayPort 1.4 (4K 60Hz) *Available only with CPUs featuring integrated graphics |
| Expansion Slots | 1 × PCIe x16 (Gen4/Gen3 depending on CPU) 2 × PCIe x1 (Gen3 from chipset) |
| Audio | Realtek ALC897 Codec, 7.1 Channel High Definition Audio |
| Storage | 2 × M.2 (PCIe 4.0 x4, 2280/2260) 4 × SATA 6Gb/s Supports RAID 0/1/10 for SATA, RAID 0/1 for NVMe |
| USB Ports |
Rear: 3 × USB 10Gbps Type-A, 1 × USB 10Gbps Type-C, 4 × USB 5Gbps Type-A Front: 1 × USB 10Gbps Type-C, 2 × USB 5Gbps Type-A, 4 × USB 2.0 |
| LAN | Realtek RTL8125BG 2.5Gbps LAN |
| Wireless | Wi-Fi 6E (802.11 a/b/g/n/ac/ax), Dual Band 2.4/5/6GHz Bluetooth 5.3 Supports MU-MIMO and 160MHz bandwidth |
| Internal I/O |
1 × 24-pin ATX Power Connector 2 × CPU Power Connectors 1 × CPU Fan, 1 × Pump Fan, 3 × System Fans 2 × Front Panel, 1 × Chassis Intrusion, 1 × Front Audio 2 × ARGB (JARGB_V2), 2 × RGB (JRGB) 1 × TPM 2.0 Header, 1 × USB 10Gbps Type-C, 2 × USB 5Gbps, 4 × USB 2.0 |
| LED Features | 4 × EZ Debug LEDs |

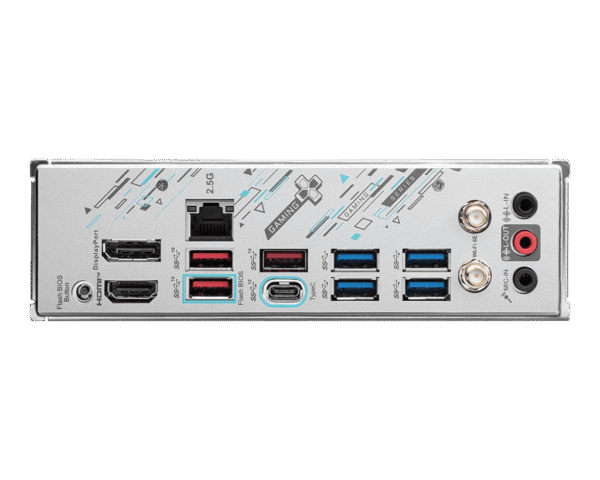

| Back Panel Ports |
DisplayPort, HDMI, 2.5G LAN, Flash BIOS Button Wi-Fi/Bluetooth Antenna Connectors USB 3.2 Gen 2 (Type-A & Type-C), USB 3.2 Gen 1 (Type-A) Audio Connectors (Line In / Line Out / Mic) |
| Form Factor | Micro ATX (243.84 × 243.84 mm) |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Box Contents | MSI B650M GAMING PLUS WIFI Motherboard, 2 × SATA Cables, Wi-Fi Antennas, User Manual, Quick Installation Guide |
| Packaging Weight | 1.5 kg |
|---|---|
| Packaging Dimensions (L×W×H) | 40 × 30 × 5 cm |
| Brand | MSI |
| Socket | AM5 CPU |
| Desktop RAM | DDR5 |
