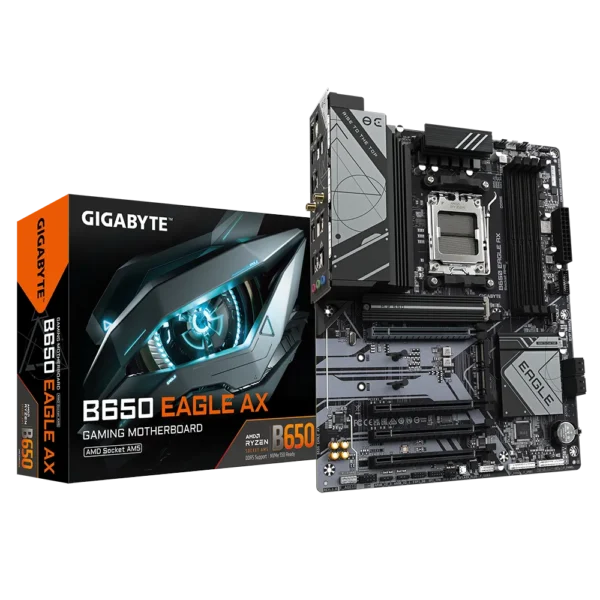

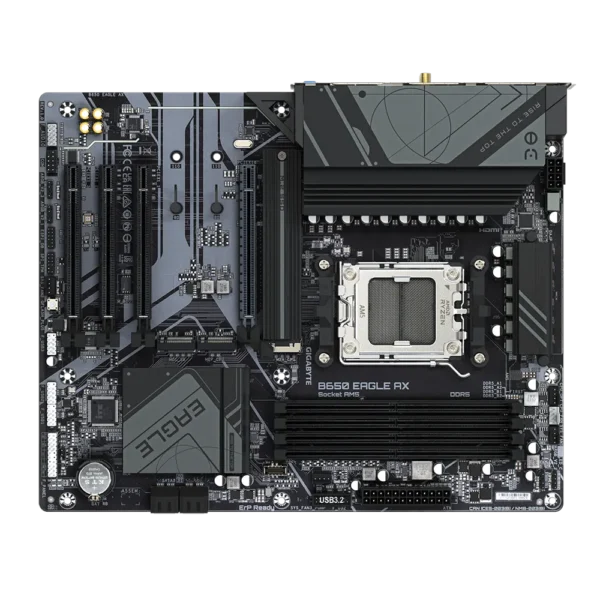

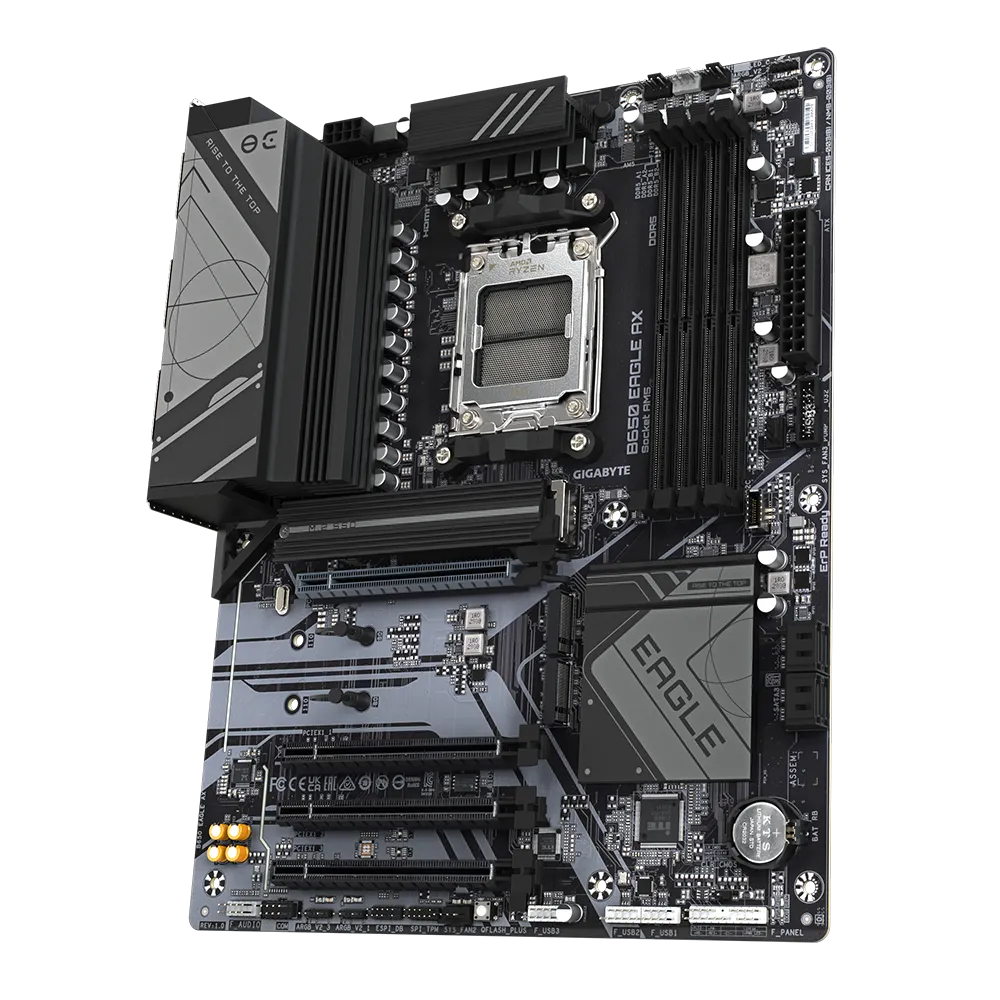

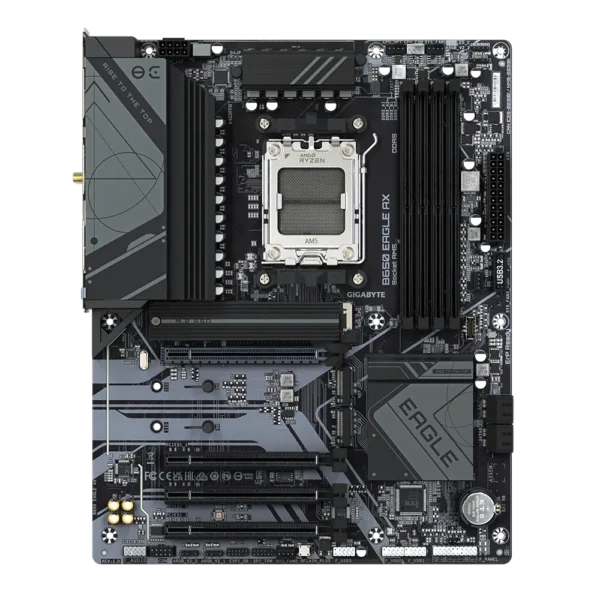

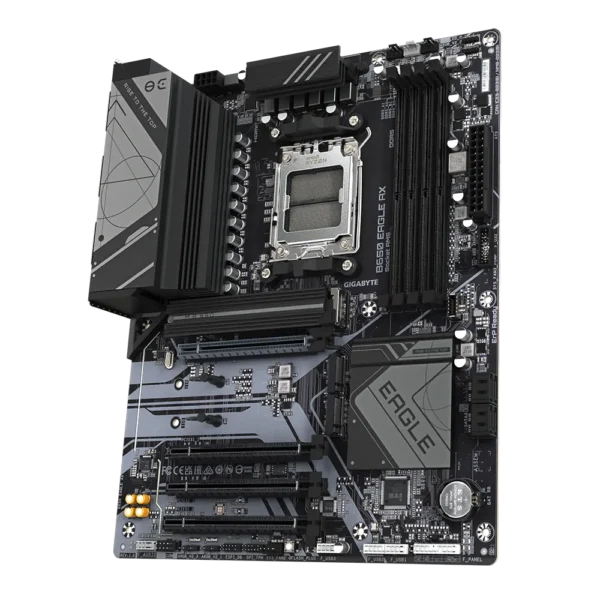

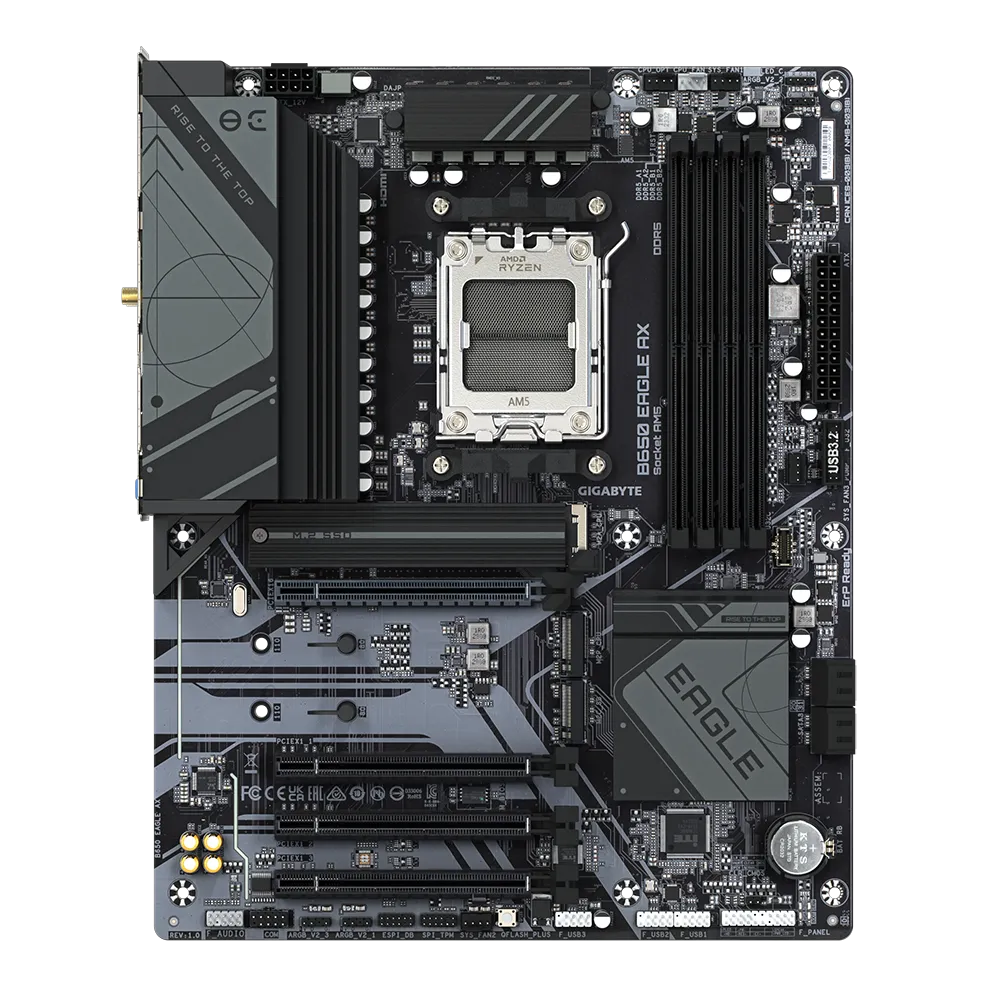

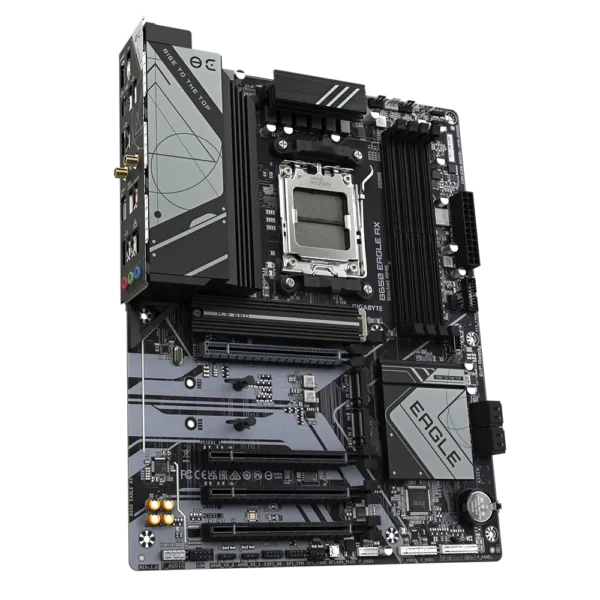

GIGABYTE B650 EAGLE AX WIFI ATX AMD B650 AM5 DDR5 PCIe 5.0 Motherboard – GA-B650-EAGLE-AX
In Stock
In Stock
Add to Wishlist
Add to Wishlist
Complete Your Build
This item: GIGABYTE B650 EAGLE AX WIFI ATX AMD B650 AM5 DDR5 PCIe 5.0 Motherboard - GA-B650-EAGLE-AX
In Stock
Original price was: ₱11,400.00.₱9,780.00Current price is: ₱9,780.00.
Original price was: ₱11,400.00.₱9,780.00Current price is: ₱9,780.00.
Original price was: ₱10,500.00.₱9,195.00Current price is: ₱9,195.00.
Original price was: ₱51,700.00.₱44,995.00Current price is: ₱44,995.00.
Original price was: ₱10,300.00.₱8,995.00Current price is: ₱8,995.00.
Original price was: ₱8,300.00.₱7,245.00Current price is: ₱7,245.00.
1 × Crucial Pro 64GB Kit (2x32GB) DDR5-6000 UDIMM Desktop Memory, CL40, 1.35V, AMD EXPO & Intel XMP - CP2K32G60C40U5B
In Stock
Original price was: ₱30,800.00.₱26,795.00Current price is: ₱26,795.00.
- GIGABYTE GA-B650-EAGLE-AX ATX for AMD Ryzen™ 9000/8000/7000
- DDR5 8000MT/s (OC), up to 256GB, AMD B650 chipset
- PCIe 4.0 x16, 3 x M.2 (1 x PCIe 5.0), 4 x SATA 6Gb/s
- Wi-Fi 6E, 1GbE LAN, Realtek audio, USB 3.2 Gen 2
- 12+2+1 VRM, Q-Flash Plus, RGB Fusion 2.0, ATX design
Description
Power up your gaming rig with the GIGABYTE GA-B650-EAGLE-AX, an ATX motherboard designed for AMD Ryzen™ 9000, 8000, and 7000 Series processors. Featuring the AMD B650 chipset, it supports up to 256GB of DDR5 memory at speeds up to 8000MT/s (OC), delivering exceptional performance. The PCIe 4.0 x16 slot supports high-end GPUs, while three M.2 slots, including one PCIe 5.0, offer storage speeds up to 128Gbps. A robust 12+2+1 phase VRM ensures stable power for CPUs like the Ryzen 7 9800X3D. Advanced cooling with M.2 Thermal Guard and VRM heatsinks keeps thermals in check. Wi-Fi 6E and USB 3.2 Gen 2 provide fast connectivity. Q-Flash Plus simplifies BIOS updates, and RGB Fusion 2.0 adds customizable aesthetics. Perfect for high-performance AMD ATX builds on a budget.
| Specification | Details |
|---|---|
| Model | GIGABYTE GA-B650-EAGLE-AX |
| CPU | AM5: AMD Ryzen™ 9000/8000/7000 Series Processors |
| Chipset | AMD B650 Chipset |
| Memory | 4 x DDR5 DIMM, up to 256GB, 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800 MT/s, Non-ECC Un-buffered, Dual Channel, AMD EXPO/XMP |
| Onboard Graphics | 1 x DisplayPort (3840x2160@144Hz, DP 1.4), 1 x HDMI (4096x2160@60Hz, HDMI 2.1, HDCP 2.3) |
| Expansion Slots | CPU: 1 x PCIe 4.0 x16 (x16/x8/x4 mode, PCIEX16); CPU: 2 x PCIe 3.0 x1 (PCIEX1_1/PCIEX1_2, unavailable with Ryzen 8000 Phoenix 2); Chipset: 1 x PCIe 3.0 x1 (PCIEX1_3) |
| Storage | CPU: 1 x M.2 (25110/22110/2580/2280, PCIe 5.0 x4/x2, M2A_CPU), 1 x M.2 (22110/2280, PCIe 4.0 x2, M2P_CPU); Chipset: 1 x M.2 (22110/2280, PCIe 4.0 x4/x2, M2C_SB); 4 x SATA 6Gb/s; RAID 0/1/10 (NVMe/SATA) |
| Audio | Realtek Audio CODEC, 7.1-channel |
| LAN | Realtek GbE (1 Gbps/100 Mbps/10 Mbps) |
| Wireless | Wi-Fi 6E (Intel AX210 or Realtek RTL8852CE, 2.4/5/6GHz, 11ax 160MHz), Bluetooth 5.3 |
| USB | Rear: 2 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 1 Type-C, 6 x USB 2.0; Front: 1 x USB 3.2 Gen 1 Type-C, 1 x USB 3.2 Gen 1 header (2 ports), 3 x USB 2.0 headers (4 ports) |
| Internal I/O Connectors | 1 x 24-pin ATX, 1 x 8-pin 12V, 1 x CPU Fan, 1 x CPU Fan/Pump, 2 x System Fan, 1 x System Fan/Pump, 3 x ARGB Gen2, 1 x RGB, 3 x M.2, 4 x SATA 6Gb/s, 1 x Front Panel, 1 x Front Panel Audio, 1 x USB 3.2 Gen 1 Type-C, 1 x USB 3.2 Gen 1 header, 3 x USB 2.0 headers, 1 x TPM, 1 x Q-Flash Plus Button, 1 x Serial Port, 1 x Clear CMOS Jumper |

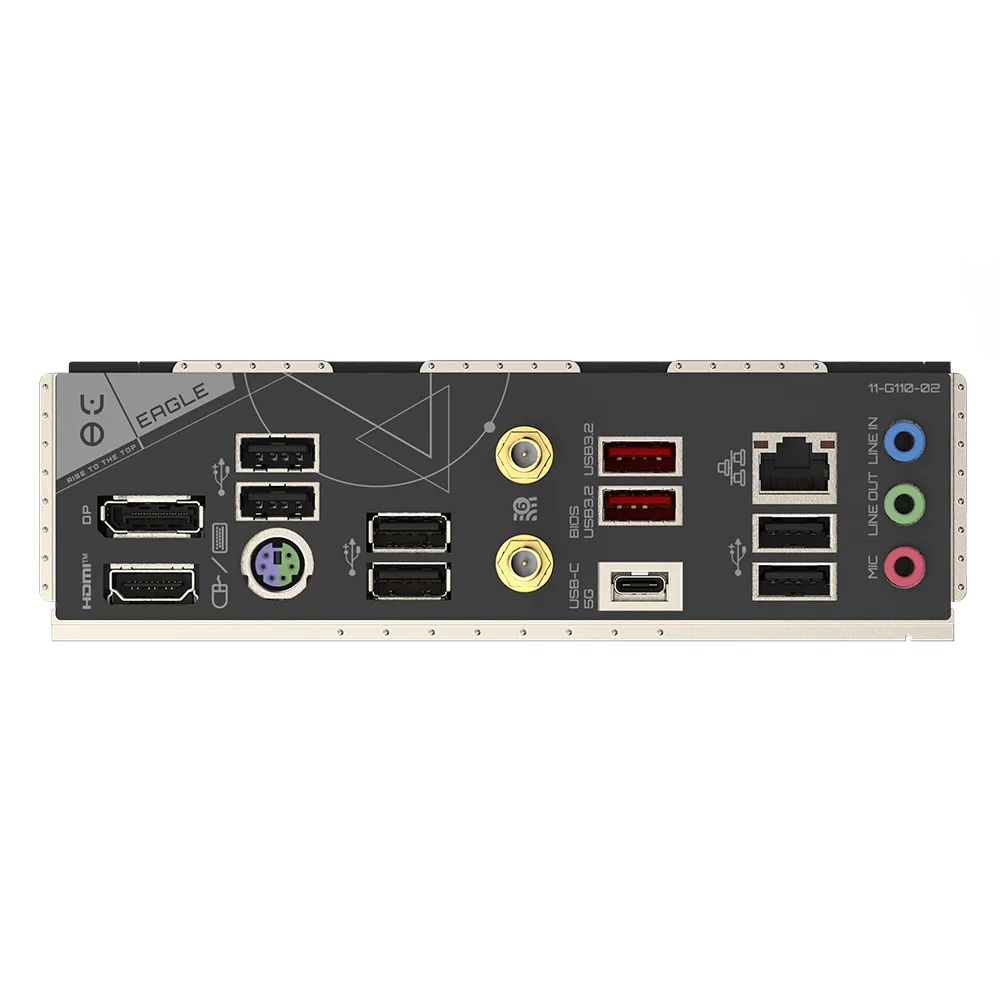

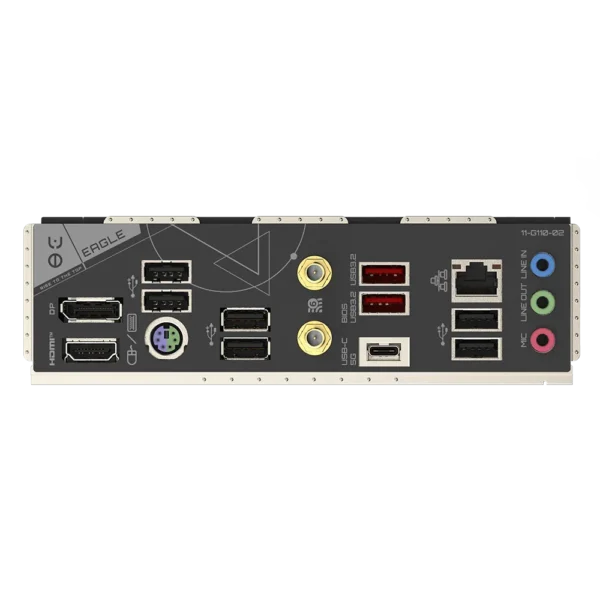

| Back Panel Connectors | 1 x DisplayPort, 1 x HDMI, 1 x PS/2 Keyboard/Mouse, 2 x SMA Antenna, 1 x USB 3.2 Gen 1 Type-C, 2 x USB 3.2 Gen 2 Type-A, 6 x USB 2.0, 1 x RJ-45, 3 x Audio Jacks |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage, Temperature, Fan Speed, Water Cooling Flow Rate, Fan Fail Warning, Fan Speed Control |
| BIOS | 256 Mbit AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center, Q-Flash, Q-Flash Plus |
| Bundled Software | Norton Internet Security (OEM), LAN Bandwidth Management |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | ATX, 30.5 x 24.4 cm |
| Notes | Wi-Fi 6E requires Windows 11 for 6GHz; Check CPU/Memory support at www.gigabyte.com |
Additional information
| Weight | 1.7 kg |
|---|---|
| Dimensions | 31 × 29 × 8 cm |
| Brand | Gigabyte |
| Desktop RAM | DDR5 |
| Socket | AM5 CPU |
