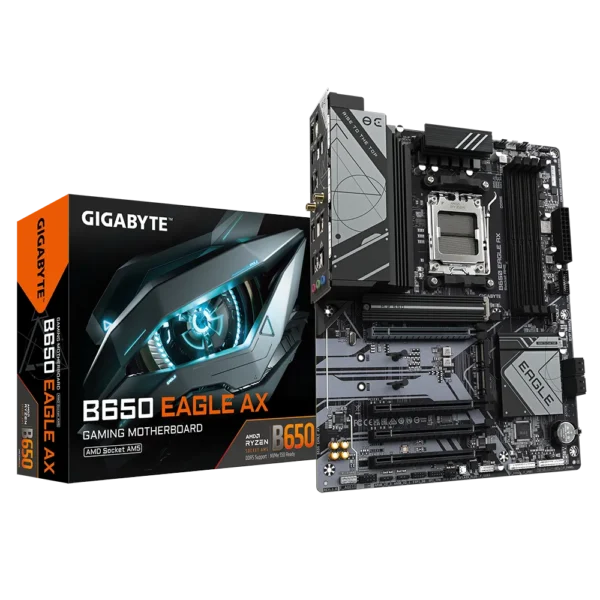

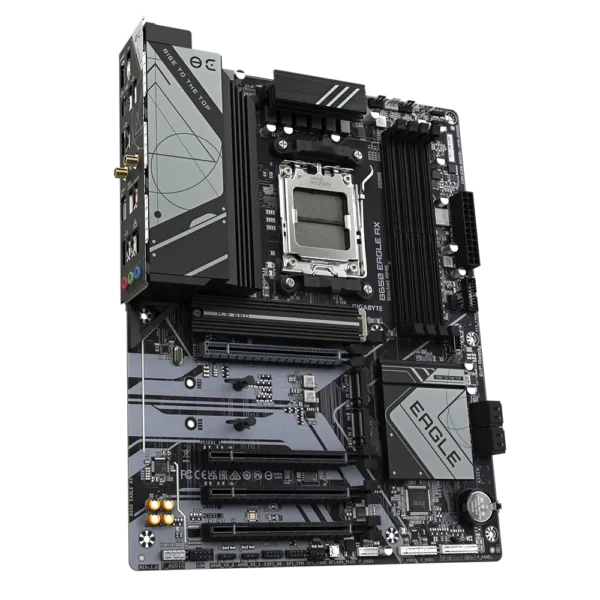

GIGABYTE B650 EAGLE AX WIFI ATX AMD B650 AM5 DDR5 PCIe 5.0 Motherboard - GA-B650-EAGLE-AX

GIGABYTE B650 EAGLE AX WIFI ATX AMD B650 AM5 DDR5 PCIe 5.0 Motherboard – GA-B650-EAGLE-AX

Original price was: ₱11,400.00.Current price is: ₱9,795.00.

GIGABYTE GA-B650-EAGLE-AX ATX for AMD Ryzen™ 9000/8000/7000
DDR5 8000MT/s (OC), up to 256GB, AMD B650 chipset
PCIe 4.0 x16, 3 x M.2 (1 x PCIe 5.0), 4 x SATA 6Gb/s
Wi-Fi 6E, 1GbE LAN, Realtek audio, USB 3.2 Gen 2
12+2+1 VRM, Q-Flash Plus, RGB Fusion 2.0, ATX design

In stock

Price Drop Alerts & Price History

We'll notify you the moment the price hits your target.

💡 Suggested alert: ₱9,300 [ Use this ]

Want to track and manage your alerts? Sign in or create an account.

Current: ₱9,795.00 | 90-Day Low: ₱9,795.00 | 90-Day High: ₱9,795.00
View full pricing timeline →

SKU: GA-B650-EAGLE-AX Categories: AMD AM5 Motherboards, Motherboards Tag: Gigabyte

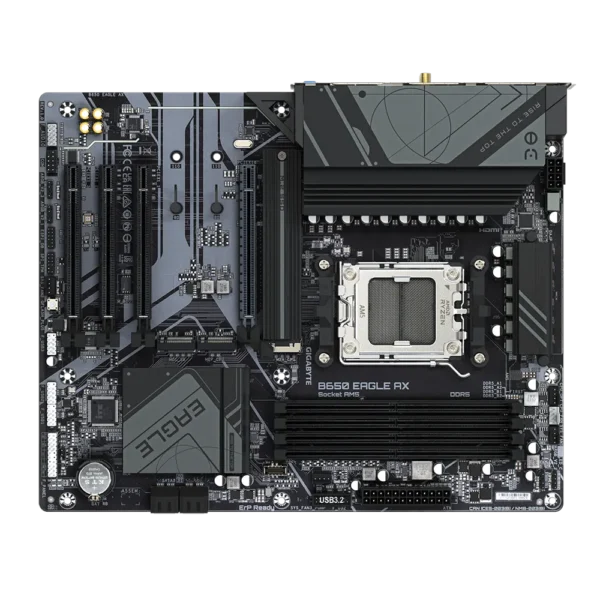

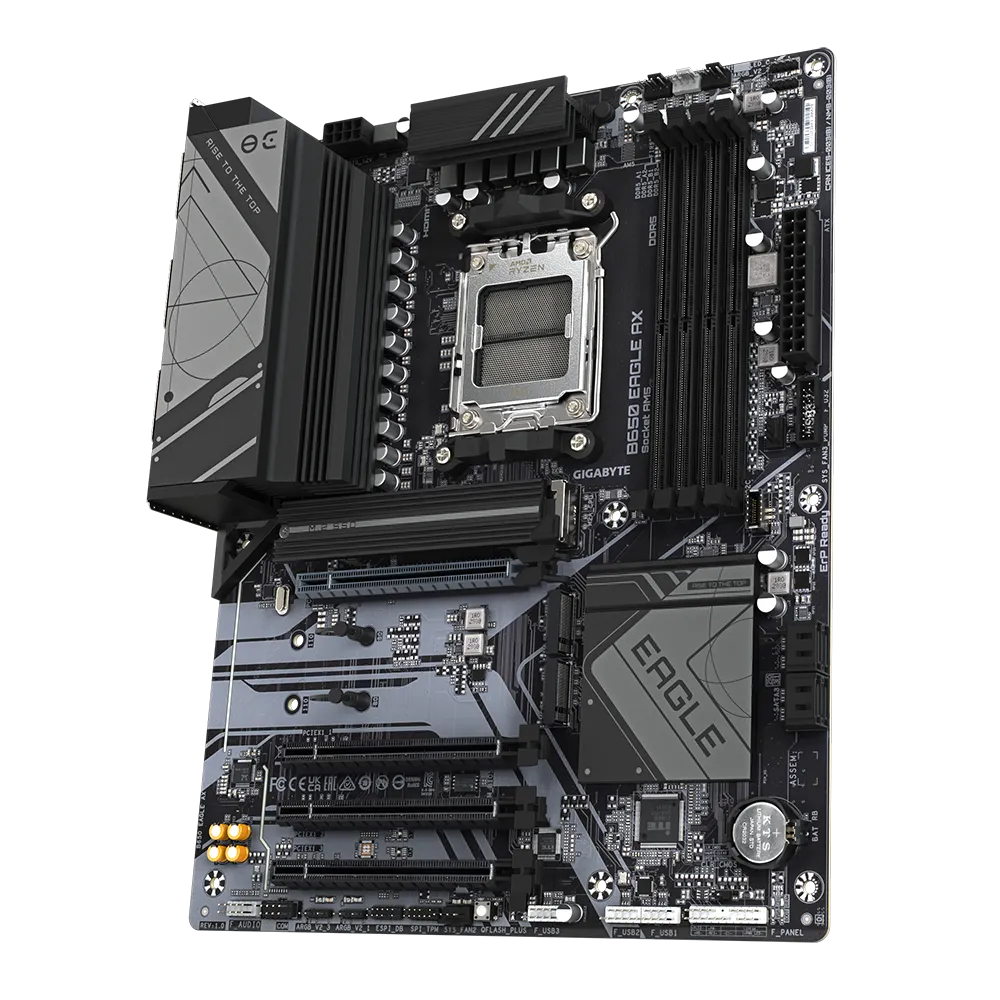

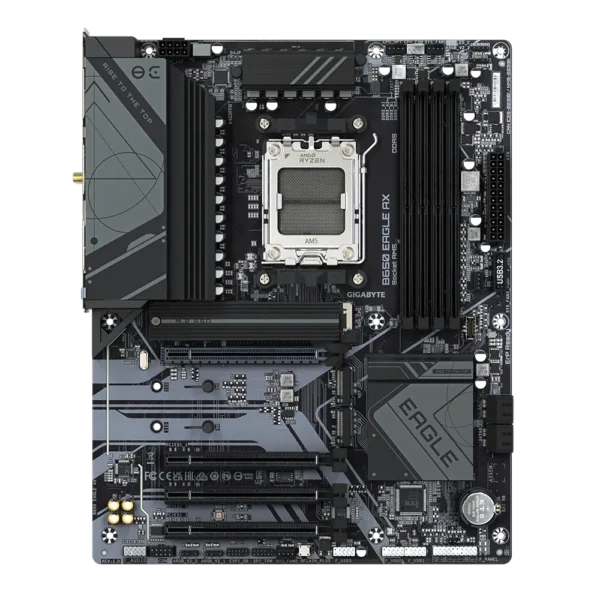

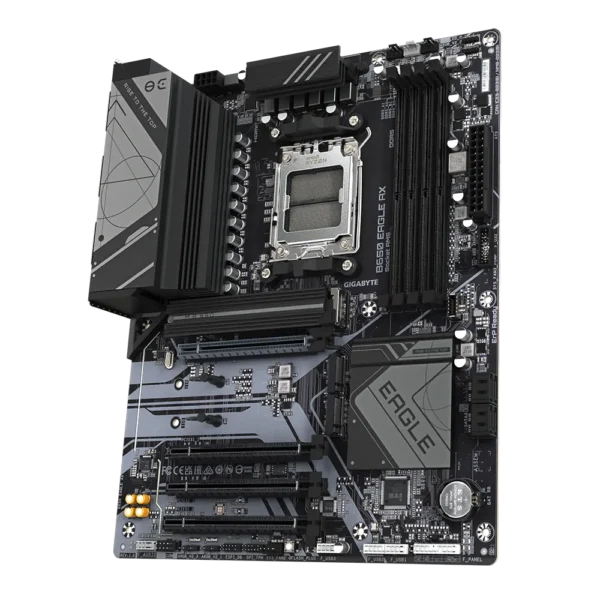

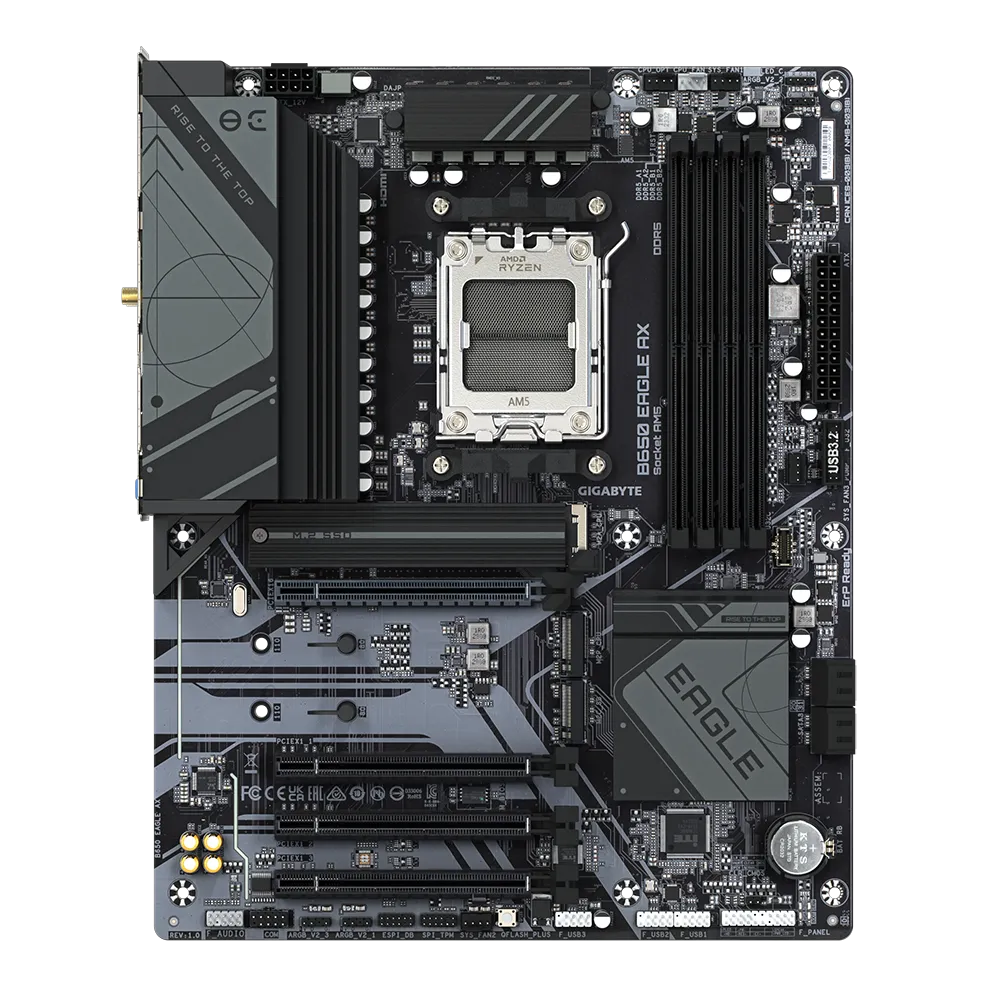

Power up your gaming rig with the GIGABYTE GA-B650-EAGLE-AX, an ATX motherboard designed for AMD Ryzen™ 9000, 8000, and 7000 Series processors. Featuring the AMD B650 chipset, it supports up to 256GB of DDR5 memory at speeds up to 8000MT/s (OC), delivering exceptional performance. The PCIe 4.0 x16 slot supports high-end GPUs, while three M.2 slots, including one PCIe 5.0, offer storage speeds up to 128Gbps. A robust 12+2+1 phase VRM ensures stable power for CPUs like the Ryzen 7 9800X3D. Advanced cooling with M.2 Thermal Guard and VRM heatsinks keeps thermals in check. Wi-Fi 6E and USB 3.2 Gen 2 provide fast connectivity. Q-Flash Plus simplifies BIOS updates, and RGB Fusion 2.0 adds customizable aesthetics. Perfect for high-performance AMD ATX builds on a budget.

Specification	Details
Model	GIGABYTE GA-B650-EAGLE-AX
CPU	AM5: AMD Ryzen™ 9000/8000/7000 Series Processors
Chipset	AMD B650 Chipset
Memory	4 x DDR5 DIMM, up to 256GB, 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800 MT/s, Non-ECC Un-buffered, Dual Channel, AMD EXPO/XMP
Onboard Graphics	1 x DisplayPort (3840x2160@144Hz, DP 1.4), 1 x HDMI (4096x2160@60Hz, HDMI 2.1, HDCP 2.3)
Expansion Slots	CPU: 1 x PCIe 4.0 x16 (x16/x8/x4 mode, PCIEX16); CPU: 2 x PCIe 3.0 x1 (PCIEX1_1/PCIEX1_2, unavailable with Ryzen 8000 Phoenix 2); Chipset: 1 x PCIe 3.0 x1 (PCIEX1_3)
Storage	CPU: 1 x M.2 (25110/22110/2580/2280, PCIe 5.0 x4/x2, M2A_CPU), 1 x M.2 (22110/2280, PCIe 4.0 x2, M2P_CPU); Chipset: 1 x M.2 (22110/2280, PCIe 4.0 x4/x2, M2C_SB); 4 x SATA 6Gb/s; RAID 0/1/10 (NVMe/SATA)
Audio	Realtek Audio CODEC, 7.1-channel
LAN	Realtek GbE (1 Gbps/100 Mbps/10 Mbps)
Wireless	Wi-Fi 6E (Intel AX210 or Realtek RTL8852CE, 2.4/5/6GHz, 11ax 160MHz), Bluetooth 5.3
USB	Rear: 2 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 1 Type-C, 6 x USB 2.0; Front: 1 x USB 3.2 Gen 1 Type-C, 1 x USB 3.2 Gen 1 header (2 ports), 3 x USB 2.0 headers (4 ports)
Internal I/O Connectors	1 x 24-pin ATX, 1 x 8-pin 12V, 1 x CPU Fan, 1 x CPU Fan/Pump, 2 x System Fan, 1 x System Fan/Pump, 3 x ARGB Gen2, 1 x RGB, 3 x M.2, 4 x SATA 6Gb/s, 1 x Front Panel, 1 x Front Panel Audio, 1 x USB 3.2 Gen 1 Type-C, 1 x USB 3.2 Gen 1 header, 3 x USB 2.0 headers, 1 x TPM, 1 x Q-Flash Plus Button, 1 x Serial Port, 1 x Clear CMOS Jumper

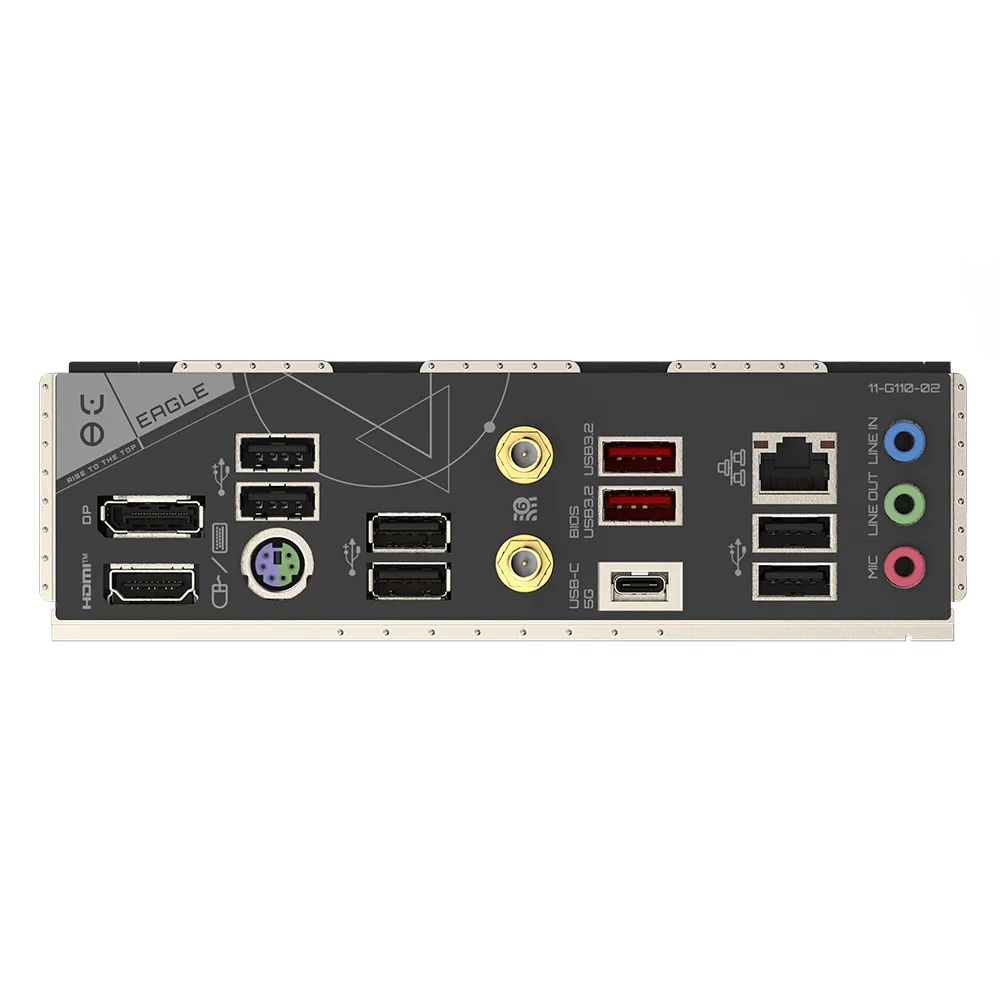

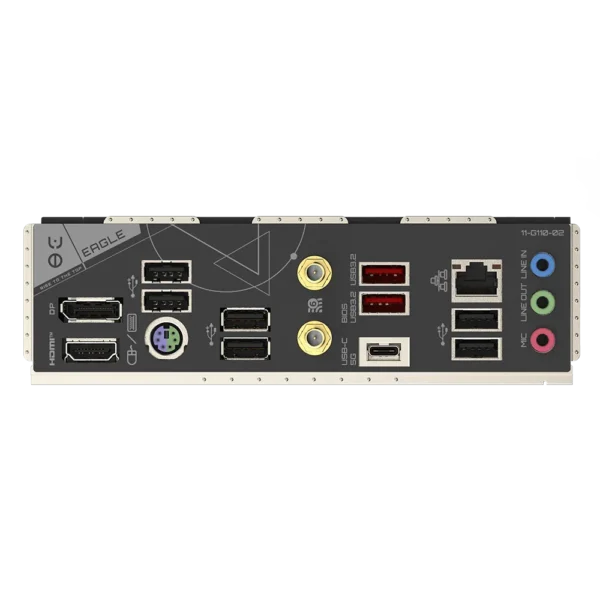

Back Panel Connectors	1 x DisplayPort, 1 x HDMI, 1 x PS/2 Keyboard/Mouse, 2 x SMA Antenna, 1 x USB 3.2 Gen 1 Type-C, 2 x USB 3.2 Gen 2 Type-A, 6 x USB 2.0, 1 x RJ-45, 3 x Audio Jacks
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage, Temperature, Fan Speed, Water Cooling Flow Rate, Fan Fail Warning, Fan Speed Control
BIOS	256 Mbit AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	GIGABYTE Control Center, Q-Flash, Q-Flash Plus
Bundled Software	Norton Internet Security (OEM), LAN Bandwidth Management
Operating System	Windows 11 64-bit, Windows 10 64-bit
Form Factor	ATX, 30.5 x 24.4 cm
Notes	Wi-Fi 6E requires Windows 11 for 6GHz; Check CPU/Memory support at www.gigabyte.com
