GIGABYTE B760 DS3H AX DDR4 Intel LGA1700 ATX Motherboard - GA-B760-DS3H-AX-DDR4

GIGABYTE B760 DS3H AX DDR4 Intel LGA1700 ATX Motherboard – GA-B760-DS3H-AX-DDR4

Original price was: ₱11,260.00.Current price is: ₱9,795.00.

SKU: GA-B760-DS3H-AX-DDR4
Supports 14th/13th/12th Gen Intel® Core™ Processors (LGA1700)
Hybrid 8+2+1 Phases Digital VRM Solution for stable power delivery
Dual Channel DDR4: 4 DIMMs with XMP Support up to 5333(O.C.)
Dual PCIe 4.0 x4 M.2 Connectors for high-speed NVMe storage
Wireless Connectivity: Wi-Fi 6E (802.11ax) & Bluetooth 5.3
Rear USB-C® 3.2 Gen 2×2 Port (20Gb/s) for ultra-fast data transfer
Smart Fan 6: Hybrid Fan Headers, Multiple Sensors, and Fan Stop
PCIe EZ-Latch: PCIe 4.0 x16 Slot with Quick Release Design
Q-Flash Plus: Update BIOS without installing CPU, Memory, or GPU
Display Outputs: HDMI 2.1 and DisplayPort 1.2

Out of stock

Restock & Price Alerts

We'll email you the moment this is back in stock. If you enter a target price, we'll also send you a separate alert if the price drops to your goal later!

🔓 Sign in to unlock full price history charts and manage your alerts.

SKU: GA-B760-DS3H-AX-DDR4 Categories: Intel LGA 1700 Motherboards, Motherboards Tag: Gigabyte

GIGABYTE B760 DS3H AX DDR4: The Foundation of Unparalleled Performance

The GIGABYTE B760 DS3H AX DDR4 is a powerhouse ATX motherboard designed to unleash the full potential of 14th, 13th, and 12th Generation Intel® Core™ processors. Built on the reliable Intel® B760 chipset, this board utilizes a robust Hybrid 8+2+1 Phases Digital VRM solution, ensuring stable power delivery to the CPU even under heavy workloads. With support for DDR4 memory up to 5333MHz (O.C.) via XMP, users can experience blistering fast multitasking and gaming performance without the premium cost of DDR5. The 6-layer PCB design further enhances signal integrity and durability, making it a solid foundation for any high-performance build.

Next-Generation Connectivity and Speed

Stay ahead of the curve with versatile connectivity options. The motherboard features dual PCIe 4.0 x4 M.2 connectors, allowing for lightning-fast NVMe storage solutions that significantly reduce boot and load times. For external devices, the rear I/O panel includes a USB 3.2 Gen 2×2 Type-C® port, delivering data transfer speeds of up to 20Gb/s. Networking is handled by a Realtek® GbE LAN for stable wired connections, alongside an integrated Wi-Fi 6E module (supporting 802.11ax) that opens up the 6GHz frequency band for low-latency, high-bandwidth wireless gaming and streaming.

Smart Cooling and User-Friendly Design

GIGABYTE’s Smart Fan 6 technology ensures your PC stays cool and quiet. With multiple hybrid fan headers and temperature sensors on the board, users can customize fan curves to precisely manage airflow. The “Fan Stop” feature allows fans to halt completely when temperatures drop below a specified threshold, ensuring absolute silence during light usage. For DIY enthusiasts, the Q-Flash Plus button allows for BIOS updates without installing a CPU, memory, or graphics card, while the PCIe EZ-Latch makes removing bulky graphics cards from the reinforced PCIe 4.0 x16 slot effortless.

Immersive Audio and Personalization

Experience high-fidelity sound with the onboard 8-channel HD Audio solution, featuring high-end audio capacitors and an Audio Noise Guard that separates sensitive analog audio components from potential noise pollution on the PCB. Personalize your rig with the GIGABYTE Control Center (GCC) software, which unifies control over all supported GIGABYTE products. The board also includes addressable RGB headers and standard RGB headers, allowing you to synchronize lighting effects across your entire system for a truly unique aesthetic.

Category	Specification Details
Brand	GIGABYTE
Model Name	B760 DS3H AX DDR4 (Rev. 1.x)
SKU	GA-B760-DS3H-AX-DDR4
Form Factor	ATX Form Factor (30.5cm x 24.4cm)
Operating System Support	Windows 11 64-bit, Windows 10 64-bit
Processor Support	LGA1700 Socket: Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors
Chipset	Intel® B760 Express Chipset
Memory Support	4 x DDR4 DIMM sockets (Max 128 GB, 32 GB per single DIMM) Dual Channel Memory Architecture Speeds: DDR4 5333(O.C.) to 2133 MT/s Supports ECC Un-buffered DIMM 1Rx8/2Rx8 (non-ECC mode) Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 Supports Extreme Memory Profile (XMP)
Power Phase Design	Hybrid 8+2+1 Phases Digital VRM Solution Premium Choke and Capacitor 6-Layer & PCIe 4.0 Ready PCB
Thermal Features	Smart Fan 6 (Multiple Temp Sensors, Hybrid Fan Headers, FAN STOP) VRM Heatsinks and M.2 Thermal Guard
Onboard Graphics	1 x HDMI 2.1 (Max 4096x2160@60 Hz, HDCP 2.3) 1 x DisplayPort 1.2 (Max 4096x2304@60 Hz, HDCP 2.3)
Audio	Realtek® Audio CODEC High Definition Audio (2/4/5.1/7.1-channel) Audio Noise Guard & High-End Audio Capacitors S/PDIF Out Support
LAN	Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Wireless Communication	Supports Wi-Fi 6E (802.11ax) 2.4/5/6 GHz Bands PCB rev. 1.0: AMD Wi-Fi 6E RZ608 (MT7921K), BT 5.2 PCB rev. 1.1: Intel® Wi-Fi 6E AX210, BT 5.3 PCB rev. 1.2: Intel® Wi-Fi 6E AX211, BT 5.3 PCB rev. 1.3: Realtek® Wi-Fi 6E RTL8852CE, BT 5.3
Expansion Slots	CPU: 1 x PCI Express x16 slot (PCIe 4.0 x16) Features EZ-Latch Quick Release Design Chipset:* 4 x PCI Express x16 slots (PCIe 3.0 running at x1)
Storage Interface	CPU: 1 x M.2 Connector (M2A_CPU, PCIe 4.0 x4/x2, Type 22110/2280) Chipset: 1 x M.2 Connector (M2P_SB, PCIe 4.0 x4/x2, Type 2280) 4 x SATA 6Gb/s Connectors RAID Support: RAID 0, 1, 5, 10
USB Ports	Back Panel: 1 x USB Type-C® (USB 3.2 Gen 2x2) 1 x USB 3.2 Gen 2 Type-A (Red) 4 x USB 2.0/1.1 Internal Headers: 1 x USB Type-C® (USB 3.2 Gen 1) 1 x USB 3.2 Gen 1 Header (2 ports) 2 x USB 2.0/1.1 Headers (4 ports)
Internal I/O Connectors	1 x 24-pin ATX, 1 x 8-pin ATX 12V 1 x CPU Fan, 1 x CPU/Pump, 3 x Sys Fan, 1 x Sys Fan/Pump 2 x Addressable LED, 2 x RGB LED Headers 1 x Q-Flash Plus Button, 1 x Reset Button, 1 x TPM Header 1 x Serial Port Header, 1 x S/PDIF Out Header

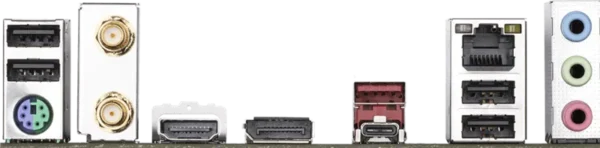

Back Panel Connectors	1 x PS/2 Keyboard/Mouse Port 2 x SMA Antenna Connectors (2T2R) 1 x USB Type-C® (Gen 2x2), 1 x USB 3.2 Gen 2 Type-A 4 x USB 2.0/1.1 1 x HDMI 2.1, 1 x DisplayPort 1.2 1 x RJ-45 Port, 3 x Audio Jacks
BIOS & Software	1 x 128 Mbit flash, AMI UEFI BIOS GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus Norton® Internet Security (OEM), LAN Bandwidth Management
