₱7,250.00Original price was: ₱7,250.00.₱6,310.00Current price is: ₱6,310.00.

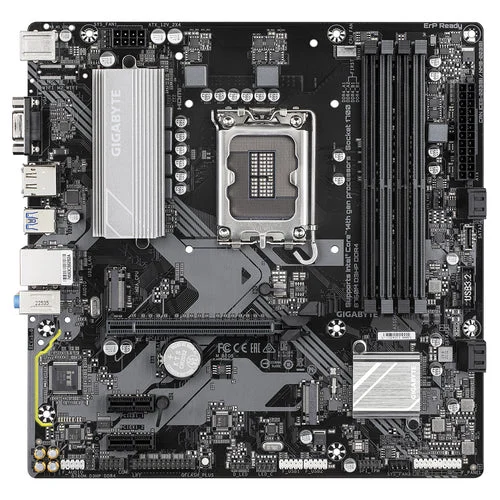

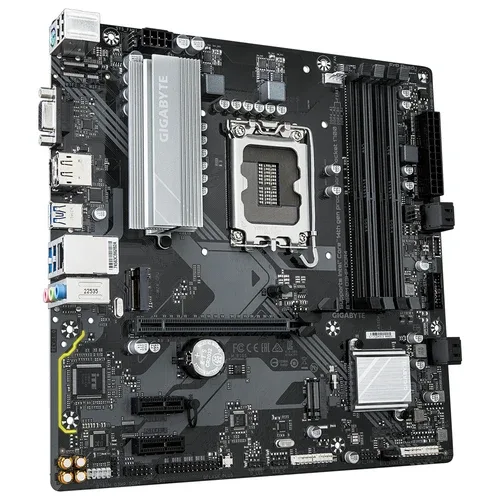

Model and SKU: GIGABYTE B760M D3HP DDR4 (SKU: GA-B760M-D3HP-DDR4)
Processor Support: LGA 1700 Socket compatible with 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors
Power Delivery: Reliable 4+1+1 Phases Hybrid Digital VRM Solution with an 8 Solid Pin CPU Power Connector
Memory Capability: 4x DDR4 DIMM slots supporting up to 128GB (Dual Channel), capable of XMP speeds up to 5333MHz (O.C.)
Storage Interface: Dual ultra-fast PCIe 4.0 x4 M.2 connectors and 4x SATA 6Gb/s ports with RAID support
Expansion & Graphics: 1x PCIe 4.0 x16 slot featuring an EZ-Latch for effortless GPU removal, alongside 1x HDMI, 1x DisplayPort, and 1x D-Sub for multi-monitor setups
Network Connectivity: Realtek GbE LAN with advanced network bandwidth management to minimize gaming lag
Thermal Management: Smart Fan 6 featuring multiple temperature sensors, hybrid fan headers with Water Pump support, and Fan Stop functionality
Audio Excellence: 8-Channel High Definition Audio with High-End Audio Capacitors and a dedicated Audio Noise Guard
DIY Friendly: Features Q-Flash Plus to update the BIOS effortlessly without requiring a CPU, RAM, or Graphics Card
Form Factor: Micro ATX (24.4cm x 24.4cm) standard size, fitting easily into compact to mid-tower PC cases
In stock
ℹ️
For walk-in customers: please always INQUIRE FIRST before visiting as not all items are displayed in our physical store. As an online-first store, most of our inventory is held in our online warehouse and is transferred to the store upon request.
Step into the next generation of computing with the GIGABYTE INTEL B760M D3HP DDR4 Motherboard, precision-engineered to unlock the maximum potential of the 14th, 13th, and 12th Generation Intel Core processors. The foundation of this Micro ATX motherboard is built on a robust 4+1+1 Phases Hybrid Digital VRM solution paired with premium chokes, high-quality capacitors, and an 8 Solid Pin CPU Power Connector. This optimized power delivery ensures low temperatures under heavy loads, providing your system with rock-solid stability and maximum scalability during intense gaming sessions or heavy multitasking workloads.
Advanced Cooling with Smart Fan 6 Technology
Maintaining optimal operating temperatures is effortless with GIGABYTE’s Smart Fan 6 technology. The motherboard is equipped with multiple temperature sensors and hybrid fan headers that support both standard fans and water cooling pumps up to 24W with over-current protection. The redesigned intuitive BIOS UI allows you to deeply customize your cooling environment using Slope or Stair fan curves, precise manual inputs, or simple EZ Tuning. Furthermore, the innovative Fan Stop capability allows the fans to halt completely when temperatures drop below a specified threshold, guaranteeing a virtually silent computing experience during everyday tasks.
Future-Proof Storage and Next-Gen Connectivity
Embrace lightning-fast data transfer and reduced loading screens. Featuring a full PCIe 4.0 hardware design, the B760M D3HP is fully primed to support cutting-edge expansion cards and storage drives. You will find two onboard PCIe 4.0 x4 M.2 connectors alongside a primary PCIe 4.0 x16 slot with an EZ-Latch mechanism, making graphics card upgrades entirely hassle-free. Networking is equally rapid thanks to the Realtek GbE LAN chip paired with intelligent bandwidth management software, significantly reducing latency and keeping your ping times exceptionally low in crowded network environments. For broad device compatibility, you get multiple display outputs including HDMI, DisplayPort, and D-Sub, complemented by an internal front USB 3.2 Gen 1 Type-C header.
Exceptional Dual Channel DDR4 Support and Audio Fidelity
Maximize your frame rates and productivity bandwidth with expansive memory capabilities. Supporting four DIMM slots up to 128GB of Dual Channel DDR4 memory, this motherboard empowers you to activate Extreme Memory Profile (XMP) settings directly within the BIOS to reach blazing-fast overclocked speeds up to 5333MHz and beyond. To round out the premium media experience, the board features a high-definition 8-channel audio solution. Integrating high-end audio capacitors and a specialized Audio Noise Guard that isolates sensitive analog components from potential digital interference, this platform produces immersive, crystal-clear soundscapes whether you are locating enemies in a competitive match or editing high-resolution video content.
User-Friendly Installation and BIOS Flash Accessibility
GIGABYTE has ensured that PC building is completely streamlined. The exclusive Q-Flash Plus technology removes the friction from modern component upgrades by allowing you to flash and update your BIOS without the need to install a CPU, memory, or graphics card first. Simply plug in your power connections, load the new BIOS file onto a USB drive, press the onboard Q-Flash Plus button, and let the system handle the rest autonomously. Tied together with the redesigned UC BIOS offering customizable option slots and exclusive PerfDrive optimization modes, this board caters to both beginner builders and seasoned PC enthusiasts.
Support for Extreme Memory Profile (XMP) modules, ECC Un-buffered DIMM (non-ECC mode), and non-ECC Un-buffered DIMM memory modules.
Onboard Graphics
Integrated Graphics
Intel HD Graphics support
Video Ports
1 x D-Sub: max resolution 1920x1200@60 Hz
1 x HDMI (2.1): max resolution 4096x2160@60 Hz (HDCP 2.3)
1 x DisplayPort (1.2): max resolution 4096x2304@60 Hz (HDCP 2.3)
Multi-Display Support
Up to triple-display at the same time
Audio & Network
Audio Codec
Realtek Audio CODEC, High Definition Audio
Audio Channels
2/4/5.1/7.1-channel, Support for S/PDIF Out
High-End Audio Capacitors & Audio Noise Guard
LAN Controller
Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) with Bandwidth Management
Expansion & Storage
PCIe Slots
1 x PCIe x16 (CPU): PCIe 4.0 running at x16 (PCIe EZ-Latch equipped)
2 x PCIe x1 (Chipset): PCIe 3.0 running at x1
M.2 Storage Interfaces
1 x M.2 (CPU): Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD (M2A_CPU)
1 x M.2 (Chipset): Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD (M2P_SB)
SATA Ports
4 x SATA 6Gb/s connectors
RAID Support
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB & I/O Interfaces
Back Panel Connectors
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DisplayPort
1 x HDMI port
3 x USB 3.2 Gen 1 ports
1 x RJ-45 port
3 x audio jacks
Internal I/O Connectors
1 x 24-pin ATX & 1 x 8-pin ATX 12V power
1 x CPU fan header & 3 x system fan headers
1 x Addressable LED strip header & 1 x RGB LED strip header
1 x USB Type-C header (USB 3.2 Gen 1)
1 x USB 3.2 Gen 1 header & 2 x USB 2.0/1.1 headers
1 x Front panel header & 1 x Front panel audio header
1 x TPM header (For GC-TPM2.0 SPI modules)
1 x Serial port header & 1 x Parallel port header
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x Reset jumper & 1 x Clear CMOS jumper
Additional Features
VRM Design
Hybrid 4+1+1 Phases Digital VRM Solution with Low RDS(on) MOSFETs and Premium Chokes
H/W Monitoring (Smart Fan 6)
Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control (Slope/Stair mode, Fan Stop feature)
BIOS
1 x 128 Mbit flash, licensed AMI UEFI BIOS.
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0. Support for Q-Flash and Q-Flash Plus (Update BIOS without installing CPU/RAM/GPU).
Bundled Software
Norton Internet Security (OEM version), LAN bandwidth management software, GIGABYTE Control Center (GCC)
Packaging Weight
1.04 kg
Packaging Dimensions (L×W×H)
29 × 29 × 8 cm
Brand
Gigabyte
Socket
LGA 1700 CPU
Desktop RAM
DDR4
