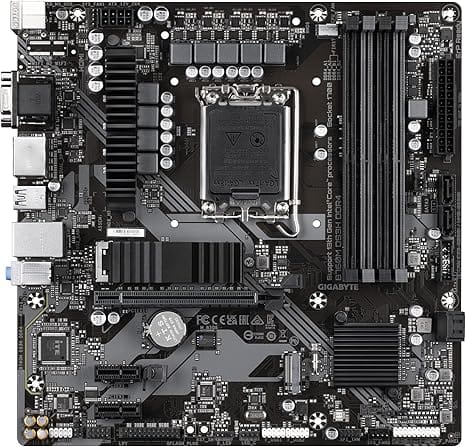

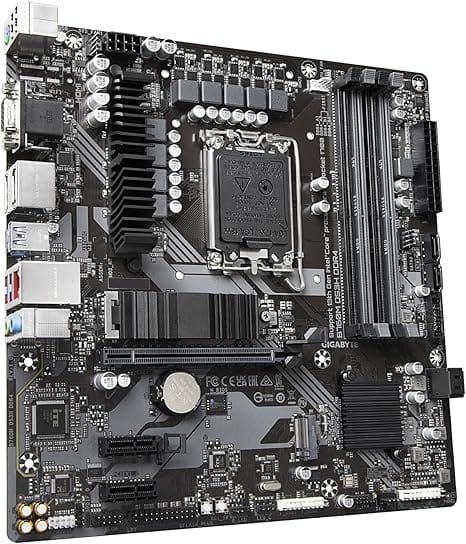

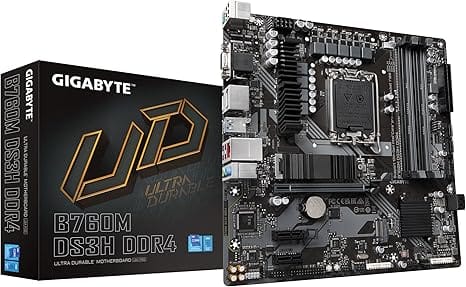

GIGABYTE B760M DS3H DDR4 GEN5 Micro ATX Motherboard Intel B760 DDR4 PCIe 5.0 - GA-B760M-DS3H-DDR4-GEN5

GIGABYTE B760M DS3H DDR4 GEN5 Micro ATX Motherboard Intel B760 DDR4 PCIe 5.0 – GA-B760M-DS3H-DDR4-GEN5

Original price was: ₱8,900.00.Current price is: ₱7,795.00.

Supports 14th, 13th, 12th Gen Intel Core processors with LGA1700 socket
Dual-channel DDR4 up to 5333 MHz (OC) with XMP support
PCIe 5.0 x16 slot with EZ-Latch and Ultra Durable shielding
Two PCIe 4.0 M.2 slots and four SATA 6Gb/s ports for fast storage
2.5GbE LAN for high-speed, stable networking
Smart Fan 6 with hybrid fan headers and fan stop for efficient cooling
High-end audio with noise guard and premium capacitors
SKU: GA-B760M-DS3H-DDR4-GEN5

In stock

Price Drop Alerts & Price History

We'll notify you the moment the price hits your target.

💡 Suggested alert: ₱7,400 [ Use this ]

🔓 Sign in to unlock full price history charts and manage your alerts.

SKU: GA-B760M-DS3H-DDR4-GEN5 Categories: Intel LGA 1700 Motherboards, Motherboards Tag: Gigabyte

The GIGABYTE B760M DS3H DDR4 GEN5 motherboard delivers exceptional performance for 14th, 13th, and 12th Gen Intel Core processors, making it a versatile choice for gaming and productivity builds. Its Micro ATX design supports dual-channel DDR4 memory with XMP profiles up to 5333 MHz (OC), ensuring robust multitasking and system responsiveness. Featuring a PCIe 5.0 x16 slot with EZ-Latch and Ultra Durable shielding, it provides enhanced strength for high-performance GPUs and future-proof connectivity. Two PCIe 4.0 M.2 slots offer rapid storage speeds, complemented by four SATA 6Gb/s ports for versatile storage configurations. The 2.5GbE LAN ensures fast, stable networking for gaming and cloud computing. Advanced cooling with durable VRM heatsinks and Smart Fan 6 technology, including fan stop and hybrid headers, maintains optimal temperatures. High-end audio capacitors and noise guard deliver immersive sound quality. DIY-friendly features like Q-Flash Plus and a redesigned UEFI BIOS simplify setup and upgrades, while RGB Fusion allows vibrant customization. This motherboard combines cutting-edge connectivity, durability, and user-friendly design for reliable, high-performance PC builds.

Specification	GIGABYTE B760M DS3H DDR4 GEN5
CPU	LGA1700 socket: Support for 14th, 13th, 12th Gen Intel® Core™, Pentium® Gold, Celeron® Processors
Chipset	Intel® B760 Express Chipset
Memory	4 x DDR4 DIMM sockets, max. 128GB (32GB single DIMM), Supports DDR4 5333(O.C.)/5133(O.C.)/5000(O.C.)/4933(O.C.)/4800(O.C.)/4700(O.C.)/4600(O.C.)/4500(O.C.)/4400(O.C.)/4300(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3733(O.C.)/3666(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200/3000/2933/2666/2400/2133 MT/s, Dual Channel, ECC/Non-ECC Un-buffered DIMM, XMP
Onboard Graphics	1 x D-Sub (1920x1200@60Hz), 1 x HDMI (4096x2160@60Hz, HDMI 2.1, HDCP 2.3), 2 x DisplayPort (4096x2304@60Hz, DisplayPort 1.2, HDCP 2.3), Supports quad-display
Audio	Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, Audio Noise Guard, High-End Audio Capacitors, S/PDIF Out
LAN	Realtek® 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots	1 x PCIe 5.0 x16 (CPU), 2 x PCIe 3.0 x1 (Chipset)
Storage Interface	2 x M.2 (2280, PCIe 4.0 x4/x2), 4 x SATA 6Gb/s, Supports RAID 0/1/5/10 for SATA
USB	1 x USB 3.2 Gen 2 Type-C (back), 5 x USB 3.2 Gen 1 (3 back, 2 via header), 2 x USB 2.0/1.1 (back), 4 x USB 2.0/1.1 (via headers)
Internal I/O Connectors	1 x 24-pin ATX power, 1 x 8-pin ATX 12V power, 1 x CPU fan header, 3 x system fan headers, 2 x addressable RGB Gen2 headers, 1 x RGB LED strip header, 2 x M.2, 4 x SATA 6Gb/s, 1 x front panel header, 1 x front panel audio header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x TPM header, 1 x serial port header, 1 x parallel port header, 1 x S/PDIF Out header, 1 x Q-Flash Plus button, 1 x reset jumper, 1 x Clear CMOS jumper
Back Panel Connectors	2 x USB 2.0/1.1, 1 x PS/2 keyboard/mouse, 1 x D-Sub, 1 x HDMI, 2 x DisplayPort, 3 x USB 3.2 Gen 1, 1 x USB 3.2 Gen 2 Type-C, 1 x RJ-45, 3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control
BIOS	1 x 128 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	GIGABYTE Control Center, Q-Flash, Q-Flash Plus, Smart Backup, PCIe EZ-Latch, PCIe UD Slot, RGB Fusion
Bundled Software	Norton® Internet Security (OEM version)
Operating System	Windows 11 64-bit, Windows 10 64-bit
Form Factor	Micro ATX (24.4cm x 24.4cm)
