₱6,400.00Original price was: ₱6,400.00.₱5,595.00Current price is: ₱5,595.00.
Intel H610 Express chipset with LGA1700 for 14th, 13th, 12th Gen CPUs
2 x DDR5 DIMM slots, up to 128GB, 5600 MT/s (Core i9/i7), 4800 MT/s (others), XMP 3.0
PCIe 4.0 x16 slot and PCIe 3.0 x4 M.2 slot for fast performance
Realtek GbE LAN (1 Gbps) for reliable networking
Four SATA 6Gb/s ports for versatile storage
HDMI (4K@60Hz) and D-Sub (1920×1200@60Hz) for display options
Realtek 7.1-channel audio with high-quality capacitors
Ultra Durable design with 4+1+1 VRM, anti-sulfur resistors, Smart Fan 6
APP Center with EasyTune, Q-Flash for easy system management
SKU: GA-H610M-H-V2
In stock
ℹ️
For walk-in customers: please always INQUIRE FIRST before visiting as not all items are displayed in our physical store. As an online-first store, most of our inventory is held in our online warehouse and is transferred to the store upon request.

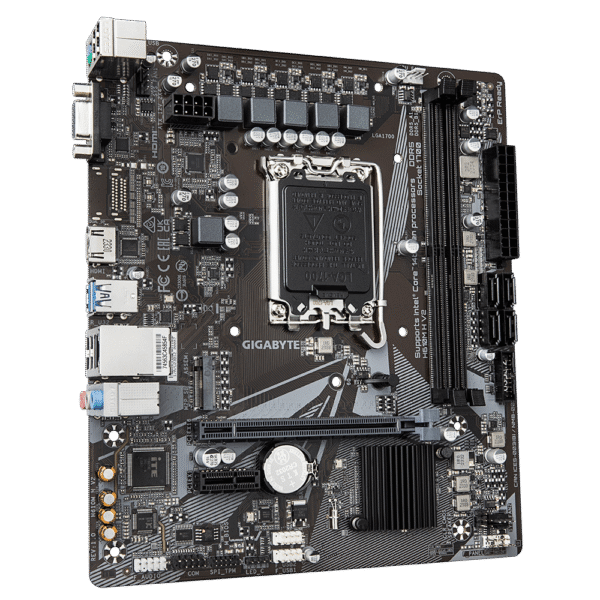

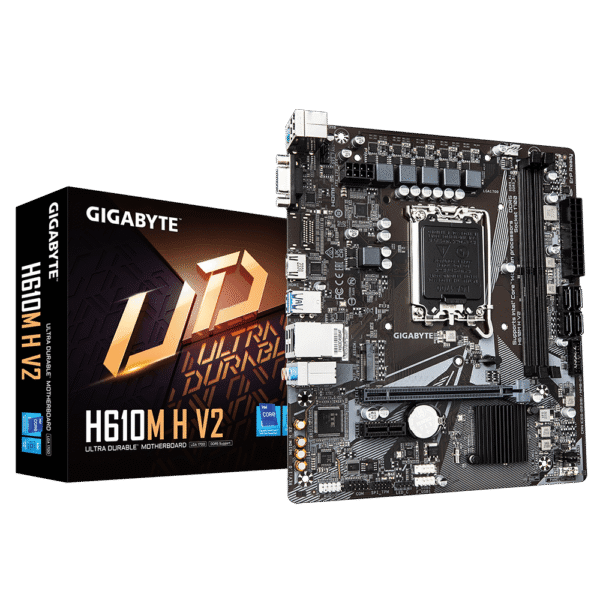

GIGABYTE H610M H V2 (rev. 1.0) Motherboard Product Description
The GIGABYTE H610M H V2 (rev. 1.0) micro-ATX motherboard is a budget-friendly platform designed for Intel 14th, 13th, and 12th Generation Core, Pentium Gold, and Celeron processors on the LGA1700 socket with the Intel H610 Express chipset. It supports up to 128GB of DDR5 memory, with speeds up to 5600 MT/s for Core i9/i7 processors and 4800 MT/s for others, leveraging XMP 3.0 for enhanced performance. The board features one PCIe 4.0 x16 slot for graphics cards and one M.2 slot (PCIe 3.0 x4/x2) for NVMe SSDs, alongside four SATA 6Gb/s ports for additional storage. Realtek GbE LAN ensures reliable networking, while USB 3.2 Gen 1 and USB 2.0 ports provide connectivity for peripherals. Display outputs include HDMI (4K@60Hz) and D-Sub (1920×1200@60Hz) for integrated graphics. The Realtek Audio CODEC supports 7.1-channel audio with high-quality capacitors for immersive sound. GIGABYTE’s Ultra Durable design includes a 4+1+1 hybrid VRM, anti-sulfur resistors, and solid capacitors for stability under load. Smart Fan 6 offers precise cooling control, and APP Center utilities like EasyTune and Q-Flash simplify system tuning and BIOS updates. With a 3-year warranty, this motherboard is ideal for cost-effective builds prioritizing reliability and essential features.
Intel LGA1700 for 14th, 13th, 12th Gen Core, Pentium Gold, Celeron Processors
Chipset
Intel H610 Express
Form Factor
Micro ATX (22.3 cm x 19.6 cm)
Memory
2 x DDR5 DIMM, Max. 128GB, Up to 5600 MT/s (Core i9/i7), 4800 MT/s (Core i5/i3, Pentium, Celeron), Dual Channel, ECC/Non-ECC, XMP
Graphics Outputs
1 x D-Sub (1920x1200@60Hz), 1 x HDMI (4096x2160@60Hz)
Expansion Slots
1 x PCIe 4.0 x16 (CPU), 1 x PCIe 3.0 x1 (Chipset)
Storage
1 x M.2 (PCIe 3.0 x4/x2, 2280/2260), 4 x SATA 6Gb/s
Ethernet
Realtek GbE LAN (1 Gbps/100 Gbps/10 Mbps)
USB Ports
Rear: 2 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0/1.1 Type-A; Front: 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0/1.1 headers (4 ports)
Audio
Realtek Audio CODEC, 7.1-Channel, 24-Bit/192kHz, Jack Detection, Multi-streaming

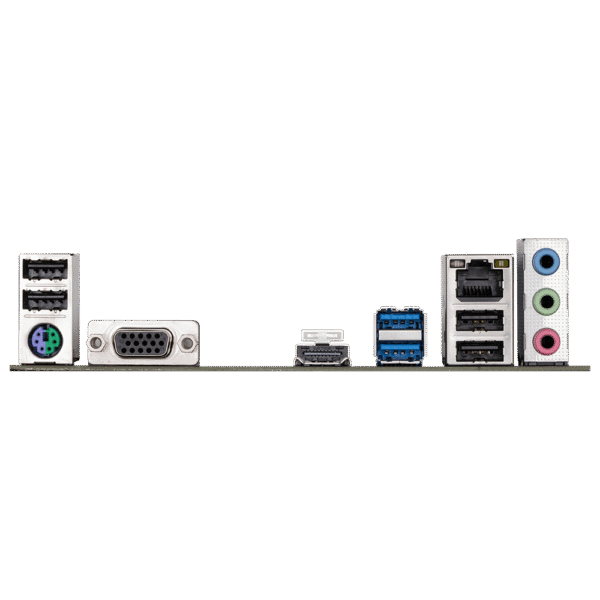

Back Panel I/O
1 x PS/2 Keyboard/Mouse, 1 x D-Sub, 1 x HDMI, 2 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0/1.1 Type-A, 1 x RJ-45, 3 x Audio Jacks
Internal I/O
1 x 24-pin Power, 1 x 8-pin +12V, 1 x CPU Fan, 2 x System Fan, 1 x M.2, 4 x SATA 6Gb/s, 1 x RGB Header, 1 x Front Panel, 1 x Front Audio, 1 x Speaker, 1 x USB 3.2 Gen 1 Header, 2 x USB 2.0 Headers, 1 x TPM, 1 x Serial Port, 1 x Clear CMOS, 1 x Chassis Intrusion
Special Features
APP Center (@BIOS, EasyTune, Smart Backup, System Information Viewer), Q-Flash, Anti-Sulfur Resistors, Smart Fan 6
BIOS
128 Mbit Flash, UEFI AMI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Manageability
WOL by PME, PXE
Accessories
Not specified in provided details
Operating System
Windows 11 64-bit, Windows 10 64-bit
Warranty
3 Years (Adjusted by Region)
Packaging Weight
1 kg
Packaging Dimensions (L×W×H)
28 × 27 × 6 cm
Brand
Gigabyte
Desktop RAM
DDR5
Socket
LGA 1700 CPU
