₱6,480.00Original price was: ₱6,480.00.₱5,640.00Current price is: ₱5,640.00.
Processor Compatibility: LGA 1700 Socket supporting Intel Core 14th, 13th, and 12th Gen, as well as Pentium Gold and Celeron Processors.
Robust Power Delivery: Features a highly efficient 4+1+1 Phases Hybrid Digital VRM Design with 50A Low RDS(on) MOSFETs and an 8-pin Solid Pin CPU power connector.
High-Speed Memory: Dual-channel architecture supporting up to 64GB of DDR4 memory across 2 DIMM slots, compatible with XMP modules.
Next-Gen Expansion: Equipped with a reinforced PCIe 4.0 x16 slot on a low signal loss PCB for maximum graphics card performance.
Storage Options: Includes 1x NVMe PCIe 3.0 x4 M.2 connector and 4x SATA 6Gb/s ports featuring RAID 0, 1, 5, and 10 support.
Networking: Fast and reliable Realtek GbE LAN with dedicated bandwidth management software to minimize latency and improve responsiveness.
Premium Audio: High Definition 8-channel audio featuring High Quality Audio Capacitors and an Audio Noise Guard for crystal clear sound.
Thermal Control: Smart Fan 6 technology with multiple temperature sensors, hybrid fan headers, and a zero-RPM FAN STOP function.
Ultra Durable Build: Engineered with an Anti-Sulfur Resistor design and solid capacitors for long-term stability and reliability.

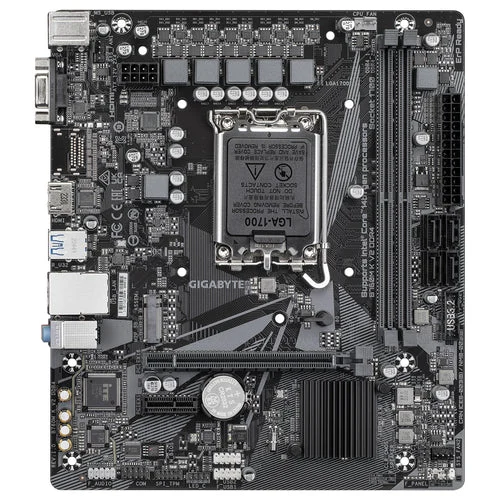

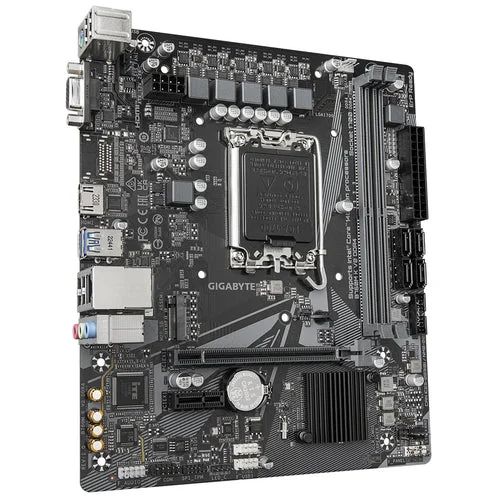

Model/SKU: GIGABYTE B760M K V2 DDR4 / GA-B760M-K-V2-DDR4
In stock
ℹ️
For walk-in customers: please always INQUIRE FIRST before visiting as not all items are displayed in our physical store. As an online-first store, most of our inventory is held in our online warehouse and is transferred to the store upon request.
Unlock the maximum potential of your processor with the GIGABYTE B760M K V2 DDR4 motherboard, expertly engineered to support the latest 14th, 13th, and 12th Generation Intel Core processors. At the heart of its performance lies a highly efficient 4+1+1 Phases Hybrid Digital VRM solution, meticulously crafted with 50A Low RDS(on) MOSFETs and solid capacitors. This robust power delivery system ensures incredibly clean, consistent power flow directly to the CPU, guaranteeing absolute stability during heavy loads and intense processing demands. Complemented by an 8-pin Solid Pin CPU power connector, the motherboard excels at managing heat generation, minimizing oscillation, and providing an extended lifespan compared to standard motherboard power designs.
Next-Generation PCIe 4.0 and Storage Capabilities
Embrace the future of bandwidth with a reinforced PCIe 4.0 x16 slot that offers blazing-fast data transfer rates and uncompromised signal integrity through a specially designed low signal loss PCB. Whether you are installing a high-end graphics card for competitive gaming or pushing heavy rendering workloads, this motherboard is ready to maximize your hardware’s output. Storage is equally prioritized, featuring a dedicated NVMe PCIe 3.0 x4 M.2 connector alongside four SATA 6Gb/s ports with comprehensive RAID 0, 1, 5, and 10 support. You can configure your system for lightning-fast boot times, massive storage capacities, and ironclad data redundancy.
Advanced Smart Fan 6 Thermal Management
Maintain peak performance without succumbing to thermal throttling. GIGABYTE’s proprietary Smart Fan 6 technology ensures that your gaming PC stays whisper-quiet while keeping temperatures optimally low. With multiple strategically placed temperature sensors and specialized hybrid fan headers across the motherboard, you have total control over your system’s airflow and liquid cooling setups. The intuitive software allows you to map specific fans to different temperature triggers and even utilize the FAN STOP feature—commanding your fans to cease spinning entirely during light workloads for a completely silent computing experience.
Immersive Audio and Intelligent Networking Connectivity
Step into an uninterrupted online experience and studio-grade sound. The built-in Realtek Gigabit LAN is backed by an intelligent bandwidth management application that actively prioritizes your network traffic, significantly reducing network latency and maintaining low ping times in crowded LAN environments—essential for competitive online gamers and professional streamers. On the audio front, the board is equipped with an 8-channel High Definition Audio codec powered by premium, high-end audio capacitors. To ensure the purest sound possible, an integrated Audio Noise Guard physically separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
Ultra-Durable Architecture and User-Friendly Software
GIGABYTE’s Ultra Durable philosophy shines through every layer of the B760M K V2. Beyond the robust power phases, the motherboard features an Anti-Sulfur Resistor design that shields critical onboard components from chemical changes and short circuits caused by sulfur compounds in the air. For system configuration, the newly reinvented BIOS graphical user interface provides an incredibly smooth setup experience for both novices and seasoned overclockers. This is seamlessly paired with the GIGABYTE Control Center (GCC) software, a unified hub that gives you effortless access to everything from Q-Flash BIOS updating to RGB LED customization, ensuring your PC runs exactly how you envision it.
Support for Windows 11 64-bit and Windows 10 64-bit
CPU & Chipset
CPU Socket
LGA1700
CPU Support
Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron Processors.
Note: L3 cache varies with CPU.
Chipset
Intel B760 Express Chipset
Power Design
4+1+1 Phases Hybrid Digital VRM Design with 50A Low RDS(on) MOSFETs and 8-pin Solid Pin CPU Power Connector
Memory
Memory Architecture
Dual Channel Memory Architecture
Memory Slots
2 x DDR4 DIMM sockets
Maximum Capacity
Up to 64 GB of system memory (32 GB single DIMM capacity)
Supported Speeds
DDR4 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s
Advanced Support
Support for ECC Un-buffered DIMM (operate in non-ECC mode), non-ECC Un-buffered DIMM, and Extreme Memory Profile (XMP) memory modules.
Onboard Graphics & Audio
Integrated Graphics
Intel HD Graphics support
Video Ports
1 x D-Sub: Maximum resolution of 1920x1200@60 Hz
1 x HDMI (2.1): Maximum resolution of 4096x2160@60 Hz (HDCP 2.3 support)
Audio Codec
Realtek Audio CODEC, High Definition Audio
Audio Channels
2/4/5.1/7.1-channel
Features High Quality Audio Capacitors and Audio Noise Guard
Networking, Expansion & Storage
LAN Controller
Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) with Bandwidth Management
PCIe Expansion Slots
1 x PCIe x16 (CPU): Supporting PCIe 4.0 and running at x16
1 x PCIe x1 (Chipset): Supporting PCIe 3.0 and running at x1
M.2 Storage
1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
SATA Storage
4 x SATA 6Gb/s connectors
RAID Support
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Connectivity & I/O
Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Internal I/O Headers
1 x 24-pin ATX & 1 x 8-pin ATX 12V power
1 x CPU fan header & 2 x system fan headers
1 x RGB LED strip header
1 x Front panel header & 1 x Front panel audio header
1 x Speaker header
1 x USB 3.2 Gen 1 header & 2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header
1 x Serial port header
1 x Clear CMOS jumper
1 x Chassis intrusion header
USB Configuration
Total USB 3.2 Gen 1: 4 Ports (2 rear, 2 internal)
Total USB 2.0/1.1: 8 Ports (4 rear, 4 internal)
Advanced Features
Hardware Monitoring
Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control (via Smart Fan 6).
Durability & Reliability
Anti-Sulfur Resistors Design, PCIe 4.0 Ready Low Signal Loss PCB, Solid Pin Power Connectors, Solid Capacitors.
BIOS
1 x 128 Mbit flash, AMI UEFI BIOS. Support for Q-Flash. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0.
Included Software
GIGABYTE Control Center (GCC), Norton Internet Security (OEM version), LAN Bandwidth Management Software.
Packaging Weight
2 kg
Packaging Dimensions (L×W×H)
31 × 30 × 10 cm
Brand
Gigabyte
Socket
LGA 1700 CPU
Desktop RAM
DDR4
