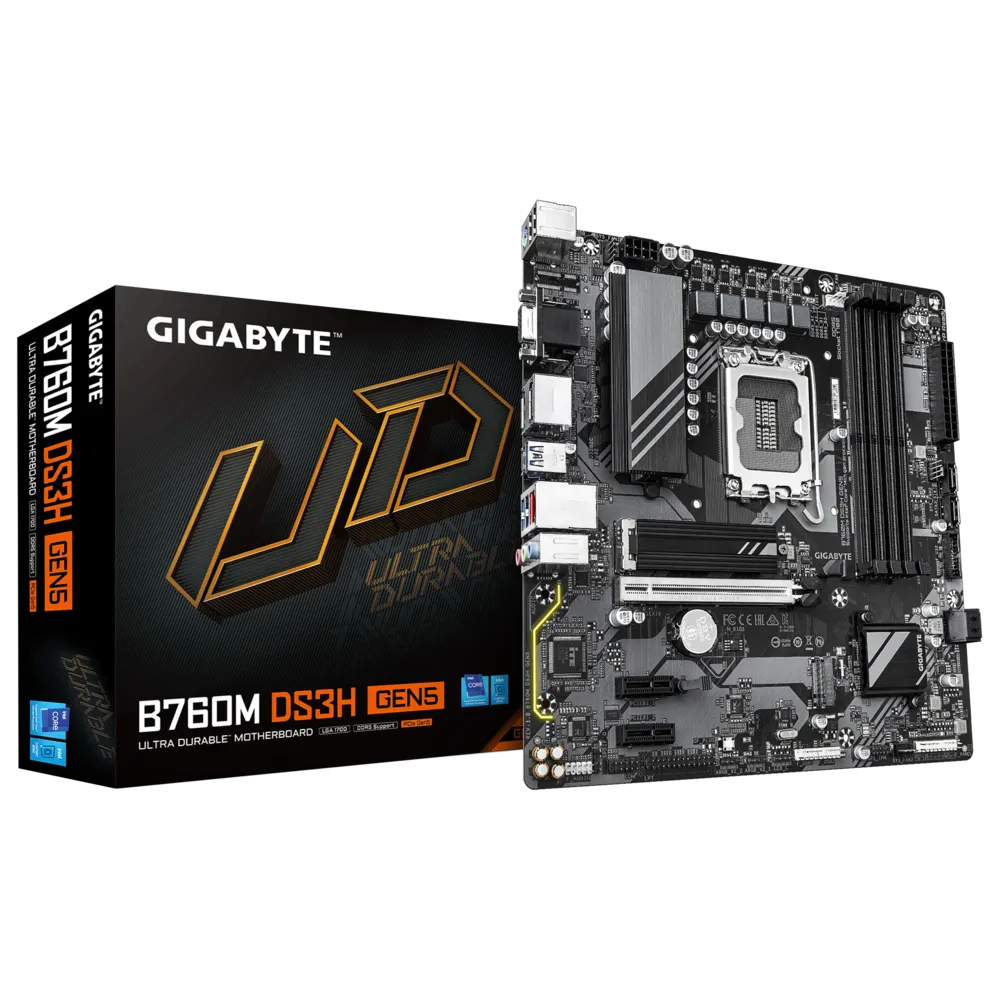

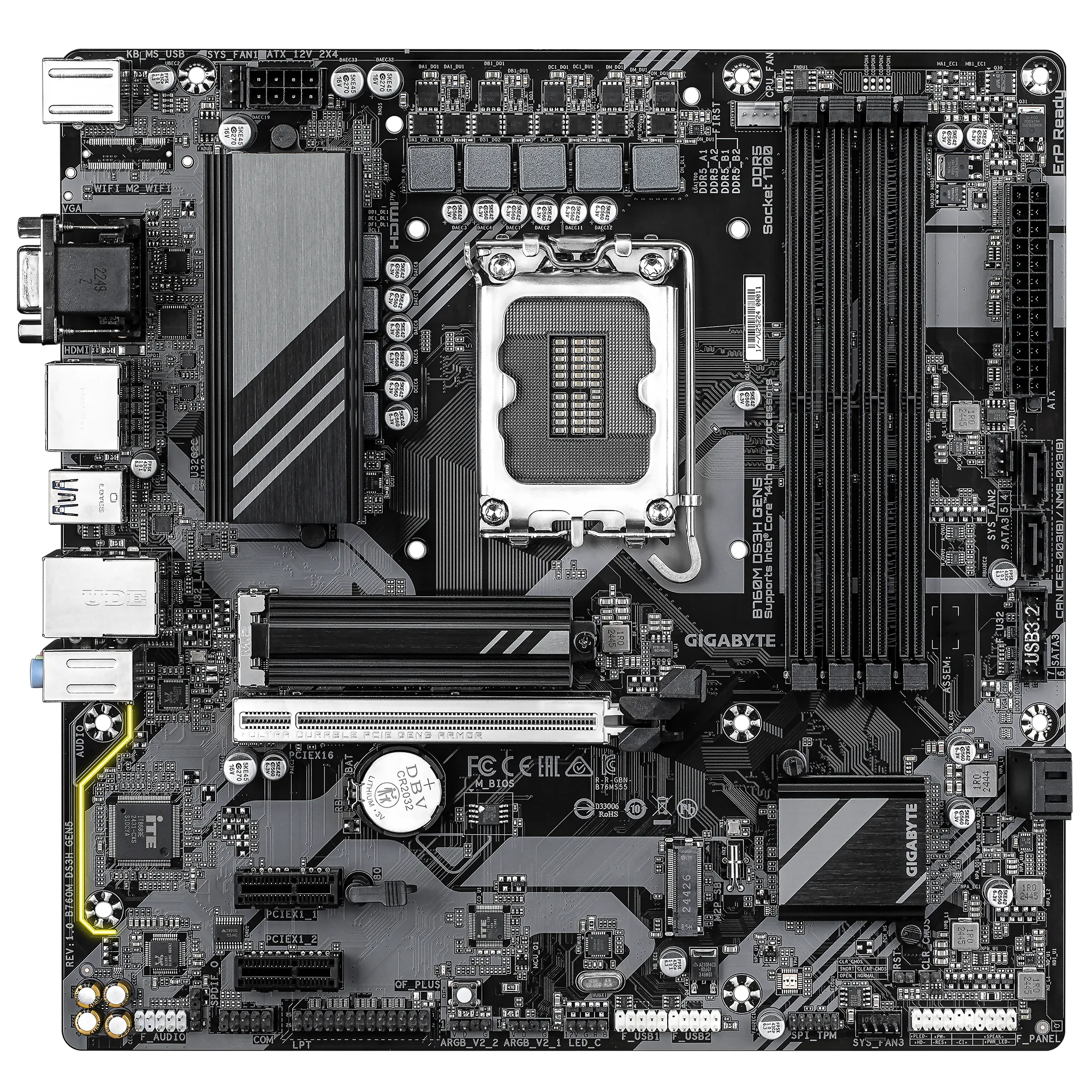

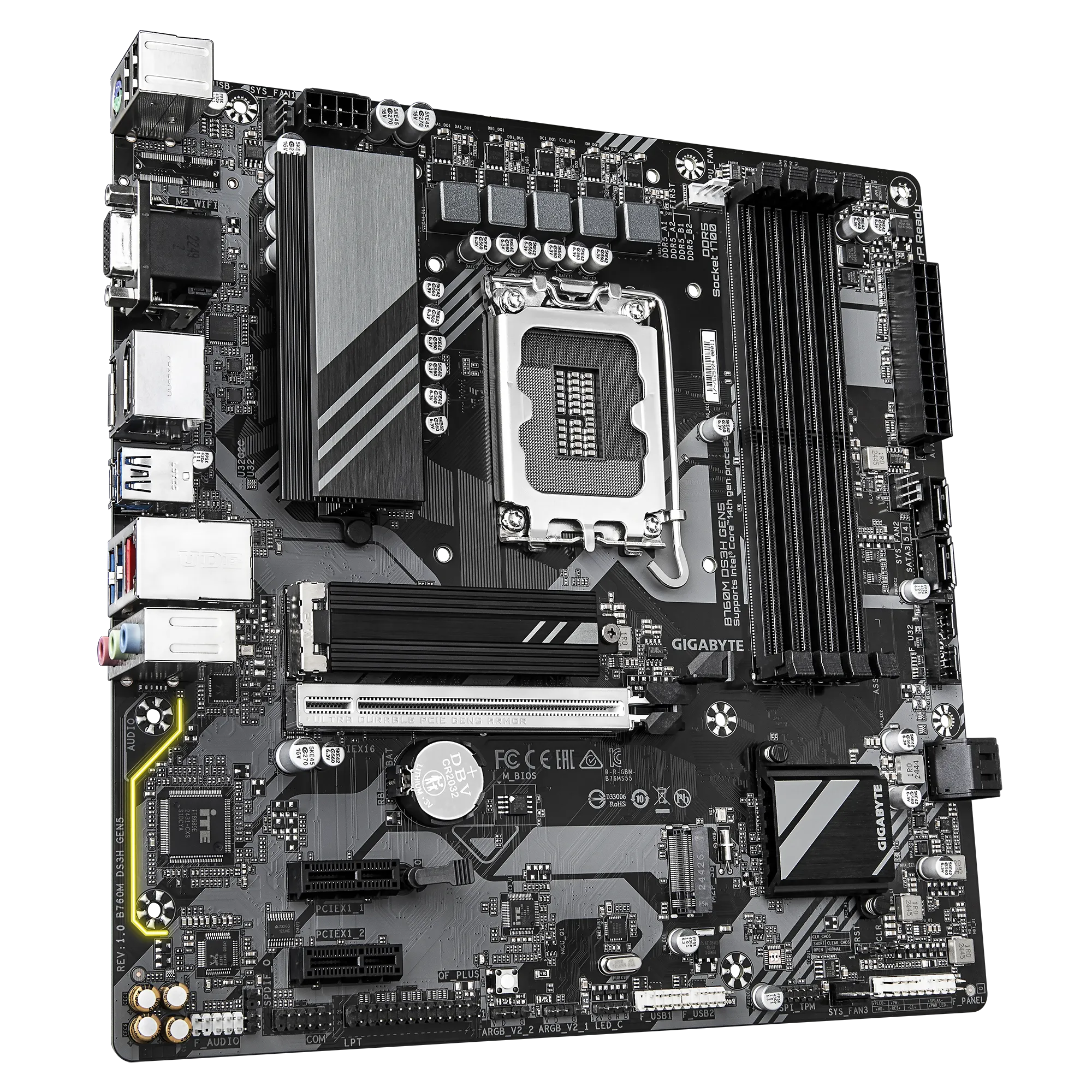

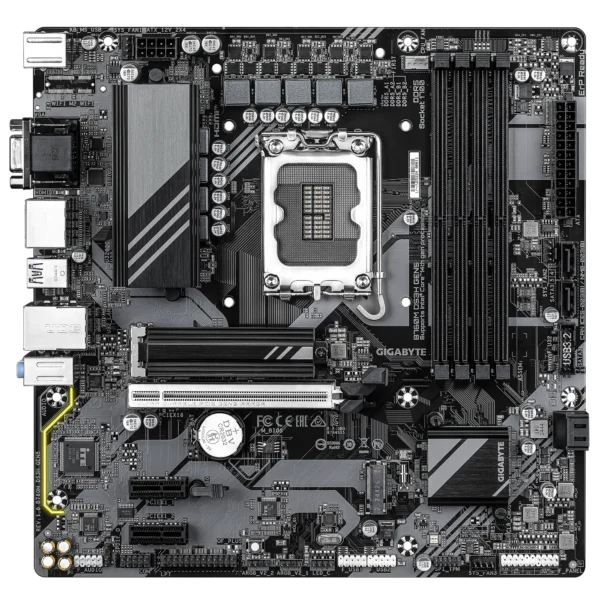

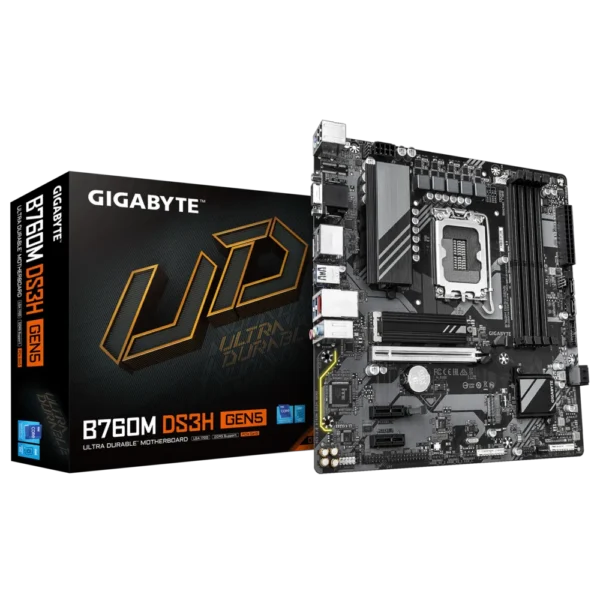

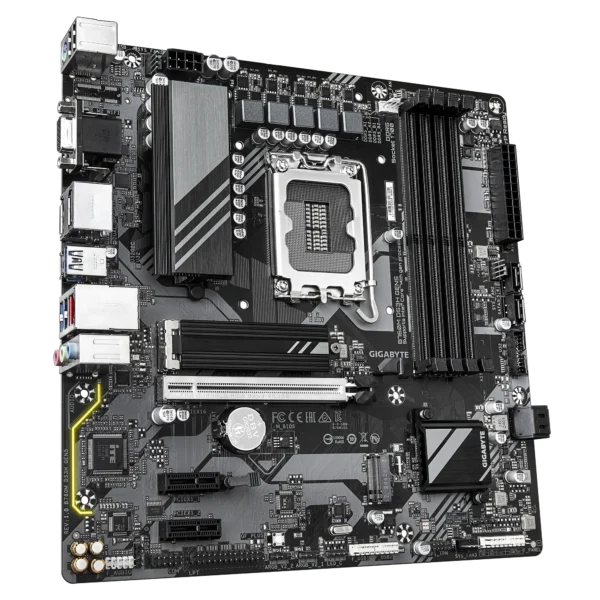

Gigabyte B760M DS3H GEN5 Micro-ATX Motherboard Intel B760 LGA1700 DDR5 PCIe 5.0 – GA-B760M-DS3H-GEN5

Gigabyte GA-B760M-DS3H-GEN5 Micro-ATX Motherboard: Future-Proof Performance for Intel LGA1700 Builds

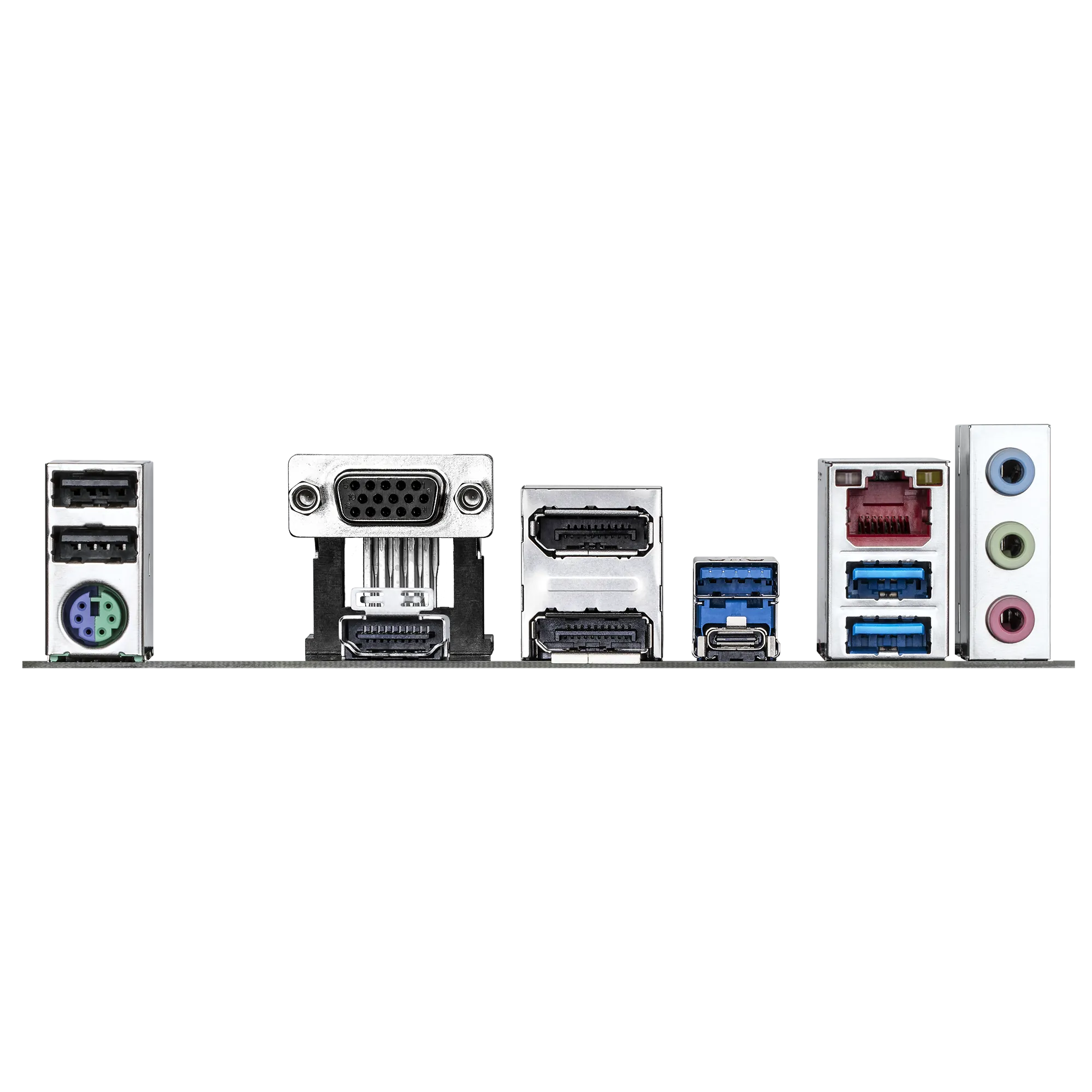

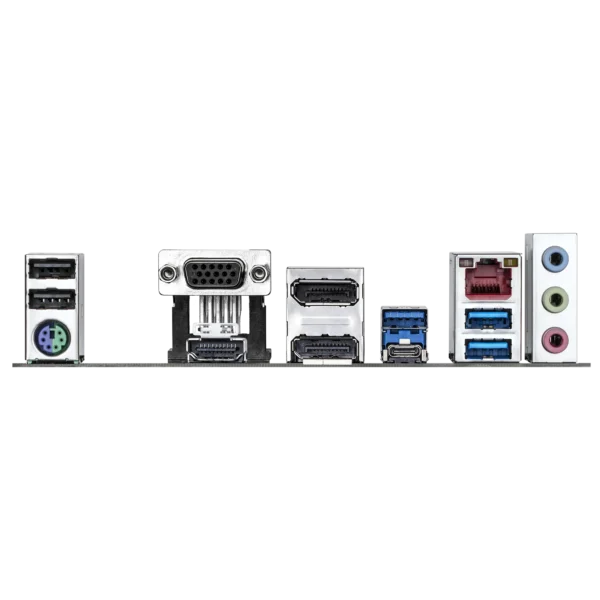

Create a powerful and cost-effective PC with the Gigabyte GA-B760M-DS3H-GEN5, a micro-ATX motherboard designed for 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors on the LGA1700 socket. Powered by the Intel B760 chipset, it supports up to 256GB of DDR5 memory across four DIMM slots with dual-channel architecture and Extreme Memory Profile, achieving speeds up to 5600MT/s for Core i9/i7 processors for robust performance. The motherboard features a PCIe 5.0 x16 slot for next-generation GPUs or NVMe SSDs and two PCIe 3.0 x1 slots for additional expansion. Dual M.2 slots deliver up to 64 Gbps via PCIe 4.0, supporting type 2280 SSDs, complemented by four SATA 6Gb/s ports with RAID 0, 1, 5, and 10 support for versatile storage. Realtek 2.5GbE LAN provides fast networking, while the Realtek Audio CODEC delivers immersive 7.1-channel audio with S/PDIF Out support. The board offers six rear USB ports, including USB 3.2 Gen 2 Type-C, and supports additional front USB ports for peripherals. Quad-display support is enabled through D-Sub, HDMI 2.1, and dual DisplayPort 1.2 outputs, reaching up to 4K at 60Hz. Smart Fan 6 with hybrid fan headers and FAN STOP ensures efficient cooling, while EZ-Latch designs simplify PCIe and M.2 installation. The Gigabyte Ultra Durable design with low-impedance PCB enhances longevity, and features like Q-Flash Plus and GIGABYTE Control Center streamline BIOS updates and system tuning. With a 24.4 x 24.4 cm form factor, Windows 11 and 10 compatibility, and a 3-year warranty, the Gigabyte GA-B760M-DS3H-GEN5 is ideal for gamers and professionals seeking future-proof performance with modern connectivity.
