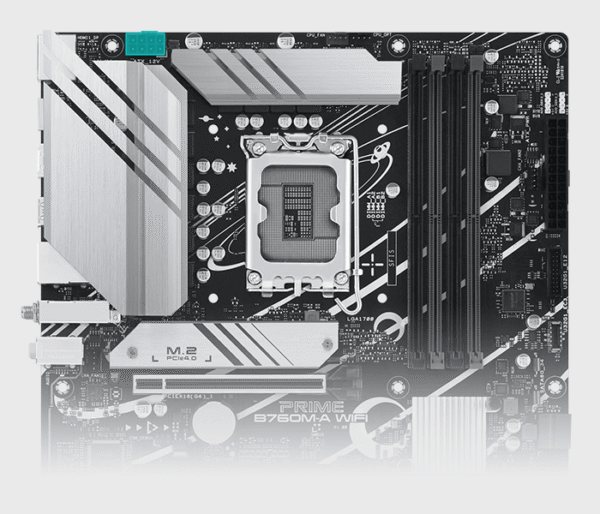

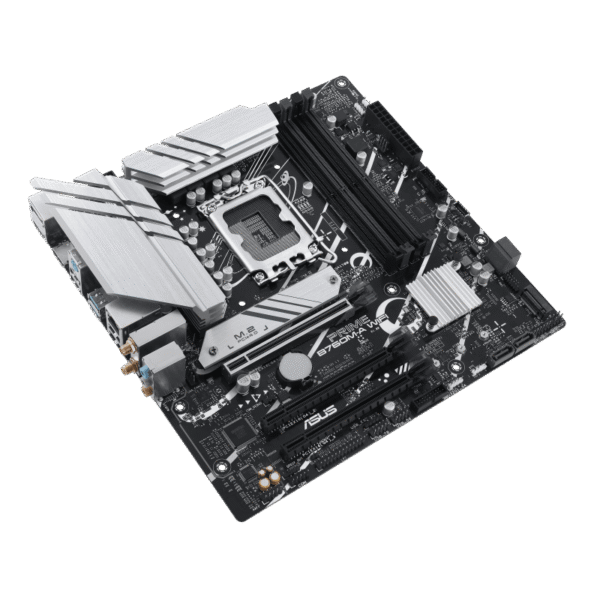

ASUS PRIME B760M-A WIFI-CSM Micro ATX Motherboard Intel B760 DDR5 PCIe 4.0 WiFi 6 – PRIME B760M-A WIFI-CSM
₱11,260.00Original price was: ₱11,260.00.₱9,795.00Current price is: ₱9,795.00.
Supports 14th, 13th, 12th Gen Intel Core processors with LGA1700 socket
DDR5 memory up to 7200+ MHz (OC) with AEMP II and OptiMem II
Two M.2 slots with PCIe 4.0 for fast storage performance
WiFi 6 and Realtek 2.5Gb Ethernet for high-speed, low-latency networking
Comprehensive cooling with VRM, M.2, PCH heatsinks, and Fan Xpert 2+
USB 3.2 Gen 2 and front USB Type-C for modern connectivity
ASUS Corporate Stable Model with up to 36-month lifecycle support
SKU: PRIME B760M-A WIFI-CSM
Out of stock
ℹ️
For walk-in customers: please always INQUIRE FIRST before visiting as not all items are displayed in our physical store. As an online-first store, most of our inventory is held in our online warehouse and is transferred to the store upon request.
ASUS PRIME B760M-A WIFI-CSM Micro ATX Motherboard Intel B760 DDR5 PCIe 4.0 WiFi 6 - PRIME B760M-A WIFI-CSM
Restock & Price Alerts
⚠️ That's a steep drop! You might be waiting a while.
We'll email you the moment this is back in stock. If you enter a target price, we'll also send you a separate alert if the price drops to your goal later!
🔓 Sign in to unlock full price history charts and manage your alerts.
The ASUS PRIME B760M-A WIFI-CSM motherboard delivers robust performance for 14th, 13th, and 12th Gen Intel Core processors, making it an excellent choice for compact yet powerful workstations and gaming setups. Its Micro ATX form factor supports DDR5 memory with ASUS Enhanced Memory Profile II and OptiMem II for enhanced stability and speeds up to 7200+ MHz (OC). Two M.2 slots with PCIe 4.0 deliver rapid storage performance, while WiFi 6 and Realtek 2.5Gb Ethernet ensure low-latency, high-speed networking. The motherboard features comprehensive cooling with VRM, M.2, and PCH heatsinks, paired with Fan Xpert 2+ for intelligent thermal management. USB 3.2 Gen 2 and front USB Type-C provide fast connectivity for modern peripherals. ASUS 5X PROTECTION III, including SafeSlot Core+ and overvoltage protection, enhances durability, while Aura Sync RGB lighting allows vibrant customization. Tailored for corporate reliability, the ASUS Corporate Stable Model program offers up to 36-month lifecycle support and ASUS Control Centre Express for IT management. This motherboard combines advanced connectivity, efficient cooling, and enterprise-grade stability for versatile, high-performance builds.
Specification
ASUS PRIME B760M-A WIFI-CSM
CPU
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold, Celeron® Processors
Chipset
Intel® B760 Chipset
Memory
4 x DIMM, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800MHz Non-ECC, Un-buffered, Dual Channel, Supports Intel® XMP, ASUS OptiMem II
Graphics
1 x DisplayPort (4K@60Hz), 2 x HDMI™ (4K@60Hz)
Expansion Slots
1 x PCIe 4.0 x16 (CPU), 1 x PCIe 4.0 x16 (x4 mode, Chipset), 1 x PCIe 4.0 x16 (x1 mode, Chipset)
Storage
2 x M.2 slots (2242/2260/2280, PCIe 4.0 x4), 4 x SATA 6Gb/s ports
Ethernet
1 x Realtek 2.5Gb Ethernet, ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 6 (2x2, 802.11 a/b/g/n/ac/ax, 2.4/5GHz, up to 2.4Gbps), Bluetooth v5.2
USB
Rear: 2 x USB 3.2 Gen 2 (Type-A), 4 x USB 2.0 (Type-A); Front: 2 x USB 3.2 Gen 1 headers (4 ports), 1 x USB 3.2 Gen 1 (Type-C), 2 x USB 2.0 headers (4 ports), 1 x USB 2.0 header (1 port)
2 x USB 3.2 Gen 2 (Type-A), 4 x USB 2.0 (Type-A), 1 x DisplayPort, 2 x HDMI™, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet, 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo
Internal I/O Connectors
1 x 24-pin Main Power, 1 x 8-pin +12V Power, 2 x M.2 slots, 4 x SATA 6Gb/s, 1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 2 x 4-pin Chassis Fan, 2 x USB 3.2 Gen 1 headers, 1 x USB 3.2 Gen 1 (Type-C), 2 x USB 2.0 headers (4 ports), 1 x USB 2.0 header (1 port), 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x Clear CMOS, 1 x COM Port, 1 x Front Panel Audio, 1 x LPT, 1 x S/PDIF Out, 1 x SPI TPM, 1 x 20-3 pin System Panel
Special Features
ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O), ASUS Q-Design (Q-DIMM, Q-LED Core, Q-Slot), ASUS Thermal Solution (M.2 heatsink, VRM heatsink), ASUS EZ DIY (ProCool), Aura Sync
Software Features
Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 2+, Power Saving), AI Suite 3 (Digi+ VRM, PC Cleaner), ASUS CPU-Z, MyAsus, Norton Deluxe (60 Days Free Trial), WinRAR, ASUS Control Centre Express
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, ASUS EZ DIY (CrashFree BIOS 3, EZ Flash 3, UEFI BIOS EZ Mode)
Manageability
WOL by PME, PXE
Accessories
2 x SATA 6Gb/s cables, 1 x ASUS Wi-Fi moving antennas, 1 x I/O Shield, 1 x M.2 Rubber Package, 1 x Screw package for M.2 SSD, 1 x ACC Express Activation Key Card, 1 x User guide
Operating System
Windows® 11, Windows® 10 64-bit
Form Factor
mATX (9.6 inch x 9.6 inch)
Weight
1.14 kg
Dimensions
27 × 27 × 6 cm
Brand
Asus
Desktop RAM
DDR5
Socket
LGA 1700 CPU
