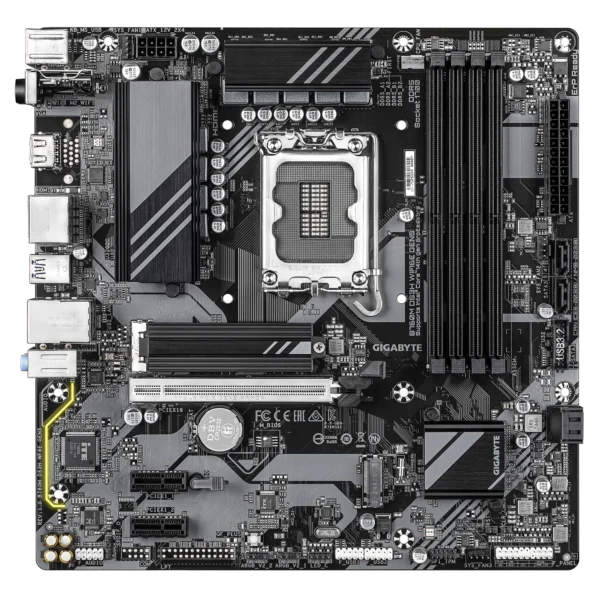

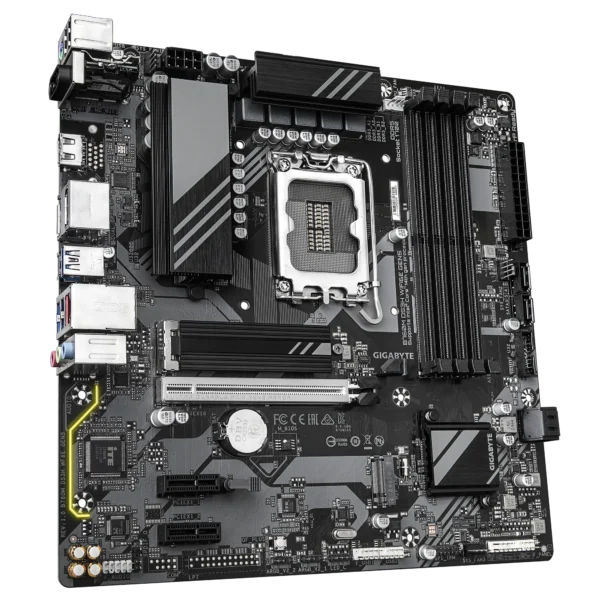

GIGABYTE B760M DS3H WIFI 6E GEN5 Micro-ATX Intel B760 LGA1700 DDR5 Motherboard – GA-B760M-DS3H-WF6E-GEN5

Original price was: ₱9,800.00.Current price is: ₱8,595.00.

GIGABYTE GA-B760M-DS3H-WF6E-GEN5 Micro-ATX for Intel® Core™ 14th/13th/12th Gen
DDR5 5600MT/s, up to 256GB, Intel® B760 chipset
PCIe 5.0 x16, 2 x M.2 (PCIe 4.0), 4 x SATA 6Gb/s
Wi-Fi 6E, 2.5GbE LAN, Realtek audio, USB 3.2 Gen 2 Type-C
6+2+1 VRM, Q-Flash Plus, Triple-Display, Micro-ATX design

Out of stock

Restock & Price Alerts

We'll email you the moment this is back in stock. If you enter a target price, we'll also send you a separate alert if the price drops to your goal later!

Want to track and manage your alerts? Sign in or create an account.

SKU: GA-B760M-DS3H-WF6E-GEN5 Categories: Intel LGA 1700 Motherboards, Motherboards Tag: Gigabyte

Upgrade your Intel-based PC with the GIGABYTE GA-B760M-DS3H-WF6E-GEN5, a Micro-ATX motherboard optimized for Intel® Core™ 14th, 13th, and 12th Gen processors. Powered by the Intel® B760 chipset, it supports up to 256GB of DDR5 memory at speeds up to 5600MT/s with XMP for future-proof performance. The PCIe 5.0 x16 slot delivers double the bandwidth of PCIe 4.0, ideal for high-end GPUs like the NVIDIA RTX 4060. Two M.2 slots (PCIe 4.0) with M.2 Thermal Guard offer storage speeds up to 64Gbps. A 6+2+1 phase VRM ensures stable power for CPUs like the Intel Core i5-13400. Wi-Fi 6E, 2.5GbE LAN, and USB 3.2 Gen 2 Type-C provide fast connectivity. Triple-display support (1 x HDMI, 2 x DisplayPort) enhances versatility. Q-Flash Plus simplifies BIOS updates, and RGB Fusion 2.0 adds customizable aesthetics. Perfect for high-performance Micro-ATX builds.

Specification	Details
Model	GIGABYTE GA-B760M-DS3H-WF6E-GEN5
CPU	LGA1700: Intel® Core™ 14th/13th/12th Gen, Pentium® Gold, Celeron® Processors
Chipset	Intel® B760 Express Chipset
Memory	4 x DDR5 DIMM, up to 256GB, 5600/5200/4800/4400 MT/s (i9/i7), 4800/4400 MT/s (i5/i3, others), ECC/Non-ECC Un-buffered, Dual Channel, XMP
Onboard Graphics	1 x HDMI (4096x2160@60Hz, HDMI 2.1, HDCP 2.3), 2 x DisplayPort (4096x2304@60Hz, DP 1.2, HDCP 2.3), Triple-Display Support
Expansion Slots	CPU: 1 x PCIe 5.0 x16; Chipset: 2 x PCIe 3.0 x1
Storage	CPU: 1 x M.2 (2280, PCIe 4.0 x4/x2, M2A_CPU); Chipset: 1 x M.2 (2280, PCIe 4.0 x4/x2, M2P_SB); 4 x SATA 6Gb/s; RAID 0/1/5/10 (SATA)
Audio	Realtek Audio CODEC, 7.1-channel, S/PDIF Out
LAN	Realtek 2.5GbE (2.5 Gbps/1 Gbps/100 Mbps)
Wireless	Intel Wi-Fi 6E AX210 (2.4/5/6GHz, 11ax 160MHz), Bluetooth 5.3
USB	Rear: 1 x USB 3.2 Gen 2 Type-C, 3 x USB 3.2 Gen 1, 2 x USB 2.0; Front: 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (4 ports)
Internal I/O Connectors	1 x 24-pin ATX, 1 x 8-pin 12V, 1 x CPU Fan, 3 x System Fan, 2 x ARGB Gen2, 1 x RGB, 2 x M.2, 4 x SATA 6Gb/s, 1 x Front Panel, 1 x Front Panel Audio, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers, 1 x TPM, 1 x S/PDIF Out, 1 x Q-Flash Plus Button, 1 x Reset Jumper, 1 x Clear CMOS Jumper

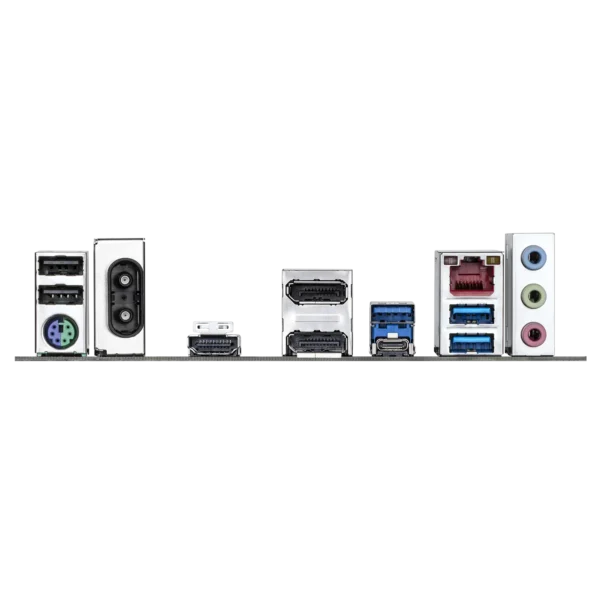

Back Panel Connectors	2 x USB 2.0, 1 x PS/2 Keyboard/Mouse, 2 x Antenna (2T2R), 1 x HDMI, 2 x DisplayPort, 3 x USB 3.2 Gen 1, 1 x USB 3.2 Gen 2 Type-C, 1 x RJ-45, 3 x Audio Jacks
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage, Temperature, Fan Speed, Water Cooling Flow Rate, Fan Fail Warning, Fan Speed Control
BIOS	128 Mbit AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	GIGABYTE Control Center, Q-Flash, Q-Flash Plus, Smart Backup
Bundled Software	Norton Internet Security (OEM)
Operating System	Windows 11 64-bit, Windows 10 64-bit
Form Factor	Micro-ATX, 24.4 x 24.4 cm
Notes	Wi-Fi 6E requires Windows 11 for 6GHz; Check CPU/Memory support at www.gigabyte.com
