₱7,200.00Original price was: ₱7,200.00.₱6,300.00Current price is: ₱6,300.00.
Supports Intel 14th, 13th, 12th Gen Core processors with LGA1700 socket
Dual-channel DDR5 up to 128 GB, supports 7200(O.C.) MT/s and XMP
6+1+1 hybrid digital VRM for stable power delivery
Two PCIe 4.0 x4 M.2 and four SATA 6Gb/s with RAID support
Realtek GbE LAN with bandwidth management for low-latency networking
Triple-display support: HDMI 2.1, DisplayPort 1.2, D-Sub up to 4096×2160@60 Hz
Realtek HD Audio with 7.1-channel and S/PDIF Out
Smart Fan 6 for advanced cooling control
PCIe EZ-Latch for easy graphics card installation
UEFI BIOS with EASY MODE and GIGABYTE Control Center for personalization
SKU: GA-B760M-E
In stock
ℹ️
For walk-in customers: please always INQUIRE FIRST before visiting as not all items are displayed in our physical store. As an online-first store, most of our inventory is held in our online warehouse and is transferred to the store upon request.

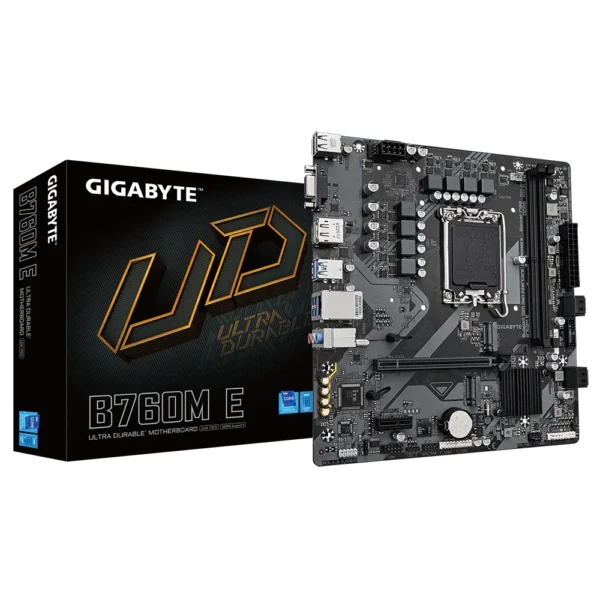

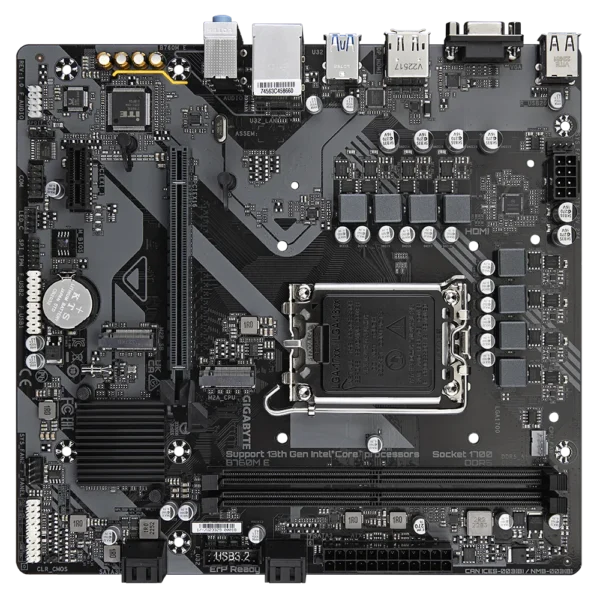

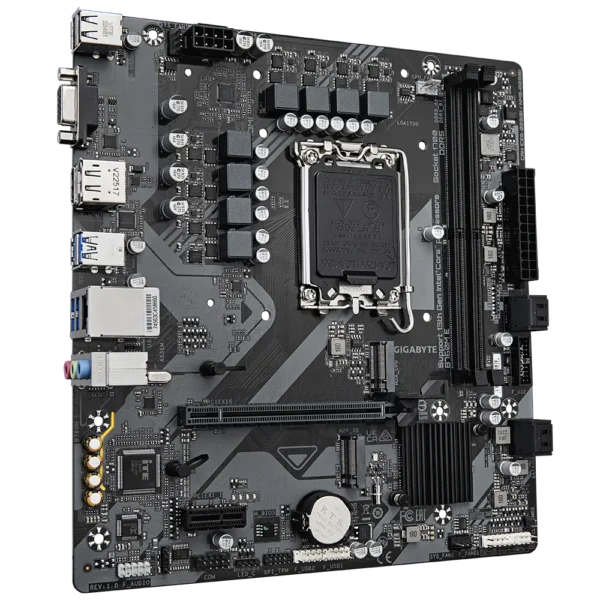

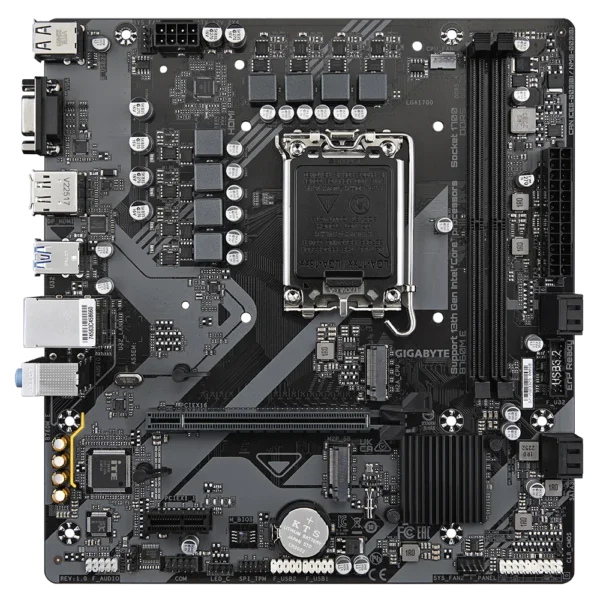

The GIGABYTE B760M-E motherboard delivers exceptional performance for Intel 14th, 13th, and 12th Generation Core processors, leveraging the LGA1700 socket and Intel B760 Express Chipset. Engineered for reliability, its 6+1+1 hybrid digital VRM design with low RDS(on) MOSFETs ensures stable power delivery, while premium capacitors enhance transient response for seamless operation under heavy workloads. This Micro ATX board supports dual-channel DDR5 memory up to 128 GB, with speeds reaching 7200(O.C.) MT/s and Extreme Memory Profile (XMP) compatibility for optimized performance. Storage capabilities shine with two PCIe 4.0 x4 M.2 connectors and four SATA 6Gb/s ports, supporting RAID configurations for high-speed data access. Connectivity is robust, featuring a Realtek GbE LAN with bandwidth management for low-latency networking and versatile display outputs, including HDMI 2.1, DisplayPort 1.2, and D-Sub, supporting triple-display setups at resolutions up to 4096×2160@60 Hz. The Realtek Audio CODEC delivers immersive high-definition audio with 7.1-channel support and S/PDIF Out, enhanced by audio noise guard and high-end capacitors. Smart Fan 6 technology provides precise cooling control with multiple temperature sensors and hybrid fan headers, ensuring quiet and efficient operation. The PCIe EZ-Latch simplifies graphics card installation, and the UEFI BIOS with EASY MODE offers a user-friendly interface for quick configuration. GIGABYTE Control Center enhances personalization with storage information, changelog tracking, and intuitive load line calibration, making the B760M-E an ideal choice for builders seeking a balance of cutting-edge features and ultra-durable design.
2 x DDR5 DIMM sockets, up to 128 GB (64 GB per DIMM), Dual Channel, supports DDR5 7200(O.C.) to 4000 MT/s, ECC/non-ECC Un-buffered DIMM, XMP support
Onboard Graphics
1 x D-Sub (1920x1200@60 Hz), 1 x DisplayPort (4096x2304@60 Hz, DP 1.2, HDCP 2.3), 1 x HDMI (4096x2160@60 Hz, HDMI 2.1, HDCP 2.3), triple-display support
Audio
Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out
LAN
Realtek® GbE LAN (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots
1 x PCIe 4.0 x16 (CPU), 1 x PCIe 3.0 x1 (Chipset)
Storage
2 x M.2 (PCIe 4.0 x4/x2, type 2280), 4 x SATA 6Gb/s, RAID 0/1/5/10 for SATA
USB
6 x USB 3.2 Gen 1 (4 back, 2 internal), 6 x USB 2.0/1.1 (2 back, 4 internal)
Internal I/O
1 x 24-pin ATX, 1 x 8-pin ATX 12V, 1 x CPU fan, 2 x system fan, 1 x RGB LED, 2 x M.2, 4 x SATA, 1 x front panel, 1 x front audio, 1 x S/PDIF Out, 1 x USB 3.2 Gen 1, 2 x USB 2.0/1.1, 1 x TPM, 1 x serial port, 1 x Clear CMOS
Back Panel

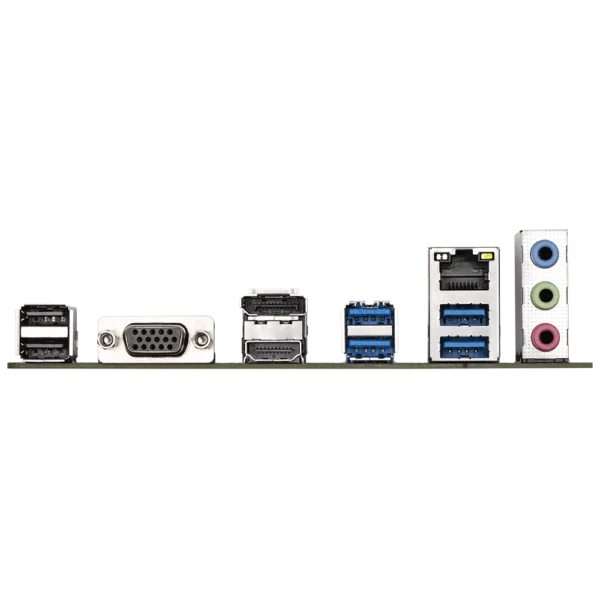

2 x USB 2.0/1.1, 1 x D-Sub, 1 x DisplayPort, 1 x HDMI, 4 x USB 3.2 Gen 1, 1 x RJ-45, 3 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage, temperature, fan speed, water cooling flow rate detection, fan fail warning, fan speed control
BIOS
128 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
GIGABYTE Control Center, Q-Flash, PCIe EZ-Latch, Smart Fan 6, UEFI BIOS with EASY MODE, My Favorites, Storage Info, Changelog, Load Line Curve
Bundled Software
Norton® Internet Security (OEM), LAN bandwidth management
Operating System
Windows 11 64-bit, Windows 10 64-bit
Form Factor
Micro ATX (23.0cm x 21.5cm)
Packaging Weight
0.9 kg
Packaging Dimensions (L×W×H)
27 × 27 × 6 cm
Brand
Gigabyte
Desktop RAM
DDR5
Socket
LGA 1700 CPU
