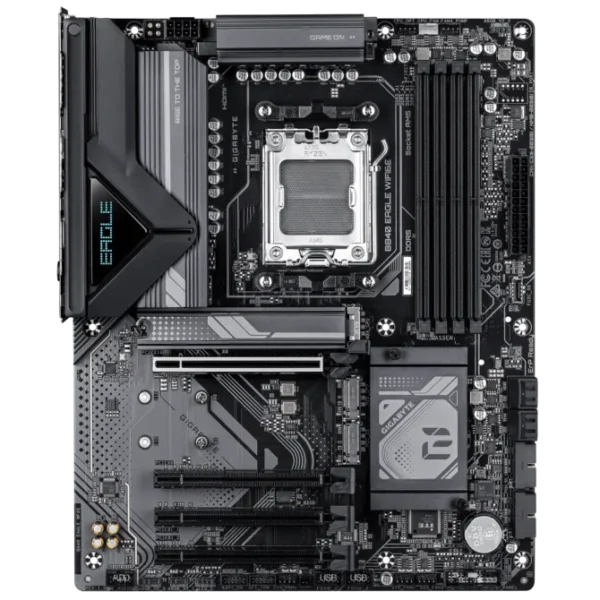

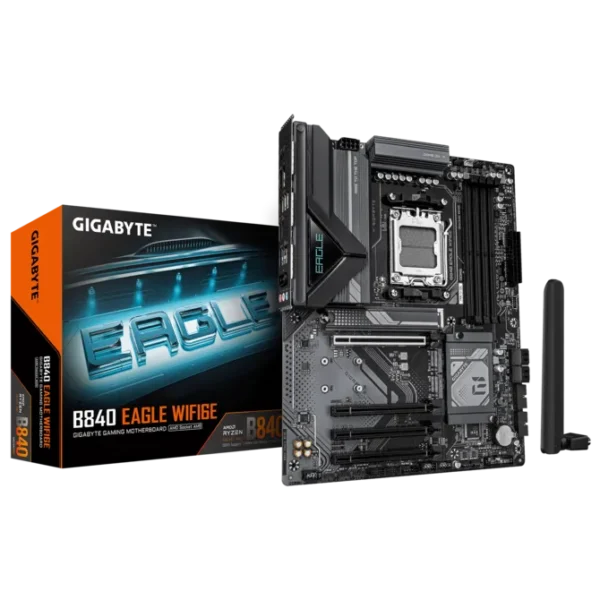

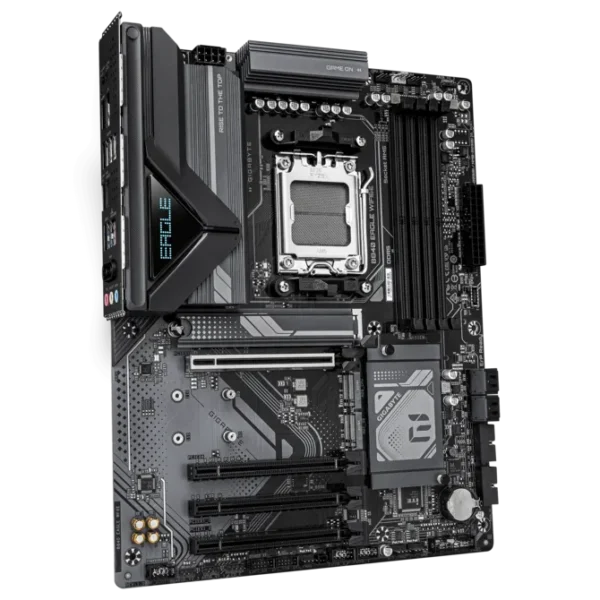

GIGABYTE B840 EAGLE WIFI6E: The Foundation for Next-Gen Gaming
The GIGABYTE B840 EAGLE WIFI6E is a robust ATX motherboard designed to extract maximum performance from the AMD AM5 platform. Supporting the latest AMD Ryzen™ 9000, 8000, and 7000 Series processors, this board is built with a Digital Twin 8+2+2 VRM design and 60A DrMOS power stages. This ensures stable, consistent power delivery to multi-core CPUs, even during intensive tasks. The foundation of the board is a 2X Copper PCB, which improves signal integrity and thermal efficiency, allowing for DDR5 memory overclocking speeds of up to 8200 MT/s with the help of the new D5 Bionic Corsa AI technology.
AI-Enhanced Performance and X3D Turbo Mode
Step into a new era of gaming with GIGABYTE’s exclusive X3D Turbo Mode. This BIOS innovation utilizes unique optimization parameters to boost gaming FPS by up to 18% and reduce latency, giving non-X3D Ryzen processors performance levels comparable to their X3D counterparts. Coupled with the “AORUS AI SNATCH” software (coming soon), the B840 EAGLE uses AI to optimize system settings automatically, ensuring you always get the peak performance your hardware is capable of without manual tweaking.
Versatile Connectivity and Fast Networking
Stay connected with blazing speeds. The B840 EAGLE features Wi-Fi 6E (802.11ax) technology, opening up the 6GHz band for less congestion and faster wireless throughput. The WIFI EZ-Plug design simplifies antenna installation, combining plugs into a single easy-to-attach adapter. For wired gaming, the Realtek® 2.5GbE LAN provides a high-bandwidth, low-latency connection. The rear I/O is packed with ports, including a USB 3.2 Gen 2 Type-C® for fast data transfer and both HDMI 2.1 and DisplayPort 1.4 for high-resolution display outputs.
DIY-Friendly Design and Thermal Excellence
Building your PC is smoother than ever with GIGABYTE’s DIY-friendly features. The EZ-Latch system allows for screwless installation of M.2 SSDs (EZ-Latch Click & Plus) and quick release of graphics cards (PCIe EZ-Latch Plus). The board’s thermal solution is equally impressive, featuring VRM Thermal Armor Advanced with 4X the surface area of traditional heatsinks and an M.2 Thermal Guard to keep high-speed SSDs cool. With Smart Fan 6, users have complete control over their cooling, with features like fan stop and noise detection ensuring a quiet yet cool operation.
Category
Specification Details
Brand
GIGABYTE
Model Name
B840 EAGLE WIFI6E (B840 EAGLE WF6E)
SKU
GA-B840-EAGLE-WF6E
Form Factor
ATX Form Factor (30.5cm x 24.4cm)
Operating System
Support for Windows 11 64-bit, Windows 10 64-bit
Processor Support
AMD Socket AM5: Supports AMD Ryzen™ 9000, 8000, and 7000 Series Processors
Chipset
AMD B840
Memory Support
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM)
Speeds: DDR5 up to 8200(O.C.) MT/s (Supports 8000/7950...4400 MT/s)
Architecture: Dual Channel, Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
Profiles: AMD EXPO™ and Intel XMP Support
Power Design
Digital Twin 8+2+2 Phases VRM Solution
8 VCORE Phases (DrMOS 60A) + 2 SOC Phases (DrMOS 60A) + 2 MISC Phases
2X Copper PCB, Premium Chokes and Capacitors
UD Power Connector (Solid Pins)
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless
Realtek® Wi-Fi 6E RTL8852CE (802.11ax, 160MHz)
Supports 2.4/5/6 GHz frequency bands
Bluetooth 5.3
WIFI EZ-Plug (Integrated antenna plugs)
Expansion Slots
CPU: 1 x PCI Express x16 slot (PCIe 4.0 x16 for Ryzen 9000/7000)
*Features PCIe EZ-Latch Plus (Quick Release) Chipset:
1 x PCI Express x16 slot (PCIe 3.0 running at x4, shares bandwidth with x1 slots)
2 x PCI Express x16 slots (PCIe 3.0 running at x1)
Storage Interface
3 x M.2 Slots Total:
1 x M.2 (M2A_CPU): PCIe 4.0 x4/x2 (Ryzen 9000/7000)
1 x M.2 (M2B_CPU): PCIe 4.0 x4/x2 (Ryzen 9000/7000)
1 x M.2 (M2C_SB): PCIe 3.0 x4/x2 (Chipset) SATA: 4 x SATA 6Gb/s connectors RAID: RAID 0, 1, 10 (SATA); RAID 0, 1, 5, 10 (NVMe)
USB Ports

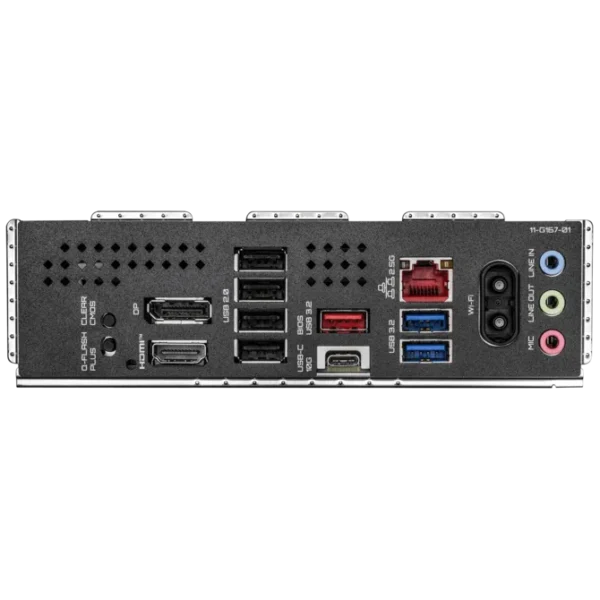

Back Panel:
1 x USB 3.2 Gen 2 Type-C®
1 x USB 3.2 Gen 2 Type-A (Red)
2 x USB 3.2 Gen 1
4 x USB 2.0/1.1 Internal Headers:
1 x USB Type-C® (USB 3.2 Gen 1)
2 x USB 3.2 Gen 1 headers (4 ports)
2 x USB 2.0/1.1 headers (4 ports)
Buttons: Q-Flash Plus, Clear CMOS
1 x DisplayPort, 1 x HDMI
1 x USB-C Gen 2, 1 x USB-A Gen 2, 2 x USB Gen 1, 4 x USB 2.0
1 x RJ-45 (2.5GbE), 3 x Audio Jacks
2 x Antenna Connectors (WIFI EZ-Plug)
Special Features
X3D Turbo Mode: AI-enhanced gaming performance (up to 18% boost) D5 Bionic Corsa: AI Overclocking for DDR5 memory DIY Friendly: M.2 EZ-Latch Click/Plus, PCIe EZ-Latch Plus, WIFI EZ-Plug Durability: UD Power Connector, 2X Copper PCB
BIOS & Software
1 x 256 Mbit flash, AMI UEFI BIOS (UC BIOS, Multi-Theme)
GIGABYTE Control Center (GCC), RGB Fusion, Q-Flash Plus
Weight
1.87 kg
Dimensions
34 × 27 × 8 cm
Brand
Gigabyte
Desktop RAM
DDR5
Socket
AM5 CPU
