Supports Intel Core Ultra processors on LGA1851 with DDR5 up to 9200 MT/s
Wi-Fi 7, Bluetooth 5.4, and 2.5GbE LAN for ultra-fast connectivity
PCIe 5.0 x16 slot with EZ-Latch Plus and three M.2 slots for high-speed storage
Quad-display support with 4K 480Hz via DisplayPort 2.1 and HDMI 2.1
Advanced full-metal cooling with 14+1+2 phase VRM for stable performance
Sleek white design with RGB Fusion lighting and 3-year warranty
Out of stock
ℹ️
For walk-in customers: please always INQUIRE FIRST before visiting as not all items are displayed in our physical store. As an online-first store, most of our inventory is held in our online warehouse and is transferred to the store upon request.
⚠️ That's a steep drop! You might be waiting a while.
We'll email you the moment this is back in stock. If you enter a target price, we'll also send you a separate alert if the price drops to your goal later!
🔓 Sign in to unlock full price history charts and manage your alerts.

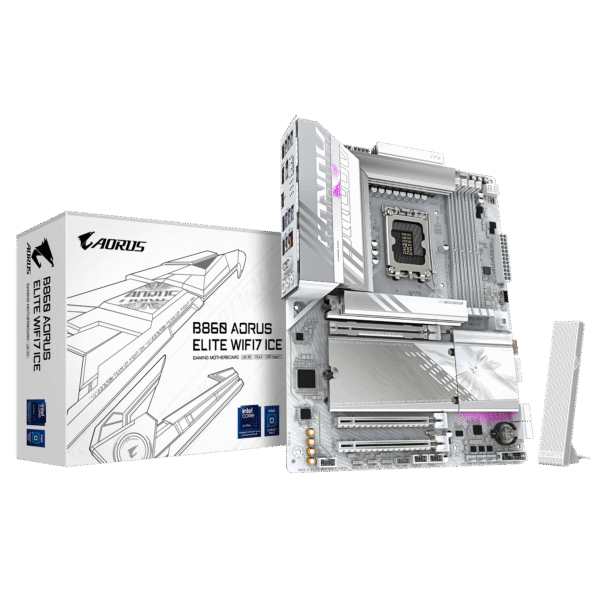

Gigabyte B860 AORUS ELITE WIFI7 ICE – Premium White Motherboard for Intel Core Ultra Builds
Elevate your gaming and professional PC build with the Gigabyte B860 AORUS ELITE WIFI7 ICE, a feature-packed ATX motherboard designed for Intel Core Ultra processors on the LGA1851 socket. Leveraging the Intel B860 chipset, this motherboard supports up to 256GB of DDR5 memory with speeds reaching 9200 MT/s (OC), delivering blazing-fast performance for gaming, content creation, and multitasking. Its sleek white aesthetic, enhanced by customizable RGB Fusion lighting, makes it a standout choice for visually stunning PC builds. The robust 14+1+2 phase digital twin VRM with premium capacitors and a 6-layer 2X copper PCB ensures stable power delivery, cooled by advanced full-metal thermal design with large heatsinks and 5 W/mk thermal pads for optimal performance under heavy loads. Connectivity is unmatched with Wi-Fi 7, Bluetooth 5.4, and a 2.5GbE LAN for ultra-fast networking, alongside a USB4 Type-C port and multiple USB 3.2 options for versatile device support. Storage capabilities include one PCIe 5.0 M.2 slot, two PCIe 4.0 M.2 slots, and four SATA 6Gb/s connectors with RAID support, ensuring rapid data access. The PCIe 5.0 x16 slot with EZ-Latch Plus supports the latest graphics cards, while quad-display support at up to 4K 480Hz via DisplayPort 2.1 and HDMI 2.1 delivers vibrant visuals. DIY-friendly features like Q-Flash Plus, onboard power/reset buttons, and diagnostic LEDs simplify setup and maintenance. Paired with high-definition Realtek audio and a 3-year warranty, this motherboard offers exceptional value, performance, and style for mid-range gaming and enthusiast builds.
LGA1851 socket: Support for Intel Core Ultra Processors (Refer to GIGABYTE's website for the latest CPU support list), L3 cache varies with CPU
Chipset
Intel B860 Express Chipset
Memory
Support for DDR5 9200(O.C)/8800(O.C)/8600(O.C)/8400(O.C)/8266(O.C)/8200(O.C)/8000(O.C)/7950(O.C)/7900(O.C)/7800(O.C)/7600(O.C)/7400(O.C)/7200(O.C)/7000(O.C)/6800(O.C)/6600(O.C)/6400/5600 MT/s memory modules, 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory, Dual channel memory architecture, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules (CPU and memory configuration may affect supported memory types, data rate, and number of DRAM modules, refer to GIGABYTE's website for Memory Support List)
Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support: 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz (Support for DisplayPort 2.1 version), 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz (Support for DisplayPort 2.1 version), 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz (Support for HDMI 2.1 version and HDCP 2.3), 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz (Support for HDMI 1.4 version), Support for up to quad-display at the same time (Graphics specifications may vary depending on CPU support)
Audio
Realtek Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel (You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings), Support for S/PDIF Out
LAN
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication Module
Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.0): 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands, BLUETOOTH 5.4, Support for 11be 160MHz wireless standard; MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.1): 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands, BLUETOOTH 5.4, Support for 11be 160MHz wireless standard (Actual data rate may vary depending on environment and equipment, Wi-Fi 7 features require Windows 11 SV3 to function properly, no support driver for Windows 10, Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations)
Expansion Slots
CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot); Chipset: 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_1, PCIEX1_2)
Storage Interface
CPU: 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU); Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2N_SB), 4 x SATA 6Gb/s connectors, RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
CPU: 1 x USB4 USB Type-C port on the back panel; Chipset: 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header, 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel, 2 x USB 3.2 Gen 1 ports available through the internal USB header; Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel; Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector, 2 x 8-pin ATX 12V power connectors, 1 x CPU fan header, 1 x CPU fan/water cooling pump header, 3 x system fan headers, 1 x system fan/water cooling pump header, 3 x addressable RGB Gen2 LED strip headers, 1 x RGB LED strip header, 3 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB Type-C header with USB 3.2 Gen 2 support, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only), 1 x HDMI port, 1 x power button, 1 x reset button, 1 x Q-Flash Plus button, 1 x reset jumper, 1 x Clear CMOS jumper
Back Panel Connectors

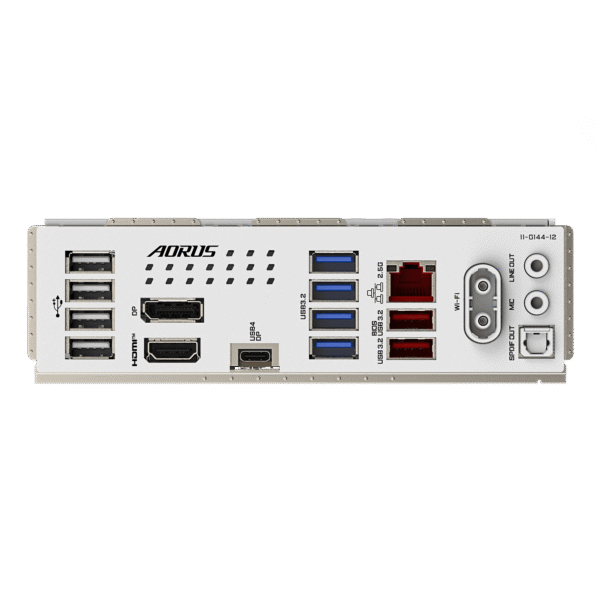

1 x USB4 USB Type-C port (DisplayPort), 2 x USB 3.2 Gen 2 Type-A ports (red), 4 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x DisplayPort, 1 x HDMI port, 2 x antenna connectors (2T2R), 1 x RJ-45 port, 1 x optical S/PDIF Out connector, 2 x audio jacks
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control (Whether the fan (pump) speed control function is supported will depend on the fan/pump you install)
BIOS
1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC) (Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications), Support for Q-Flash, Support for Q-Flash Plus, Support for Smart Backup
Bundled Software
Norton Internet Security (OEM version), LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
Packaging Weight
2 kg
Packaging Dimensions (L×W×H)
40 × 40 × 5 cm
Brand
Gigabyte
Desktop RAM
DDR5
Socket
LGA 1851 CPU
