Local Compatibility Note: Wi-Fi 7 functionality strictly requires Windows 11 SV3; no Windows 10 driver support is provided.
In stock
ℹ️
For walk-in customers: please always INQUIRE FIRST before visiting as not all items are displayed in our physical store. As an online-first store, most of our inventory is held in our online warehouse and is transferred to the store upon request.

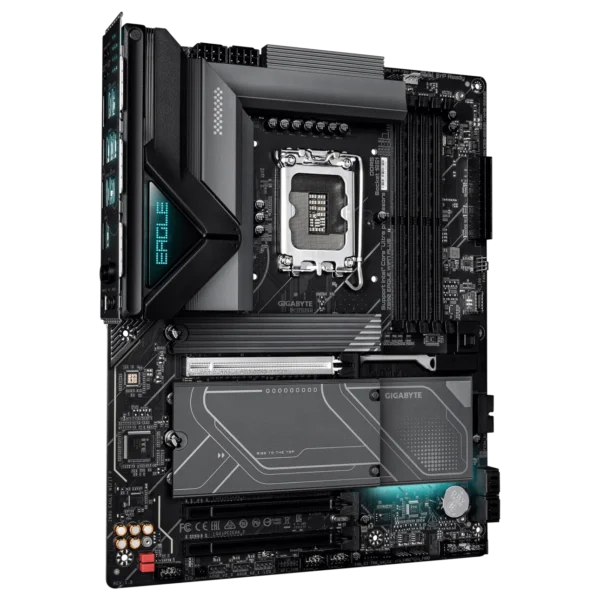

This feature-rich motherboard provides the perfect platform for builders in the Philippines transitioning to the newest LGA 1851 socket. It caters to gamers and productivity users who want to maximize the performance of their Intel Core Ultra (Series 2) processors without stepping up to extreme enthusiast pricing tiers.
Gigabyte engineered the Z890 EAGLE WIFI7 PLUS to balance robust power delivery with exceptional ease of use. It incorporates the Ultra Durable base plate and solid pins in the power connectors to ensure long-term structural reliability. For builders looking to extract every drop of performance from their K-SKU processors, the proprietary Ultra Turbo Mode allows for immediate, one-click performance boosts of up to 40 percent depending on your specific hardware configuration.
Massive Power Delivery and Cooling
Handling the extreme power draw of modern processors requires serious VRM engineering. This board utilizes a 14+1+2 phase digital VRM layout featuring 60A DrMOS components to guarantee perfectly steady power to your multi-core CPU. To prevent thermal throttling in warm local environments, Gigabyte deployed massive VRM heatsinks utilizing high-quality 5 W/mK thermal pads alongside an extended M.2 Thermal Guard that covers three M.2 slots simultaneously.
Next Generation Connectivity
The EAGLE breaks away from older bottlenecks by integrating the bleeding-edge Wi-Fi 7 standard directly into the board, operating alongside a dedicated 2.5GbE wired LAN port. Expansion capabilities are equally impressive, featuring a primary PCIe 5.0 x16 slot for next-gen graphics cards and four total M.2 slots, including one wired strictly for PCIe 5.0 NVMe SSDs. The rear I/O also houses a 40Gbps USB4 Type-C port capable of driving DisplayPort Alt Mode.
What Philippine Buyers Are Saying
Local DIY builders consistently highlight Gigabyte’s new EZ-Latch features as a massive quality of life improvement. The screwless installation for both the M.2 SSDs and their heatsinks drastically reduces assembly time and frustration. Philippine users transitioning to DDR5 also heavily praise the D5 Bionic Corsa AI overclocking technology, noting that achieving speeds over 8000 MT/s is significantly easier than on previous generation Z790 boards. Additionally, users appreciate the WIFI EZ-Plug design, which eliminates the annoying process of screwing in tiny antenna threads.
Known Compatibility and Setup Notes
Operating System Limitation: To fully utilize the integrated Wi-Fi 7 features, you must install Windows 11 SV3 or newer. There are absolutely no support drivers available for Windows 10 for the Wi-Fi 7 module.
When configuring your storage, note that installing a PCIe 5.0 NVMe SSD in the primary M2A_CPU slot may share lanes with the main PCIEX16 graphics card slot depending on your specific processor architecture. Always consult the motherboard manual block diagram before populating multiple NVMe drives. The board natively supports Extreme Memory Profiles (XMP) and Clocked Unbuffered DIMMs (CUDIMM), capable of reaching up to an astonishing 9466+ MT/s via overclocking, provided you have a highly capable CPU memory controller and compatible RAM kit.
Who Should Buy This
Arrow Lake Upgraders: Users building a fresh system around the Intel Core Ultra (Series 2) processors who need a robust Z890 foundation without paying for extreme halo-tier features.
Future-Proofing Enthusiasts: Builders who want immediate access to next-generation standards including PCIe 5.0, Wi-Fi 7, and 40Gbps USB4 connectivity.
First-Time DIY Builders: Users who will immensely benefit from the hassle-free EZ-Latch assembly designs, built-in I/O shield, and DriverBIOS features.
Detailed Specifications
General Information
Model Name
Gigabyte Z890 EAGLE WIFI7 PLUS
SKU
GA-Z890-EAGLE-WIFI7-P
Form Factor
ATX Form Factor (30.5 cm x 24.4 cm)
Chipset
Intel® Z890 Express Chipset
CPU Socket
LGA1851 socket: Support for Intel® Core™ Ultra Processors (Series 2)
Memory Specifications
Memory Slots
4 x DDR5 DIMM slots (Dual Channel architecture)
Maximum Capacity
256 GB
Supported Speeds
Up to DDR5 9466+ MT/s (OC)
Memory Types
Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM), Intel® XMP Support
Intel® Wi-Fi 7 BE202 (802.11a/b/g/n/ac/ax/be), Bluetooth 5.4, Supports 11be 160MHz
Audio
Realtek® ALC1220 CODEC, High Definition Audio (2/4/5.1/7.1-channel), WIMA Audiophile Grade Capacitors, S/PDIF Out
I/O Ports

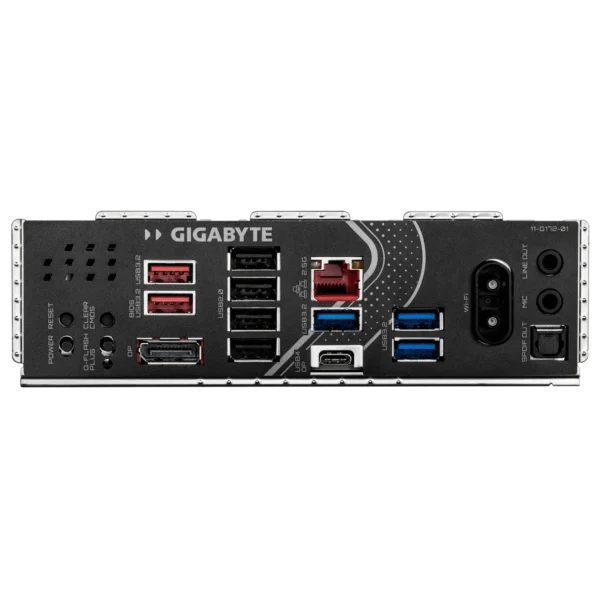

Back Panel I/O
1 x USB4® Type-C® (DisplayPort Alt Mode)
1 x DisplayPort
2 x USB 3.2 Gen 2 Type-A (red)
3 x USB 3.2 Gen 1
4 x USB 2.0/1.1
2 x Antenna connectors (WIFI EZ-Plug)
1 x RJ-45 port
2 x Audio jacks, 1 x Optical S/PDIF Out
Power, Reset, Q-Flash Plus, Clear CMOS buttons
Internal Headers (USB/Display)
1 x USB Type-C® header (USB 3.2 Gen 2)
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors (for GIGABYTE Thunderbolt 5 card only)
Internal Headers (Cooling/RGB)
1 x CPU fan, 1 x CPU fan/pump, 3 x system fan, 1 x system fan/pump
3 x ARGB Gen2 LED strip headers, 1 x RGB LED strip header
Packaging Weight
2.5 kg
Packaging Dimensions (L×W×H)
34 × 28 × 9 cm
Brand
Gigabyte
Desktop RAM
DDR5
Socket
LGA 1851 CPU
