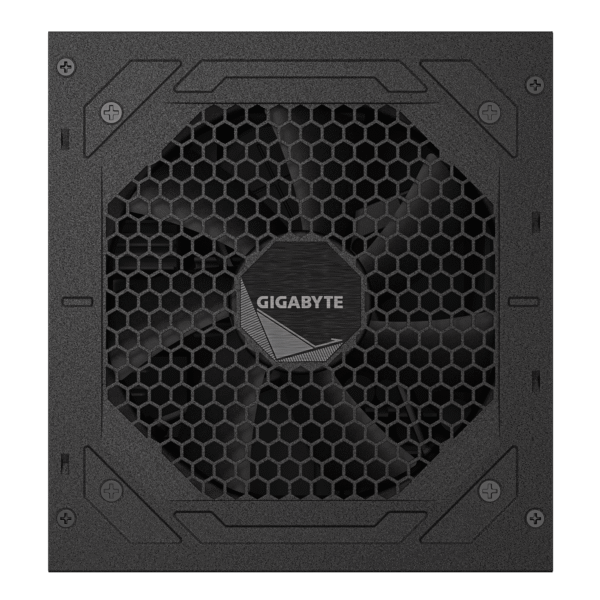

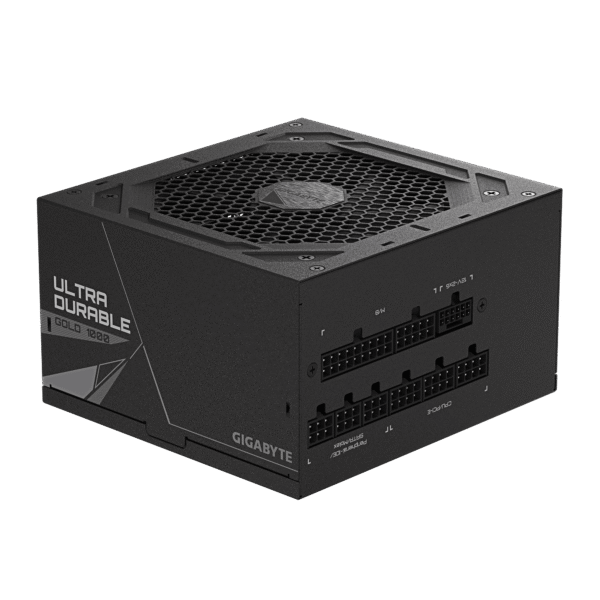

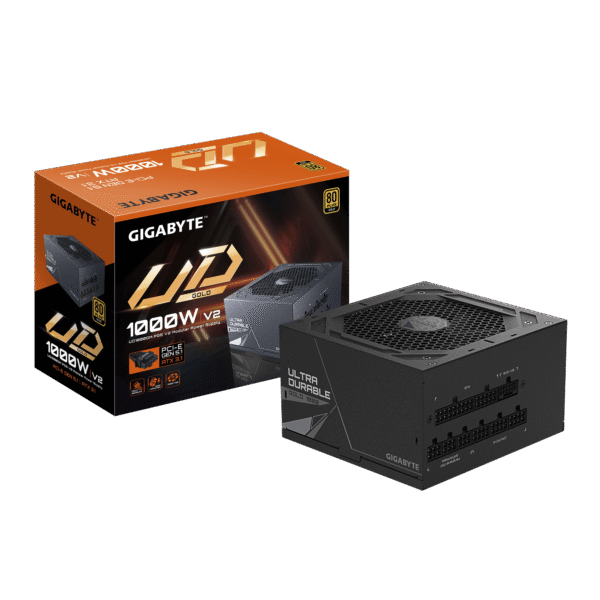

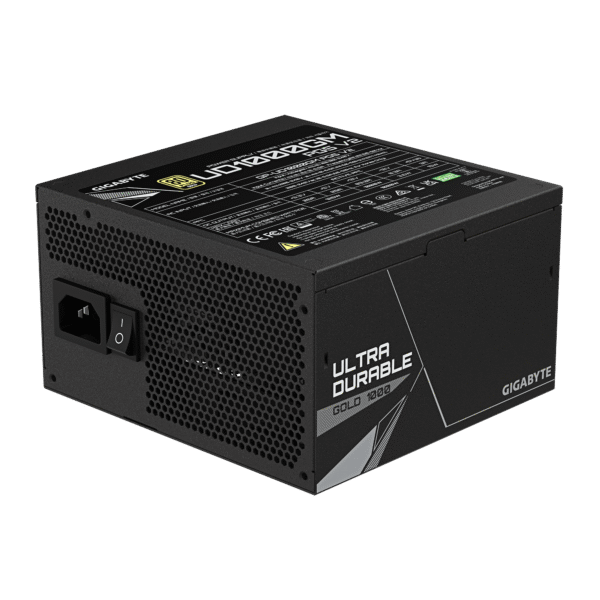

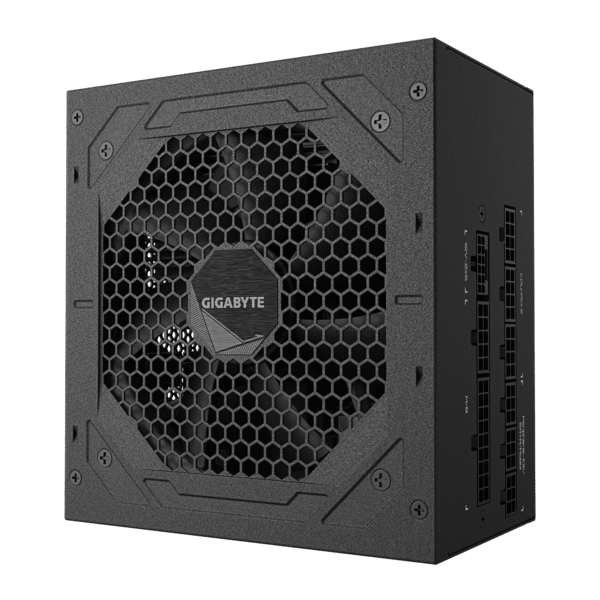

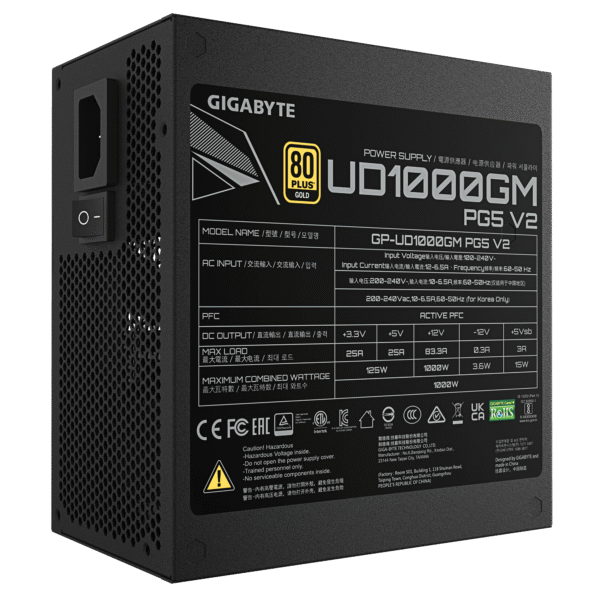

GIGABYTE UD1000GM PG5 V2 1000W PSU | 80 PLUS Gold | ATX 3.1 | PCIe Gen 5.1 | Fully Modular | Japanese Capacitors - GP-UD1000GM-PG5-V2
Price Drop Alerts & Price History
Price Rating: Standard Market Price (5.0/10)
🏅 Lowest price in the last 90 days
🔥 Great Deal (Well below average) compared to the last 90 days
📉 Prices are dropping
⚠️ That's a steep drop! You might be waiting a while.
We'll notify you the moment the price hits your target.
The GIGABYTE UD1000GM PG5 V2 1000W PSU delivers high-efficiency power for next-generation gaming rigs, featuring full ATX 3.1 and PCIe Gen 5.1 compliance to support demanding GPUs like the GeForce RTX 50 Series. Its native 16-pin (12VHPWR) connector provides up to 600W for PCIe 5.1 graphics cards, handling 3x GPU and 2x system power excursions with 70% efficiency at low loads. Built with Ultra Durable design, it incorporates 100% Japanese capacitors for long-term reliability and a single +12V rail at 83.3A for stable power delivery, ideal for overclocking. The 120mm smart hydraulic bearing fan remains silent below 20% load, enhancing cooling with an optimized thermal solution that boosts heat dissipation by over 10%. Fully modular embossed black cables reduce clutter, improving airflow and chassis aesthetics. With 80 PLUS Gold certification, it achieves 90% efficiency at 50% load, minimizing heat and noise. The compact 140mm depth ensures compatibility with space-constrained cases, backed by a 10-year warranty for lasting performance.
Specification
GIGABYTE UD1000GM PG5 V2
Model
GP-UD1000GM PG5 V2
SKU
GP-UD1000GM-PG5-V2
Type
Intel Form Factor ATX 12V v3.1
Output Capacity
1000W
PFC
Active PFC (>0.9 typical)
Input Voltage
100-240 Vac (full range)
Input Current
15-6.5A
Input Frequency
60-50 Hz
Efficiency
80 PLUS Gold, 90% at typical load
Fan Type
120mm Hydraulic Bearing (HYB) Fan
Dimensions
150 x 140 x 86 mm
MTBF
>100,000 hours
Protections
OVP, OPP, SCP, UVP, OCP, OTP
Power Good Signal
100-150 ms
Hold Up Time
>16 ms
Cable Type
Fully Modular, Embossed, All black

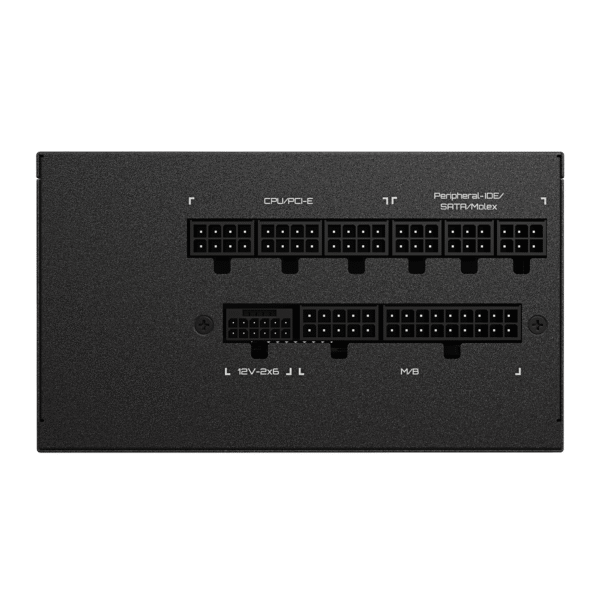

Connectors
1 x ATX/MB 20+4 Pin (610mm), 2 x CPU/EPS 4+4 Pin (650mm+200mm), 4 x PCIe 6+2 Pin (2 x 600mm+150mm), 1 x PCIe 12+4 Pin (700mm), 8 x SATA (2 x 600mm+150mm+150mm+150mm), 3 x 4 Pin Peripheral + 1 x 4-Pin Floppy (500mm+150mm+150mm+150mm)
