Sensor Panel Link: Dedicated internal HDMI port for in-chassis display setups
Audio: Realtek® ALC1220 Codec with Audiophile Grade Capacitors
In stock
ℹ️
For walk-in customers: please always INQUIRE FIRST before visiting as not all items are displayed in our physical store. As an online-first store, most of our inventory is held in our online warehouse and is transferred to the store upon request.

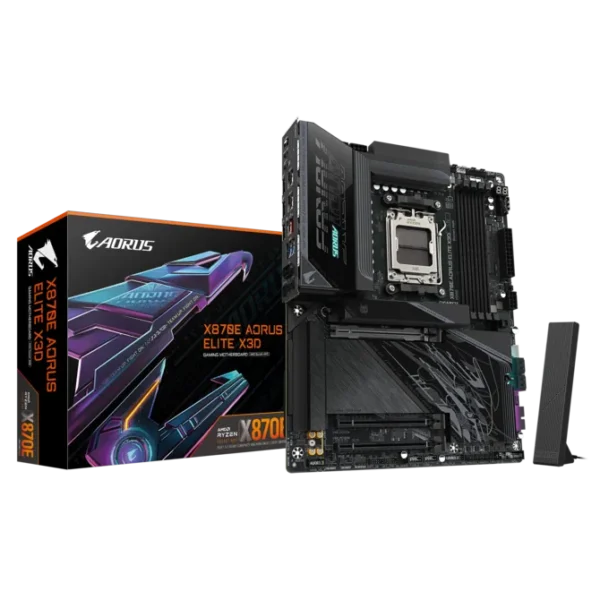

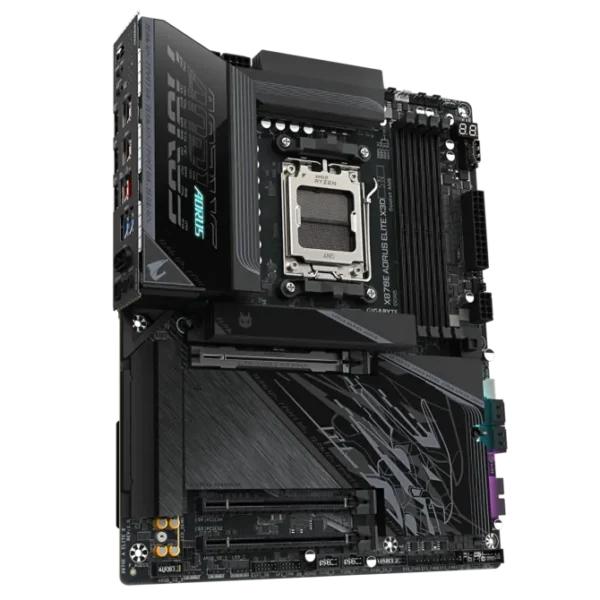

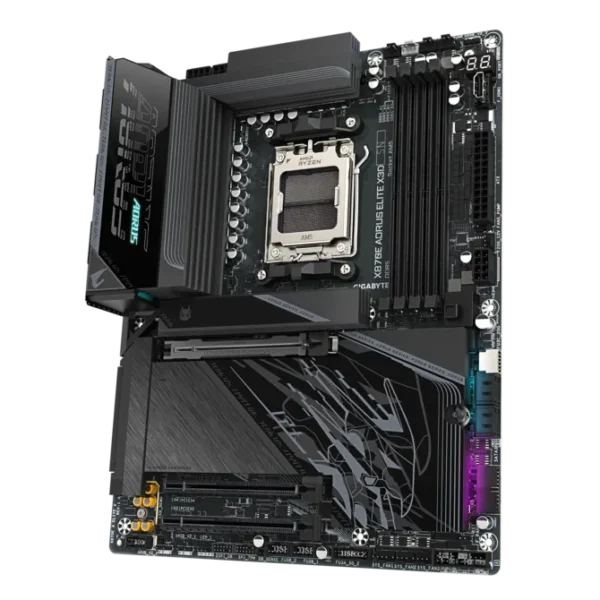

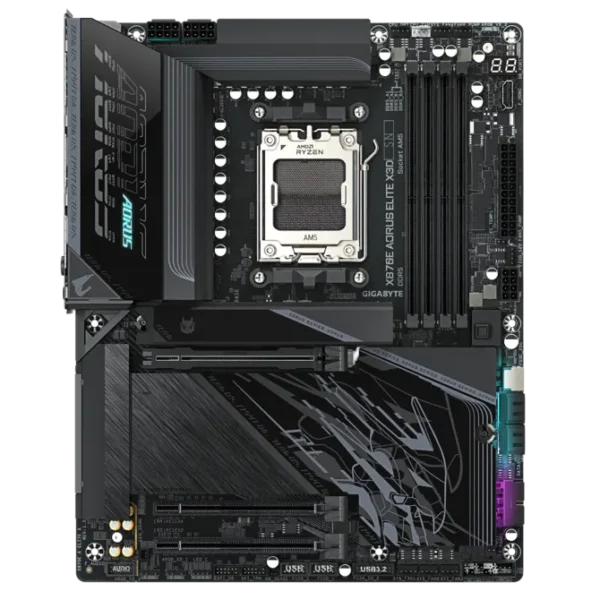

Revolutionize Your Gaming with X870E AORUS ELITE X3D
The Gigabyte X870E AORUS ELITE X3D is engineered to unlock the absolute potential of AMD Ryzen™ 9000, 8000, and 7000 series processors. Built on the advanced AM5 platform, this motherboard represents the pinnacle of AI-driven performance optimization. With the exclusive X3D Turbo Mode 2.0, users can experience up to a 25% boost in gaming performance through intelligent parameter tuning that optimizes hardware circuits specifically for Ryzen X3D processors. Coupled with D5 Bionic Corsa technology, the board leverages AI to push DDR5 memory speeds to an astounding 9000 MT/s and beyond, ensuring that bandwidth bottlenecks are a thing of the past.
Unmatched Power and Thermal Stability
Designed for enthusiasts who demand stability under extreme loads, the X870E AORUS ELITE X3D features a robust Twin Digital 16+2+2 VRM design equipped with 80A Smart Power Stages (SPS). This ensures precise power delivery to high-core-count CPUs even during heavy overclocking. To manage the heat generated by such raw power, the motherboard employs a comprehensive thermal solution including the innovative M.2 EZ-Flex heatsink, improved VRM Thermal Armor Advanced with Fins-Array technology, and a full-coverage PCB Thermal Plate. These features work in harmony to reduce temperatures significantly, maintaining peak system performance during marathon gaming sessions.
Ultimate Connectivity and Speed
Connectivity is future-proofed with the inclusion of dual USB4® Type-C ports, delivering blistering 40Gbps transfer speeds and support for ultra-HD displays via DisplayPort-Alt mode. Networking is handled by a high-speed Realtek 5GbE LAN for lag-free wired gaming and the cutting-edge Qualcomm® Wi-Fi 7 (802.11be) module, which utilizes the 6GHz band and 320MHz channels for unparalleled wireless throughput. The board also features a front USB-C header capable of 65W PD/QC4+ fast charging, allowing you to power up devices rapidly directly from your PC case.
DIY-Friendly Design for Effortless Builds
Building your dream rig has never been easier thanks to Gigabyte’s suite of DIY-friendly innovations. The EZ-Latch system—comprising PCIe EZ-Latch Plus, M.2 EZ-Latch Click, and M.2 EZ-Latch Plus—enables tool-free installation and removal of graphics cards and M.2 SSDs. The unique Sensor Panel Link simplifies the integration of internal LCD displays for system monitoring, while the WIFI EZ-Plug consolidates antenna connections into a single, easy-to-attach adapter. Reinforced with the Ultra Durable™ PCIe UD Slot X, which offers 10X the load-bearing capacity, this motherboard is built to support the heaviest modern graphics cards safely and securely.
Category
Specification Details
Brand
Gigabyte
Model Name
X870E AORUS ELITE X3D
SKU
GA-X870E-A-ELITE-X
Form Factor
ATX Form Factor (30.5cm x 24.4cm)
Operating System
Support for Windows 11 64-bit
Processor Support
AMD Socket AM5: Supports AMD Ryzen™ 9000, 8000, and 7000 Series Processors
Chipset
AMD X870E
Memory Support
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM)
Speeds: DDR5 up to 9000(O.C) MT/s (Supports 8800/8600/8400...4800 MT/s)
Architecture: Dual Channel, Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
Profiles: AMD EXPO™ and Intel XMP Support
VRM Thermal Armor Advanced (Fins-Array)
M.2 EZ-Flex (Exclusive patented heatsink)
M.2 Thermal Guard L & Ext. with Backplate

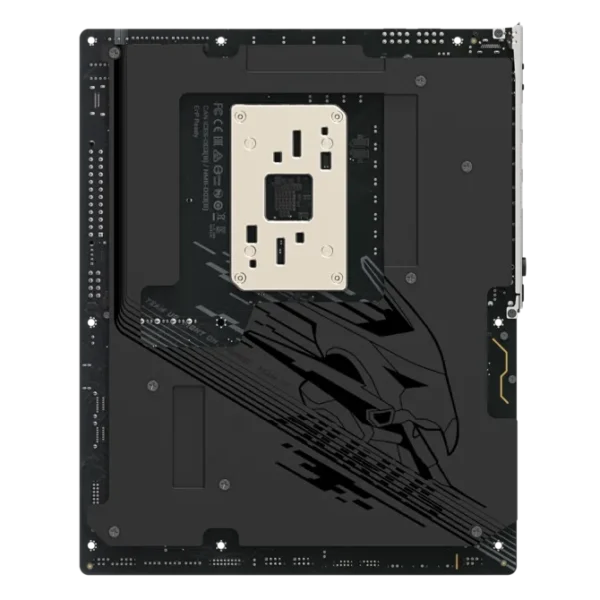

PCB Thermal Plate (Full-coverage metal backplate)
Smart Fan 6 with Dual Fan Curve Mode
Onboard Graphics
1 x HDMI 2.1 (Back Panel): Max 4096x2160@60 Hz (HDCP 2.3, HDR)
2 x USB4 Type-C (Back Panel): Max 3840x2160@240 Hz (DisplayPort 1.4)
1 x Front HDMI (Internal): Max 1920x1080@30 Hz (For Sensor Panel Link)
Audio
Realtek® ALC1220 CODEC (High Definition Audio)
2/4/5.1/7.1-channel Support, DSD Audio Support
S/PDIF Out Support
LAN
Realtek® 5GbE LAN chip (5/2.5/1 Gbps / 100 Mbps)
Wireless
Qualcomm® Wi-Fi 7 QCNCM865 (802.11be, 320MHz)
Supports 2.4/5/6 GHz frequency bands
Bluetooth 5.4
Includes Directional Ultra-high gain antenna (WIFI EZ-Plug)
Expansion Slots
CPU: 1 x PCI Express x16 slot (PCIe 5.0 x16 for Ryzen 9000/7000) Chipset:
1 x PCI Express x16 slot (PCIe 4.0 running at x4)
1 x PCI Express x16 slot (PCIe 3.0 running at x2)
Storage Interface
4 x M.2 Slots Total:
1 x M.2 (M2A_CPU): PCIe 5.0 x4/x2 (Ryzen 9000/7000)
1 x M.2 (M2B_CPU): PCIe 5.0 x4/x2 (Shares bandwidth with USB4, becomes x2 or unavailable based on config)
2 x M.2 (M2C_SB, M2D_SB): PCIe 4.0 x4/x2 (Chipset) SATA: 4 x SATA 6Gb/s connectors RAID: RAID 0, 1, 10 (SATA); RAID 0, 1, 5, 10 (NVMe)
USB Ports

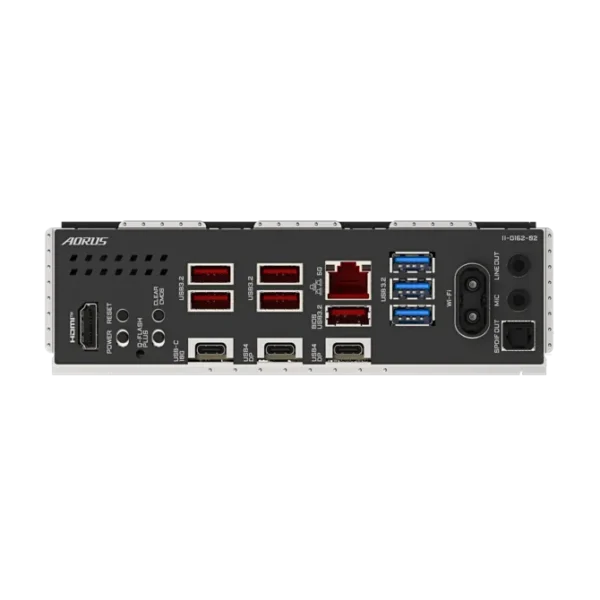

Back Panel:
2 x USB4® Type-C® (40Gbps, DP-Alt)
1 x USB 3.2 Gen 2 Type-C®
5 x USB 3.2 Gen 2 Type-A (Red)
3 x USB 3.2 Gen 1 Internal Headers:
1 x USB Type-C® (USB 3.2 Gen 2x2 with 65W PD/QC4+)
2 x USB 3.2 Gen 1 headers (4 ports)
2 x USB 2.0/1.1 headers (4 ports)
Buttons: Power, Q-Flash Plus, Clear CMOS, Reset
2 x USB4 Type-C, 1 x USB-C Gen 2, 8 x USB Type-A
1 x HDMI, 1 x RJ-45 (5GbE), 2 x Audio Jacks, 1 x Optical S/PDIF
2 x Antenna Connectors (WIFI EZ-Plug)
Special Features
X3D Turbo Mode 2.0: AI-enhanced gaming performance D5 Bionic Corsa: AI Overclocking for DDR5 memory EZ-Latch: PCIe EZ-Latch Plus, M.2 EZ-Latch Click/Plus Front QC-USB 65W: Fast charging support via internal header PCIe UD Slot X: 10X strength reinforcement
BIOS
1 x 512 Mbit flash, AMI UEFI BIOS
Features: UC BIOS 2.0, DriverBIOS, Smart 80 Port, Auto-Scan
Packaging Weight
3.1 kg
Packaging Dimensions (L×W×H)
35 × 29 × 8 cm
Brand
Gigabyte
Desktop RAM
DDR5
Socket
AM5 CPU
