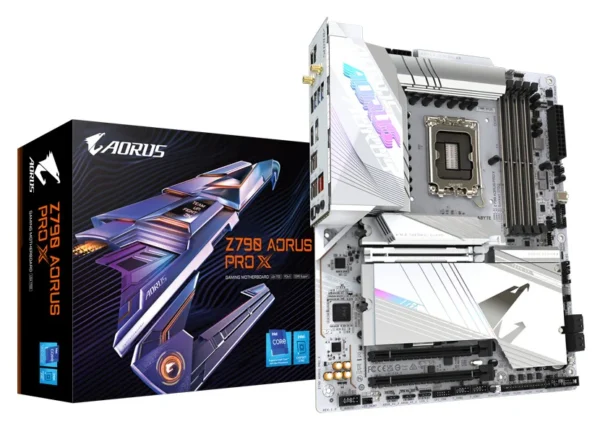

GIGABYTE Z790 AORUS PRO X ATX Intel Z790 LGA1700 DDR5 PCIe 5.0 Motherboard - GA-Z790-AORUS-PRO-X

GIGABYTE Z790 AORUS PRO X ATX Intel Z790 LGA1700 DDR5 PCIe 5.0 Motherboard – GA-Z790-AORUS-PRO-X

Original price was: ₱28,700.00.Current price is: ₱24,995.00.

GIGABYTE Z790 AORUS PRO X ATX for Intel® 14th/13th/12th Gen
DDR5 8266(OC), up to 256GB, Intel® Z790 chipset
PCIe 5.0 x16, 5 x M.2 (1 x PCIe 5.0), 4 x SATA 6Gb/s
Wi-Fi 7, 5GbE LAN, dual USB 3.2 Gen 2×2 Type-C
Realtek® ALC1220-VB 7.1 audio, RGB Fusion 2.0
18+1+2 VRM, M.2 Thermal Guard XL, Q-Flash Plus

Out of stock

Restock & Price Alerts

We'll email you the moment this is back in stock. If you enter a target price, we'll also send you a separate alert if the price drops to your goal later!

🔓 Sign in to unlock full price history charts and manage your alerts.

SKU: GA-Z790-AORUS-PRO-X Categories: Intel LGA 1700 Motherboards, Motherboards Tag: Gigabyte

Power up your gaming rig with the GIGABYTE Z790 AORUS PRO X, an ATX motherboard engineered for Intel® 14th, 13th, and 12th Gen Core™ processors. Featuring the Intel® Z790 Express chipset, it supports up to 256GB of DDR5 memory at speeds up to 8266MHz (OC), delivering unmatched performance for gaming, content creation, and multitasking. The PCIe 5.0 x16 slot and one PCIe 5.0 M.2 slot ensure compatibility with next-gen GPUs and SSDs, offering blazing-fast storage speeds up to 16GB/s. A robust 18+1+2 twin digital VRM with 90A power stages provides stable power for overclocking high-end CPUs like the i9-14900K. Advanced cooling with VRM Thermal Armor Advanced and M.2 Thermal Guard XL keeps components cool under heavy workloads. Connectivity excels with Wi-Fi 7 for ultra-low latency and 5GbE LAN for high-speed networking, complemented by dual USB 3.2 Gen 2×2 Type-C ports at 20Gbps. The Realtek® ALC1220-VB audio with audiophile-grade capacitors delivers immersive 7.1-channel sound. RGB Fusion 2.0 with addressable LED headers offers vibrant customization via GIGABYTE Control Center. DIY-friendly features like EZ-Latch Click for screwless M.2 heatsinks, Q-Flash Plus for BIOS updates without components, and a user-centric UC BIOS enhance build simplicity. With a sleek white aesthetic, the GIGABYTE Z790 AORUS PRO X is the ultimate platform for next-gen performance and style.

Specification	Details
Model	GA-Z790-AORUS-PRO-X
CPU	LGA1700: 14th, 13th, 12th Gen Intel® Core™, Pentium® Gold, Celeron® Processors; L3 cache varies with CPU
Chipset	Intel® Z790 Express Chipset
Memory	4 x DDR5 DIMM, up to 256GB, 8266(O.C)/8200(O.C)/8000(O.C)/7950(O.C)/7900(O.C)/7800(O.C)/7600(O.C)/7400(O.C)/7200(O.C)/7000(O.C)/6800(O.C)/6600(O.C)/6400(O.C)/6200(O.C)/6000(O.C)/5800(O.C)/5600(O.C)/5400(O.C)/5200(O.C)/4800/4000 MT/s, Dual Channel, ECC/Non-ECC Un-buffered 1Rx8/2Rx8/1Rx16, XMP
Onboard Graphics	1 x USB Type-C® (USB 3.2 Gen 2, DP 4096x2304@60Hz, DP 1.2, HDR), 1 x USB Type-C® (USB 2.0, DP 1920x1080@30Hz), 1 x HDMI (4096x2160@60Hz, HDMI 2.1, HDCP 2.3)
Audio	Realtek® ALC1220-VB, 2/4/5.1/7.1-channel, DSD support, S/PDIF Out, Audiophile Grade Capacitors
LAN	Realtek® 5GbE LAN (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication	MediaTek Wi-Fi 7 MT7927 (rev. 1.0), Intel® Wi-Fi 7 BE200 (rev. 1.1), Qualcomm® QCNCM865 (rev. 1.2); 802.11a/b/g/n/ac/ax/be, 2.4/5/6 GHz, Bluetooth 5.3, 11be 320MHz
Expansion Slots	CPU: 1 x PCIe 5.0 x16 (PCIEX16, up to x8 with M2C_CPU); Chipset: 1 x PCIe 4.0 x16 (x4 mode, PCIEX4_1), 1 x PCIe 3.0 x16 (x4 mode, PCIEX4_2)
Storage Interface	CPU: 1 x M.2 (25110/2580, PCIe 5.0 x4/x2, M2C_CPU), 1 x M.2 (22110/2280, PCIe 4.0 x4/x2, M2A_CPU); Chipset: 1 x M.2 (22110/2280, PCIe 4.0 x4/x2, M2Q_SB), 1 x M.2 (2280, PCIe 4.0 x4/x2, M2P_SB), 1 x M.2 (2280, SATA & PCIe 4.0 x4/x2, M2M_SB); 4 x SATA 6Gb/s; RAID 0/1/5/10 for NVMe/SATA
USB	Rear: 1 x USB 3.2 Gen 2x2 Type-C, 1 x USB 3.2 Gen 2 Type-C, 2 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, 2 x USB 2.0/1.1; Front: 1 x USB 3.2 Gen 2x2 Type-C header, 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0/1.1 headers (4 ports), 1 x USB 2.0 Type-C (DP, Intel® HD Graphics only)
Internal I/O Connectors	1 x 24-pin ATX, 2 x 8-pin ATX 12V, 1 x CPU fan, 1 x CPU fan/water cooling pump, 4 x system fan, 2 x system fan/water cooling pump, 3 x ARGB Gen2 headers, 1 x RGB header, 5 x M.2, 4 x SATA 6Gb/s, 1 x front panel, 1 x front panel audio, 1 x USB 3.2 Gen 2x2 Type-C header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x USB 2.0 Type-C (DP), 1 x noise detection, 2 x Thunderbolt™ headers, 1 x TPM header, 1 x Q-Flash Plus button, 1 x reset button, 1 x reset jumper, 2 x temperature sensor headers, 1 x Clear CMOS jumper

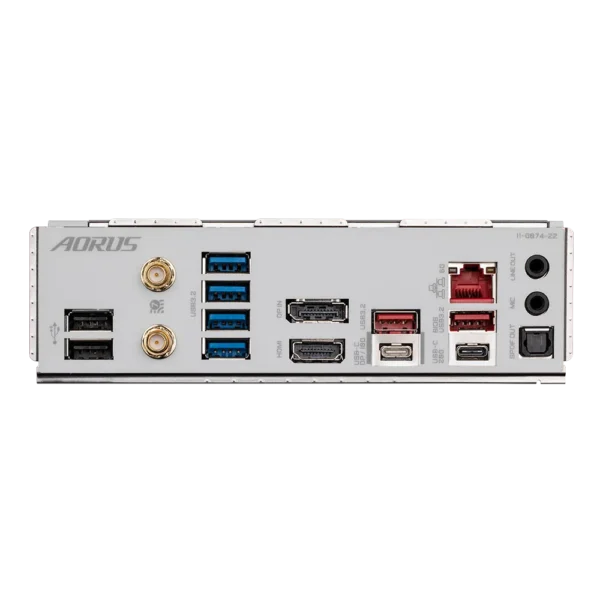

Back Panel Connectors	2 x USB 2.0/1.1, 2 x SMA antenna (2T2R), 4 x USB 3.2 Gen 1, 1 x DisplayPort In, 1 x HDMI, 2 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 2x2 Type-C, 1 x USB 3.2 Gen 2 Type-C (DP), 1 x RJ-45, 1 x S/PDIF Out, 2 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage, temperature, fan speed, water cooling flow rate, noise detection, fan fail warning, fan speed control
BIOS	256 Mbit flash, UEFI AMI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	GIGABYTE Control Center, Q-Flash, Q-Flash Plus, Smart Backup, EZ-Latch Click (M.2 heatsinks), EZ-Latch Plus (M.2 slots), Sensor Panel Link, UC BIOS (Quick Access), PerfDrive (Optimization, Spec Enhance, E-Core Disable modes)
Bundled Software	Norton® Internet Security (OEM), LAN bandwidth management, RGB Fusion 2.0
Operating System	Windows® 11 64-bit
Form Factor	ATX, 30.5 x 24.4 cm
Notes	Wi-Fi 7 module varies by PCB revision (MT7927 rev. 1.0, BE200 rev. 1.1, QCNCM865 rev. 1.2); Wi-Fi 7 requires Windows 11 SV3; M2C_CPU shares bandwidth with PCIEX16; Check CPU/Memory support at www.gigabyte.com
