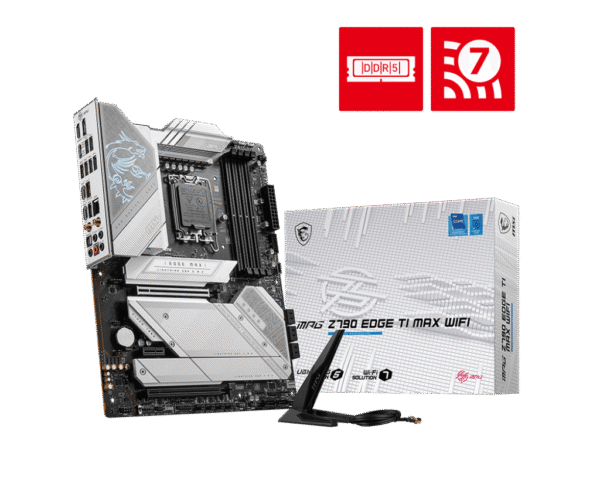

MSI MPG Z790 EDGE TI MAX WIFI ATX Motherboard for Intel 14th/13th/12th Gen, DDR5 7800+ MHz, Wi-Fi 7, PCIe 5.0 M.2 – MPG Z790 EDGE TI MAX WIFI
Original price was: ₱28,160.00.₱23,295.00Current price is: ₱23,295.00.
- Sleek silver-white ATX motherboard for Intel 14th/13th/12th Gen CPUs (SKU: MPG Z790 EDGE TI MAX WIFI)
- Supports DDR5 up to 7800+ MHz with MSI Memory Boost
- Wi-Fi 7, Bluetooth 5.4, and 2.5G LAN for ultra-fast connectivity
- Advanced cooling with enlarged heatsink, heat-pipe, and M.2 Shield Frozr
- 16+1+1 Mirrored Power Arrangement with 90A SPS for maximum performance
- DIY-friendly with Screwless M.2 Shield Frozr and pre-installed I/O shield
- Audio Boost 5 with 7.1-channel, 32-Bit/384kHz sound
- Mystic Light RGB for vibrant lighting customization
In stock
Price Drop Alerts & Price History
-
Authorized
Dealer -
Nationwide
Shipping -
Store &
RMA HUB -
Expert
Support -
7-Day DOA
Protection -
Community
Trusted -
Turnstile
Protected -
reCAPTCHA
Secured -
Tested &
Verified

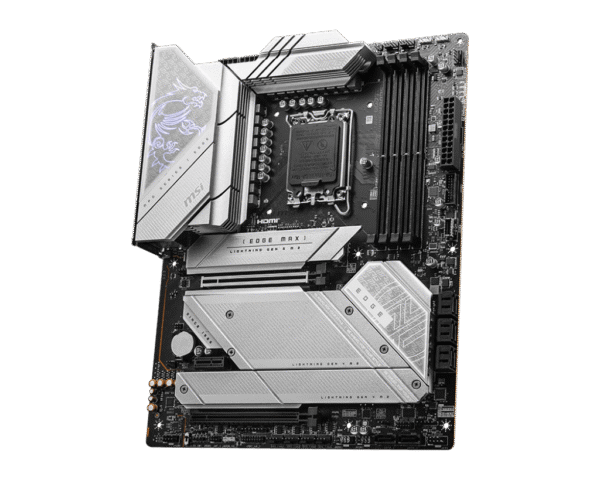

The MSI MPG Z790 EDGE TI MAX WIFI motherboard redefines gaming performance with its sleek silver-white design, tailored for enthusiasts building a standout white PC. Engineered for Intel 14th, 13th, and 12th Gen Core processors, this ATX motherboard delivers exceptional power through a 16+1+1 Mirrored Power Arrangement with 90A SPS and dual 8-pin CPU connectors. Its advanced thermal solution, featuring an enlarged heatsink, direct-touch heat-pipe, and double-sided M.2 Shield Frozr, ensures optimal cooling for high-performance systems and PCIe 5.0 M.2 SSDs. The board supports DDR5 memory up to 7800+ MHz with MSI Memory Boost technology, providing world-class performance for overclocking. Connectivity is unmatched with Wi-Fi 7, Bluetooth 5.4, and 2.5G LAN, delivering ultra-fast and stable network performance. The Audio Boost 5 with Realtek ALC4080 codec offers immersive 7.1-channel sound. DIY-friendly features like the patented Screwless M.2 Shield Frozr, EZ M.2 Clip, and pre-installed I/O shield simplify assembly, while Mystic Light RGB enhances aesthetics with vibrant lighting effects. Built with a 6-layer server-grade PCB and solid pin power connectors, this motherboard ensures durability and stability for demanding gaming environments.
| Specification | MPG Z790 EDGE TI MAX WIFI |
|---|---|
| Brand | MSI |
| Chipset | Intel Z790 |
| CPU Support | Intel Core 14th/13th/12th Gen Processors, Intel Pentium Gold, Celeron (LGA 1700) |
| Memory | 4x DDR5, up to 256GB, 7800+(OC) MHz |
| Graphics | 1x HDMI 2.1 (4K 60Hz), 1x DisplayPort 1.4 (8K 60Hz) |
| Expansion Slots | 2x PCIe x16 (1x Gen 5.0 x16, 1x Gen 4.0 x4), 1x PCIe x1 (Gen 3.0) |
| Storage | 5x M.2 (1x PCIe 5.0 x4, 4x PCIe 4.0 x4), 8x SATA 6G |
| RAID | RAID 0, 1, 5, 10 (M.2 NVMe and SATA) |
| USB | 4x USB 2.0, 6x USB 5Gbps, 5x USB 10Gbps, 1x USB 20Gbps |
| LAN | Intel 2.5Gbps LAN |
| Wireless | Wi-Fi 7 (2.4/5/6GHz, 5.8Gbps), Bluetooth 5.4 |
| Audio | Realtek ALC4080, 7.1-Channel, 32-Bit/384kHz |
| Internal I/O | 1x ATX_PWR, 2x CPU_PWR, 5x System Fan, 1x EZ Conn-header, 2x Front Panel, 1x Chassis Intrusion, 1x Front Audio, 1x Tuning Controller, 3x ARGB V2, 1x RGB, 1x TPM, 1x USB4 card, 7x USB ports |

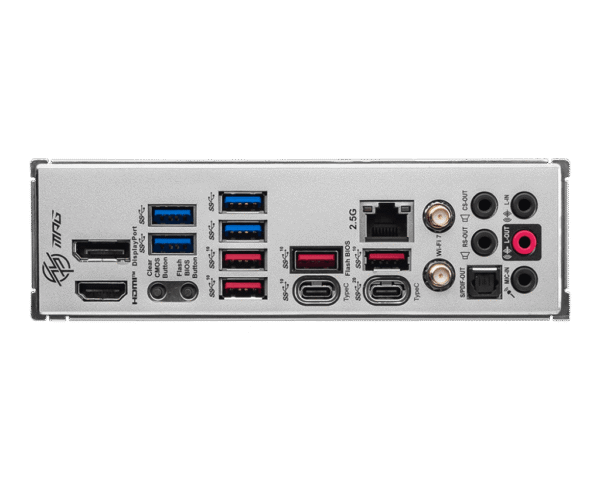

| Back Panel Ports | DisplayPort, HDMI, 5x USB Type-A, 2x USB Type-C, 2.5G LAN, Audio, Clear CMOS, Flash BIOS, Wi-Fi/Bluetooth, Optical S/PDIF Out |
| Form Factor | ATX (243.84mm x 304.8mm) |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Weight | 2.23 kg |
|---|---|
| Dimensions | 31 × 25 × 5 cm |
| Brand | MSI |
| Desktop RAM | DDR5 |
| Socket | LGA 1700 CPU |
