Premium Accessories Included: Comes with an ASRock Graphics Card Holder, Wireless Dongle Bracket, and active MOS cooling fans.
In stock
ℹ️
For walk-in customers: please always INQUIRE FIRST before visiting as not all items are displayed in our physical store. As an online-first store, most of our inventory is held in our online warehouse and is transferred to the store upon request.

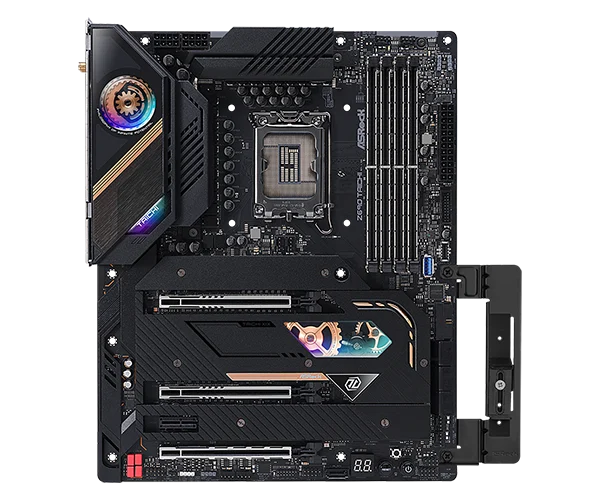

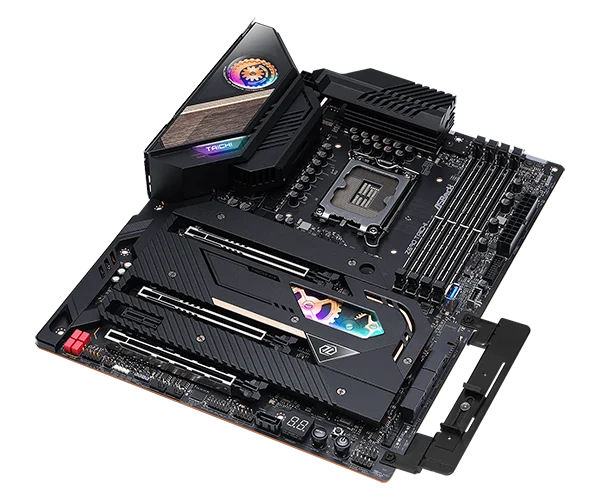

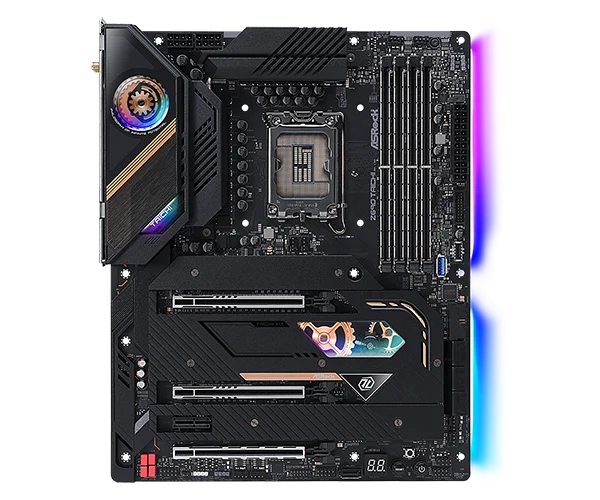

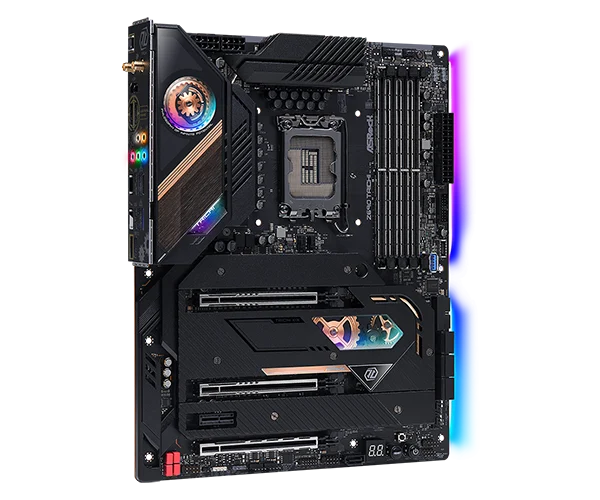

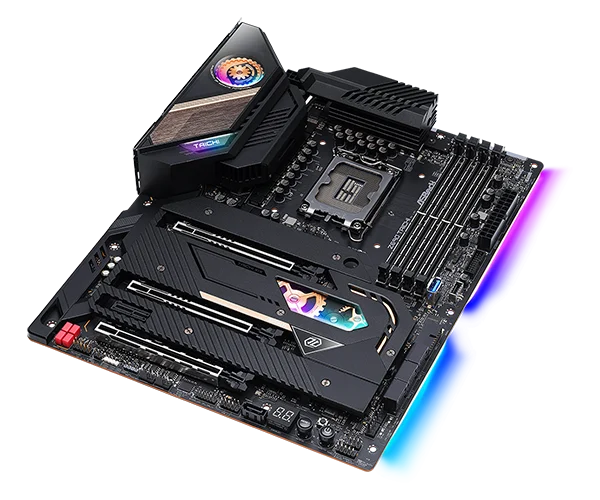

Engineered for the absolute elite, the ASRock Z690 Taichi represents the philosophical state of ultimate potential and infinite possibilities. This flagship ATX motherboard is meticulously crafted on an 8-layer, server-grade low-loss 2oz Copper PCB, providing a rock-solid foundation for 14th, 13th, and 12th Generation Intel Core Processors. Designed for serious overclockers and hardcore gamers, the Taichi utilizes an astoundingly robust 20 Power Phase Design featuring 105A Smart Power Stages (SPS). This ensures incredibly clean, efficient power delivery to your CPU, drastically enhancing system stability and unlocking unparalleled overclocking capabilities.
Unrivaled DDR5 Memory and PCIe 5.0 Bandwidth
Shatter existing performance bottlenecks with next-generation memory and graphics support. The Z690 Taichi features reinforced, surface-mounted DDR5 DIMM slots with 15μ Gold Contacts, allowing you to push Dual Channel memory speeds up to a blistering 6400+ MHz (OC). For graphics, the motherboard boasts dual PCIe 5.0 x16 slots utilizing surface-mount technology. This structural breakthrough maximizes signal flow and stability, delivering a breathtaking 128GBps of bandwidth to fully unleash the potential of future high-end graphics cards in single or multi-GPU configurations.
Audiophile-Grade Sound and Intelligent Storage Protection
Experience true Hi-Fi audio without the need for an external sound card. The Z690 Taichi features the premium Realtek ALC1220 Audio Codec paired with the legendary ESS SABRE9218 DAC for the front panel, delivering a stunning 130dB SNR and support for high-impedance headphones up to 600 Ω. Furthermore, ASRock prioritizes your data security with a unique hardware-level defense. The motherboard includes one Independent SATA port and one Independent USB port; when activated in the BIOS, these ports are completely cut off from the rest of the system, protecting your most valuable data from malware and ransomware.
Elite Connectivity: Thunderbolt 4 and Killer Networking
Stay connected at the speed of light. The rear I/O is highlighted by dual USB 4.0 Thunderbolt 4 Type-C ports, offering highly versatile 40Gbps data transfers, fast charging, and up to 8K external display support. For online dominance, the Taichi integrates the Killer DoubleShot Pro ecosystem, combining a Killer E3100G 2.5G LAN port with a Killer AX1675 802.11ax Wi-Fi 6E module. This intelligent network controller automatically prioritizes your gaming and multimedia traffic across both connections simultaneously, ensuring you always experience the lowest latency and highest throughput possible.
Dedicated Gaming Enhancements and Premium Accessories
ASRock understands the needs of competitive gamers. The motherboard features dedicated Lightning Gaming Ports, sourced from two different controller interfaces to ensure your high-speed mouse and keyboard operate with the lowest possible jitter and latency. Additionally, the Z690 Taichi comes bundled with deluxe accessories to perfect your build, including customizable MOS fans for active VRM cooling, a wireless dongle USB bracket, and a heavy-duty ASRock Graphics Card Holder that secures directly to the motherboard to prevent GPU sag.
ASRock Z690 Taichi Specifications
General Information
Brand
ASRock
Model
Z690 Taichi
SKU
ASROCK Z690 TAICHI
Form Factor
ATX (12.0-in x 9.6-in, 30.5 cm x 24.4 cm)
Built with an 8 Layer, Server-Grade Low-Loss 2oz Copper PCB
Operating System Support
Microsoft Windows 10 64-bit / 11 64-bit
Processor & Chipset
CPU Support
Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700)
Supports Intel Hybrid Technology
Supports Intel Turbo Boost Max 3.0 Technology
Supports ASRock Hyper BCLK Engine V
Chipset
Intel Z690
Power Phase Design
20 Power Phase Design (Digi Power)
105A SPS (Smart Power Stage)
Premium Power Choke & Nichicon 12K Black Caps
4 x DDR5 DIMM Slots (Reinforced, 15μ Gold Contacts)
Supported Frequencies
Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC)
Natively supports DDR5 4400 (1DPC) / 3600 (2DPC)
Maximum Capacity
192GB
Advanced Features
Supports Intel Extreme Memory Profile (XMP) 3.0
Integrated Graphics & Audio
Graphics Architecture
Intel Xe Graphics Architecture (Gen 12)
Video Outputs
1 x HDMI 2.1: TMDS Compatible, max res. 4K x 2K (4096x2160) @ 60Hz
2 x Intel Thunderbolt 4: Max res. 8K (7680x4320) @ 60Hz
Supports Triple Monitor Setup and HDCP 2.3
Audio Codec & DAC
7.1 CH HD Audio (Realtek ALC1220 Audio Codec)
ESS SABRE9218 DAC for Front Panel Audio (130dB SNR)
WIMA Audio Capacitors (For Front Outputs)
Nahimic Audio Support
Audio Features
Pure Power-In, Direct Drive Technology, PCB Isolate Shielding, Impedance Sensing, Gold Audio Jacks, 15μ Gold Audio Connector
Networking
Ethernet LAN
1 x 2.5 Gigabit LAN: 10/100/1000/2500 Mb/s (Killer E3100G)
1 x Gigabit LAN: 10/100/1000 Mb/s (Intel I219V)
Wireless LAN
Killer AX1675 802.11ax Wi-Fi 6E Module
Supports Dual-Band 2x2 160MHz with extended 6GHz band support
Supports MU-MIMO and Killer DoubleShot Pro
Bluetooth
Supports Bluetooth 5.3 + High speed class II
Expansion Slots & Storage
PCIe Slots
2 x PCIe 5.0 x16 Slots (PCIE1/2): Support x16 or x8/x8 modes, 15μ Gold Contacts
1 x PCIe 4.0 x16 Slot (PCIE4): Supports x4 mode
1 x PCIe 3.0 x1 Slot (PCIE3)Supports AMD CrossFire
Wireless Module Socket
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi
M.2 Storage Sockets
1 x Hyper M.2 (M2_1, CPU): Type 2280 PCIe Gen4x4 (64 Gb/s)
1 x Hyper M.2 (M2_2, Chipset): Type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s)
1 x M.2 Socket (M2_3, Chipset): Type 2230/2242/2260/2280 SATA3 & PCIe Gen3x2 (16 Gb/s)
SATA Storage
6 x SATA3 6.0 Gb/s Connectors
1 x Independent SATA3 6.0 Gb/s Connector
Supports RAID 0, RAID 1, RAID 5, and RAID 10
Rear I/O & Internal Connectors

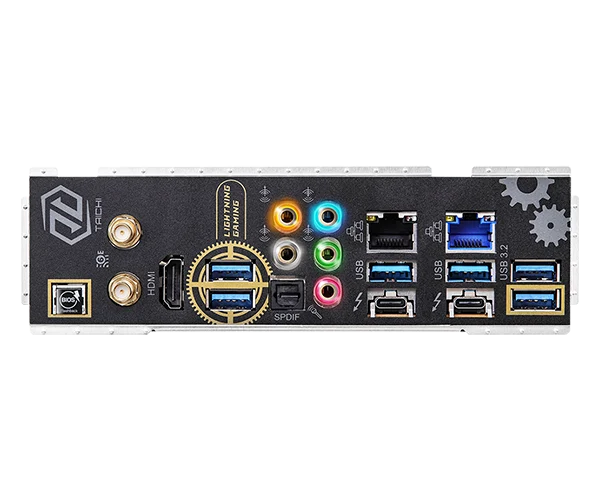

Rear Panel I/O
2 x Antenna Ports
1 x HDMI Port
1 x Optical SPDIF Out Port
2 x USB 4.0 Thunderbolt 4 Type-C Ports (40 Gb/s, supports PD 3.0 up to 27W)
2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
4 x USB 3.2 Gen1 Type-A Ports (Includes Lightning Gaming Ports)
2 x RJ-45 LAN Ports
1 x BIOS Flashback Button
HD Audio Jacks (Gold with LED)
Internal USB Headers
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
1 x Independent USB 3.2 Gen1 Type-A Connector
2 x USB 3.2 Gen1 Headers (Supports 4 ports)
2 x USB 2.0 Headers (Supports 3 ports)
Cooling Connectors
1 x CPU Fan Connector (4-pin, 12W)
2 x CPU/Water Pump Fan Connectors (4-pin, 36W/24W)
4 x Chassis/Water Pump Fan Connectors (4-pin, 24W)
1 x VRM/Water Pump Fan Connector (4-pin, 24W)
Onboard Buttons & RGB
1 x Clear CMOS Button, 1 x Dr. Debug with LED, 1 x Power Button with LED, 1 x Reset Button with LED
1 x RGB LED Header (12V/3A)
3 x Addressable LED Headers (5V/3A)
Additional Features & Accessories
ASRock Super Alloy Features
XXL Aluminum Alloy Heatsink, Premium Power Choke, 105A SPS, Premium Memory Alloy Choke, Nichicon 12K Black Caps, I/O Armor, High Density Glass Fabric PCB
Included Accessories

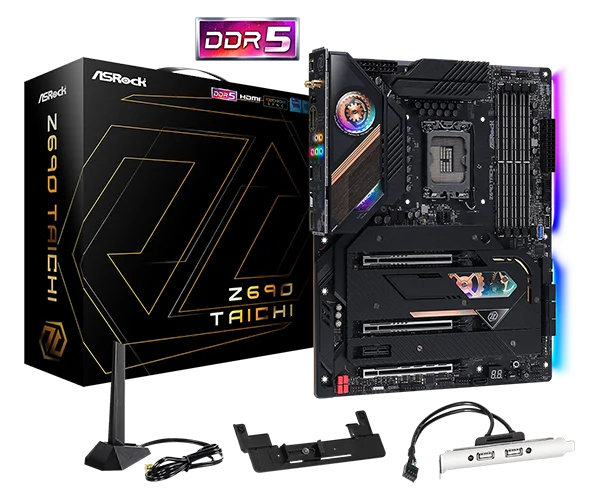

4 x SATA Data Cables, 1 x ASRock Graphics Card Holder, 1 x Wireless Dongle USB Bracket, 1 x 3010 Cooling Fan & Bracket, 1 x 4010 Cooling Fan Bracket, 1 x ASRock WiFi Antenna, M.2 Screws/Standoffs
Packaging Weight
1.5 kg
Packaging Dimensions (L×W×H)
30 × 24 × 8 cm
Brand
ASROCK
Desktop RAM
DDR5
Socket
LGA 1700 CPU
