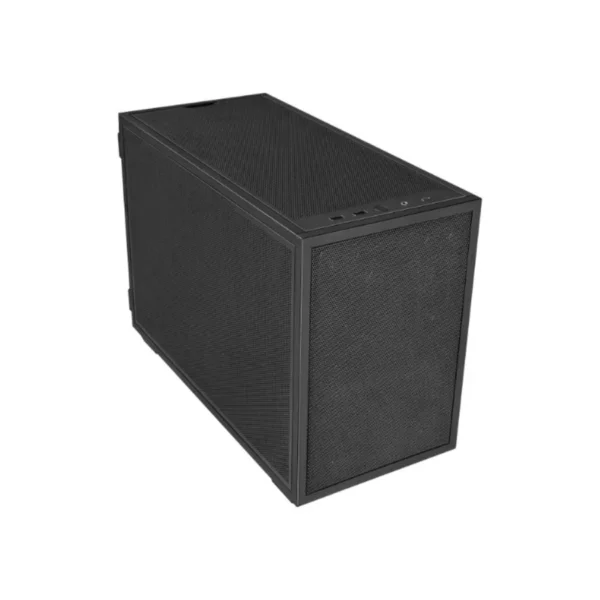

Lian Li B4-mATX Mesh Compact Micro-ATX PC Case – G99.B4X.00
₱4,510.00Original price was: ₱4,510.00.₱3,930.00Current price is: ₱3,930.00.
SKU: G99.B4X.00
Ultra-Compact SFF: 21.3L volume design that fits comfortably on any desk while maintaining high-end component support.
High Compatibility: Supports up to 358mm GPUs, 162mm CPU air coolers, and Micro-ATX motherboards.
Versatile Layouts: Easily switch between horizontal and vertical orientations to maximize space.
Advanced Cooling: Supports up to 9 total fans and includes pre-installed slim top exhaust fans; side-mounts accommodate up to 360mm radiators.
Modular & Tool-less: Features removable top and front brackets for easier hardware installation and cable management.
Premium Build: Co-developed with DAN Cases, featuring high-quality steel construction and a clean mesh aesthetic.
In stock
ℹ️
For walk-in customers: please always INQUIRE FIRST before visiting as not all items are displayed in our physical store. As an online-first store, most of our inventory is held in our online warehouse and is transferred to the store upon request.
Lian Li B4-mATX Mesh Compact Micro-ATX PC Case - G99.B4X.00
Price Drop Alerts & Price History
⚠️ That's a steep drop! You might be waiting a while.
We'll notify you the moment the price hits your target.
The Lian Li B4-mATX Mesh is a testament to precision craftsmanship, co-developed with Daniel Hansen of DAN Cases to deliver a compact yet remarkably flexible chassis. Measuring at a compact 21.3-liter volume, this case is designed to house professional-grade components in a footprint that maximizes your desk space efficiency. Its modular design philosophy allows builders to adapt the layout to their specific needs, offering both horizontal and vertical configurations with the included rear feet, ensuring it fits perfectly into any workspace setup.
Broad Hardware Compatibility
Despite its small form factor, the B4-mATX defies expectations by accommodating robust hardware builds. The internal frame supports Micro-ATX motherboards and is designed for high-performance GPUs up to 358mm in length and 4 slots in thickness. Power supply support is equally flexible, accepting standard ATX units up to 140mm or space-saving SFX power supplies. For cooling, the case provides immense liquid cooling potential, supporting side-mounted radiators up to 360mm, enabling a high-end, silent, and overclocked system in a fraction of the space required by traditional mid-towers.
Flexible Cooling and Airflow Innovation
Airflow is prioritized through every stage of the B4-mATX design. The front-to-back airflow path is enhanced by a front mesh panel that balances aesthetics with unrestricted ventilation. The case ships with two pre-installed 120mm slim fans at the top to assist in heat exhaustion, while the side and bottom mounts allow for a dense array of additional fans to saturate the internal components with fresh air. Unique features like the reversible rear fan bracket, which can be angled to optimize heat extraction, demonstrate the meticulous attention to detail dedicated to keeping your internals running within optimal thermal limits.
Builder-Centric Features
Lian Li has simplified the assembly process with a suite of builder-friendly features. The tool-less removable panels ensure quick access to components, while the removable top and front brackets make cable routing and radiator installation significantly easier than typical SFF enclosures. Cable management is streamlined with multiple tie points around the PSU and top brackets, ensuring your final build looks as organized as it performs. Whether you are building an airflow-optimized powerhouse or a liquid-cooled artistic statement, the B4-mATX Mesh provides the structural integrity and modular freedom to realize your vision.
Lian Li B4-mATX Mesh Black Specifications
Core Specifications
SKU
G99.B4X.00
Brand
LIAN LI
Form Factor
mATX / Mini-ITX Compact Chassis (21.3L)
Material
Steel (Mesh Panel)
Hardware Compatibility
Max GPU Length
358 mm (4-Slot support)
CPU Cooler Clearance
162 mm (168 mm without side fan bracket)
PSU Support
ATX (Up to 140 mm) or SFX
Storage
1 x 2.5" SSD (Front) + 1 x 3.5" HDD/2.5" SSD (Bottom)
Cooling Support
Included Fans
2 x 120 x 120 x 15 mm Slim Top Fans
Radiator Support
Side: 360/280/240 mm (SFX PSU); 240 mm (ATX PSU)
Total Fan Support
Up to 9 fans (Top, Side, Bottom, Rear, Front)
Dimensions & I/O
Dimensions (DxWxH)
420 x 191 x 288 mm
Front I/O Ports
2 x USB 3.0 Type A, 1 x USB 3.2 Type C, Audio
Packaging Weight
8 kg
Packaging Dimensions (L×W×H)
55 × 32 × 42 cm
