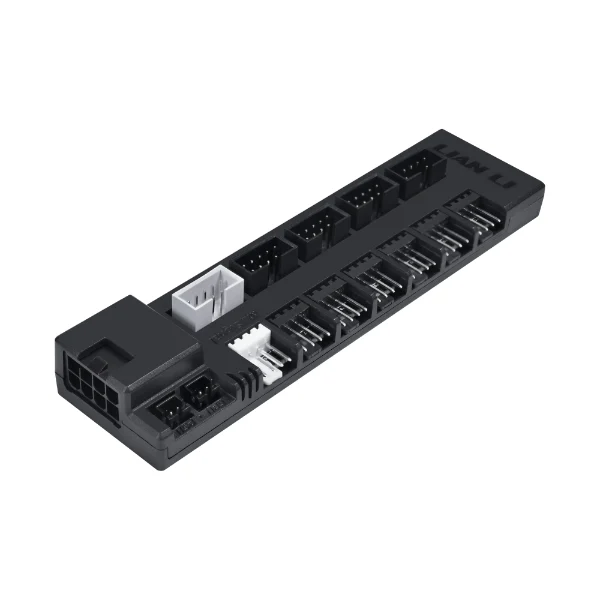

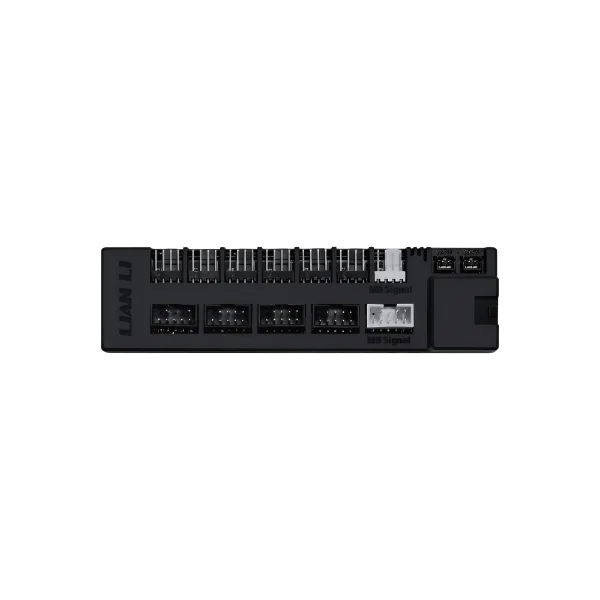

LIAN LI Edge Hub ADV Black Internal USB and PWM Fan Controller – EG-HUB03B – G8P.EG-HUB03B.00
₱2,580.00Original price was: ₱2,580.00.₱2,250.00Current price is: ₱2,250.00.
Premium Expansion Hub: The ultimate internal connectivity command center (SKU: G8P.EG-HUB03B.00 / Model: EG-HUB03B) wrapped in a sleek black finish.
Dual-Chip Architecture: Intelligently distributes USB devices across two separate pathways, drastically reducing bandwidth congestion and preventing screen freezes.
Massive Connectivity: Expands your motherboard’s capability by providing 7 downstream USB signals alongside 6 high-powered 4-pin PWM fan ports (up to 2A each).
Dedicated Thermal Monitoring: Includes a specialized 12V-2×6 cable with built-in sensors to track real-time GPU connector temperatures safely.
Automated Safety Protocols: Works with L-Connect 3 to provide customizable heat threshold alerts, automatic system shutdowns, and remote email notifications.
Real-Time Bandwidth Tracking: Allows users to monitor per-port data transfer speeds, identify high-load devices, and apply custom names to individual ports for easy identification.
Versatile Power Options: Can be powered seamlessly through a direct EDGE/RS Series PSU connector or independently via any standard PCIe 8-pin power cable.
Magnetic Installation: Integrated rear magnets allow for effortless, tool-free placement anywhere inside your chassis or directly on top of your power supply.
In stock
ℹ️
For walk-in customers: please always INQUIRE FIRST before visiting as not all items are displayed in our physical store. As an online-first store, most of our inventory is held in our online warehouse and is transferred to the store upon request.
LIAN LI Edge Hub ADV Black Internal USB and PWM Fan Controller - EG-HUB03B - G8P.EG-HUB03B.00
Price Drop Alerts & Price History
⚠️ That's a steep drop! You might be waiting a while.
We'll notify you the moment the price hits your target.
Solve your most frustrating cable management and connectivity issues with the LIAN LI Edge Hub ADV in black. As modern PC builds grow increasingly complex with multiple LCD screens, smart fans, and internal controllers, standard motherboards are quickly running out of internal USB headers. This innovative hub tackles that exact problem. Featuring an intelligent dual-chip architecture, it distributes connected USB devices across two distinct signal paths. This elevates the USB hierarchy and significantly minimizes bandwidth congestion, effectively putting an end to software crashes and screen freezes during heavy workloads. You gain access to seven robust downstream USB signals and six powerful 4-pin PWM fan ports—each rated at 2A—allowing for incredibly dense and organized multi-fan setups.
Revolutionary GPU Thermal Monitoring
The Edge Hub ADV goes far beyond simple USB expansion by bringing unprecedented safety monitoring directly to your graphics card. Included in the box is a specialized 12V-2×6 cable equipped with built-in thermal sensors. The hub dedicates one of its internal channels strictly for monitoring up to two of these GPU power connectors alongside the ambient PCB temperature. This allows the system to accurately distinguish between localized connector heat and overall case temperature, providing immense peace of mind when pushing flagship graphics cards to their performance limits.
Total Software Control with L-Connect 3
Hardware is only as good as the software driving it, and the Edge Hub ADV seamlessly integrates into the powerful L-Connect 3 ecosystem. From your desktop, you can monitor the real-time transfer rate of every individual USB port and view the hub’s total bandwidth utilization. You can even apply custom names to each port based on the connected device—meaning you will never have to trace cables inside your case again. The software will push proactive high-load alerts if excessive USB traffic is detected, allowing you to redistribute connections before any data loss occurs.
Proactive Automated Protection
Your high-end components deserve elite protection. Through L-Connect 3, users can set custom temperature thresholds for their 12V-2×6 GPU connectors. If the preset heat level is ever reached, the software immediately displays a high-temperature warning on your screen and triggers a shutdown countdown. If no action is taken, the system safely and automatically shuts down to prevent hardware damage, simultaneously dispatching an email notification to keep you fully informed, even when you are away from your desk. Combined with a versatile magnetic mounting system and flexible power options—supporting both a direct Edge Series PSU connector and a standard PCIe 8-pin—the Edge Hub ADV is the ultimate command center for any premium PC build.
LIAN LI Edge Hub ADV (Black) Specifications
General Information
Brand
LIAN LI
Name
Edge Hub ADV Black
Main SKU
G8P.EG-HUB03B.00
Model Numbers
EG-HUB03B (Black) / EG-HUB03W (White)
Categories
Accessories, Others
Tags
12V-2x6 temperature sensor, automatic shutdown protection, dual-chip USB hub, EDGE Hub ADV, email notifications, GPU connector temperature monitoring, high-load alerts, internal USB hub, L-Connect 3, magnetic fan hub, PCIe 8-pin power, PWM fan hub, USB bandwidth monitoring, USB expansion
Available Colors
Black (Also available in White)
Design & Hardware Architecture
Dimensions
(D) 35mm x (W) 132mm x (H) 17mm
Hub Architecture
Dual 1-to-4 hub chips (Distributes USB devices across two paths for balanced device usage)
Onboard MCU
ARM 32-bit MCU
Mounting System
Magnetic mounting (Enables flexible placement inside the case or on PSU)
Telemetry Protocol
USB HID, L-Connect 3
Power & Connectivity
Input
Fan 12Vdc 12.5A
USB 5Vdc 2.5A
Power Source Options
Edge Series PSU Connector OR independent power via PCIe 8-PIN cable
USB Signal Source
USB 3.0 header (D+/D- tap) *Connects through the motherboard's USB 3.0 header using USB 2.0 signals to reduce hub layers
Backward Compatible
USB 2.0 9-pin fallback
Downstream USB Ports
7 (4 headers x 2) *One channel reserved for GPU connector thermal monitoring
USB Header Output
4 x header 5Vdc for each 500mA (Total 2.5A)
Fan Header Output
6 x 4-pin PWM fan headers (12Vdc 2A each)
Monitoring & Software Features
Software Integration
L-Connect 3
Bandwidth Monitoring
Real-time per-port transfer monitoring, overall hub utilization, custom port naming
Temperature Sensing
GPU1 – GPU2 – Ambient PCB sensor (Monitors up to two 12V-2x6 GPU connectors)
Automated Safety Alerts
Data loss alerts, High Temperature alerts, Automated system shut down, High-load alerts, Email notifications
Accessories & Warranty
Included Cables
• USB 9-pin to USB 9-pin (470mm) x 1pc
• USB 3.0 to USB 3.0 Female / USB 9-pin (330-280mm) x 1pc
• Fan 4-pin to 4-pin (550mm) x 1pc
• 12V-2×6 with temperature sensors x 1pc (650mm)
Warranty
2-Year
Packaging Weight
0.3 kg
Packaging Dimensions (L×W×H)
18 × 13 × 6 cm
Brand
Lian Li
