NOCTUA NA-FH1 8-Channel PWM Fan Hub for 12V and 5V Fans – NA-FH1
₱2,290.00Original price was: ₱2,290.00.₱1,995.00Current price is: ₱1,995.00.
8-channel PWM fan hub for simultaneous control of up to eight fans.
Supports 12V and 5V fans with 4-pin PWM and 3-pin connectors.
54W S-ATA or 24W 4-pin PWM input with auto-resetting fuses for safety.
Automatic power switching for safe high-power fan control.

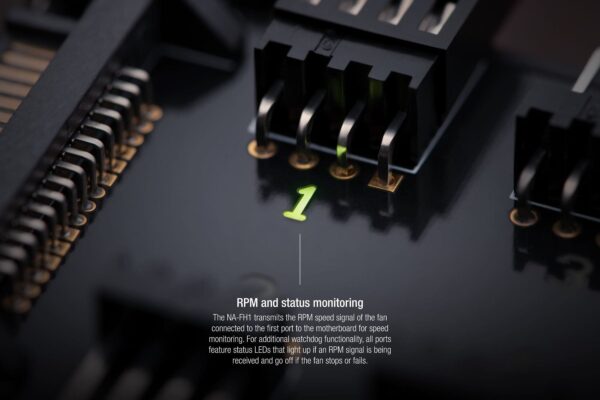

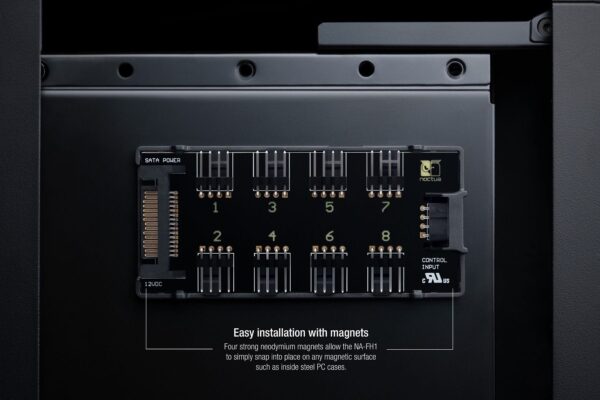

Status LEDs for RPM monitoring and neodymium magnets for easy installation.
Compatible with NA-FC1 controller and Noctua 5V/12V fans.
CE, UKCA, UL certified with a 6-year warranty.
SKU: NA-FH1
In stock
ℹ️
For walk-in customers: please always INQUIRE FIRST before visiting as not all items are displayed in our physical store. As an online-first store, most of our inventory is held in our online warehouse and is transferred to the store upon request.
NOCTUA NA-FH1 8-Channel PWM Fan Hub for 12V and 5V Fans - NA-FH1
Price Drop Alerts & Price History
⚠️ That's a steep drop! You might be waiting a while.
We'll notify you the moment the price hits your target.
The NOCTUA NA-FH1 fan hub delivers versatile and safe control for up to eight PWM or non-PWM fans, seamlessly integrating with a single PWM motherboard header or standalone controllers like the NA-FC1. Designed for both 12V and 5V fans with 4-pin PWM and 3-pin connectors, it offers flexibility for PC and other applications. Power options include a high-capacity 54W S-ATA input for 12V fans or a 24W 4-pin PWM input for 5V and 12V fans, with both ports featuring auto-resetting fuses to protect against overcurrent and short-circuits. The hub intelligently switches to S-ATA power when both inputs are connected, ensuring safe operation for high-power fans without risking motherboard damage. Status LEDs provide easy RPM monitoring, while neodymium magnets enable effortless installation on steel surfaces. Certified with CE, UKCA, and UL standards, and backed by a 6-year warranty, this premium fan hub combines robust safety features with reliable performance for enthusiasts and professionals managing multiple fans.
Specification
NA-FH1
Output Connectors
8x 4-pin PWM
Input Connectors

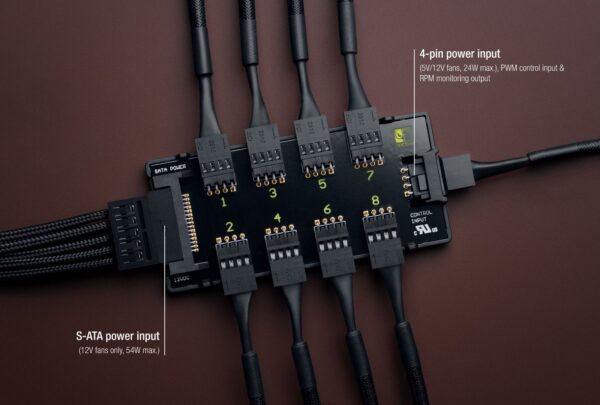

1x S-ATA (for 12V fans only), 1x 4-pin PWM
Max. Power via S-ATA Input
54 W
Max. Power via 4-pin PWM Input
24 W
Operating Voltage
5-12 V
Operating Temperature
-40°C to +60°C
Flammability Class
UL-94 V-0
Safety Standards
EN 62368-1, EN 55035, EN 55032, UL-507
Certifications
CE, UKCA, UL
Size
93x43x12.5 mm
Weight
31 g
Fan Compatibility
All Noctua 12V and 5V fans, many third party fans
Scope of Delivery

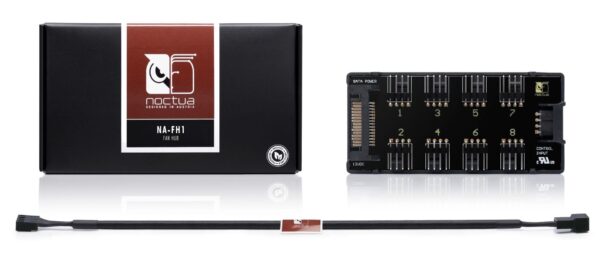

NA-FH1 fan hub, NA-EC1 4-pin PWM input cable
Warranty
6 years
Packaging Weight
0.074 kg
Packaging Dimensions (L×W×H)
14 × 8 × 2 cm
Brand
Noctua
