MSI B850M GAMING PLUS WIFI White Gaming Motherboard AMD B850 AM5 DDR5 8200+MT/s PCIe 5.0 Wi-Fi 7
In Stock
In Stock
Add to Wishlist
Add to Wishlist
Complete Your Build
This item: MSI B850M GAMING PLUS WIFI White Gaming Motherboard AMD B850 AM5 DDR5 8200+MT/s PCIe 5.0 Wi-Fi 7
In Stock
Original price was: ₱14,000.00.₱12,095.00Current price is: ₱12,095.00.
Original price was: ₱14,000.00.₱12,095.00Current price is: ₱12,095.00.
Original price was: ₱26,900.00.₱23,395.00Current price is: ₱23,395.00.
Original price was: ₱37,100.00.₱32,295.00Current price is: ₱32,295.00.
Original price was: ₱21,000.00.₱18,295.00Current price is: ₱18,295.00.
₱13,995.00
Original price was: ₱26,100.00.₱22,737.00Current price is: ₱22,737.00.
- AMD B850 Chipset with AM5 socket for Ryzen™ 9000/8000/7000 Series
- DDR5 Support up to 256GB, 8200+ MT/s (OC) with AMD EXPO™
- PCIe 5.0 with 1x x16 slot and 1x M.2 PCIe 5.0 slot
- Wi-Fi 7 & 5G LAN for high-speed wireless and wired connectivity
- Advanced Storage with RAID 0/1/10 support for SATA
- Special Feature: White design with 2x USB 10Gbps Type-C
Description

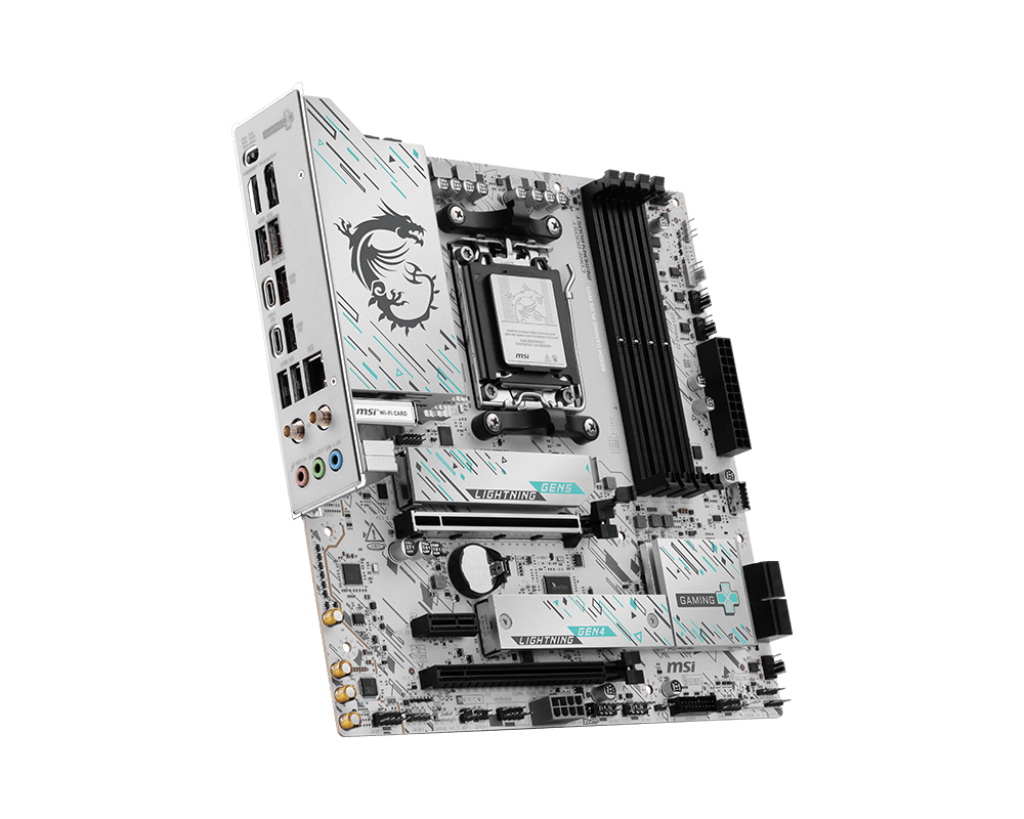

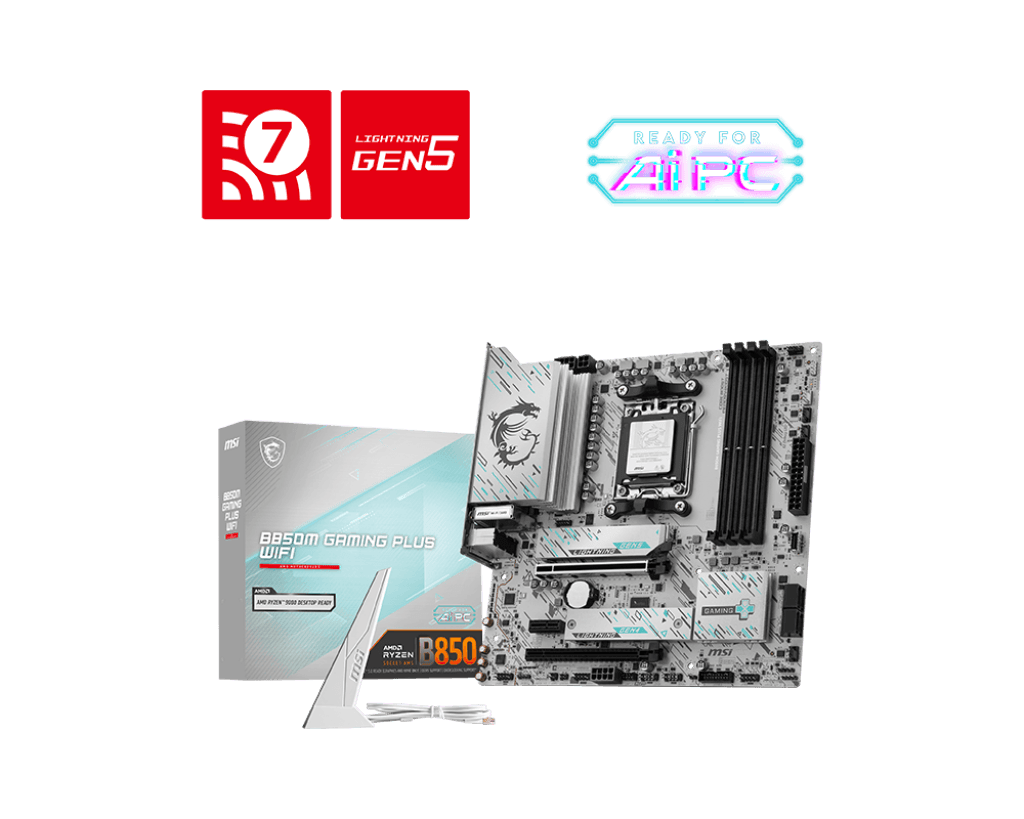

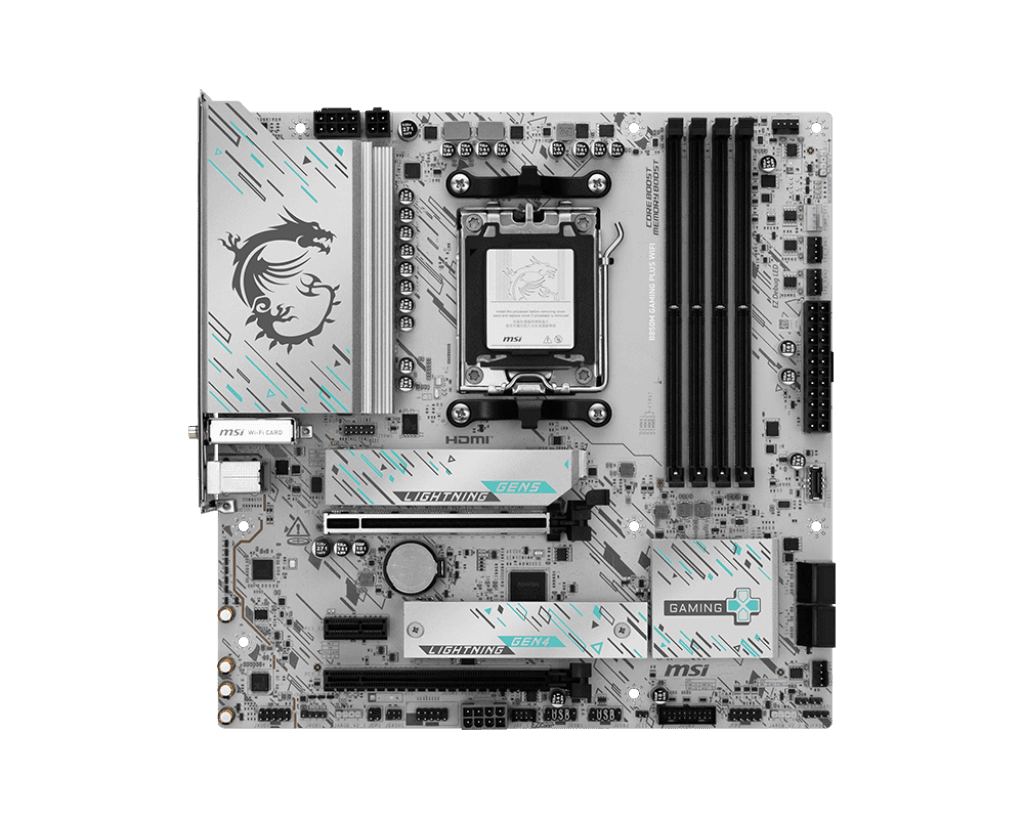

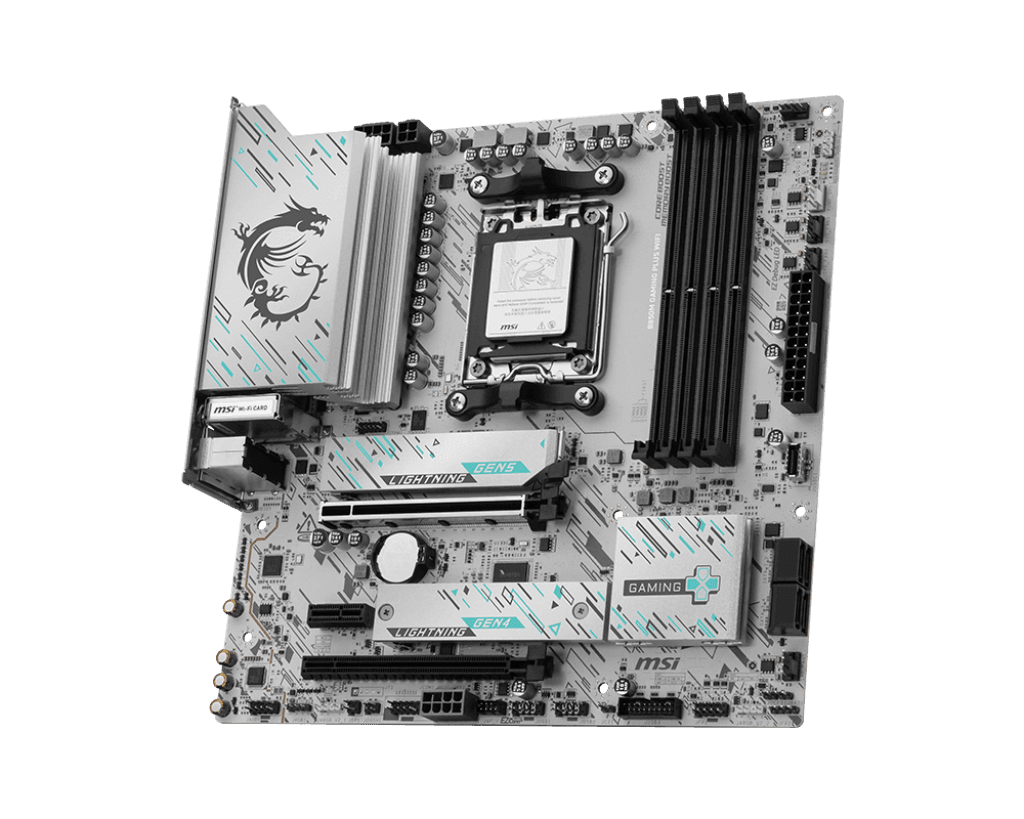

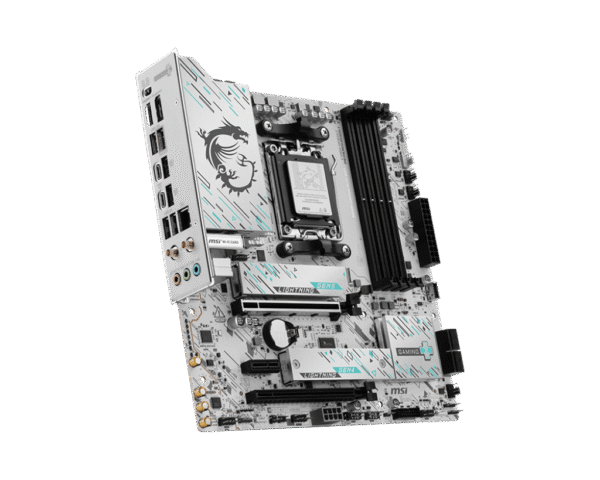

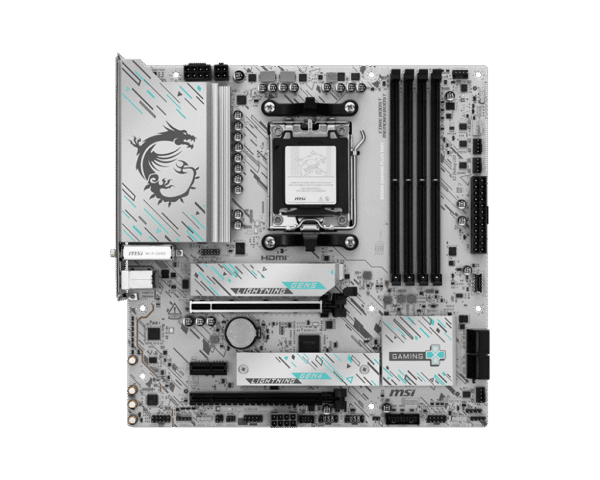

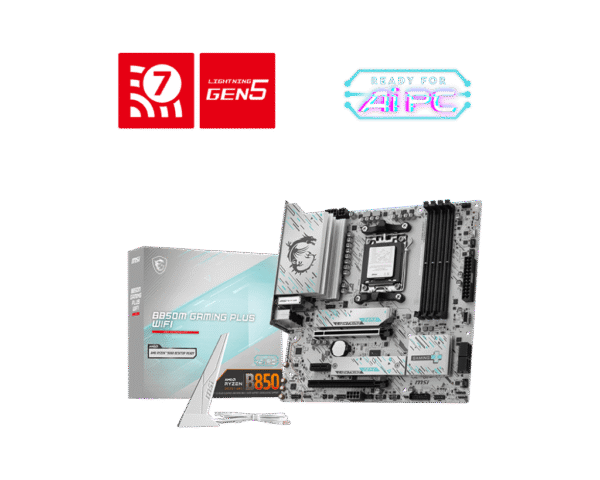

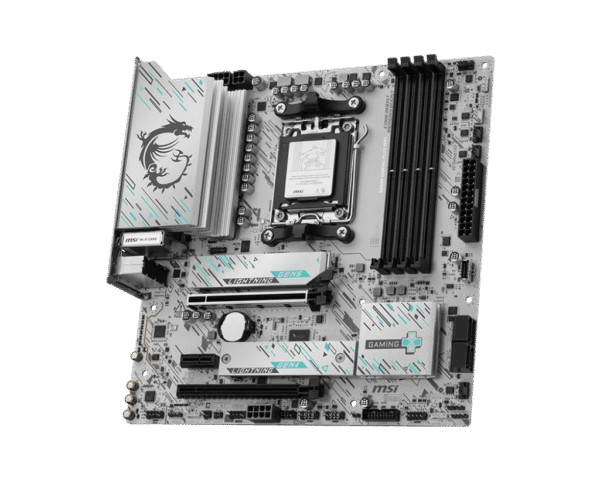

Elevate your gaming rig with the MSI B850M GAMING PLUS WIFI White, a micro-ATX motherboard crafted for AMD Ryzen™ 9000/8000/7000 Series processors on the AM5 socket. Featuring the AMD B850 chipset, it supports up to 256GB of DDR5 memory with overclocking up to 8200+ MT/s via AMD EXPO™, offering robust performance for gaming and AI tasks. The board includes a PCIe 5.0 x16 slot, two M.2 slots (one PCIe 5.0 x4), and RAID 0, 1, and 10 support for SATA, with RAID 0 and 1 for NVMe, plus four SATA 6G ports. Enhanced with Wi-Fi 7, 5G LAN, and a versatile USB setup including two 10Gbps Type-C ports, it provides modern connectivity. Its striking white design, paired with double-sided DIMM latches and EZ Debug LEDs, makes it a stylish and reliable choice for enthusiasts building on Windows 11 64-bit.
| Category | Specification |
|---|---|
| Model | MSI B850M GAMING PLUS WIFI White |
| Chipset | AMD B850 |
| CPU Support | AMD Ryzen™ 9000/8000/7000 Series Desktop Processors, Socket AM5 |
| Memory | 4x DDR5 UDIMM, Max 256GB, 8200-5600 (OC) MT/s, 5600-4800 (JEDEC) MT/s |
| Memory Overclocking | Ryzen™ 9000 Series: 1DPC 1R up to 8200+ MT/s, 1DPC 2R up to 6400+ MT/s, 2DPC 1R up to 6400+ MT/s, 2DPC 2R up to 6000+ MT/s Supports AMD POR Speed, JEDEC Speed, Memory Overclocking, AMD EXPO™, Dual-Channel, Non-ECC, Un-buffered, CUDIMM (Clock Driver bypass mode only*) |
| Onboard Graphics | 1x HDMI™ 2.1 (4K 60Hz*), 1x DisplayPort 1.4 (4K 60Hz*) *Available only on processors with integrated graphics |
| PCI-E Slots | 2x PCI-E x16, 1x PCI-E x1: PCI_E1 (PCIe 5.0 x16), PCI_E2 (PCIe 3.0 x1), PCI_E3 (PCIe 4.0 x4) PCI_E1: Supports PCIe 5.0 x16 (Ryzen™ 9000/7000), PCIe 4.0 x8 (Ryzen™ 8700/8600/8400), PCIe 4.0 x4 (Ryzen™ 8500/8300) |
| Audio | Realtek® ALC897, 7.1-Channel High Definition Audio |
| Storage | 2x M.2: M.2_1 (PCIe 5.0 x4, 2280/2260), M.2_2 (PCIe 4.0 x4, 2280/2260) 4x SATA 6G |
| RAID | RAID 0, 1, 10 for SATA; RAID 0, 1 for NVMe |
| USB | Rear: 3x USB 5Gbps Type-A, 3x USB 10Gbps Type-A, 2x USB 10Gbps Type-C Front: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C |
| LAN | Realtek® 8126 5G LAN |
| Internal I/O | 1x ATX_PWR, 2x CPU_PWR, 1x PCIE_PWR 8pin, 1x CPU Fan, 1x Combo Fan, 3x System Fan, 2x Front Panel, 1x Chassis Intrusion, 1x Front Audio, 1x Com Port, 1x Tuning Controller, 3x ARGB V2, 1x RGB, 1x TPM pin header, 4x USB 2.0, 2x USB 5Gbps, 1x USB 10Gbps Type-C |
| Wireless LAN & Bluetooth | Wi-Fi 7 (2.4GHz/5GHz/6GHz, up to 2.9Gbps), Bluetooth® 5.4*, MLO, 4KQAM *6GHz and Bluetooth 5.4 require Windows 11 24H2 |
| LED Features | 4x EZ Debug LED, 1x EZ Memory Detection LED |

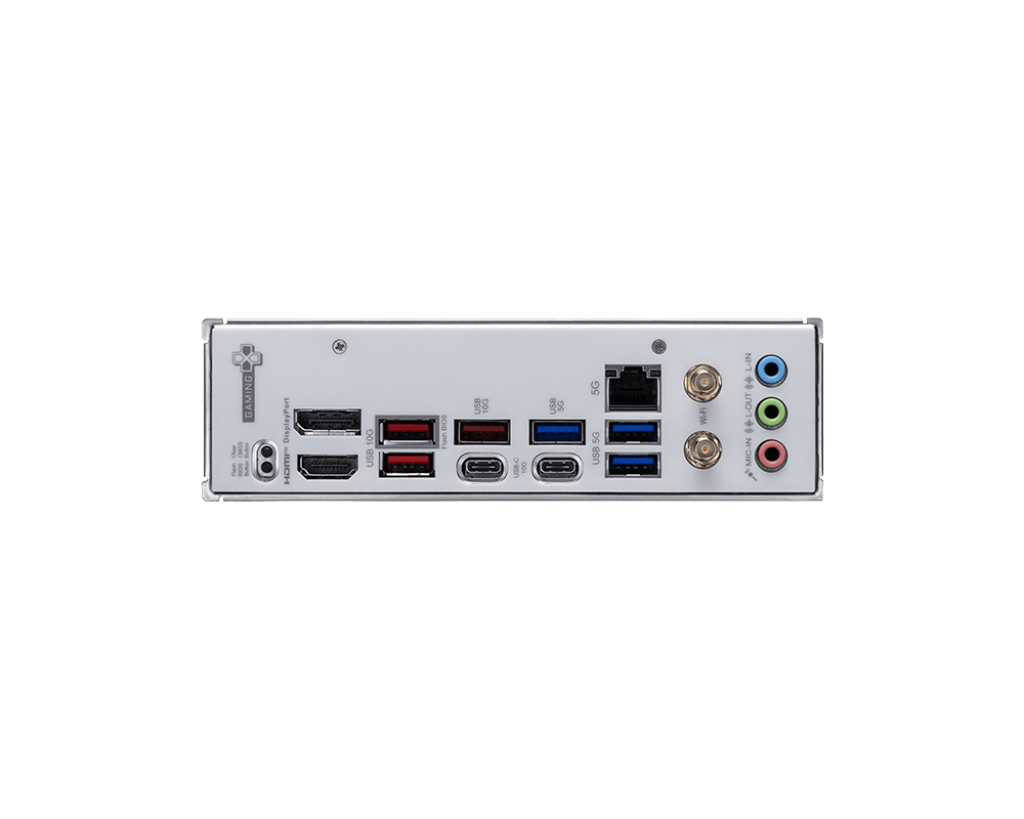

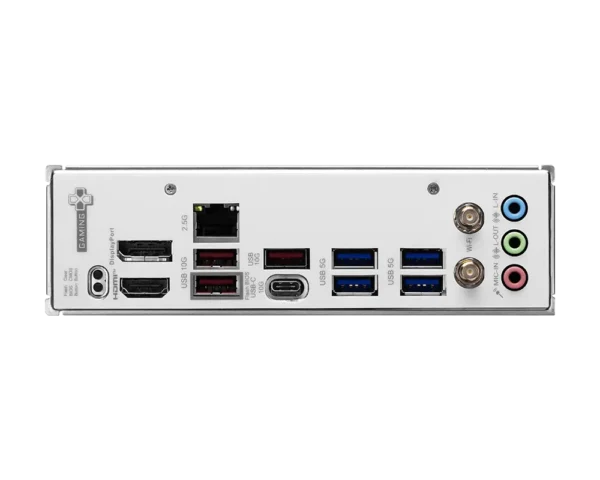

| Back Panel Ports | Clear CMOS Button, DisplayPort 1.4, 2x USB 5Gbps Type-A, 2x USB 10Gbps Type-A, 1x USB 10Gbps Type-C, 5G LAN, Wi-Fi/Bluetooth, HD Audio Connectors, Flash BIOS Button, HDMI™, 1x USB 5Gbps Type-A |
| Operating System | Windows® 11 64-bit |
| PCB Info | mATX, 243.84mm x 243.84mm |
Additional information
| Weight | 1.7 kg |
|---|---|
| Dimensions | 31 × 29 × 8 cm |
| Brand | MSI |
| Socket | AM5 CPU |
| Desktop RAM | DDR5 |
