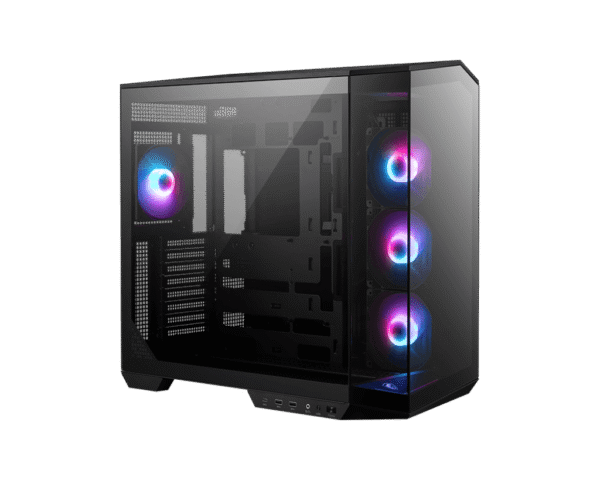

MSI MAG PANO 100R PZ Mid-Tower Gaming Case ATX Micro-ATX Tempered Glass ARGB – MAG PANO 100R PZ
Original price was: ₱7,460.00.₱6,495.00Current price is: ₱6,495.00.
- 270-degree panoramic tempered glass for vibrant ARGB display
- Three 120 mm ARGB reverse-blade fans and one rear ARGB fan
- Supports 360 mm radiators on top, side, and bottom
- Tool-free removable panels with anti-lost thumbscrews
- Compatible with ATX and Micro-ATX back-connect motherboards
- USB 3.2 Gen 2×2 Type-C for 20 Gbps connectivity
- Removable dust filters for easy maintenance
- Metal nameplate for premium aesthetic
- SKU: MAG PANO 100R PZ
In stock
Price Drop Alerts & Price History
-
Authorized
Dealer -
Nationwide
Shipping -
Store &
RMA HUB -
Expert
Support -
7-Day DOA
Protection -
Community
Trusted -
Turnstile
Protected -
reCAPTCHA
Secured -
Tested &
Verified
MSI MAG PANO 100R PZ Mid-Tower Gaming Case
The MSI MAG PANO 100R PZ embodies the rugged spirit of the MSI ARSENAL GAMING series, delivering a mid-tower chassis that combines military-inspired durability with stunning aesthetics. Its 270-degree panoramic tempered glass display showcases vibrant ARGB lighting and internal components with exceptional clarity, enhanced by chamfered 4 mm glass panels that minimize edge gaps for a sleek look. Three 120 mm ARGB reverse-blade side fans and one rear ARGB fan, paired with a 1-to-4 ARGB control board and MSI Mystic Light compatibility, offer customizable lighting effects to elevate your build. Optimized for cooling, the case supports 360 mm radiators on the top, side, and bottom, with push-pull configuration flexibility. Tool-free removable panels and anti-lost thumbscrews simplify installation, while support for ATX and Micro-ATX back-connect motherboards and GPUs up to 400 mm ensures robust hardware compatibility. A USB 3.2 Gen 2×2 Type-C port delivers 20 Gbps high-speed connectivity, and removable dust filters at the top, side, and bottom maintain a clean interior. Adorned with a metal nameplate, this case blends bold design with practical functionality for an elite gaming experience.
| Specification | MAG PANO 100R PZ |
|---|---|
| Case Form Factor | Mid Tower |
| Motherboard Form Factor Support | Regular: ATX / Micro-ATX / Mini-ITX, Back-connect: ATX / Micro-ATX |
| I/O Ports | 1 x USB 3.2 Gen 2x2 Type-C (20Gbps), 2 x USB 3.2 Gen 1 Type-A (5Gbps), 1 x Audio-Out / Mic-in, 1 x LED Switch Button, 1 x Power Button |
| Drive Mount Support | 3 x 2.5", 2 x 2.5"/3.5" combo |
| Expansion Slots | 8 |
| Maximum GPU Length | 400 mm / 15.75 inches |
| Maximum CPU Cooler Height | 166 mm / 6.54 inches |
| Power Supply Support | ATX |
| Maximum PSU Length | 200 mm / 7.87 inches |
| Fan Size Support | Top: 3 x 120 mm / 3 x 140 mm Rear: 1 x 120 mm Side: 3 x 120 mm / 2 x 140 mm Bottom: 3 x 120 mm / 2 x 140 mm / 2 x 160 mm |
| Pre-installed Fan Size | Side: 3 x 120 mm Rear: 1 x 120 mm |
| Pre-installed Fan Type | Side: 3 x ARGB Reverse-blade Rear: 1 x ARGB |
| Radiator Size Support | Top: 120 / 240 / 360 mm Rear: 120 mm Side: 120 / 240 / 360 mm Bottom: 120 / 240 / 360 mm |
| Dimensions (DxWxH) | 518.7 x 290 x 482 mm / 20.42 x 11.42 x 18.98 inches |
| Weight | 15 kg |
|---|---|
| Dimensions | 52 × 30 × 49 cm |
| Brand | MSI |
