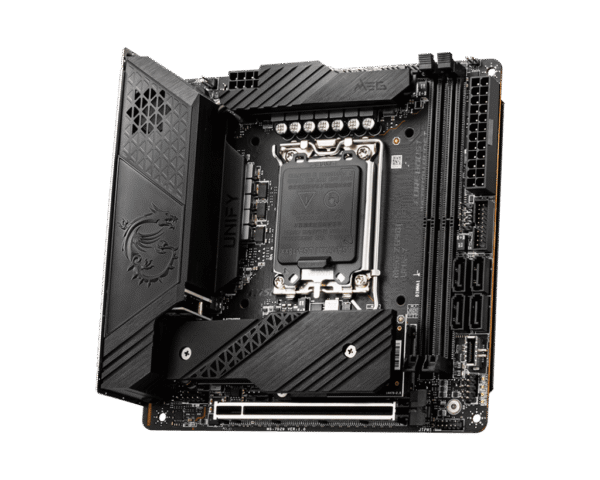

MSI MEG Z690I UNIFY Motherboard Intel Z690 LGA 1700 DDR5 96GB PCIe 4.0 Thunderbolt 4 Wi-Fi 6E Mini-ITX – MEG Z690I UNIFY
₱23,890.00Original price was: ₱23,890.00.₱20,780.00Current price is: ₱20,780.00.
Supports 12th/13th/14th Gen Intel Core, Pentium Gold, Celeron (LGA 1700)
2x DDR5 up to 96GB, 6800+ MHz (OC), Dual-Channel
Direct 10+1+1 phases, 105A Smart Power Stage, Titanium Choke III
Frozr Heatsink, VRM heat-pipe, M.2 Shield Frozr for cooling
3x M.2 (2x Lightning Gen 4), 4x SATA 6Gb/s, RAID 0/1/5/10
Dual Thunderbolt 4 (40Gbps), Wi-Fi 6E, 2.5G LAN
Audio Boost 5 with Realtek ALC4080 Codec, 7.1-channel
12-layer server-grade PCB, HDMI, DisplayPort
Mini-ITX form factor, SKU: MEG Z690I UNIFY
In stock
ℹ️
For walk-in customers: please always INQUIRE FIRST before visiting as not all items are displayed in our physical store. As an online-first store, most of our inventory is held in our online warehouse and is transferred to the store upon request.
MSI MEG Z690I UNIFY Motherboard Intel Z690 LGA 1700 DDR5 96GB PCIe 4.0 Thunderbolt 4 Wi-Fi 6E Mini-ITX - MEG Z690I UNIFY
Price Drop Alerts & Price History
⚠️ That's a steep drop! You might be waiting a while.
We'll notify you the moment the price hits your target.
The MSI MEG Z690I UNIFY motherboard is a compact powerhouse designed for extreme performance, supporting 12th, 13th, and 14th Gen Intel Core, Pentium Gold, and Celeron processors on the LGA 1700 socket. Its Mini-ITX form factor supports up to 96GB of DDR5 memory at 6800+ MHz with overclocking, optimized by Memory Boost and XMP 3.0 for world-class speed and stability, ideal for extreme overclocking. The premium power design, featuring direct 10+1+1 phases with 105A Smart Power Stage and Titanium Choke III, maximizes processor performance. Advanced cooling with Frozr Heatsink, VRM heat-pipe, aluminum cover, M.2 Shield Frozr, and aluminum backplate ensures low temperatures during intense workloads. Three M.2 slots, including two Lightning Gen 4, paired with four SATA 6Gb/s ports and RAID support, deliver high-speed storage. Connectivity shines with dual Thunderbolt 4 ports at 40Gbps, Intel Wi-Fi 6E, and 2.5G LAN for lag-free networking. Audio Boost 5 with Realtek ALC4080 Codec provides immersive 7.1-channel sound, while the 12-layer server-grade PCB ensures durability, making this motherboard perfect for compact, high-performance gaming and professional builds.
2x DDR5, up to 96GB, 6800+(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHz, Dual-Channel
Onboard Graphics
1x HDMI, 1x DisplayPort, DirectX 12
Expansion Slots
1x PCIe x16
Audio
Realtek ALC4080 Codec, 7.1-Channel High Definition Audio
Storage
3x M.2 (2x Lightning Gen 4), 4x SATA 6Gb/s, RAID 0/1/5/10
USB
1x USB 3.2 Gen2x2 Type C (Front), 2x USB 3.2 Gen1 Type A (Front), 2x USB 3.2 Gen2 Type A (Rear), 4x USB 3.2 Gen1 Type A (Rear), 2x USB 2.0 (Front)
LAN
2.5G LAN with LAN Manager
WiFi & Bluetooth
Intel Wi-Fi 6E module
Thunderbolt
2x Thunderbolt 4 USB Type-C (40Gbps, 8K display, 5V/3A charging), 2x Mini DisplayPort input

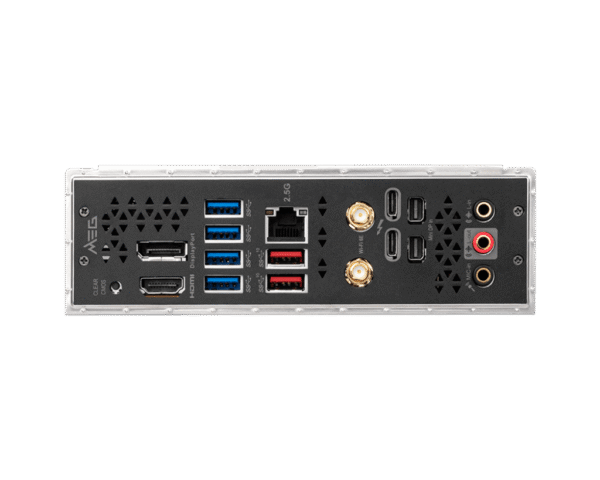

Back Panel Ports
HDMI, DisplayPort, 2x Thunderbolt 4 Type-C, 2x USB 3.2 Gen2 Type A, 4x USB 3.2 Gen1 Type A, 7.1-Channel Audio ports, LAN
Operating System
Windows 11 64-bit, Windows 10 64-bit
Form Factor
Mini-ITX, 6.7 in. x 6.7 in. (17.0 cm x 17.0 cm)
Weight
1.4 kg
Dimensions
24 × 20 × 9 cm
Brand
MSI
Desktop RAM
DDR5
Socket
LGA 1700 CPU
