MSI PRO B860-P WIFI mATX Motherboard for Intel Core Ultra Series 2, DDR5 8800+ MT/s, Wi-Fi 7, Thunderbolt 4, PCIe 5.0 M.2 – PRO B860-P WIFI
- Silver mATX motherboard for Intel Core Ultra (Series 2) CPUs (SKU: PRO B860-P WIFI)
- Supports DDR5 up to 8800+ MT/s with Memory Boost and XMP
- Wi-Fi 7, 5G LAN, and Thunderbolt 4 for ultra-fast connectivity
- Frozr AI Cooling with extended heatsink, M.2 Shield Frozr, and 7W/mK thermal pads
- 12+1+1+1 Duet Rail Power System with Core Boost for robust performance
- DIY-friendly with EZ PCIe Clip II, EZ M.2 Clip II, and EZ Antenna
- Audio Boost with 7.1-channel Realtek ALC897 codec
- Mystic Light RGB for customizable lighting effects
Description
The MSI PRO B860-P WIFI motherboard combines professional elegance with a sleek silver design, seamlessly blending with white and black PC builds. Optimized for Intel Core Ultra processors (Series 2) with the LGA 1851 socket, this mATX motherboard delivers exceptional performance through a 12+1+1+1 Duet Rail Power System with Core Boost and 8+4-pin connectors. It supports DDR5 memory up to 8800+ MT/s with MSI Memory Boost and XMP for high-speed and stable operation. The Frozr AI Cooling system, featuring an extended heatsink, M.2 Shield Frozr, and 7W/mK thermal pads, ensures efficient cooling for demanding workloads. Connectivity is unparalleled with Wi-Fi 7, 5G LAN, and Thunderbolt 4, enhanced by AI LAN Manager for low-latency networking. Audio Boost with Realtek ALC897 provides immersive 7.1-channel sound. DIY enthusiasts benefit from EZ PCIe Clip II, EZ M.2 Clip II, EZ Antenna, and a pre-installed I/O shield for easy assembly, while Mystic Light RGB offers vibrant lighting customization. Built with a 6-layer server-grade PCB and supplemental PCIe power, this motherboard ensures durability and efficiency for gaming and AI applications.
| Specification | PRO B860-P WIFI |
|---|---|
| Brand | MSI |
| Chipset | Intel B860 |
| CPU Support | Intel Core Ultra Processors (Series 2, LGA 1851) |
| Memory | 4x DDR5 UDIMM, up to 256GB, 8800+ MT/s (OC) |
| Graphics | 1x HDMI 2.1 (4K 60Hz), 1x DisplayPort 1.4 (4K 60Hz), 1x Type-C DisplayPort (Thunderbolt 4, 4K 120Hz/8K 60Hz) |
| Expansion Slots | 4x PCIe x16 (1x Gen 5.0 x16, 2x Gen 4.0 x1, 1x Gen 4.0 x4) |
| Storage | 3x M.2 (1x PCIe 5.0 x4, 1x PCIe 4.0 x4, 1x PCIe 4.0 x2), 4x SATA 6G |
| RAID | RAID 0, 1, 5, 10 for SATA storage devices |
| Thunderbolt | 1x Thunderbolt 4 (40Gbps, supports USB4 20Gbps, USB 3.2 10Gbps, 5V/3A charging, up to 8K display) |
| USB | 6x USB 2.0, 6x USB 5Gbps Type A, 1x USB 5Gbps Type C, 1x USB 10Gbps Type A, 1x USB 10Gbps Type C |
| LAN | Realtek 8126 5Gbps LAN |
| Wireless | Intel Wi-Fi 7 (2.4/5/6GHz, 5.8Gbps), Bluetooth 5.4 |
| Audio | Realtek ALC897, 7.1-Channel High Definition Audio |
| Internal I/O | 1x Thunderbolt5 card connector, 1x ATX_PWR, 2x CPU_PWR, 1x PCIe_PWR 8pin, 1x CPU Fan, 1x Combo Fan, 3x System Fan, 2x Front Panel, 1x Chassis Intrusion, 1x Front Audio, 1x Com Port, 1x Tuning Controller, 2x ARGB V2, 1x RGB, 1x TPM, 9x USB ports |

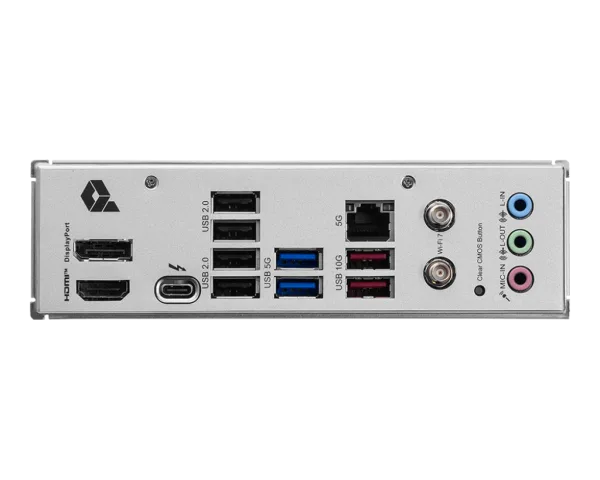

| Back Panel Ports | DisplayPort, HDMI, Thunderbolt 4 Type-C, 2x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 5Gbps Type-C, 1x USB 10Gbps Type-A, 5G LAN, Wi-Fi/Bluetooth, Audio Connectors, Clear CMOS Button |
| LED Features | 4x EZ Debug LED, 1x EZ Memory Detection LED |
| Form Factor | mATX (243.84mm x 243.84mm) |
| Operating System | Windows 11 64-bit |
Additional information
| Weight | 1.54 kg |
|---|---|
| Dimensions | 36 × 28 × 8 cm |
| Brand | MSI |
| Desktop RAM | DDR5 |
| Socket | LGA 1851 CPU |
